Overhead console write up yj

Ok so I built an overhead console for my YJ, but the idea could be used with any CJ or TJ. I thought I would put my ideas and pics of the process as it went along so so maybe people wanting to pursue something like this might get some ideas.

First off I made a frame of 1.25" square tubing going from the windshield frame at the appropriate angle and coming up snug to the roll bar.

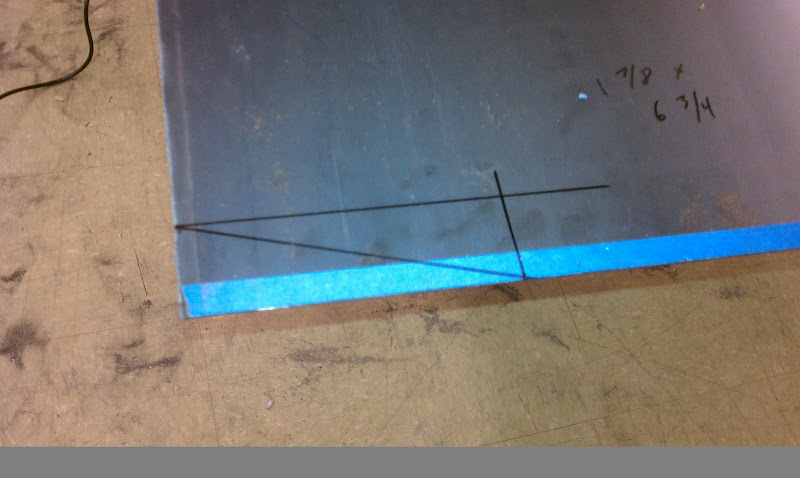

Then I cut out the bottom plate out of sheet metal



with the plasmaaaaaaa



So I first mocked up a peice of sheet metal with the type of drop I wanted for my head unit and CB and scanner



Then I measured up and drew up my cut outs for my devices. minus the scanner at this point



then measured and cut out with the plasma the sides for the drop downs

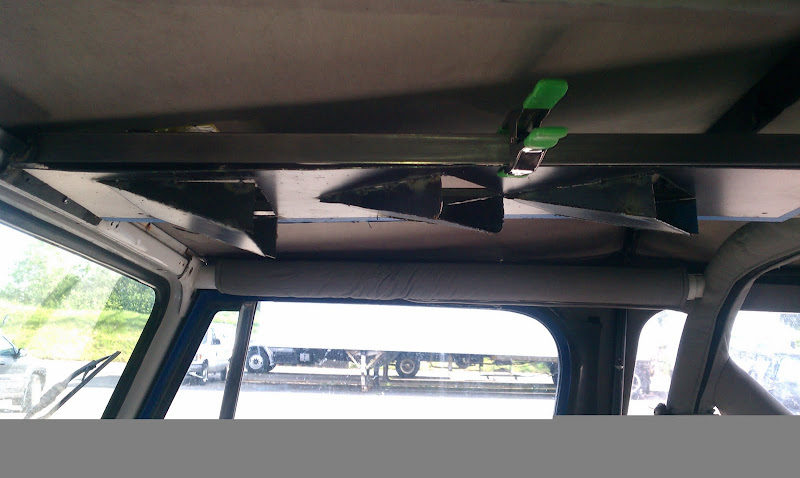

mocked up and tacked up the final positions for the drop downs for the devices with the sides tacked on



welded it up and hit it with some bedliner

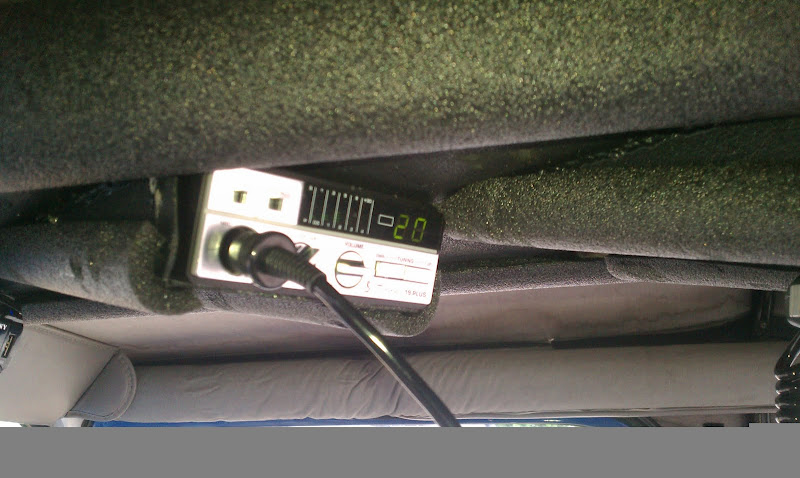

with the goodies in it





with all that metal above my head i decided to pad it up with some pipe insulation



please excuse the glue in these pics











so thats it! im really happy with how everything turned out. any questions let me know
