Unread 02-04-2011, 03:45 PM   #106
ldso
abidin'

ldso's Avatar
1995 YJ Wrangler

Join Date: Sep 2009
Location: Columbus, Ohio
Posts: 1,021
This thread is awesome. Very humbling for us newbies.

Here I put my exhaust back together with a stick of 7014 and a 110v AC stick welder from Harbor Freight.

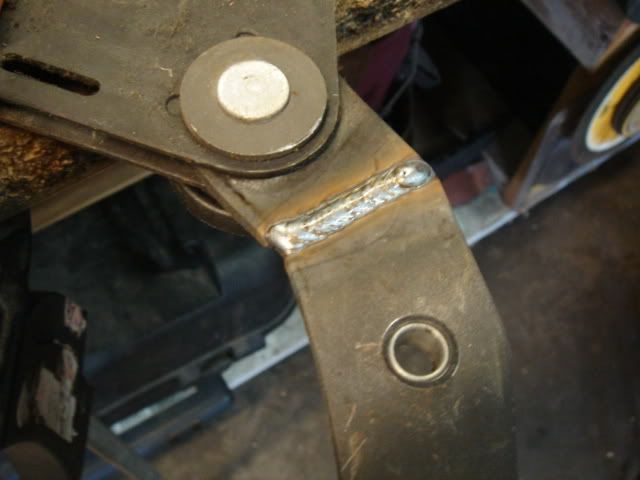

And one of the braces on my cargo rack.


Every piece that I weld I learn more. Sometimes I realize that I have to go back and re-do everything else I've welded...

__________________
1995 YJ "Mabel", 2.5L Muncie SM465 np231j 4.88's HP30 Lockright JK 44 Detroit 33s CJ clip

Actually, it's pronounced "mill-e-wah-que" which is Algonquin for "the good land."
ldso is offline   Reply With Quote Quick reply to this message
Unread 02-06-2011, 03:00 PM   #107
jose_p_adams
Registered User
1997 TJ Wrangler

Join Date: Dec 2009
Location: PA
Posts: 386



Done with a MM211 1/8" to 1/8".
jose_p_adams is offline   Reply With Quote Quick reply to this message
Unread 02-07-2011, 01:26 PM   #108
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
Quote:
Originally Posted by BESRK View Post
Dude.. you don't count... you have a whole sticky dedicated to your welding.. J/K Awesome work as usual!!
. These aren't part of that project. Thanks much!

High Pinion Dana 44 truss/link bridge for a 4-link project I am working on:

__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/f37/dez-racer-xj-build-367176/
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-10-2011, 10:37 PM   #109
youngjeepr
Registered User
1988 YJ Wrangler

Join Date: Aug 2009
Location: layton UT
Posts: 2,272

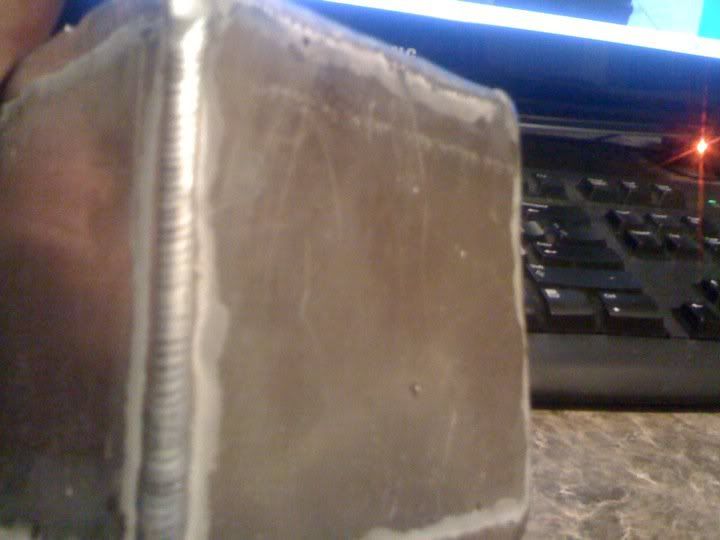

sorry for the crappy pic but i only have my phone camera
youngjeepr is offline   Reply With Quote Quick reply to this message
Unread 02-11-2011, 09:27 AM   #110
86cj7pete622
Registered User
1986 CJ7

Join Date: Sep 2008
Location: New York, NY
Posts: 73
Too young to weld???

My 6 year old son has been watching me weld my CJ together and one day he wanted to try it. I have a short video on youtube showing him weld two small peices of 3/16" rod together.
Now he just wants to keep on welding! Any other proud dads out there? Anyone see any issues with a 6yo trying? I take all safety precautions (well vented, no skin showing, etc). A picture of his spot weld is at the end of the video.

I just switched over to gas (75/25) 3 months ago after using flux for 3-4 years. I somewhat had the stacked dime look going on with flux but now seem to be back at square one with gas (heck of a lot less spatter now)...it's all about practice. I have a Lincoln, 120v 3200HD Weld-pak that I bought at HomeDepot, I'm very happy with it. I'll get some pics on here one day.

Thanks,
Pete. 86 CJ7, 258, 4"BDS, 33", currently in a million pieces
86cj7pete622 is offline   Reply With Quote Quick reply to this message
Unread 02-11-2011, 09:33 AM   #111
SGTCornewell
Registered User
2002 KJ Liberty

Join Date: Dec 2010
Location: INDIANAPOLIS, IN
Posts: 273
i see no issues at all. you are taking the time to engrain the importance of safe welding. if he learns it this way he wont be tempted to do small welds without a helmet or try using sun glasses. i think its a great thing and nothing less. i first welded when i was 10 and loved it. i still weld as good as any 10 year old but im always willing to learn new tricks.
SGTCornewell is offline   Reply With Quote Quick reply to this message
Unread 02-11-2011, 11:30 AM   #112
webdog
DirtBound Offroad

webdog's Avatar
1990 XJ Cherokee

Join Date: Sep 2007
Location: Lost Angeles, CA
Posts: 1,549
webdog is offline   Reply With Quote Quick reply to this message
Unread 02-14-2011, 07:40 PM   #113
TheNewbie
Registered User
1995 YJ Wrangler

Join Date: Oct 2008
Location: Grand Jct, CO
Posts: 2,968
They're not professional looking welds... but I thought it came out pretty well for using a cheap harbor freight flux core welder.



You can see the build thread here:
http://www.jeepforum.com/forum/f12/t...thread-1166833
__________________
1995 YJ 2.5 - 4 RC lift - 1" MML - 33's - flat fenders front - TJ flares rear -Raptor lined exterior - Herc'd interior - DIY front bumper & winch plate - 136 amp alternator mod - 4.0 TB swap

My build thread...
I've got a shotgun, a rifle and a four wheel drive...
TheNewbie is offline   Reply With Quote Quick reply to this message
Unread 02-16-2011, 01:06 PM   #114
Cherokee-at-16
Registered User
2000 XJ Cherokee

Join Date: Oct 2009
Location: Milford, CT
Posts: 1,041

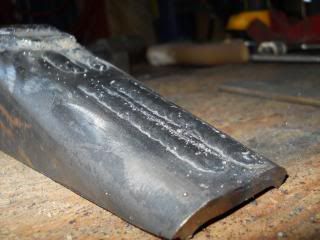

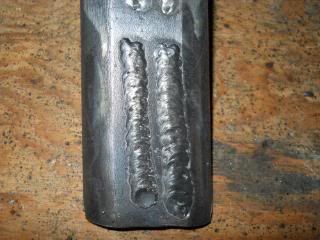

Here are some of mine. Lincoln 140, using flux core on some 1/4 tubing. I hate flux core, slag everywhere. I bought my welder about 6 months ago.

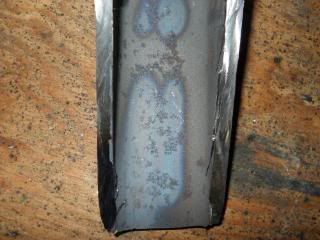

What do you think about this next picture. My welders max is supposed to be 1/4 inch. How does the penetration look? Is there anyway to tell from a picture like this?
__________________
2000 Cherokee Sport Build: http://www.jeepforum.com/forum/f22/2000-xj-build-slow-uneventful-1162913/
Cherokee-at-16 is offline   Reply With Quote Quick reply to this message
Unread 02-16-2011, 01:23 PM   #115
Wintermute
Registered User
1967 FSJ Gladiator

Join Date: Dec 2010
Location: Woodinville, WA
Posts: 271
Quote:
Originally Posted by Cherokee-at-16 View Post
What do you think about this next picture. My welders max is supposed to be 1/4 inch. How does the penetration look? Is there anyway to tell from a picture like this?
A better way to check would be to take two pieces of 1/4" plate, bevel the edges down (around 32* bevel on each will work well). Weld them first in a single pass, cut the plates across so that you can see a cross section of the weld. Sand and polish that and it will let you see how good the penetration.

--Wintermute
__________________
"No man's knowledge here can go beyond his experience." - John Locke
"Vi Et Armis" - Cicero
Wintermute is offline   Reply With Quote Quick reply to this message
Unread 02-16-2011, 01:38 PM   #116
Cherokee-at-16
Registered User
2000 XJ Cherokee

Join Date: Oct 2009
Location: Milford, CT
Posts: 1,041
Quote:
Originally Posted by Wintermute View Post
A better way to check would be to take two pieces of 1/4" plate, bevel the edges down (around 32* bevel on each will work well). Weld them first in a single pass, cut the plates across so that you can see a cross section of the weld. Sand and polish that and it will let you see how good the penetration.

--Wintermute
Cut, sand, and polish with what? Never sanded or polished metal before.
I usually cut with an angle grinder, will that distort anything?
__________________
2000 Cherokee Sport Build: http://www.jeepforum.com/forum/f22/2000-xj-build-slow-uneventful-1162913/
Cherokee-at-16 is offline   Reply With Quote Quick reply to this message
Unread 02-16-2011, 02:59 PM   #117
Wintermute
Registered User
1967 FSJ Gladiator

Join Date: Dec 2010
Location: Woodinville, WA
Posts: 271
Quote:
Originally Posted by Cherokee-at-16 View Post
Cut, sand, and polish with what? Never sanded or polished metal before.
I usually cut with an angle grinder, will that distort anything?
go ahead and cut it with an angle grinder, that won't be a problem, just make sure the cut is straight and clean. Then sand it down smooth and polish it down with sand paper until you get down to about 400grit. After that you may be able to see the difference in metal color which will show the penetration level into the substrate metal. If you still can't see the difference, you may need to polish more or even etch it with some Ferric Chloride (PCB etchant...available at Fry's, radio shack, etc...).

Since you'll be able to see the penetration, it will show you how well the weld worked on it's max thickness material. What I can tell you is that without bevelling, you aren't going to have penetrated all the way through the material at all. Even on my Millermatic 210, I probably wouldn't penetrate all the way through the two plates if they weren't bevelled and I was set on max heat.

--Wintermute
__________________
"No man's knowledge here can go beyond his experience." - John Locke
"Vi Et Armis" - Cicero
Wintermute is offline   Reply With Quote Quick reply to this message
Unread 02-16-2011, 03:15 PM   #118
Ironworker709
Moderator

Ironworker709's Avatar
1995 YJ Wrangler

Join Date: Nov 2006
Location: Millen Area,Georgia
Posts: 3,349
A couple reads on types of weld tests and some products to use for an acid etch test so we don;t get too far off subject in the thread..

http://www.welding-technology-machin.../etch-test.htm

http://www.angelfire.com/my/welding/test.html

Most don't understand that just because a welder advertises 1/4" max..does NOT mean it will burn a pass through 1/4" of steel in one pass with no beveling.
That is there to tell you that they only recommend welding 1/4" base metal because any thicker than that it is recomended to use a preheat because the machine just simply does not put out enough heat/amperage to prevent the Heat Sink Effect and penetration needed.
__________________
Don't DREAM your life, LIVE your dreams

Never forget 9/11

"Welding is like a woman,Get 'er HOT and Penetrate"

Gotta LOVE a person who knows everything about NOTHING

The only Thing necessary for the Evil to win is a good man to do nothing....

"How far you go in life depends on your being tender with the young,compassionate with the aged,sympathetic with the striving,and tolerant with the weak and strong--because someday YOU will have been all of these"....George Washington Carver

Want to know what an Ironworker is and the job scope of a Journeyman?..click here...http://www.ironworkers.org/becoming/careers.aspx
Ironworker709 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2011, 09:30 AM   #119
35sUnlimited
Registered User
2004 TJ Wrangler

Join Date: Sep 2004
Location: Panhandle of Fl
Posts: 704
Lincoln 125 mig.

My best yet and wish they all looked this way:

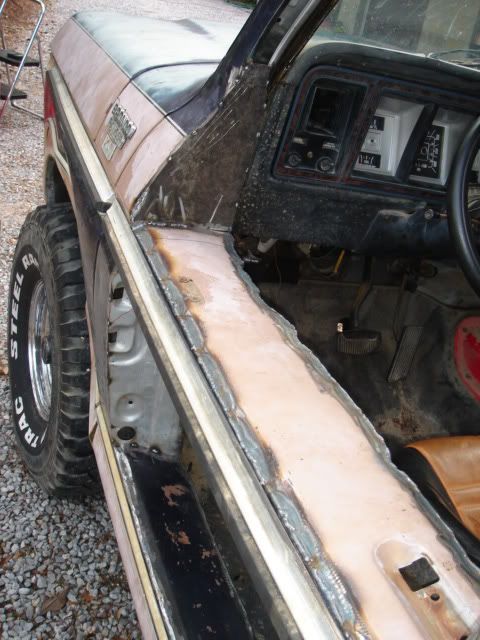

Biggest learning experience was this sheet metal project:

35sUnlimited is offline   Reply With Quote Quick reply to this message
Unread 02-23-2011, 08:56 PM   #120
99TJSahara
Registered User
1999 TJ Wrangler

Join Date: Jan 2009
Location: Gurnee, IL
Posts: 1,707

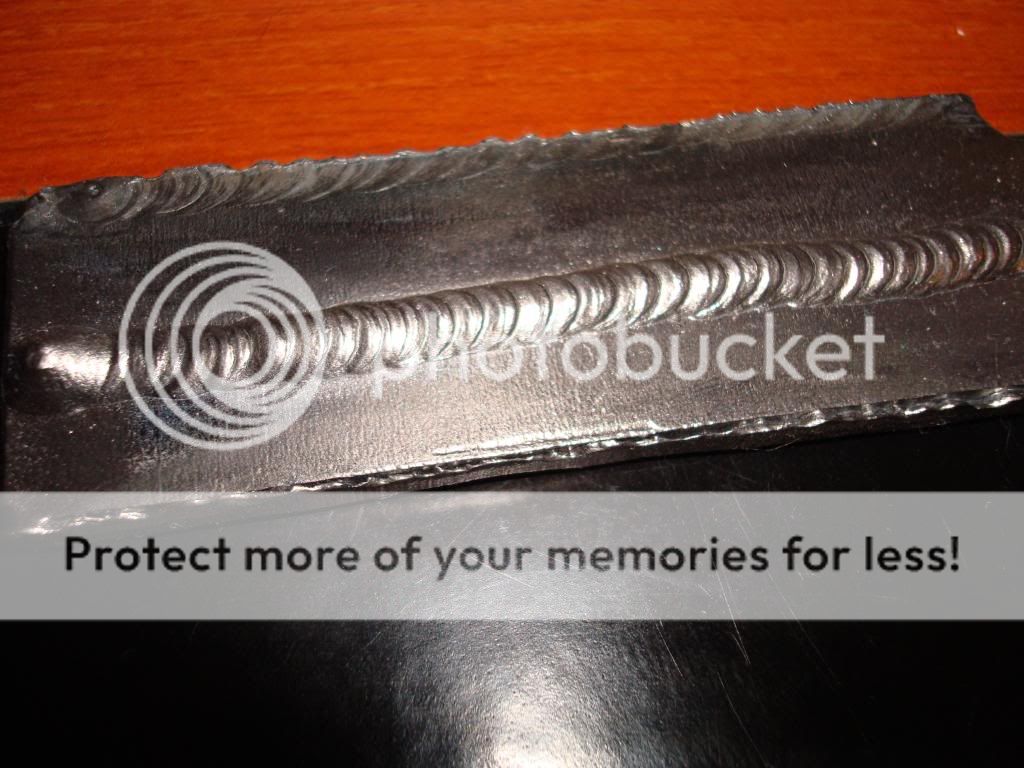

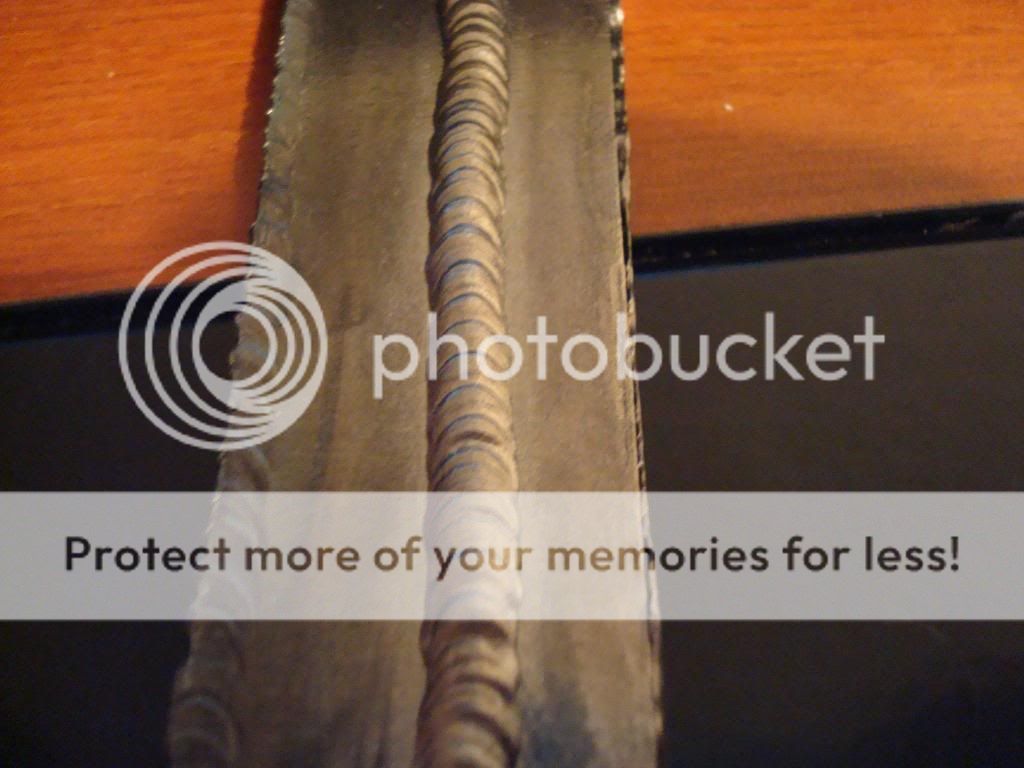

Here's one of my practice tig beads.



__________________
-Joey
99 Wrangler Sport
04 Grand Cherokee Overland
99 Wrangler Sahara-sold
99TJSahara is offline   Reply With Quote Quick reply to this message
