Unread 03-30-2014, 10:09 AM   #706
kdukes4
Registered User
2004 TJ Wrangler

Join Date: Apr 2009
Location: Boston, MA
Posts: 300
Quote:
Originally Posted by zephyr80 View Post
No, there is a greater chance of getting slag inclusions. Flux Core should be uphill only in the vertical position.
ty

Quote:
Originally Posted by rixcj View Post
When welding uphill vertical, angle the mig gun upward about 10 degrees, or so. It is recommended to weave (zig-zag) side to side, while moving up the joint (approximately 3/8" - 1/2" wide). It's important to pause momentarily at the end of each weave ( "holding the sides"). If you don't let the sides fill with weld, you may get undercut along the "toes" of the bead.


Also, don't go slow across the middle....that'll result in a "high crown" on the bead.


So, to summarize, weave diagonally from side to side ( holding the sides momentarily) and go a little quickly across the middle of the weave. Uphill vertical takes quite a bit of practice to master.


Rich
I'll give that a go. when joining 1/8" to 3/16" on a filet/T joint, should I change any of the above to account for possible burn though?

__________________
'04 tj, Outboarded
kdukes4 is offline   Reply With Quote Quick reply to this message
Unread 03-30-2014, 03:46 PM   #707
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,717
Quote:
Originally Posted by kdukes4 View Post
ty



I'll give that a go. when joining 1/8" to 3/16" on a filet/T joint, should I change any of the above to account for possible burn though?
Did you get burn through on your other welds?

Vertical uphill on 1/8" to 3/16" is challenging. The suggestions that I gave in my last post was general advice for welding thicker material.

In your case, the method that you used previously (in the picture), should work fine. Vertical up has great digging power and strength. I can guarantee you that your pieces will not break. They look pretty good.

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote Quick reply to this message
Unread 03-30-2014, 05:00 PM   #708
kdukes4
Registered User
2004 TJ Wrangler

Join Date: Apr 2009
Location: Boston, MA
Posts: 300
Quote:
Originally Posted by rixcj View Post
Did you get burn through on your other welds?

Vertical uphill on 1/8" to 3/16" is challenging. The suggestions that I gave in my last post was general advice for welding thicker material.

In your case, the method that you used previously (in the picture), should work fine. Vertical up has great digging power and strength. I can guarantee you that your pieces will not break. They look pretty good.

Rich
Thanks Rich, I had some pieces of 1/8" hanging around that I also practiced on with 3/16" to simulate the actual project and only reached a bit of burn through at the top of the bead when I held too long finishing my line. I'll keep practicing(with new gloves ) appreciate the feedback.
__________________
'04 tj, Outboarded
kdukes4 is offline   Reply With Quote Quick reply to this message
Unread 04-01-2014, 03:10 AM   #709
jaspepp
Registered User
2001 TJ Wrangler

Join Date: Jul 2008
Location: boise, ID
Posts: 378
When welding two pieces of dissimilar thickness together focus more of the puddle/heat on the heavier piece. Upill welding can be tough no matter what process is used. Like rixcj said, hold the edges of the weld to help eliminate undercut and simply skip across the middle. The "weave" shouldn't need to be much wider than the material thickness. The only way to get good at welding is to make a lot of scrap first. They're looking good so far, keep at it!
__________________
"Idaho sucks!!!! Tell California"
jaspepp is offline   Reply With Quote Quick reply to this message
Unread 04-02-2014, 10:44 PM   #710
XJTexas
Registered User

Join Date: Feb 2014
Posts: 63
Made some 3" homebrew sway bar links from my stock XJ links and my brothers old JK links. I think the welds look good for a mig welder job. The outer sleeves are .188" thick 4130




XJTexas is offline   Reply With Quote Quick reply to this message
Unread 04-02-2014, 11:50 PM   #711
Dumpsterfish
Senior Member

Dumpsterfish's Avatar
2001 TJ Wrangler

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 781
Not exactly jeep related, but made up a "dual shorty exhaust" for my BBQ...





Sent from my iPhone using JeepForum
__________________
'01 TJ...stock
'89 YJ...SOLD
'95 YJ...SOLD
'13 JKUS...SOLD
Dumpsterfish is offline   Reply With Quote Quick reply to this message
Unread 04-07-2014, 07:04 AM   #712
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
"Zoomies" for a BBQ.. love it!!
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 04-18-2014, 05:37 PM   #713
kdukes4
Registered User
2004 TJ Wrangler

Join Date: Apr 2009
Location: Boston, MA
Posts: 300
outboard project up-hill shot on .035 flux

__________________
'04 tj, Outboarded
kdukes4 is offline   Reply With Quote Quick reply to this message
Unread 04-21-2014, 11:17 AM   #714
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester, CA
Posts: 4,464

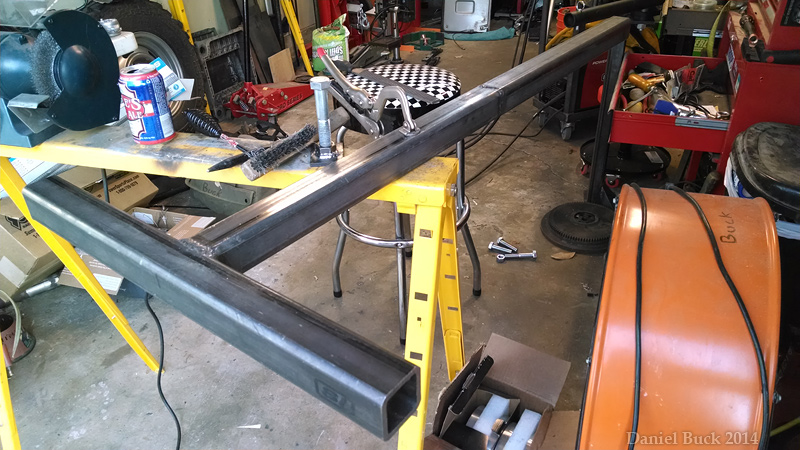

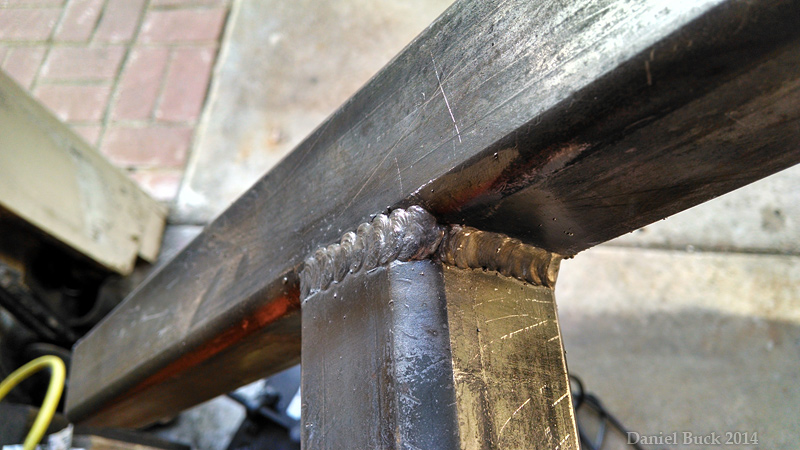

some flux core multi-pass. A bit to left, right, left, right looking for what I was hoping for on the top pass.

I'm starting to like the flux core welding, I think Ive finally found some good wire speed settings. I think before I always had the wire speed to fast. Now that I've got it figured out (I think, haha!) I think I'll write it down and leave that inside the welder.




__________________
Daniel Buck - [URL="http://www.danielbuck.net"]www.DanielBuck.net[/URL] - [URL="http://www.dnsfail.com"]www.DNSFAIL.com[/URL]
danielbuck is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 06:31 PM   #715
Cherokee95kid
Registered User
1995 ZJ

Join Date: Aug 2011
Location: Reading, Pa
Posts: 600
Hobart 140 flux core on setting 2 with a feed rate of 25ish on 1/4" plate and c pattern bead. I've been welding for little over a year don't know all to much about the science behind welding but I do know what I have welded holds up pretty well for a beginner.

Cherokee95kid is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 07:18 PM   #716
'92 vegas YJ
R.I.P. Ratmonkey

'92 vegas YJ's Avatar
1992 YJ Wrangler

Join Date: Jan 2008
Location: Jacksonville, NC
Posts: 2,386
Quote:
Originally Posted by Cherokee95kid
Hobart 140 flux core on setting 2 with a feed rate of 25ish on 1/4" plate and c pattern bead. I've been welding for little over a year don't know all to much about the science behind welding but I do know what I have welded holds up pretty well for a beginner.
Heat setting only on 2 while welding 1/4" on a HH140? You need to crank that baby up to get some penetration.
__________________
~'92 YJ with many upgrades and many more calling my name..... it never ends
~'07.5 Dodge Ram Megacab 2500, 6.7L Cummins turbo diesel

April 2012, May 2013, May 2014 YJ of the month
'92 vegas YJ is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 07:43 PM   #717
Cherokee95kid
Registered User
1995 ZJ

Join Date: Aug 2011
Location: Reading, Pa
Posts: 600
Thanks for the input il deff kick up the heat then I just figured it's been welding nicely and not breaking the welds when I do test things.
Cherokee95kid is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 07:43 PM   #718
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 2,755
Quote:
Originally Posted by '92 vegas YJ View Post
Heat setting only on 2 while welding 1/4" on a HH140? You need to crank that baby up to get some penetration.
x2. being as 1/4" is max single pass rating for that machine, crank it up!
__________________
1998 ZJ 2" bb and 31's. street queen but sees the woods once in a while.

2000 powerjoke tow pig

Anti-jeep--1989 K5 blazer. the new off road ride
underpowered is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 07:45 PM   #719
Cherokee95kid
Registered User
1995 ZJ

Join Date: Aug 2011
Location: Reading, Pa
Posts: 600
Thanks again despite the lower heat setting how do the welds look for flux core?
Cherokee95kid is offline   Reply With Quote Quick reply to this message
Unread 08-04-2014, 07:53 PM   #720
Ironworker709
Moderator

Ironworker709's Avatar
1995 YJ Wrangler

Join Date: Nov 2006
Location: Millen Area,Georgia
Posts: 3,349
Quote:
Originally Posted by Cherokee95kid View Post
Hobart 140 flux core on setting 2 with a feed rate of 25ish on 1/4" plate and c pattern bead. I've been welding for little over a year don't know all to much about the science behind welding but I do know what I have welded holds up pretty well for a beginner.
Clean your material before welding,all millscale and anything else back about a 1/2" on each side..

Quit using any type of weaving or C-pattern with fluxcore,it will only cause slag inclusions and poor penetration along with stress within the weld.

Turn your heat up,set wire speed and just do a slight "drag" and follow the puddle in a consistant drag motion,,when done,watch the slag peel off by itself and no spatter.....
__________________
Don't DREAM your life, LIVE your dreams

Never forget 9/11

"Welding is like a woman,Get 'er HOT and Penetrate"

Gotta LOVE a person who knows everything about NOTHING

The only Thing necessary for the Evil to win is a good man to do nothing....

"How far you go in life depends on your being tender with the young,compassionate with the aged,sympathetic with the striving,and tolerant with the weak and strong--because someday YOU will have been all of these"....George Washington Carver

Want to know what an Ironworker is and the job scope of a Journeyman?..click here...http://www.ironworkers.org/becoming/careers.aspx
Ironworker709 is offline   Reply With Quote Quick reply to this message
