post #677 of 824 Old 02-16-2014, 07:45 PM
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester
Posts: 5,162

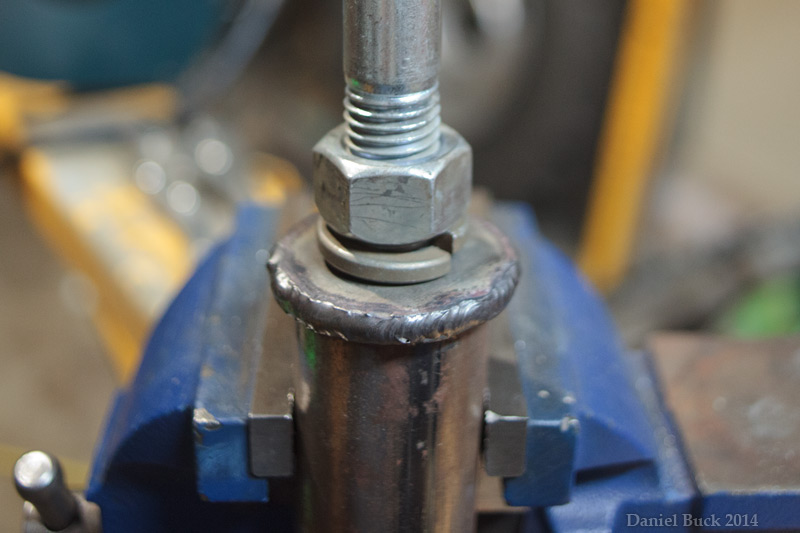

Started working on the rear adjustable bump stops for my Willys. Basically it's going to be a tube with a flange that bolts to the frame, and a nut welded on the inside of the tube, and a bolt that can be adjustable. 3/4" nut and bolt. And I'll figure out a way to get some rubber on the end of the bolt.

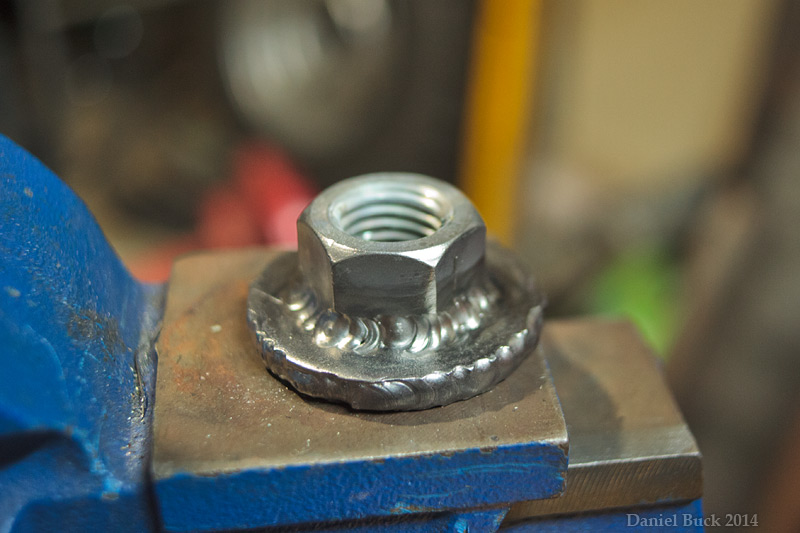

Welded two washers together, welded a nut to that, and then the nut will slip inside the tube, and then I'll weld the washers to the tube. Not sure if that makes sense, it makes sense to me, but I may not be describing it right.

Starting to KIND of get confident with TIG welding. This will be the first useful thing I'm TIGing, not just running lines on plate. Not as pretty as I'd like them to be, but I'm getting some practice in






danielbuck is online now
post #678 of 824 Old 02-17-2014, 08:44 PM
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester
Posts: 5,162

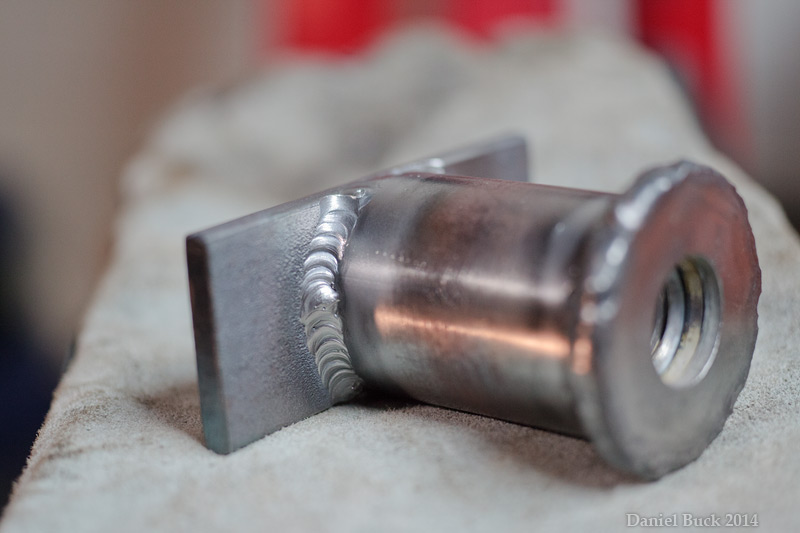

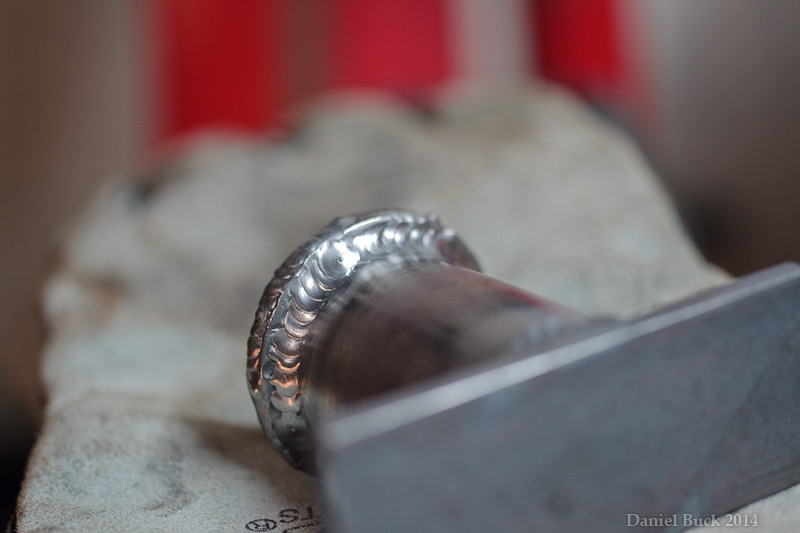

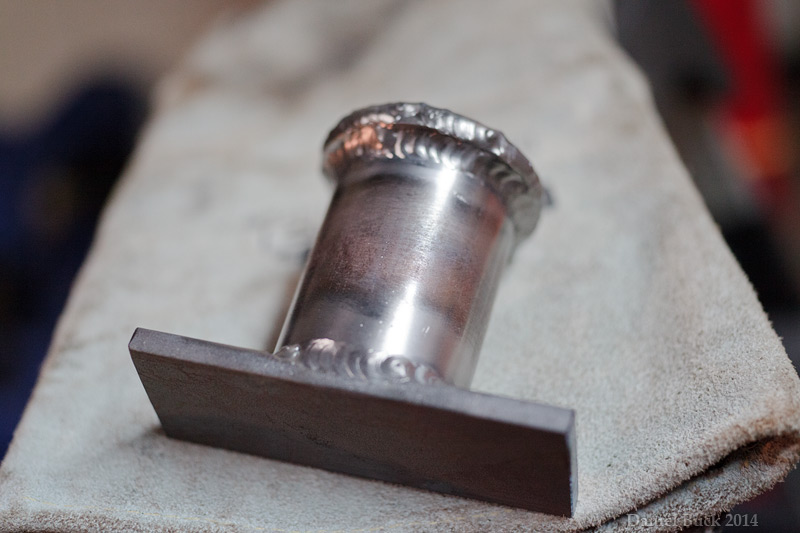

Almost finished the first bumpstop! I am quite pleased with how the weld beads look, they aren't robot perfect looking yet, hopefully I'll get there eventually!

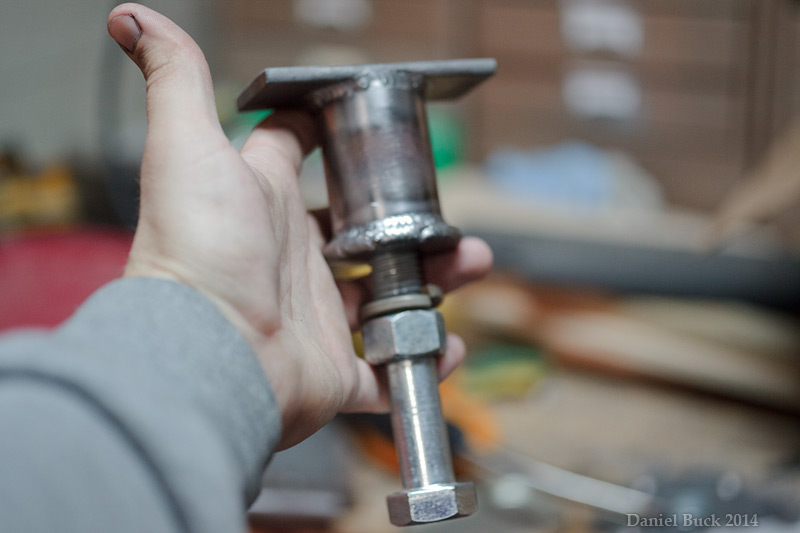

A thick rubber funiture coaster will wrap around the end of the bolt, and that will be the contact point with the axle.

In retrospect, it probably wasn't necessary to weld two washers together, but I guess I was just to excited to weld something other than practice scrap

a hole will go on either side of the tube on the flat bar, and that's how it will bolt to the frame.








danielbuck is online now
post #679 of 824 Old 02-20-2014, 08:51 PM
youngjeepr
Registered User
1988 YJ Wrangler

Join Date: Aug 2009
Location: layton UT
Posts: 2,502

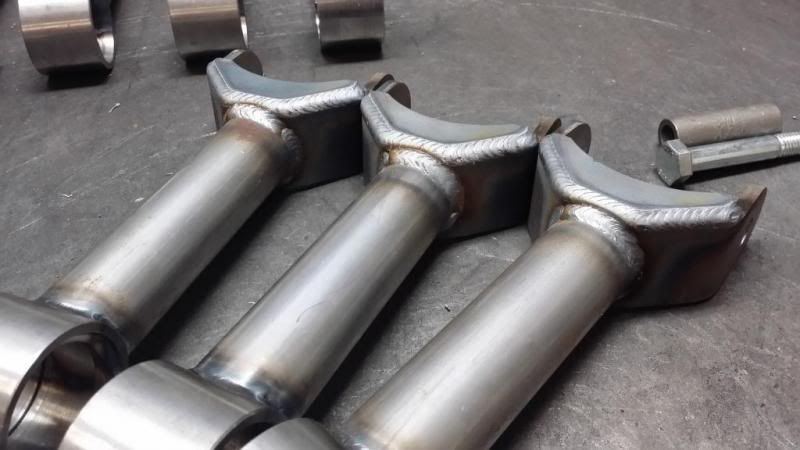

Some parts I machined then welded today.






88 YJ- 4.7l stroker, AW4, SOA, 8.8, hp D30 powertrax no slip,3" front stretch with waggy springs, stock replacement springs in the rear, 35/12.5 r15 goodyear kevlars

Utah Jeep Crew



Build Thread
youngjeepr is offline
post #680 of 824 Old 02-20-2014, 09:47 PM
austenp405
Registered User

Join Date: Dec 2013
Location: Colorado Springs
Posts: 7
While definitely NOT up to the standards of this thread, this is the exhaust repair on my ZJ. I've only been welding 4 days and this was my first attempt at something other than just sticking flat plates together.
Attached Thumbnails
austenp405 is offline
post #681 of 824 Old 02-21-2014, 11:00 PM
Brut4ce
Registered User
2010 JK Wrangler

Join Date: Jan 2014
Location: oceanside
Posts: 800





"There's plenty of time to rest when your dead or knocked out!"

BUILT FOR THE ROCKS BUILD CLICK HERE
Brut4ce is offline
post #682 of 824 Old 02-26-2014, 10:27 AM
96_zj_laredo
Registered User
1996 ZJ

Join Date: Dec 2013
Location: Cape Cod
Posts: 284
This is my first welding project, it's a sunflower if you couldn't tell. I started with a couple pieces of flat stock and heated the metal with an oxy-acetylene torch, and hammered the stock out. I welded two pieces to gether and then plasma cut out a circle to make the center. I then repeated the hammer process in a couple feet of flat stock, from this I plasma cut out all the petals. I had some round stock that I also hammered a bit to give it a hammered look. The pictures only show before I cleaned off all the slag and bondo'd and painted. I know it's not for my jeep, but it was for my girlfriend, and she's just as expensive
Attached Images


All I need in life is my Jeep, my guns, and my wrenches... And maybe some fine women too
96_zj_laredo is offline
post #683 of 824 Old 02-27-2014, 11:07 PM
stone
Registered User
1993 YJ Wrangler

Join Date: Mar 2010
Location: Tampa, Fl
Posts: 230
stone is offline
post #684 of 824 Old 02-27-2014, 11:15 PM
ashland82391
Out of money yet...Yup!

ashland82391's Avatar
1993 YJ Wrangler

Join Date: Sep 2011
Location: Chandler
Posts: 7,880
ashland82391 is offline
post #685 of 824 Old 02-28-2014, 01:50 PM
Dumpsterfish
Registered User
2001 TJ Wrangler

Join Date: Feb 2012
Location: Los Angeles
Posts: 1,015

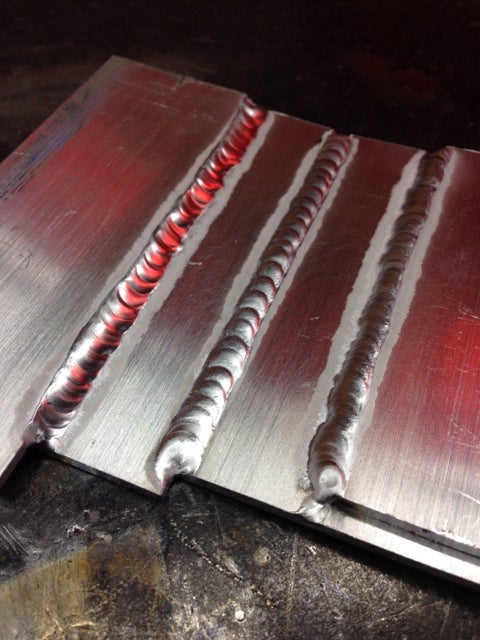

Still not as nice as everybody on here, but improving!



Name:  image-4011856163.jpg
Views: 293
Size:  294.6 KB



Name:  image-535535573.jpg
Views: 275
Size:  220.6 KB



Name:  image-4082641913.jpg
Views: 276
Size:  210.7 KB

Sent from my iPhone using JeepForum

'01 TJ...stock
'89 YJ...SOLD
'95 YJ...SOLD
'13 JKUS...SOLD
Dumpsterfish is offline
post #686 of 824 Old 02-28-2014, 03:45 PM
stone
Registered User
1993 YJ Wrangler

Join Date: Mar 2010
Location: Tampa, Fl
Posts: 230
4130 chromoly coilover plate for a 5th gen camaro



stone is offline
post #687 of 824 Old 03-03-2014, 06:22 PM
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 5,433
Walkin the cup on the fillet welds?

Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline
post #688 of 824 Old 03-07-2014, 05:32 PM
RKCWLER
Registered User
2004 TJ Wrangler

Join Date: Dec 2013
Location: Cerritos
Posts: 961
Theses welds are on a piece of 3/8" plate to 1/4" tube. The plate tie's in my bumper to my lower A-frame. Welds were done with a 20 year old Lincoln SP-100 using .035 innershield Nr-211-MP cored wire (fluxcored). This welder supposedly has a Max Welding capacity of 12 gauge according to the diagram inside the door. The setting for 12 gauge using .035 intershield wire is G-3. I used this setting J-3.5 to complete these welds. I use a reverse "C" pattern and sometimes the cursive "e" pattern. This machine is capable of welding anything I need.
Attached Images

RKCWLER is offline
post #689 of 824 Old 03-07-2014, 11:23 PM
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 5,433
My two welding machines.
Attached Thumbnails

Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline
post #690 of 824 Old 03-10-2014, 08:39 AM Thread Starter
Kenbo-Slice
Registered User
1998 TJ Wrangler

Join Date: Aug 2008
Location: New York
Posts: 4,146
Quote:
Originally Posted by stone View Post
4130 chromoly coilover plate for a 5th gen camaro



Kick *** welding!

Quote:
Originally Posted by 82JeepCJ7 View Post
Walkin the cup on the fillet welds?
I see no indication of cup walking on those welds. Just pure consistency.
Kenbo-Slice is offline
