post #616 of 824 Old 07-12-2013, 12:39 PM
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York
Posts: 961
Stuff from around the shop Ive done.

Attached Thumbnails
941700_10200157620888865_1357977012_n.jpg   1014873_10200335222208787_181073146_o.jpg

--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline
Sponsored Links
Advertisement

post #617 of 824 Old 07-28-2013, 11:26 AM
1stblack97ZJ
Registered User
1997 ZJ

Join Date: Sep 2010
Location: Augusta, Maine
Posts: 4,944
got a free little 115v 70 amp stick. It's my first welder. picked up some little 6013 rods. Here's one of my welds after about an hour or so of practice...



1997 ZJ Laredo
4" Lift
32s
Plenty of lights
1stblack97ZJ is offline
post #618 of 824 Old 08-07-2013, 08:45 PM
KMD
Registered User
1976 CJ7

Join Date: Apr 2009
Location: Modesto
Posts: 1,284




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
KMD is offline
post #619 of 824 Old 08-07-2013, 11:43 PM
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 864
Quote:
Originally Posted by KMD
Stack a tack in the second pic?
AtTheHelm is offline
post #620 of 824 Old 08-07-2013, 11:53 PM
KMD
Registered User
1976 CJ7

Join Date: Apr 2009
Location: Modesto
Posts: 1,284
Quote:
Originally Posted by AtTheHelm View Post
Stack a tack in the second pic?
Yup. Not a piece under any strain and the heat transfer is still decent. All critical components get full welds or tig welded as in the pic above.

Here is a pic that demonstrates that. Tube is not that important but the D-ring is.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
KMD is offline
post #621 of 824 Old 08-12-2013, 01:34 AM
takeitsleazy
Registered User
2013 JK Wrangler

Join Date: Feb 2013
Location: Dededo
Posts: 296
Garage
I'm in the states currently, practicing my arc and tig welding. Here's a vertical up; chubby, but I've gotten much better at my puddle control, so I'm happy


USAF RHS Structures

We Screw, We Nut, We Bolt
takeitsleazy is offline
post #622 of 824 Old 08-13-2013, 03:27 PM
takeitsleazy
Registered User
2013 JK Wrangler

Join Date: Feb 2013
Location: Dededo
Posts: 296
Garage
Tig aluminum/steel butt joints- what a challenge! After about 8 hours of lab time (not only on butt joints), this was all i could muster


USAF RHS Structures

We Screw, We Nut, We Bolt
takeitsleazy is offline
post #623 of 824 Old 08-20-2013, 09:18 PM
Ezalycasaid
Registered User

Join Date: Nov 2008
Location: Grand Junction
Posts: 1,249
1/4 to 3/16 about 6"s long and 1/4 to 1/16 about 2"s long Short and sweet.
Attached Images


Old build 99 TJ 100wb on 35s and arbs.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

New build D60s, 40s etc.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

I void warranties.
Ezalycasaid is offline
post #624 of 824 Old 09-01-2013, 09:26 PM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,201
Man, alot of yall have some amazing looking welds!

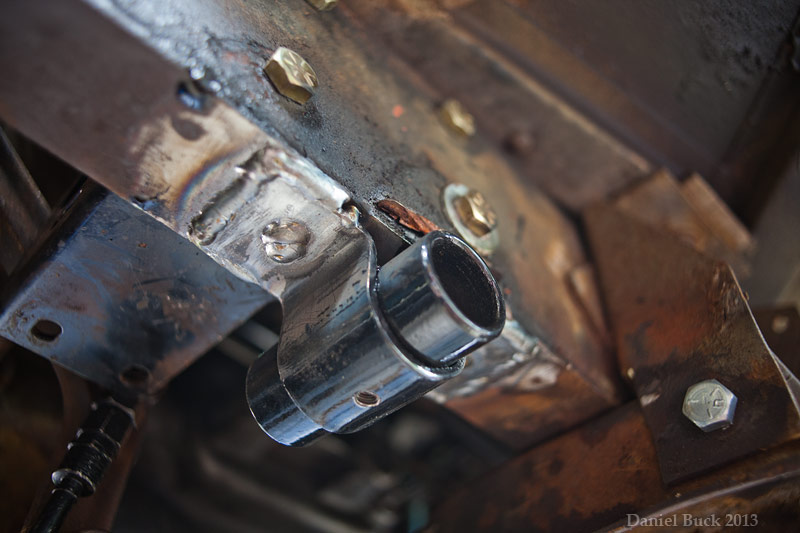

Nothing special, but I'm happy with how it turned out, the mounting bracket for the pedals on my willys



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #625 of 824 Old 09-02-2013, 11:29 AM
xbcasey
Registered User
2006 TJ Wrangler

Join Date: Mar 2012
Location: Ukiah
Posts: 148
Here's a couple from Friday at work, I was welding two sticks of 1/4" angle together for a project at work. The welds needed to be as flush as possible and will be ground flat with a flap wheel so that the angle can be used as a mounting surface.
Attached Images

xbcasey is offline
post #626 of 824 Old 10-07-2013, 12:56 PM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,201
Made the battery tray last night for the Willys, it's probably WAY over kill, but that battery isn't going to go anywhere And any chance I can get to get in some fab and welding practice, I'll take it.

I can grab the mount and shake the entire jeep all over the place, and it doesn't budge. It's bolted to the frame, so I can remove it if needed for whatever reason. I have hooks that grab to the bottom, and a bar that goes over the battery, I'll put those and the battery in tomorrow. I still need to trim the ends off of the horizontal pieces that stick out. Still never to happy with the way the welds look, but oh well I'll spray it black.





To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #627 of 824 Old 10-10-2013, 08:16 PM
tinktinkTJ
Registered User
2002 TJ Wrangler

Join Date: Mar 2012
Location: Southern
Posts: 188
I decided to try my hand at aluminum arc welding today. I've been arc welding (steel) off and on for probably 7-9 years. Its a hobby of mine, I love being able to make my own stuff. Anyway back to the aluminum welding. I spent roughly 15min screwing around on some pipe and below are some pics of my results. I was using an Idealarc R3R- 300 (set to reverse polarity) with 1/8" E4043. I know the welds aren't pretty but I don't think they came out too bad considering I have never welded aluminum before.

2nd pass (trying to dial in amps and arc force)

5th or 6th pass (kinda getting the hang of it)

This is probably my 17th pass give or take. I think they're getting progressively better.
tinktinkTJ is offline
post #628 of 824 Old 10-11-2013, 02:23 AM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,201
I bet that aluminum blows through quickly, eh?



Some more welds from the supports on my battery tray. Over kill, I know! And probably thicker than I should be welding on my 110 power, 3/16" flat bar and 1/8" angle iron. It's what I had laying in the garage.








To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #629 of 824 Old 10-11-2013, 02:39 PM
tinktinkTJ
Registered User
2002 TJ Wrangler

Join Date: Mar 2012
Location: Southern
Posts: 188
Quote:
Originally Posted by danielbuck View Post
I bet that aluminum blows through quickly, eh?

Some more welds from the supports on my battery tray. Over kill, I know! And probably thicker than I should be welding on my 110 power, 3/16" flat bar and 1/8" angle iron. It's what I had laying in the garage.
You bet your *** it does . The second I form a puddle it starts to blow through. I have the arc force turned down to almost zero and my amps at roughly 50. I'm going to lower the amps more and see what happens.

Battery tray looks good.
tinktinkTJ is offline
post #630 of 824 Old 10-15-2013, 01:01 PM
87TPIYJ
Registered User
1987 YJ Wrangler

Join Date: Feb 2009
Location: Jacksonville
Posts: 1,252
Welding newb here. This was my first welding project. I was using an OLD Forney welder with 7018 rods. Here is one of my better welds.




YJ 350TPI NV4500 SOA 8.8 Flat skid

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
87TPIYJ is offline
