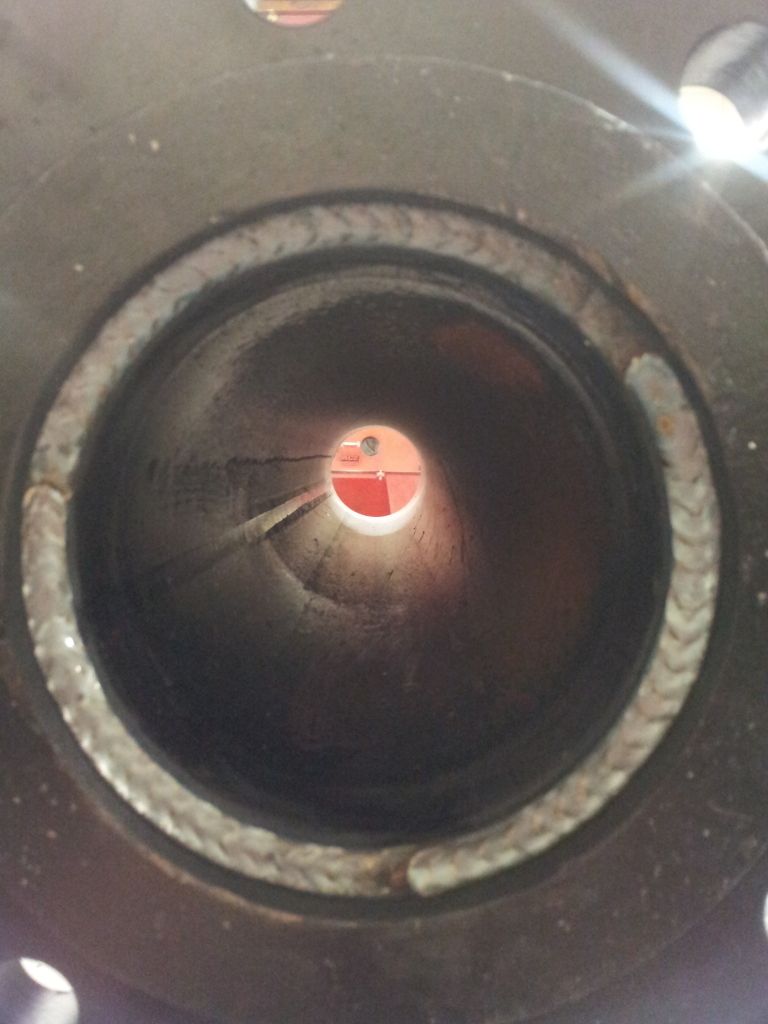

Snapped a couple pictures at work the other day of a few things. Using a Miller CP-302 with a wire feeder using .035 wire 82/18 argon/co2

large rollers i was welding while a guy i work with was turning it.





I do a lot of tig work too but don't have any pictures on my phone. Not my best work, just happened to snap some pics the other day.

__________________
www.offroadsc.com
97 TJ
98 Taco
LilSteve97TJ is offline   Reply With Quote
Unread 04-01-2013, 09:35 PM   #587
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 753
Hobart handler 140, 100% CO2!
AtTheHelm is offline   Reply With Quote
Unread 04-03-2013, 08:19 PM   #588
LilSteve97TJ
Registered User
1997 TJ Wrangler

Join Date: Dec 2005
Location: EightSixFour
Posts: 703
How does it weld with pure co2? never had experience with it mainly use 75/25 and 82/18 with mig
__________________
www.offroadsc.com
97 TJ
98 Taco
LilSteve97TJ is offline   Reply With Quote
Unread 04-12-2013, 11:56 AM   #589
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Quote:
Originally Posted by LilSteve97TJ View Post
How does it weld with pure co2? never had experience with it mainly use 75/25 and 82/18 with mig
Most fab shops use straight CO2. Burns slightly hotter then 75/25. Straight CO2 is cheaper too. I was going to make the switch, but the regulators for 75/25 are not compatible with the CO2 tanks, so I am holding off until I finish my current tank. Then I'll buy a new regulator.

You usually also get a little more spatter with CO2 vs. 75/25, but if your wire speed and amperage are dead on, you should have very minimal spatter.

Speed charts also differ, so before you jump in to changing, make sure you check your speed/amperage charts as the weld settings for the material you are welding will likely change.
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 04-15-2013, 12:00 PM   #590
Shadownwpa
Senior Member

Shadownwpa's Avatar
1991 YJ Wrangler

Join Date: Oct 2011
Location: Meadville, Pa
Posts: 658
Found this when grinding off some welds that were supposed to hold the rear crossmember onto the back end of the frame. Not sure if it was the p.o. or the factory but somebody left some swiss cheese...

__________________
My build thread...
Shadownwpa is offline   Reply With Quote
Unread 04-15-2013, 11:09 PM   #591
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,690
Hard to say...but I can tell you that the factory welds were far from being perfect.

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 04-16-2013, 04:28 AM   #592
jtfab121
Registered User
1997 ZJ

Join Date: Sep 2012
Location: garden grove, ca
Posts: 26
Here's little of my mig and tig




jtfab121 is offline   Reply With Quote
Unread 04-16-2013, 09:21 AM   #593
Shadownwpa
Senior Member

Shadownwpa's Avatar
1991 YJ Wrangler

Join Date: Oct 2011
Location: Meadville, Pa
Posts: 658
Quote:
Originally Posted by rixcj View Post
Hard to say...but I can tell you that the factory welds were far from being perfect.

Rich
Reason # 78,239,650,417 of why to never trust a robot.
__________________
My build thread...
Shadownwpa is offline   Reply With Quote
Unread 04-17-2013, 05:45 AM   #594
tytec95
Registered User

Join Date: Apr 2013
Location: bronx, New York
Posts: 28
keep em comming
tytec95 is offline   Reply With Quote
Unread 04-18-2013, 09:05 AM   #595
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 753
Quote:
Originally Posted by LilSteve97TJ
How does it weld with pure co2? never had experience with it mainly use 75/25 and 82/18 with mig
It runs really well on straight c02, you get slightly hotter welds compared to c25. I've heard that using the bigger machines on straight c02 creates more spatter though.
AtTheHelm is offline   Reply With Quote
Unread 05-15-2013, 09:57 PM   #596
LilSteve97TJ
Registered User
1997 TJ Wrangler

Join Date: Dec 2005
Location: EightSixFour
Posts: 703
Quote:
Originally Posted by jatepper View Post
Most fab shops use straight CO2. Burns slightly hotter then 75/25. Straight CO2 is cheaper too. I was going to make the switch, but the regulators for 75/25 are not compatible with the CO2 tanks, so I am holding off until I finish my current tank. Then I'll buy a new regulator.

You usually also get a little more spatter with CO2 vs. 75/25, but if your wire speed and amperage are dead on, you should have very minimal spatter.

Speed charts also differ, so before you jump in to changing, make sure you check your speed/amperage charts as the weld settings for the material you are welding will likely change.
I may look into it for my home machine once i pick up a bigger machine.

I set the machine by sound and site over using a chart, don't usually like the suggested settings, i tend to burn a little hotter usually.
__________________
www.offroadsc.com
97 TJ
98 Taco
LilSteve97TJ is offline   Reply With Quote
Unread 05-18-2013, 11:20 AM   #597
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 753
You can use a cga-320 to cga-580 adapter to use a c02 cylinder with your argon/c02 regulator. If I can find a part # I'll post it.
AtTheHelm is offline   Reply With Quote
Unread 05-18-2013, 12:44 PM   #598
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 753
Western part# 806
AtTheHelm is offline   Reply With Quote
Unread 05-18-2013, 01:46 PM   #599
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 2,680

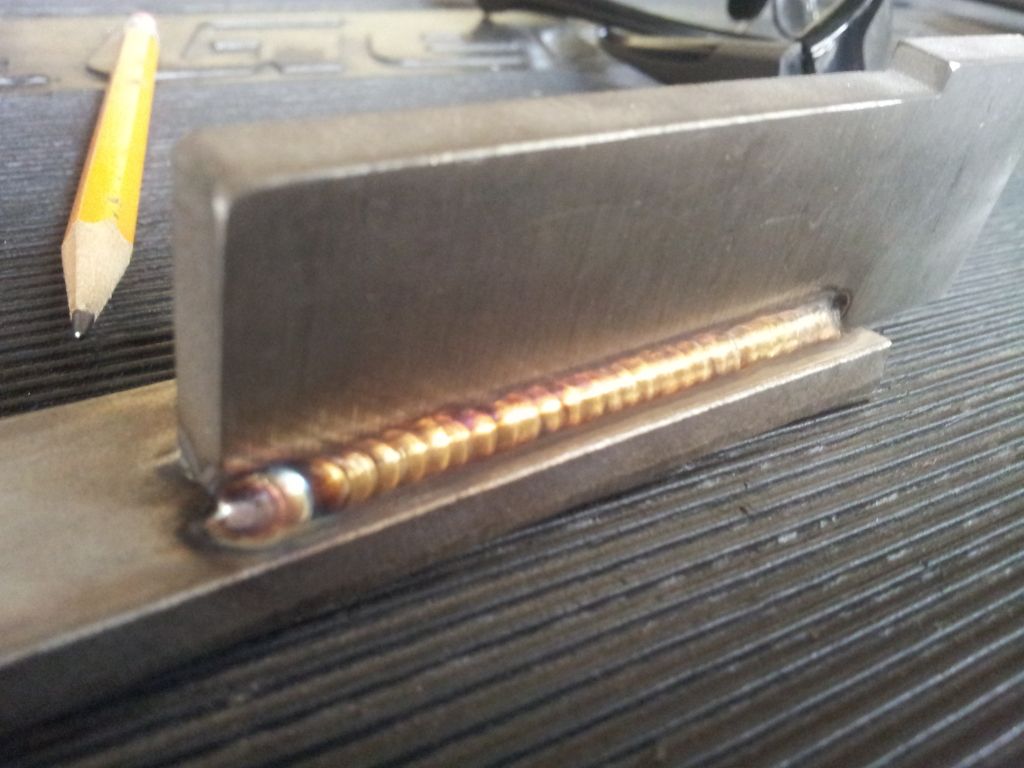

Not the Greatest, but not the worst either. a few welds, a few different ways.

miller 200 MIG welder, .035 wire, 75/25 mix gas. 45 wire speed, welder on amp setting 5 of 6.
weld pattern #1, Pushing the puddle, circles


#2 pulling the puddle, Circles


#3 pulling the puddle, weaving


Pushing the puddle, C motion


and lastly, my attempt at TIG. Hobart 165 TIG. I have very little time on TIG at all, this is the longest continuous bead i have ever ran on a TIG



Material is all the same. 1/4" steel plate welded to 3/4" x .120 wall DOM tubing.
__________________
1998 ZJ 2" bb and 31's. street queen but sees the woods once in a while.

2000 powerjoke tow pig

Anti-jeep--1989 K5 blazer. the new off road ride
underpowered is offline   Reply With Quote
Unread 05-27-2013, 06:31 AM   #600
pipefactory
Registered User

Join Date: Mar 2008
Location: Superior, WI
Posts: 9
Quote:
Originally Posted by Kenbo-Slice View Post
I guess I'll start.





I do a little aluminum on the side too for gas tankers.... It's a new animal to me though.


Looks like stainless fab shop. I used to weld like that but this is all I got anymore have a 150 cheater in my hood and wear trifocals.


pipefactory is offline   Reply With Quote
