That makes sense. I was thinking that looked like a lot of color for a mild steel rod. I ran a Nickel stick rod on mine. Doesn't look anywhere near as clean as yours because of peening it

jaspepp is offline   Reply With Quote Quick reply to this message
Unread 01-13-2013, 09:56 PM   #542
Blackwrench
Registered User
1977 CJ7

Join Date: Jan 2011
Location: El Paso, Texas
Posts: 17
Quote:
Originally Posted by MO2500 View Post

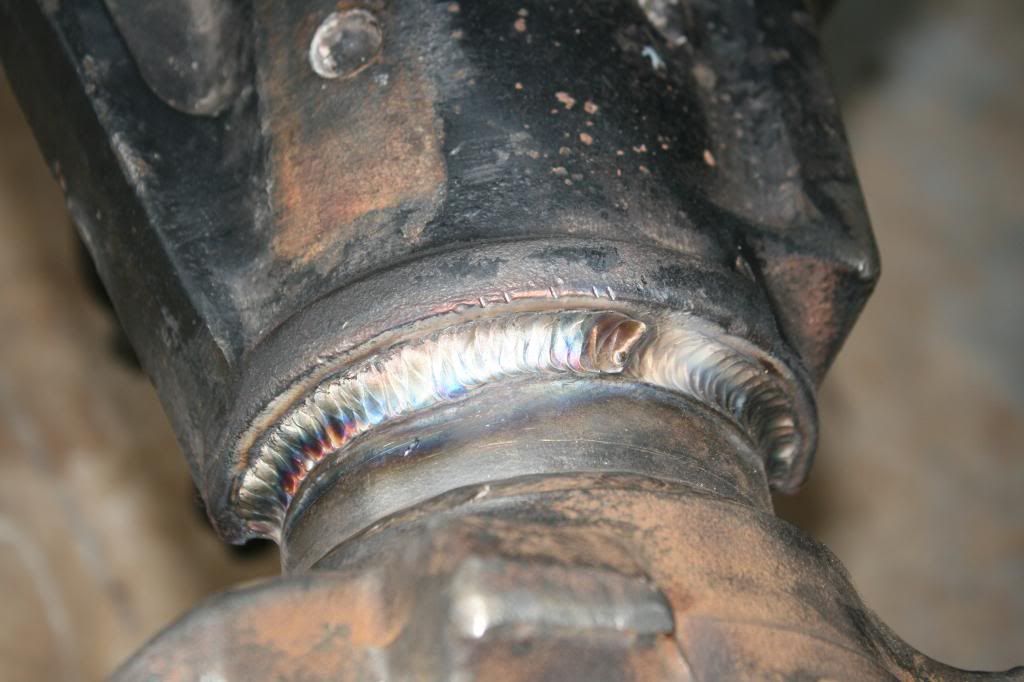

Some TIG welds I did on the D60 I'm working on.



Did you pre & post heat the cast section?
Blackwrench is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 12:00 AM   #543
jaspepp
Registered User
2001 TJ Wrangler

Join Date: Jul 2008
Location: boise, ID
Posts: 375
Yep, brought the center section up(don't remember the exact temp, somewhere around 250-300) and welded an inch then peened it, then repeated til it was done. Made sure the whole piece stayed the same temp the whole way through. Wrapped it in a welding jacket and blanket when I finished, took about an hour and a half to cool off. No cracks yet and it's been 2 years.
jaspepp is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 07:53 AM   #544
wgirvine
Registered User
1992 XJ Cherokee

Join Date: Oct 2007
Location: Rosamond, CA
Posts: 602
Not bad for a rookie.
__________________
The road goes on forever, the party never ends....
wgirvine is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 08:55 AM   #545
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,615
Quote:
Originally Posted by Blackwrench View Post

Did you pre & post heat the cast section?
I did not. The only pre heat (which wasn't much) was just a propane torch to burn the grease and oil out of the joint before welding.

Then I just welded in quarters around the tube, alternating sides. Same process I used when MIG welding the tubes on my D44. Never had an issue with those welds either.
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 11:08 AM   #546
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester, CA
Posts: 4,356
first time using 220 with my Mig (Lincoln 180 dual) I brought my welder to a friends house to get more power to weld some thicker metal. The HD press brake kit from SWAG. I probably should have ground down the tack welds and ran over them, I can see the heat patterns go away at the tack welds.

Also changed the wire out to .035 instead of the .025 that I normally use when running 110 at home. I like running 220, it actually seemed easier than 110

I believe these were 3/8" thick pieces of metal

__________________
Daniel Buck - [URL="http://www.danielbuck.net"]www.DanielBuck.net[/URL] - [URL="http://www.dnsfail.com"]www.DNSFAIL.com[/URL]
danielbuck is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 11:39 AM   #547
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,615
Quote:
Originally Posted by wgirvine View Post
Not bad for a rookie.
Thanks

I just got into TIG in October so I'll be a rookie for awhile lol.

Quote:
Originally Posted by danielbuck View Post
Also changed the wire out to .035 instead of the .025 that I normally use when running 110 at home. I like running 220, it actually seemed easier than 110
Try some .030 wire for your next roll. IMO it runs the best on the mid-size 180 amp machines. I've tried several rolls of .035 and .030 in my Hobart 187 and .030 seems to have a smoother arc and a little more puddle control than .035.
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 11:59 AM   #548
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester, CA
Posts: 4,356
Are you referring to when I'm running 220? or 110? I'll give it a try
__________________
Daniel Buck - [URL="http://www.danielbuck.net"]www.DanielBuck.net[/URL] - [URL="http://www.dnsfail.com"]www.DNSFAIL.com[/URL]
danielbuck is offline   Reply With Quote Quick reply to this message
Unread 01-14-2013, 12:05 PM   #549
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,615
Quote:
Originally Posted by danielbuck View Post
Are you referring to when I'm running 220? or 110? I'll give it a try
The HH187 is not dual voltage like your Lincoln so i've only run both on 220v.
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-21-2013, 06:55 PM   #550
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,615
Some free hand I did working on a cage this weekend. Turned out pretty good I think.

__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2013, 07:39 AM   #551
zephyr80
Registered User
2000 WJ

Join Date: Aug 2012
Location: keizer, Oregon
Posts: 389




This was done at work using an .045 dual shield wire attaching a 3/8 plate to a 2x8x1/4 tube after not welding for 8 months due to a shoulder injury and surgery

Sent from?
zephyr80 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2013, 02:46 PM   #552
jschulz1720
Registered User
1990 YJ Wrangler

Join Date: Mar 2009
Location: Yorkville, IL
Posts: 128
My first welds. Hobart 210 using .30 flux wire at 110volt. Any advise?
image-874747988.jpg   image-4041883187.jpg
jschulz1720 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2013, 07:43 PM   #553
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,615
Quote:
Originally Posted by jschulz1720 View Post
My first welds. Hobart 210 using .30 flux wire at 110volt. Any advise?
Penetration looks good Keep practicing moving at a consistent speed. You want the bead to remain uniform in width from start to stop. Also you can pause a little at the end of your weld to fill in the tail end. Are you moving in a pattern or just a straight pull? With flux core I normally just run a nice straight stinger to avoid trapping flux in the weld.
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2013, 12:32 AM   #554
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,889
Quote:
Originally Posted by zephyr80 View Post
Attachment 551785



Attachment 551786

This was done at work using an .045 dual shield wire attaching a 3/8 plate to a 2x8x1/4 tube after not welding for 8 months due to a shoulder injury and surgery

Sent from?
We used to have a waffle table just like that where I worked. That thing was HEAVY and weld would not stick to it. I used that table all the time.
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2013, 12:35 AM   #555
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,889
Built a traction bar for the CJ to keep the spring wrap to a minimum. Used 4130 Chrome-Moly, TIG'd everything.

__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
