Unread 02-06-2012, 07:00 AM   #301
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,890
Kinda hard to see in this pic, but here is some TIG I did on Dad's river sled. We put a new front bow cover on it out of diamond plate. The sides and front is all TIG welded into place.



__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 02-10-2012, 11:37 PM   #302
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,182
some from today..

__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote Quick reply to this message
Unread 02-11-2012, 12:23 AM   #303
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,890
Did some today as well.

1/16" E71T1 uphill.


Same wire, 3 pass 1/2" weld.


These are dozer rake hangers. The top is 2" thick. 6 passes of 1/16" E70 hard wire.
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2012, 12:31 AM   #304
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York, pa
Posts: 961


A few welds from one of the crane jib adapters I weld.
__________________
--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2012, 07:00 AM   #305
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,890
Nice wetting. Are you using dual shield?
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2012, 10:08 AM   #306
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York, pa
Posts: 961
Quote:
Originally Posted by 82JeepCJ7 View Post
Nice wetting. Are you using dual shield?
That is ER 70 hard wire pulsed. With Argon , co2 mix
__________________
--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2012, 12:27 PM   #307
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,890
You using a Lincoln welder?

Edit, looked in the background and seen blue...
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 02-17-2012, 01:53 PM   #308
Showtime3492
Registered User
2000 XJ Cherokee

Join Date: Jun 2010
Location: York, pa
Posts: 961
Quote:
Originally Posted by 82JeepCJ7 View Post
You using a Lincoln welder?

Edit, looked in the background and seen blue...
Yup lol miller.
__________________
--1998 XJ "Mater"- RIP

2000 XJ--- 4.6 stroker. Saved from the grave- everything swapped or modded. I hate this thing :)
Showtime3492 is offline   Reply With Quote Quick reply to this message
Unread 02-19-2012, 08:59 PM   #309
webdog
DirtBound Offroad

webdog's Avatar
1990 XJ Cherokee

Join Date: Sep 2007
Location: Lost Angeles, CA
Posts: 1,549

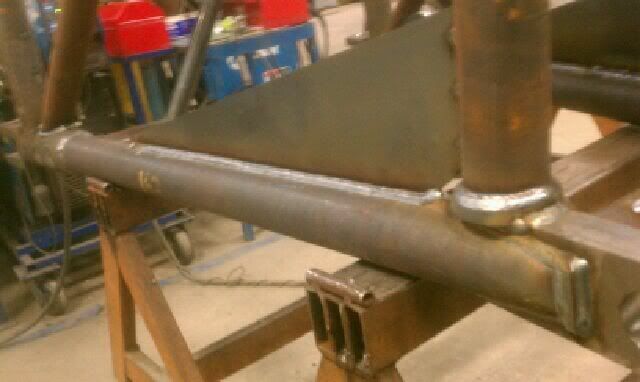

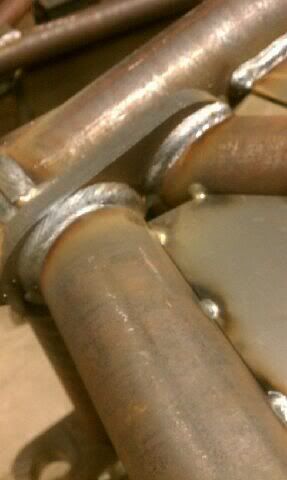

Did some work on the new tire carrier design today and thought these welds looked half decent.
Most the products I do the welds get smoothed but I think this product will have them not smoothed out, just knock the high spots off.

webdog is offline   Reply With Quote Quick reply to this message
Unread 02-20-2012, 07:45 PM   #310
cj68
Registered User
1990 YJ Wrangler

Join Date: Apr 2011
Location: Southold, NY
Posts: 35
I'm finally getting the hang of this welding stuff.
cj68 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2012, 09:01 PM   #311
webdog
DirtBound Offroad

webdog's Avatar
1990 XJ Cherokee

Join Date: Sep 2007
Location: Lost Angeles, CA
Posts: 1,549
Looks good, are you using gas?
webdog is offline   Reply With Quote Quick reply to this message
Unread 02-21-2012, 05:07 AM   #312
cj68
Registered User
1990 YJ Wrangler

Join Date: Apr 2011
Location: Southold, NY
Posts: 35
Yeah. Right now I am running Argon, CO2, 2% O2. Because the welding shop didn't have plain Argon, CO2 when I needed a bottle. This was with my little 220V Lincoln 180HD I got from home depot. I want to pick up a 300A Tig like no tomorrow so I can weld heavier stuff with no fear.
cj68 is offline   Reply With Quote Quick reply to this message
Unread 02-22-2012, 02:07 AM   #313
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester, CA
Posts: 4,356
here's my first welds, it's sloppy I'm sure, but I'm enjoying the learning. I need alot more scrap metal, that's for sure!! LOL

__________________
Daniel Buck - [URL="http://www.danielbuck.net"]www.DanielBuck.net[/URL] - [URL="http://www.dnsfail.com"]www.DNSFAIL.com[/URL]
danielbuck is offline   Reply With Quote Quick reply to this message
Unread 02-22-2012, 02:37 PM   #314
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,890
We have to use some thick wall tube on some of our couplers. Since the size is not available in wall thickness and outside dimension, we make our own out of angle and weld the corners.

The material is 6"x6"x3/4" angle.
1st-pass.jpg   2nd-pass.jpg   3rd-pass.jpg   4th-pass.jpg
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 02-22-2012, 11:08 PM   #315
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,695

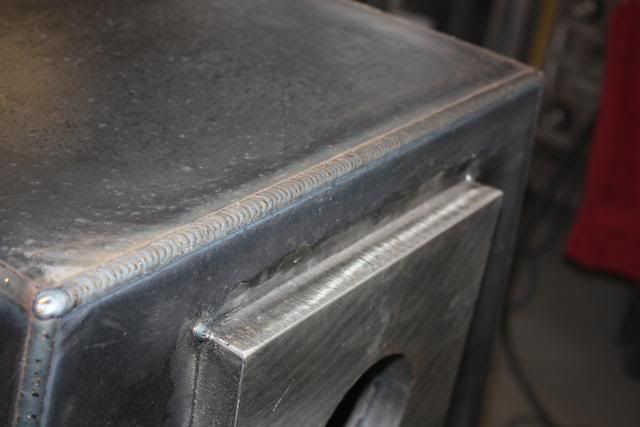

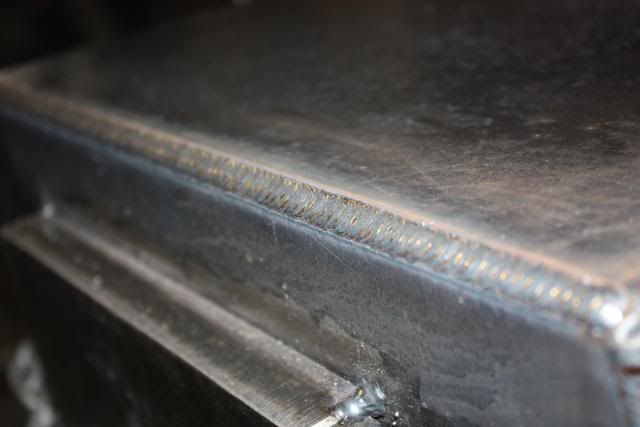

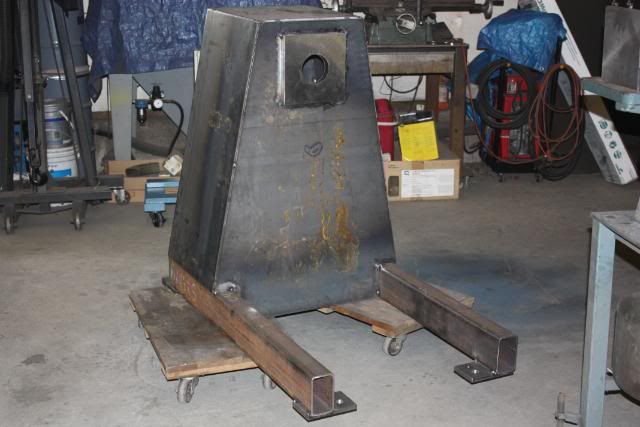

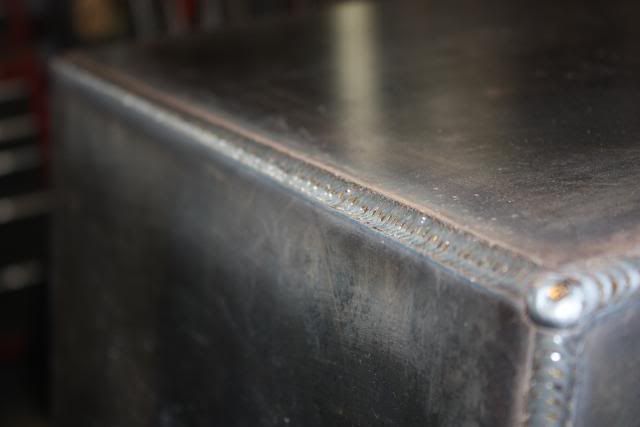

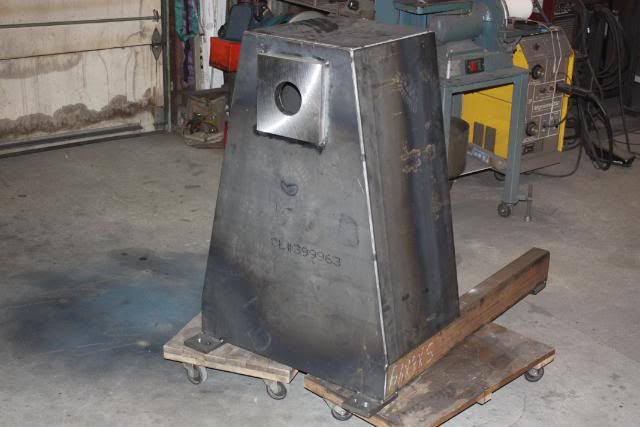

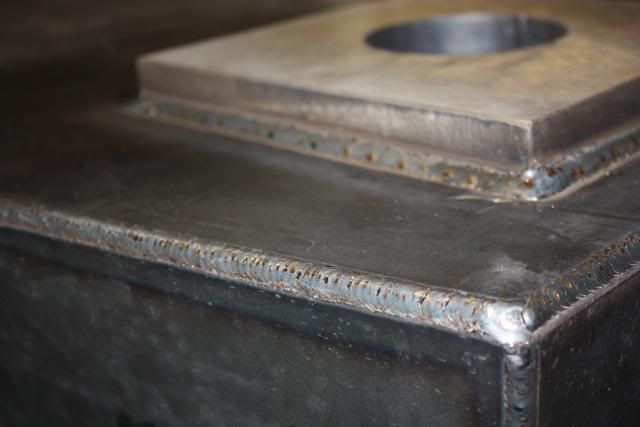

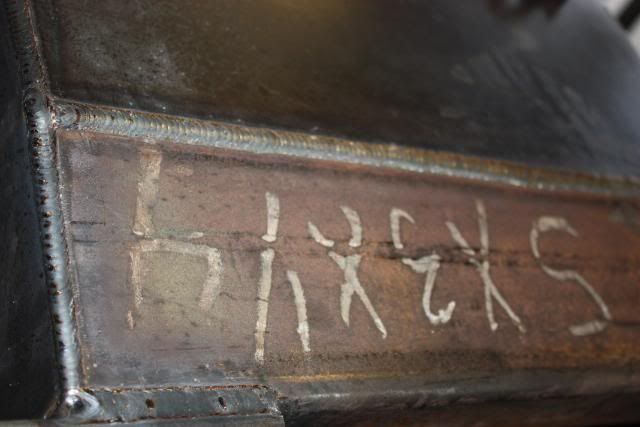

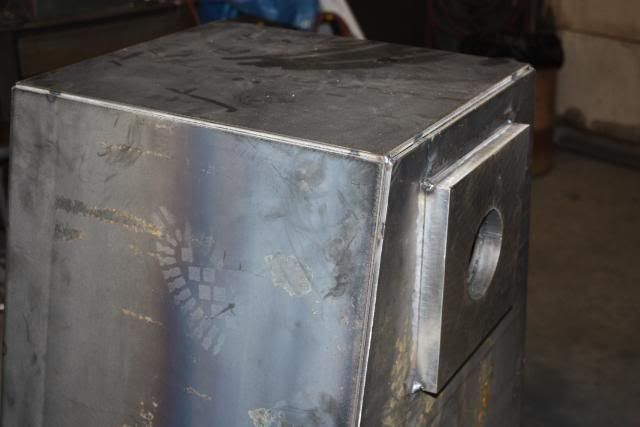

Here are some mig welds from a payoff base that I'm fabricating...

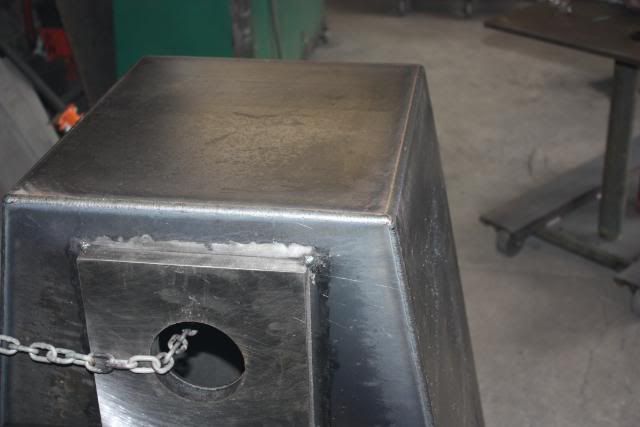

...just tacked together...

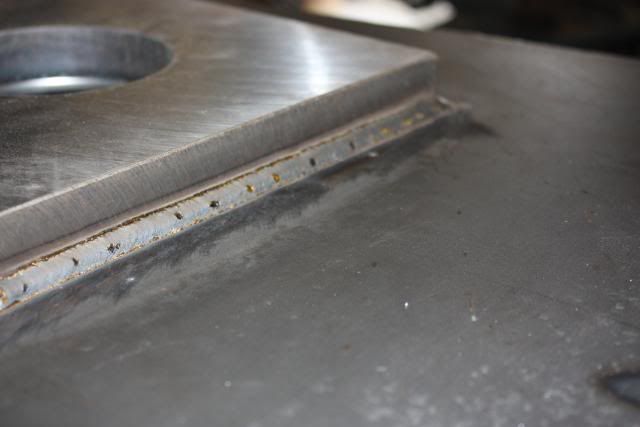

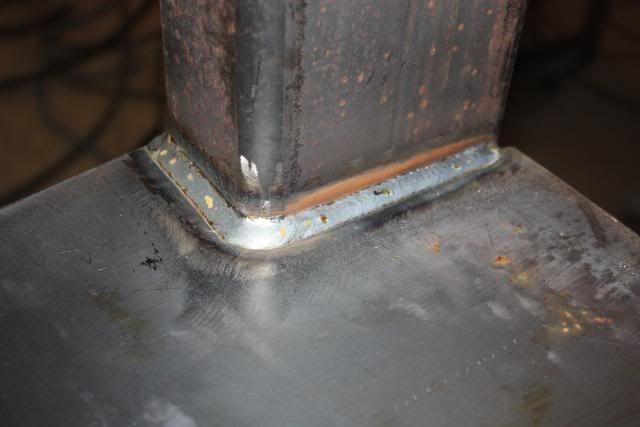

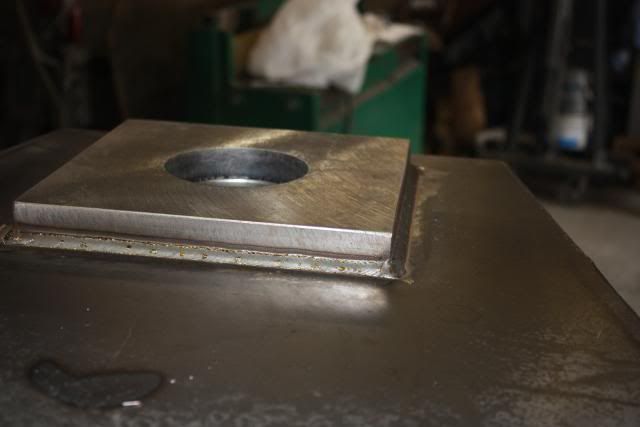

...the outer skins are 1/4" thick, the rectangular tube is 5" x 3" x 1/4" wall, and the square plates with the holes in them are 1" thick...

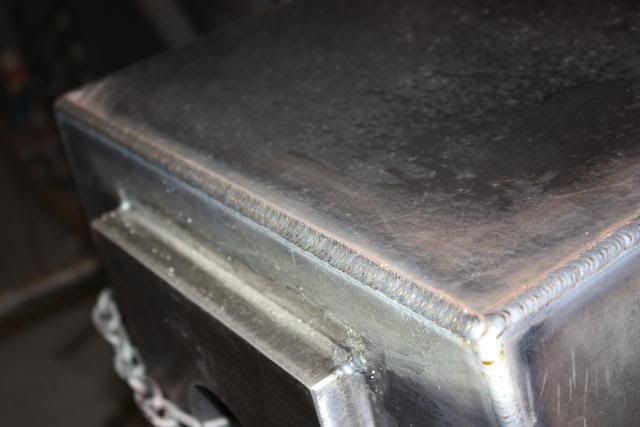

The customer will sand down all the outside corner welds of the base, so that it has the appearance of a cast piece, after it is painted.

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote Quick reply to this message
