post #121 of 1110 Old 10-07-2005, 10:46 AM
RideRed04
Registered User

RideRed04's Avatar

Join Date: Jul 2002
Location: Menomoine
Posts: 1,237
Quote:
Originally Posted by quiksand
I have a question. With all this talk about triangulation and hoops collapsing when unsupported, wouldn't that make the CJ and '87-'91 YJ cage superior to the later '92 and up Wranglers? I have this argument on the YJ forum all the time. But it seems to me that the early design is a lot stronger. There is really nothing keeping the '92 and up roll bars from just folding over in a rollover, it would seem to me. Any opinions?
Yup, you are exactly right.

The late YJ cage is much better then the TJ cage though. From straight above, the TJ cage looks like an almost perfect H, where the back to legs of the YJ cage start inboard of the main hoop. Adding in a cross brace wouldn't be triangulation, that would be bracing...but a really wise idea nonetheless.

I have my cage planned out in my head (should be coming in the next year), but I'll be crudely sketching it down here one of these days. I'll post up when it's done.


2000 WJ Limited 4.7 QD
RideRed04 is offline
Sponsored Links
Advertisement

post #122 of 1110 Old 10-07-2005, 01:08 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
I guess I'm lucky in that, my CJ5 is a "two seater". No backseat to worry about. All I have in the rear is my fuel cell and ammo cans..etc. That let me run an "X" from the B pillar down to rear of the Jeep tied into my body mounts (custom body mounts for the 'glass body). I still want to do an "X" in the B pillar though. I flopped the Jeep last weekend and the B pillar landed square on a pointed rock. It held its shape but was dented in about 1/3 of its diameter. I'm going to patch over it and also plate the corners a little to help prevent denting.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #123 of 1110 Old 10-07-2005, 03:00 PM
sentinal02
H2 Recovery Team Member

sentinal02's Avatar
1992 YJ Wrangler

Join Date: Feb 2003
Location: New York
Posts: 6,681
how about turning the rear seat sideways and let them access it from the rear. you could even raise it up a bit and give them more leg room since they could stretch out onto the fender wells. just a thought

RIP: '88 YJ 2.5L Ax-5 NP231
Posi-Loked. Herculined. Optima yellow top. 1" Shackle, 2" BDS. Cragar 397's Aussie front.

92 YJ 4.0L Ax-15 231
5" springs, 1" shackle 31's or 35's depending on my mood
sentinal02 is offline
post #124 of 1110 Old 10-07-2005, 08:48 PM
BART CJ5
Registered User

BART CJ5's Avatar
1979 CJ5

Join Date: Sep 2002
Location: Alburnett
Posts: 171
Quote:
I have a question. With all this talk about triangulation and hoops collapsing when unsupported, wouldn't that make the CJ and '87-'91 YJ cage superior to the later '92 and up Wranglers? I have this argument on the YJ forum all the time. But it seems to me that the early design is a lot stronger. There is really nothing keeping the '92 and up roll bars from just folding over in a rollover, it would seem to me. Any opinions?

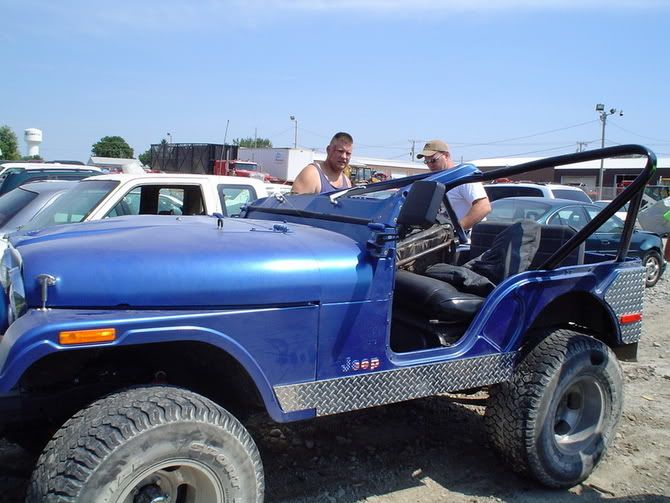

Buddies factory '75 bar. NOT very strong.


We spent a lot of time on this beotch too. Only had it for bout 3 months after finishing it to. Dumb box pulled out in front of him at about 40mph.

'79 CJ5
4" lift, 4 corner DT3000's, 33x12.5R15 TSL on black steel 15x8's (2"b.s.), full cage, C.C. 4X4 3/16x2x4 rear frame, C.C. 4X4 S.R.S, stretched wheel base, C.C. 4X4 front and rear bash bumpers, work in progress.
BART CJ5 is offline
post #125 of 1110 Old 10-08-2005, 03:47 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Man! That's scary! Did anyone get hurt? Can you give more details on exactly what happened as far as the sequence of events and how the Jeep rolled/landed..etc.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #126 of 1110 Old 10-09-2005, 06:35 PM
BART CJ5
Registered User

BART CJ5's Avatar
1979 CJ5

Join Date: Sep 2002
Location: Alburnett
Posts: 171
The guy with the flat top and the gash on his temple was driving and the only one hurt. Just scratches. This pic was taken a couple days after the wreck. He was driving down a 45mph zone when a woman pulled out in front of him. He swerved right caught the gravel shoulder and countered left and tried to correct and piled into the car upside down landing on the car. God was his copilot that day, and nobody was with him. This is all hear say too. My buddy had his bell rang pretty good and dosn't remember much if any of it.

'79 CJ5
4" lift, 4 corner DT3000's, 33x12.5R15 TSL on black steel 15x8's (2"b.s.), full cage, C.C. 4X4 3/16x2x4 rear frame, C.C. 4X4 S.R.S, stretched wheel base, C.C. 4X4 front and rear bash bumpers, work in progress.
BART CJ5 is offline
post #127 of 1110 Old 10-10-2005, 12:12 AM
quiksand
Registered User

Join Date: Jul 2005
Location: liver of Utah
Posts: 100
Quote:
Buddies factory '75 bar. NOT very strong.
CJ-5's and CJ-7/early Wranglers have different rollbars. On the CJ-5, the rollbar's main hoop is perfectly straight up and down while the CJ-7/early YJ is tilted slightly back against the support, and the supports are lower and on the side of the main hoop, not on the top, like the 5. CJ-5's also have the entire bar mounted on the wheel well. I think that the stock 5 rollbar is visibly weaker then later ones. I think even the "H" shaped TJ Wrangler roll bars appear to have better design.

Red '87 YJ, Crate Chevy 350/TH350/Dana 20, Dana 44/GM 12-Bolt, M.O.R.E shackle reversal w/buggy leaf, 4.5" Springs, +1" Daystar Body Mounts

Very soon: Painless Harness, CJ style dash w/Autometer gauges, 38.5X14.5 TSL/SXs, EZ-Locker/Spool, Waggy Springs

RJC Member #350

"It's only after we've lost everything that we're free to do anything."
quiksand is offline
post #128 of 1110 Old 10-10-2005, 04:37 PM
sentinal02
H2 Recovery Team Member

sentinal02's Avatar
1992 YJ Wrangler

Join Date: Feb 2003
Location: New York
Posts: 6,681
the YJ also has the cross bars to the windshield which the CJ's don't. not that the windshield is designed to carry the weight of the jeep, but every bit helps.

RIP: '88 YJ 2.5L Ax-5 NP231
Posi-Loked. Herculined. Optima yellow top. 1" Shackle, 2" BDS. Cragar 397's Aussie front.

92 YJ 4.0L Ax-15 231
5" springs, 1" shackle 31's or 35's depending on my mood
sentinal02 is offline
post #129 of 1110 Old 10-11-2005, 08:54 PM
Jeeponrock
Registered User

Join Date: Sep 2004
Location: Stone Mountain, GA
Posts: 114
Quote:
Originally Posted by quiksand
CJ-5's and CJ-7/early Wranglers have different rollbars. On the CJ-5, the rollbar's main hoop is perfectly straight up and down while the CJ-7/early YJ is tilted slightly back against the support, and the supports are lower and on the side of the main hoop, not on the top, like the 5. CJ-5's also have the entire bar mounted on the wheel well. I think that the stock 5 rollbar is visibly weaker then later ones. I think even the "H" shaped TJ Wrangler roll bars appear to have better design.
Any of the above mentioned will fold like a cardboard box in a upper side impact. They don't have any side triangulation. Something is better than nothing, but well designed with proper tubing and quality welds is better than just something.

1992 YJ SOA 8.8 Detroit D30 nv4500 but getting ready for a BIG change
www.jeepbuilders.com
Jeeponrock is offline
post #130 of 1110 Old 10-12-2005, 03:19 PM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
found some good info from a race car saftey spec website (sorry for the bad pic)......
-----------------------------------------------
Roll Cages for the Unlimited Division must be fully welded. Bolt-in Roll Cages are not allowed.

1. The Roll Cage must be designed and made so that, when correctly installed, it substantially reduces body shell deformation and so reduces the risk of injury to occupants.

2. The essential features of Roll Cages are sound construction (designed to fit the particular vehicle), adequate mountings and a close fit to the body shell.

3. Tubes must not carry fluids.

4. The Roll Cage must not unduly impede the entry or exit of the Driver/Co-Driver.

5. The Roll Cage must be welded to the major structure, or be part of the major structure of the vehicle.

6. A NASCAR style Roll Cage is highly recommended.

7. Door intrusion bars are required on both sides of the vehicle. A minimum of two bars is mandatory and three or more are recommended.
a. The third bar may be a removable bar.
b. It is recommended that the bars be connected in a ladder like fashion.


8. A metal roof is required and should be welded to the cage on all cars without an integral welded-on roof.
a. These requirements are applied to cars with fiberglass or plastic roofs, removable or sliding tops, T-tops and open cars.
b. The metal must cover the driver compartment and passenger compartment unless the vehicle is driven solo.
c. If the floor pan of the vehicle is not metal then a metal floor pan must be added to protect the intrusion/extrusion of the Driver/Co-Driver's feet and leg area.
1) This floor should be attached to the Roll Cage.



9. Material, Fabrication, Bracing and Installation specifications are the same as the specifications for a Roll Bar.

10.Main Hoop and Braces: The main hoop and support braces should be of the same size.

11. Minimum Tubing Sizing: The size of the tubing to be used shall be determined on the basis of the weight and speed potential of the vehicle.

Vehicle Weight Tubing Material Tubing Dimensions
-----Under 2,700 lbs.
Mild Steel 1.50” O.D. X .120 wall
Alloy Steel 1.50” O.D. X .090 wall

-----2,700 to 3,000 lbs.
Mild Steel 1.75” O.D. X .120 wall
Alloy Steel 1.50” O.D. X .120 wall

-----Over 3,000 lbs.
Mild Steel 1.75”* O.D. X .120 wall
Alloy Steel 1.75”* O.D. X .120 wall


-=*2.0” O.D is highly recommended for vehicles over 3,000 pounds.
Attached Images



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
FunkSkunk is offline
post #131 of 1110 Old 10-14-2005, 09:03 AM
beyondink
Registered User

Join Date: Jul 2005
Location: Lynchburg, VA
Posts: 297
I want to add a full cage to my TJ and I have a few questions about it...
1. best and strongest materials to use?
2. best to build off of existing roll cage or start over?
3. I am on a budget (severe at the moment) cheaper to buy the front bolt on or weld on and then build on my own later? Or just do all myself?
4. I am just looking to have front bars, dash bar, and a bar connecting the two in the back for right now, anyone have any suggestions..

thanks for your help I am new to the fabbing, and building world... just trying to make a good rock crawling Jeep!

There are NO Weapons of Mass Destruction in Irag!!, Chuck Norris lives in Oklahoma!
beyondink is offline
post #132 of 1110 Old 10-14-2005, 11:57 AM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
it really depends on how much and where you wheel? If your competing in rockcrawling events then yeah you need a full on 8point+ rollcage with 2" DOM tubing... If your a weekend warrior and aren't going but once a month on mild trails, then you only need an add-on cage, welded preferrably, to complete the factory cage.

so... whats your type of wheelin'?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
FunkSkunk is offline
post #133 of 1110 Old 10-14-2005, 04:02 PM
beyondink
Registered User

Join Date: Jul 2005
Location: Lynchburg, VA
Posts: 297
Weekend trail rider, i go out almost every weekend.. most trails are mild but I have been finding more nad more ones I would liek some more protection on..

There are NO Weapons of Mass Destruction in Irag!!, Chuck Norris lives in Oklahoma!
beyondink is offline
post #134 of 1110 Old 10-14-2005, 06:44 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Then do a front "add-on" with 1.75"x.120 DOM. Also, pick up a stick or two of additional tubing (20ft stick) and you can do a dash bar, shoulder harness bar, hip huggers (diagonal bar along sides of seat), maybe a diagonal or "X" in the main ("B") pillar to help keep the cage from shifting. Plus, you can use that tube for other stuff down the road.. stinger, exo cage stuff..etc. My buddy recently got a nice add-on kit from SW Racecars .. they used 1.75"x.120 DOM and the kit cost about $300 shipped to the door.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #135 of 1110 Old 10-16-2005, 08:27 PM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
found some more pics ----> http://www.ih8mud.com/cages/
They are FJ-40 cages, but jeeps are fairly similar in design... just some more ideas.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
FunkSkunk is offline
