post #1081 of 1107 Old 07-01-2014, 06:31 PM
cjjon7
Registered User
1983 CJ7

Join Date: Dec 2009
Location: Rocklin
Posts: 1,555
Garage
Quote:
Originally Posted by Renegade82 View Post
I can finally contribute to this thread. My cage isn't installed but it's all done but the paint.
This is a side shot with it all tacked in place to locate the sliders before tacking them in place.
Very nice work on the tie ins! I like the slider idea..

cjjon7 is offline
Sponsored Links
Advertisement

post #1082 of 1107 Old 07-02-2014, 09:50 AM
Renegade82
Registered User
1982 CJ7

Join Date: Apr 2011
Location: Lewistown
Posts: 4,831
Garage
Thanks. Hope I never have to test them. I figure the tube step and plate will be my "crush zone" if I ever was to get T-boned.

The end of a defining era.... JEEP R.I.P. 1941-1986
My frame off Re-Build: (the 4 year saga....)
http://www.jeepforum.com/forum/f8/30...e-off-1280850/
Renegade82 is offline
post #1083 of 1107 Old 07-05-2014, 03:35 PM
bigorangeyj
Registered User
2002 TJ Wrangler

Join Date: Sep 2009
Location: FT. BRAGG
Posts: 422

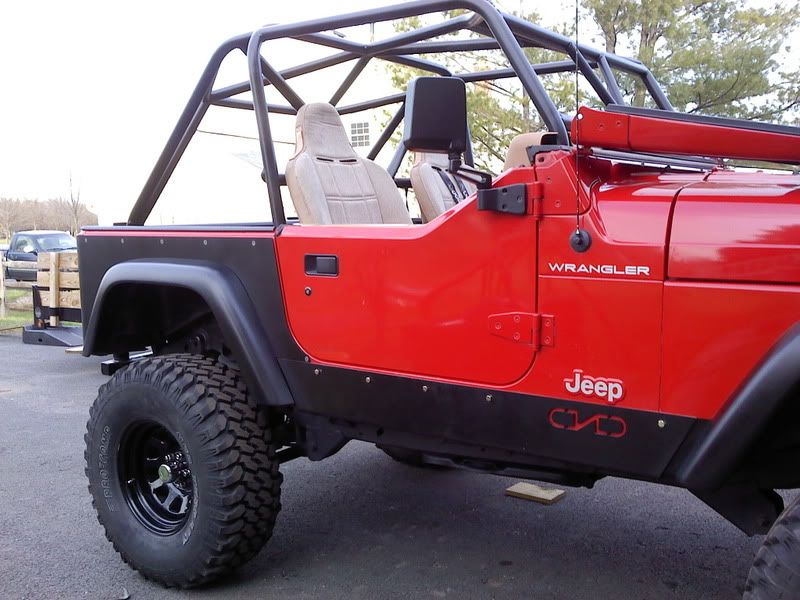

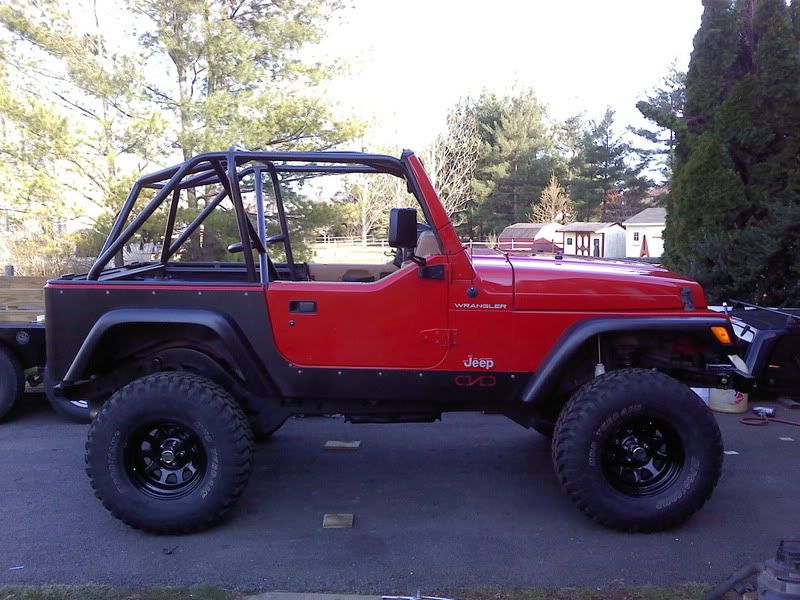

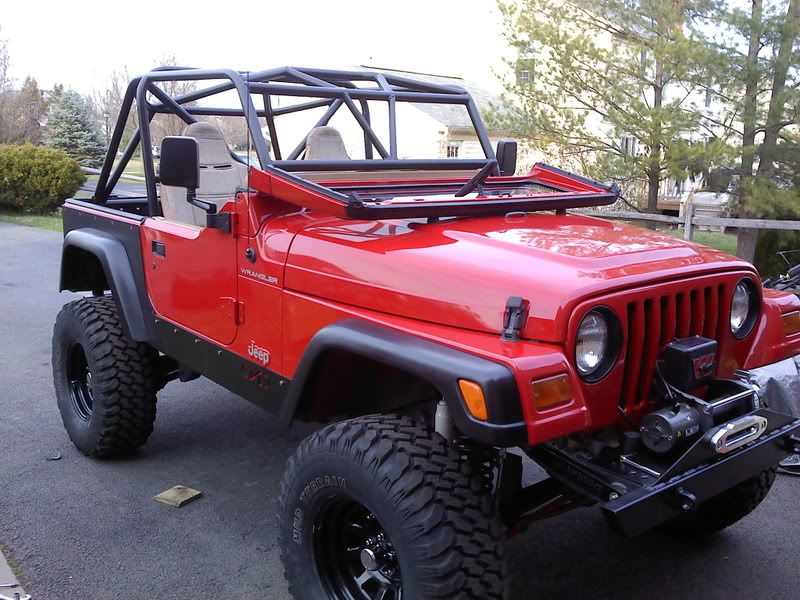

This is exactly what I've been imagining in my head all day. It's perfect. I've looked at hundreds of cages, but this is spot on. It looks amazing.
Quote:
Originally Posted by MO2500 View Post

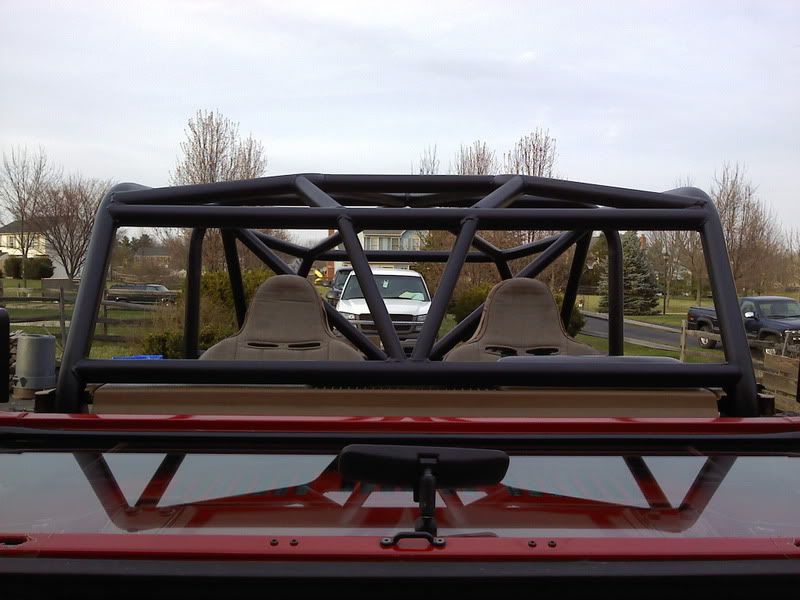

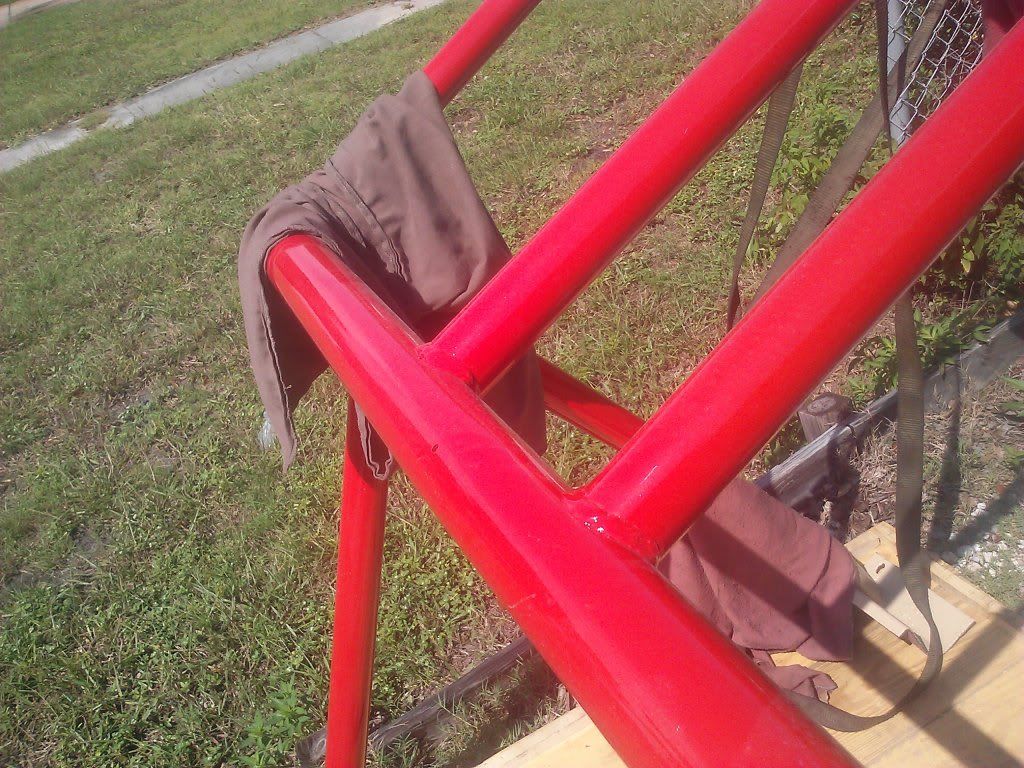

Finally finished up my cage today. It's taken all winter but I can officially call it done since it's painted and back in the Jeep for the last time (I hope).

All 1.75x.120 DOM except the windshield spreaders which are 1.25 DOM

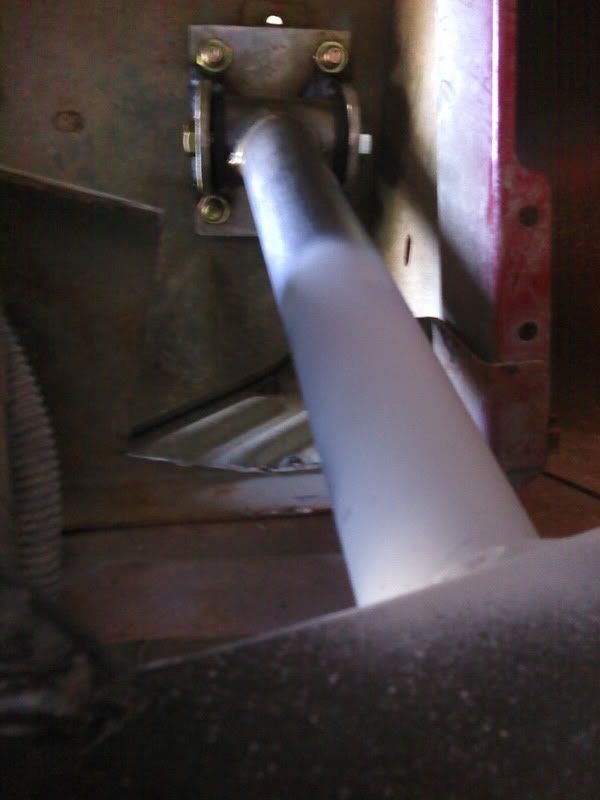

A-pillar tie-in

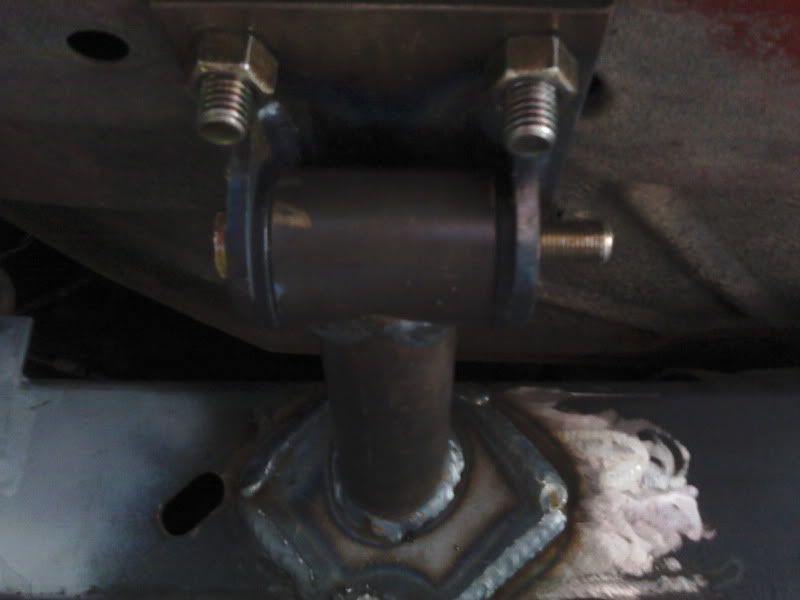

C-pillar tie-in


02BLKTJ-35" MTR/K's, savvy 4", 4.88's, Detroit True Trac 44 rear, Aussie HP 30 front, Big Stereo.
bigorangeyj is offline
post #1084 of 1107 Old 07-09-2014, 11:26 AM
dougiee
Registered User
1999 TJ Wrangler

Join Date: Aug 2012
Posts: 815
Name:  image-2882306523.jpg
Views: 515
Size:  437.8 KB

Here's mine nothing to complex....I just have to install it in the jeep which is gonna be a ***** because I can't get the one out that's in there now lol

It's a jeep thing...you wouldn't understand :)
dougiee is offline
post #1085 of 1107 Old 07-09-2014, 07:14 PM
jeepinhokie
Registered User
2004 TJ Wrangler

Join Date: Apr 2010
Location: MD
Posts: 2,809
Quote:
Originally Posted by dougiee
Here's mine nothing to complex....I just have to install it in the jeep which is gonna be a ***** because I can't get the one out that's in there now lol
No A pilar of any kind? Just the windshield frame. Beefs up the rest of the cage a bit but doesn't seem to address the main weakness of the stock cage.
jeepinhokie is offline
post #1086 of 1107 Old 07-09-2014, 08:49 PM
dougiee
Registered User
1999 TJ Wrangler

Join Date: Aug 2012
Posts: 815
Quote:
Originally Posted by jeepinhokie
No A pilar of any kind? Just the windshield frame. Beefs up the rest of the cage a bit but doesn't seem to address the main weakness of the stock cage.
Lol I no i should have but I didn't want bars along the windshield...and shhhh don't tell anyone but it's mainly for looks haha...and I had to work with what I got a guy did it for me for pretty cheap.

It's a jeep thing...you wouldn't understand :)
dougiee is offline
post #1087 of 1107 Old 09-13-2014, 04:36 PM
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,285
Just finished my first JK cage.

6 point frame tie ins, and seats and harnesses are mounted to cage


00XJ limited.....Tons, ORI's, Caged
92xj....Linked, Locked, Caged, Armored...RIP
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline
post #1088 of 1107 Old 09-13-2014, 04:58 PM
cjjon7
Registered User
1983 CJ7

Join Date: Dec 2009
Location: Rocklin
Posts: 1,555
Garage
Very nice work!
cjjon7 is offline
post #1089 of 1107 Old 09-30-2014, 06:45 PM
thirstybob
Registered User
1986 CJ7

Join Date: Mar 2014
Location: Denver
Posts: 156

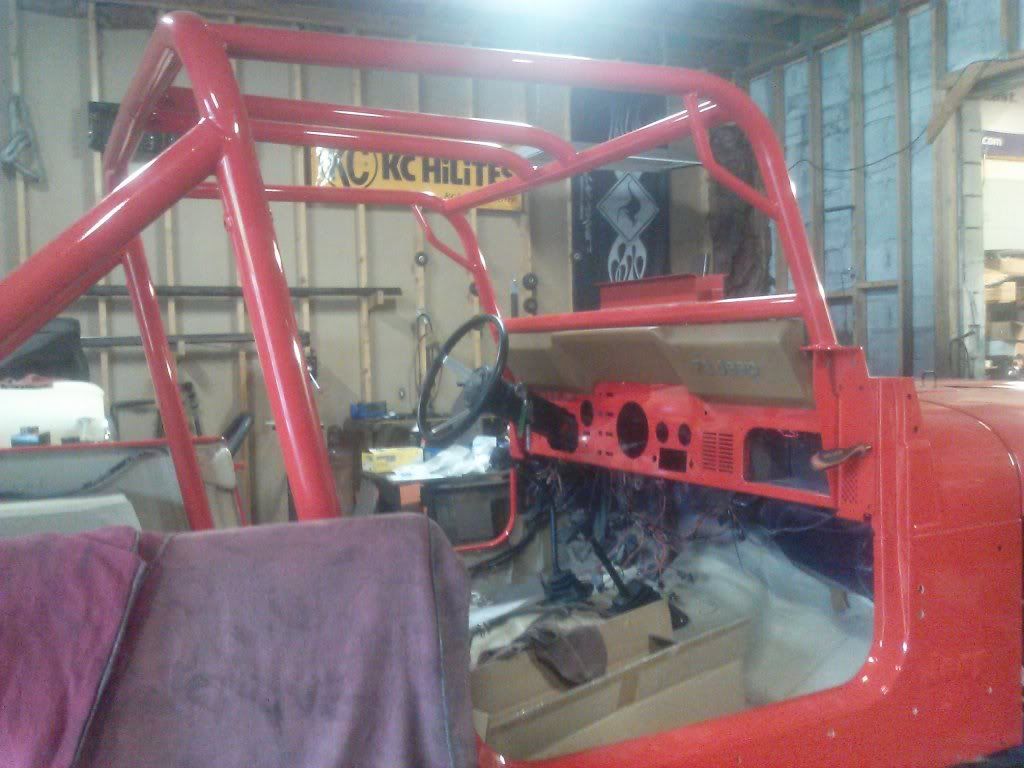

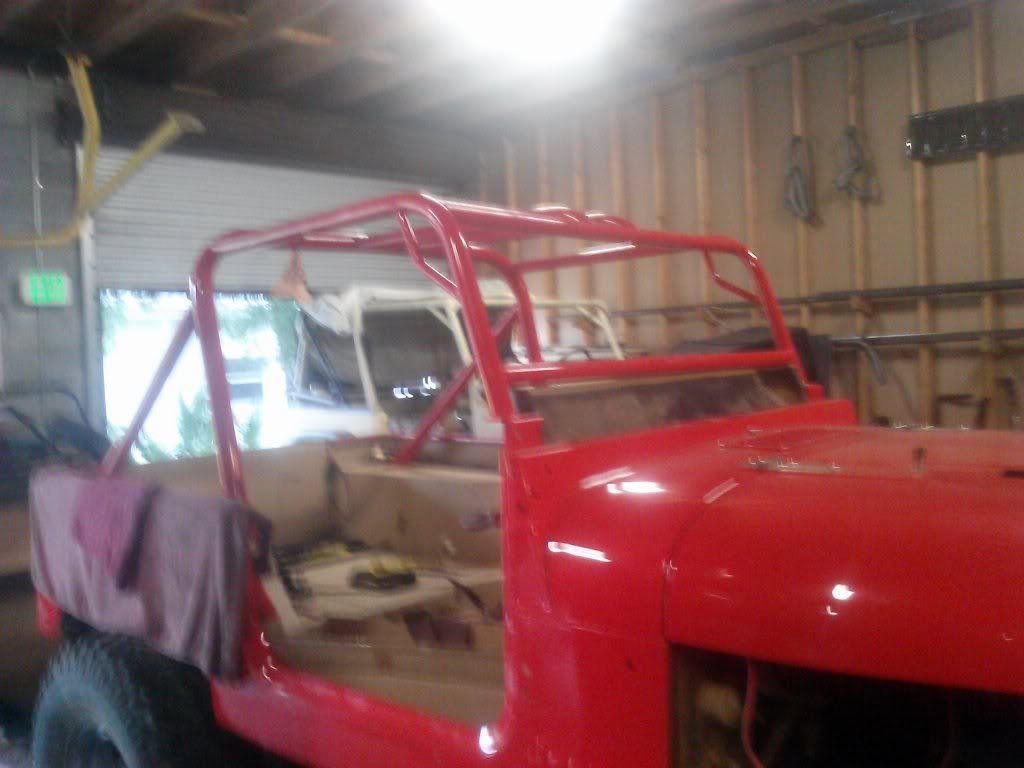

[QUOTE=SFRautomotive;16317737]Just a simple add-on cage. Using 1.75 dom and the genright dash stanchions (bottom half is not back in yet.)

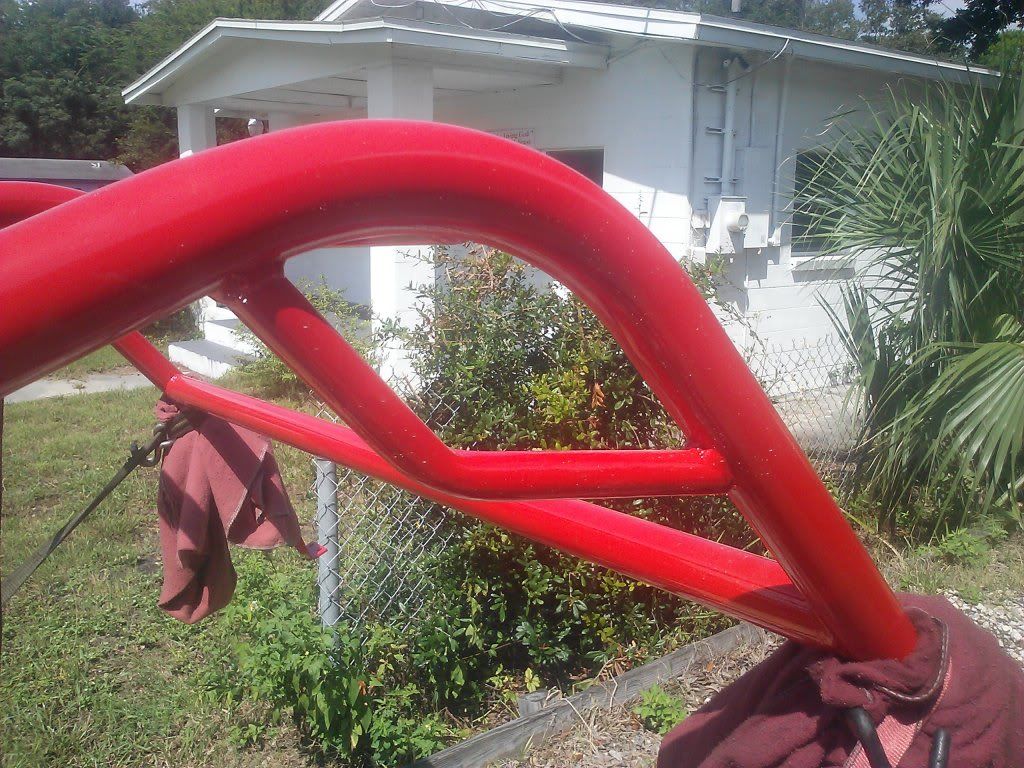

These handles are made from old stock Jeep tierods. They seem to work nicely.
[/QUOTE

I'm sorry to resurrect a year old thread but this is awesome. It's exactly what I've been looking for. The "tie rod" handles are genius!
thirstybob is offline
post #1090 of 1107 Old 10-10-2014, 01:59 PM
mike_bfdr
Registered User
1981 CJ8

Join Date: Apr 2013
Location: riverside
Posts: 199
heres my cage









MY BUILD-----> http://www.jeepforum.com/forum/f22/81-jeep-scrambler-3-link-1507615/
mike_bfdr is offline
post #1091 of 1107 Old 10-25-2014, 09:40 PM
macklamar
Registered User
1996 XJ Cherokee

Join Date: Nov 2012
Location: Hanover
Posts: 397
I have never commented on this thread before, so sorry if i interrupt and ongoing discussion here, I just have a quick question. I wanted the opinions of people with real world experience and you seem like an experienced bunch

Can anyone here attest to the strength of a sleeved and rosette welded butt joint vs the strength of a 90* joint where one piece is coped (ie a 'T' joint)? Talking shear force. It seems to me that the sleeved joint would be just as strong, but it's such an unconventional technique that I'm not familiar with its real world strength attributes. Thanks!
macklamar is offline
post #1092 of 1107 Old 10-26-2014, 10:32 AM
danielbuck
Registered User
2006 TJ Wrangler

Join Date: Mar 2010
Location: Westchester
Posts: 5,151
I don't know how it compares to other joints, but internal sleeved joints that are plug/rosette welded and butt welded are commonly used in all kinds of racing, so I wouldn't worry about the sleeve joint. I've been doing alot of research on cages as I'm about to start my first cage (research including cages from race cars, because there's alot of good information there as well!)

Alot of stuff that I've seen specifies that the sleeve extend at least 2x the tube diameter inside each tube (so if 2" tube, then the sleeve needs to be at least 8" long, 4" on each side?), the sleeve wall thickness the same as the main tube wall thickness, a fit that's not loose, and then 4 rosette welds. Not sure if that means 4 on each side, or 4 total. It seems to be a very common joint, even on a brand new cage, not just a repair job.

How often do yall use sleeve joints on newly constructed cages?
danielbuck is offline
post #1093 of 1107 Old 10-26-2014, 07:55 PM
macklamar
Registered User
1996 XJ Cherokee

Join Date: Nov 2012
Location: Hanover
Posts: 397
Cool Thanks for the info. That is also something I would like to know: How often do other people use this joint in a newly constructed cage?
macklamar is offline
post #1094 of 1107 Old 12-06-2014, 08:17 PM
bsutton
Registered User
1983 CJ7

Join Date: Feb 2008
Location: charlotte, nc
Posts: 207
Quote:
Originally Posted by mike_bfdr View Post
heres my cage








Awesome Cage man!! Jeep looks great!!!

83 CJ-7, 302 FI, NV4500, D300. Locked 44's front and rear, PSC rear fenders. 35 MTR's
bsutton is offline
post #1095 of 1107 Old 12-07-2014, 11:09 AM
8pitcher
Web Wheeler

8pitcher's Avatar
1988 YJ Wrangler

Join Date: May 2012
Location: Wellsville
Posts: 4,854
I gotta question too. We all know radius bends are the way to go. But considering if doe without bends is there any way to mak it strong enough to handle a roll? Talking all cut and weld not bent.

Built Not Bought #640

1976ish cj5 304 t18 d20 2.5" lift

some year YJ custom frame HP D60 14 bolt 4 linked front rear FI 350 700r4 NP231c

2009 JK 4 door 2.5" lift 35" tires custom bumpers mile marker 9500# winch
8pitcher is offline
