Unread 02-23-2013, 06:41 AM   #916
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,174
Cage out for final welding
And to add the handles and gussets


__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote
Unread 02-23-2013, 09:35 AM   #917
IEcrawlerTJ01
More than a web wheeler

IEcrawlerTJ01's Avatar
2000 TJ Wrangler

Join Date: Sep 2010
Location: lake elsinore, southern california
Posts: 1,195
Quote:
Originally Posted by SFRautomotive
Cage out for final welding
And to add the handles and gussets
No diagonals from b to c pillar?
__________________
SAVVY,CURRIE,GOODYEAR

Nuff said...
IEcrawlerTJ01 is offline   Reply With Quote
Unread 02-23-2013, 09:44 AM   #918
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,174
Quote:
Originally Posted by IEcrawlerTJ01 View Post

No diagonals from b to c pillar?
Corner gussets will be added, but the owner wanted access to the backseat through the window
__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote
Unread 03-05-2013, 12:06 PM   #919
bsutton
Registered User
1983 CJ7

Join Date: Feb 2008
Location: charlotte, nc
Posts: 203
Quote:
Originally Posted by MO2500 View Post
This is very true! I felt like Bend-tech had paid for itself after just one cage. Never had to scrap a length of tube because it was bent wrong or cut short. Definitely a good purchase.

This and grinding dust was all that went to waste



hey, love your cage!

could you by chance post up a side picture of it?

very nice job!
__________________
83 CJ-7, 302 FI, NV4500, D300. D44 rear, 30 front (for now) 4.56, detroits in both ends. Warn winch, PSC rear fenders. 35 MTR's with MRT beadlocks.
bsutton is offline   Reply With Quote
Unread 03-05-2013, 12:53 PM   #920
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,465
Quote:
Originally Posted by bsutton View Post
hey, love your cage!

could you by chance post up a side picture of it?

very nice job!
Thank you

It is for sale Here

Hope these are kind of what you're looking for.



__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote
Unread 07-05-2013, 05:27 PM   #921
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,174

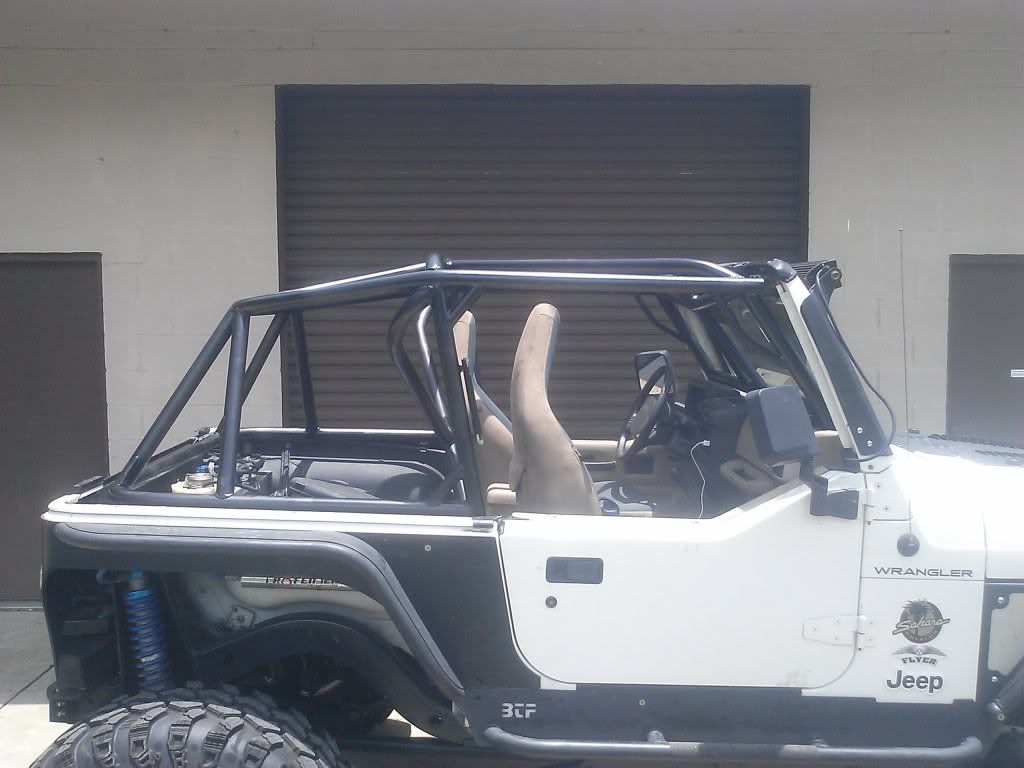

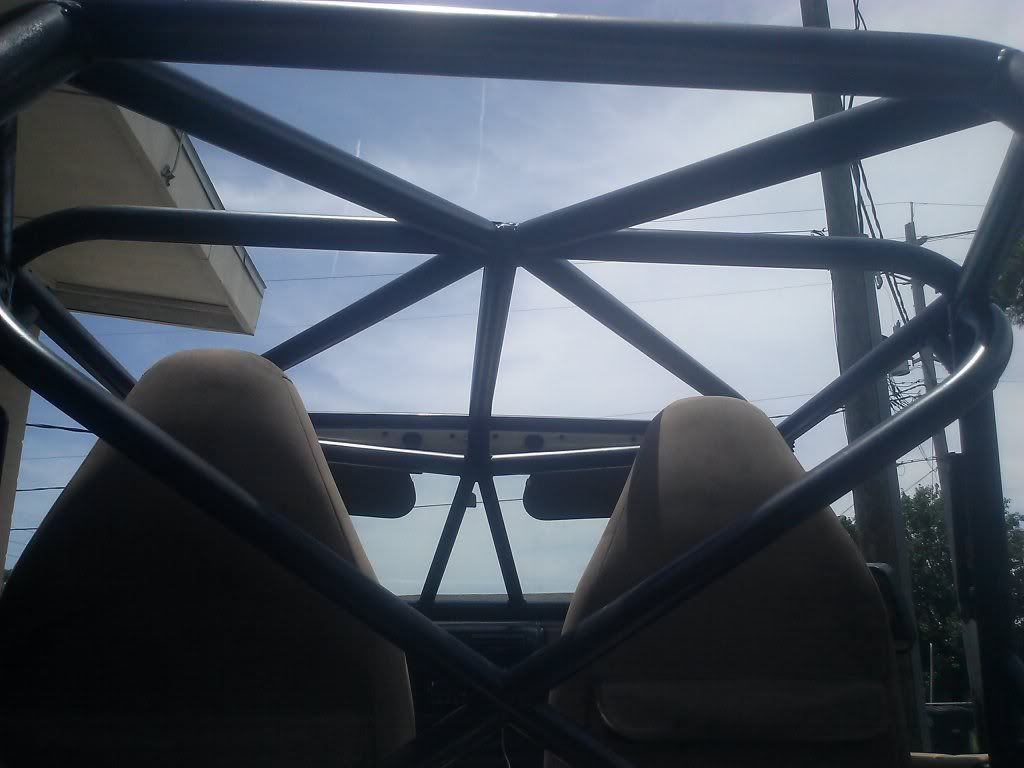

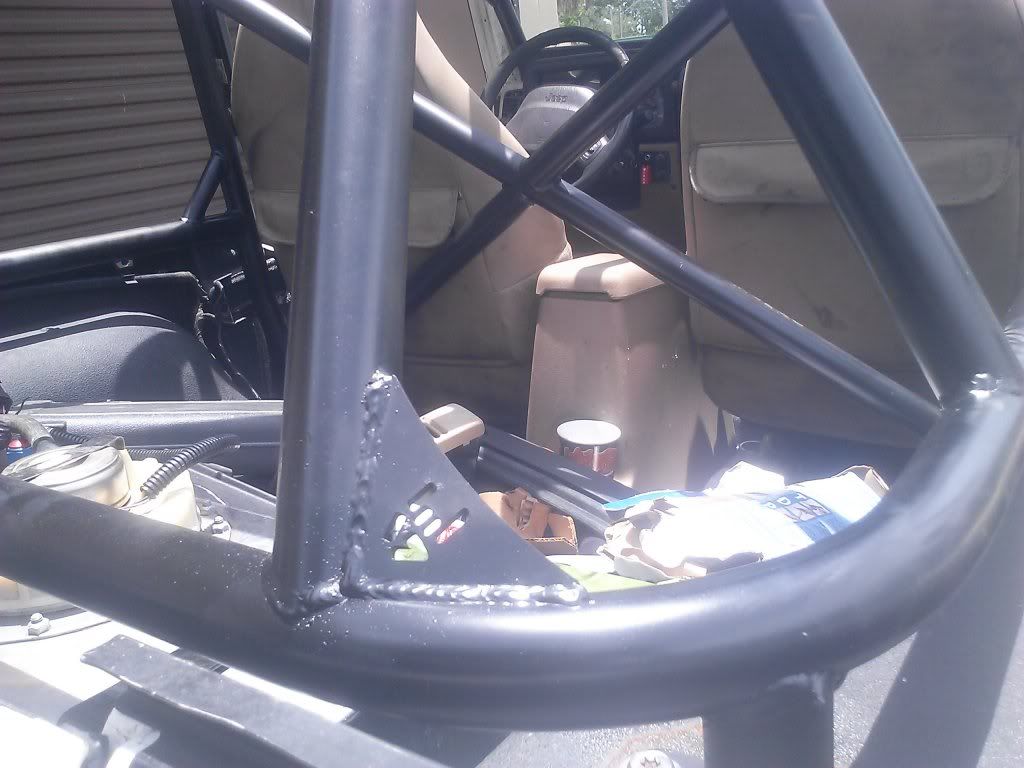

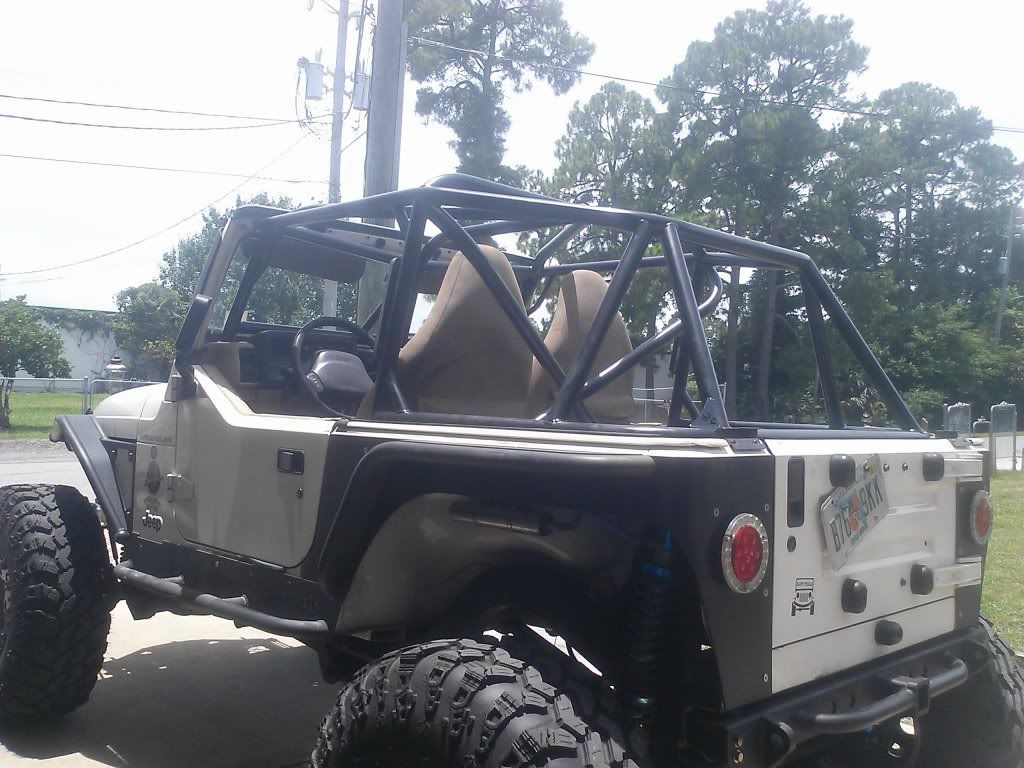

One I just finished.


All 1.75x.120 dom and 6 frame tie ins.






__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote
Unread 07-08-2013, 06:37 AM   #922
rtbtitans50
Registered User
2003 TJ Wrangler

Join Date: Jun 2009
Location: Cincinnati,OH
Posts: 193
that is one good looking cage.. I like the gussets!
__________________
[URL="http://youtu.be/aZ5Oz60S-b0"]My 3 Year old son throwing a tomahawk[/URL]
[URL="http://www.youtube.com/watch?v=Z9udaVbLOHQ"]My 3 year old son shooting a bow[/URL]
[URL="http://www.jeepforum.com/forum/f22/college-w-kids-aka-very-low-budget-tj-build-1231456/"]My Jeep Build Thread[/URL]
[URL="http://www.jeepforum.com/forum/f37/my-first-fab-project-tj-front-bumper-1231585/#post11760786"]My First Fab Project... TJ Front Bumper[/URL]
[URL="http://www.jeepforum.com/forum/f9/my-cold-air-intake-writeup-1306786/#post12754414"]My Cold air intake 'build'[/URL]

[B][SIZE="5"]HILLTOP O.R.V.[/SIZE][/B]
rtbtitans50 is offline   Reply With Quote
Unread 07-15-2013, 02:38 PM   #923
CZDiesel
Registered User
2006 LJ Wrangler

Join Date: May 2012
Location: Colorado Springs, Colorado
Posts: 493
A question and sorta mini poll for all of you cage fabricators...

I have seen a lot of people build off of the stock B-Pillar with kits such as the poly performance. What is your thoughts on building off of the stock B-Pillar vs a new DOM B-Pillar and what are the positives and negatives of either in your mind.
CZDiesel is offline   Reply With Quote
Unread 07-15-2013, 03:04 PM   #924
kellerumps
See Ya Coach.

kellerumps's Avatar
2004 TJ Wrangler

Join Date: Jul 2009
Location: Paris, IL
Posts: 679
Quote:
Originally Posted by CZDiesel View Post
A question and sorta mini poll for all of you cage fabricators...

I have seen a lot of people build off of the stock B-Pillar with kits such as the poly performance. What is your thoughts on building off of the stock B-Pillar vs a new DOM B-Pillar and what are the positives and negatives of either in your mind.
Excellent Question........
__________________
I don't look for problems....They find me.

Member of: IndyOrv
kellerumps is offline   Reply With Quote
Unread 07-15-2013, 03:41 PM   #925
cjheap
Registered User
1985 CJ7

Join Date: Aug 2007
Location: h-town
Posts: 302
The positives of using a new hoop is that it is a better structural member.

The factory cage is designed for one time use while a true cage can withstand repeated flops and rubs. It is a cheap upgrade.
cjheap is offline   Reply With Quote
Unread 07-15-2013, 03:52 PM   #926
bigt2317
Mall Crawler
2005 LJ Wrangler

Join Date: Jan 2012
Location: Leander, TX
Posts: 411
In my cage I opted to put a single piece of DOM from the A pillar all the way to the tub at the C pillar (drivers front to drivers back). I then built off these for cross braces (Drivers side to passenger side), for the A pillar, B pillar and C pillar. I would replace the B pillar hoop either way.
__________________
2005 LJ Rubicon - slightly modified

Build thread
Flickr pictures
Crawler Hauler build FOR SALE
bigt2317 is offline   Reply With Quote
Unread 07-15-2013, 04:08 PM   #927
'92 vegas YJ
R.I.P. Ratmonkey

'92 vegas YJ's Avatar
1992 YJ Wrangler

Join Date: Jan 2008
Location: Jacksonville, NC
Posts: 2,352
Quote:
Originally Posted by bigt2317 View Post
In my cage I opted to put a single piece of DOM from the A pillar all the way to the tub at the C pillar (drivers front to drivers back). I then built off these for cross braces (Drivers side to passenger side), for the A pillar, B pillar and C pillar. I would replace the B pillar hoop either way.
X2

Im still in the process of building mine but I did the A-C cage.


__________________
~'92 YJ with many upgrades and many more calling my name..... it never ends
~'07.5 Dodge Ram Megacab 2500, 6.7L Cummins turbo diesel

April 2012, May 2013, May 2014 YJ of the month
'92 vegas YJ is offline   Reply With Quote
Unread 07-22-2013, 07:53 PM   #928
EugeneTheTJ
YOU CAN'T BE SERIOUS...

EugeneTheTJ's Avatar
2003 TJ Wrangler

Join Date: Dec 2008
Location: Charlotte, NC
Posts: 6,583
I just read this entire thread. Can't wait to get my full cage...
EugeneTheTJ is online now   Reply With Quote
Unread 07-23-2013, 06:41 AM   #929
'92 vegas YJ
R.I.P. Ratmonkey

'92 vegas YJ's Avatar
1992 YJ Wrangler

Join Date: Jan 2008
Location: Jacksonville, NC
Posts: 2,352
Made a little more pregress on my cage. It's almost ready to pull and fully weld. Just need to add a couple gussets and my windshield bars.



__________________
~'92 YJ with many upgrades and many more calling my name..... it never ends
~'07.5 Dodge Ram Megacab 2500, 6.7L Cummins turbo diesel

April 2012, May 2013, May 2014 YJ of the month
'92 vegas YJ is offline   Reply With Quote
Unread 07-23-2013, 07:48 AM   #930
zachv
Web Wheeler

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,196
Quote:
Originally Posted by cjheap View Post
The positives of using a new hoop is that it is a better structural member.

The factory cage is designed for one time use while a true cage can withstand repeated flops and rubs. It is a cheap upgrade.
Not so fast. We have had a bunch of rolls and flops on stock B-pillars with our cage additions and they are ready to go for more. The stock B-pillar, when properly welded and gusseted to is not necessarily a "one-time use" piece, nor is a cage addition a "cheap upgrade". The stock B-pillar in the YJ and TJ Wranglers is 2.25" OD, which as a size alone is much stronger than 1 3/4". Not knowing the material make-up of the tubing it is hard to state actual strengths of the tubing, but we can say, with evidence, that the stock B-pillars can definitely take a reasonable impact and are not necessary to throw our for every rig. If we have a customer come to us looking for a cage solution for a daily driver and weekend trail rig we tend to recommend the cage additions. There are not soft top fitment issues, etc. If someone tells me they will be competing or have a chance to roll every time they go out wheeling then a full replacement cage is likely in order.

My point: Don't disregard the option of making the stock B-pillar a structural member.
__________________
Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline   Reply With Quote
