Unread 02-23-2005, 07:05 PM   #76
tube yj
Web Wheeler

tube yj's Avatar
2006 LJ Wrangler

Join Date: Dec 2000
Location: Round Rock, Texas
Posts: 1,957
yep they kill you with the price of dies.

btw my cage is built with 2 inch dom, but alot of people go with 1.75 tubing. pick one and drop the cash on the dies

you may want to check out www.4wdfactory.com they carry protools benders which are very comparble to the JD models

tube yj is offline   Reply With Quote
Unread 02-23-2005, 07:55 PM   #77
dirtgrip
Registered User
1999 TJ Wrangler

Join Date: May 2004
Location: Sierra Vista, AZ
Posts: 1,461
you may want to check out www.4wdfactory.com they carry protools benders which are very comparble to the JD models[/QUOTE]
Link is dead-who else has protool benders??
__________________
Large vacuum leak sucking all the dead presidents out of my wallet.
dirtgrip is offline   Reply With Quote
Unread 02-23-2005, 08:00 PM   #78
tube yj
Web Wheeler

tube yj's Avatar
2006 LJ Wrangler

Join Date: Dec 2000
Location: Round Rock, Texas
Posts: 1,957
they are local to me and alot of people from pirate are buying from them. give them a call, they have been having some website problems lately

512-759-6267
tube yj is offline   Reply With Quote
Unread 02-23-2005, 08:29 PM   #79
dirtgrip
Registered User
1999 TJ Wrangler

Join Date: May 2004
Location: Sierra Vista, AZ
Posts: 1,461
Quote:
Originally Posted by tube yj
they are local to me and alot of people from pirate are buying from them. give them a call, they have been having some website problems lately

512-759-6267
Thanks for the info-will try them later.
__________________
Large vacuum leak sucking all the dead presidents out of my wallet.
dirtgrip is offline   Reply With Quote
Unread 02-24-2005, 04:49 PM   #80
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
I bought my Pro-Tools bender from Mike Green off the pirate board too, www.mikegreen4x4.com great product and Mike knows a ton about the ProTools bender, give him a call if your not sure what to get he'll spend the time explaining it and giving suggestions.

PS - mike's yellow CJ was on the cover of JP a few months back!
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 02-24-2005, 07:13 PM   #81
1BLKJP
Member

Join Date: Oct 2004
Location: AZ
Posts: 371
Quote:
Originally Posted by FunkSkunk

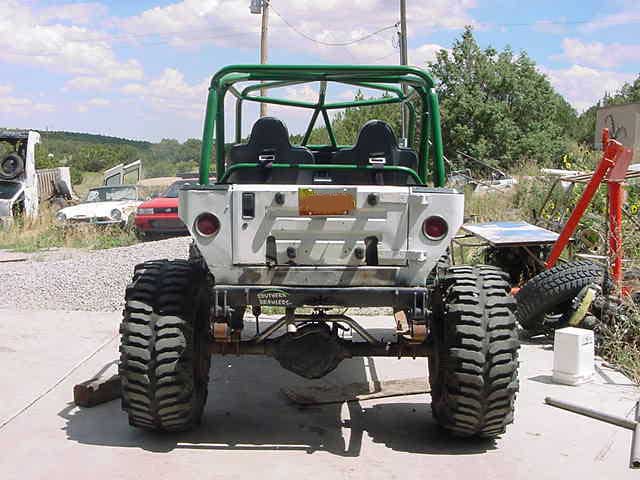

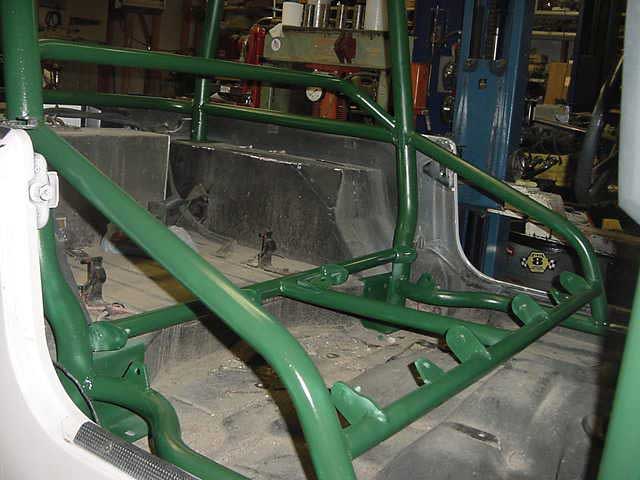

what ya think?..................................
I like this one, but would like to see some more lateral supports. Granted you can't see what is sitting behind the seats, but some triangulation to the floor would make that pretty much a perfect cage. And maybe some more gusseting.


Oh, and Mike Green's site is down until May of 2005 it says.
1BLKJP is offline   Reply With Quote
Unread 03-08-2005, 12:17 PM   #82
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
Pirate just posted these up of a rollover that happened at 43rd annual TDS event. Just another dumby that thought it would be good to build a cage out of pipe..
779.jpe
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 03-08-2005, 12:19 PM   #83
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
and the carnage........... Tierra Del Sol Safari --> http://www.pirate4x4.com/trailreport...p05/index.html
792.jpe
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 03-08-2005, 01:18 PM   #84
RideRed04
Registered User

Join Date: Jul 2002
Location: Menomoine, WI
Posts: 1,239
There are WAY more and bigger issues as to why that failed then the material choice. If you really know what you are doing, you could probably build a cage to hold up to that roll with pipe. Why, when tube is stronger and lighter is up in the air.
__________________
2000 WJ Limited 4.7 QD
RideRed04 is offline   Reply With Quote
Unread 03-08-2005, 03:58 PM   #85
sentinal02
H2 Recovery Team Member

sentinal02's Avatar
1992 YJ Wrangler

Join Date: Feb 2003
Location: New York
Posts: 6,688
Quote:
Originally Posted by RideRed04
There are WAY more and bigger issues as to why that failed then the material choice. If you really know what you are doing, you could probably build a cage to hold up to that roll with pipe. Why, when tube is stronger and lighter is up in the air.
yes, like putting a weld right at the buckle point at the dash. i've heard of pre collapsed frames that are designed to buckle at certain points in the event of a crash, so as to absorb the impact in a certain way, but never a roll cage
__________________
RIP: '88 YJ 2.5L Ax-5 NP231
Posi-Loked. Herculined. Optima yellow top. 1" Shackle, 2" BDS. Cragar 397's Aussie front.

92 YJ 4.0L Ax-15 231
5" springs, 1" shackle 31's or 35's depending on my mood
sentinal02 is offline   Reply With Quote
Unread 03-08-2005, 06:42 PM   #86
RideRed04
Registered User

Join Date: Jul 2002
Location: Menomoine, WI
Posts: 1,239
That, and the poor penetration were the first things I noticed (after the pipe thread..hah!), but look a little closer, the one pipe is cut half way through! I'm not sure what the deal is there...but that's just crazy!
__________________
2000 WJ Limited 4.7 QD
RideRed04 is offline   Reply With Quote
Unread 03-08-2005, 07:09 PM   #87
sentinal02
H2 Recovery Team Member

sentinal02's Avatar
1992 YJ Wrangler

Join Date: Feb 2003
Location: New York
Posts: 6,688
Quote:
Originally Posted by RideRed04
That, and the poor penetration were the first things I noticed (after the pipe thread..hah!), but look a little closer, the one pipe is cut half way through! I'm not sure what the deal is there...but that's just crazy!
i think that "cut" might just be a line drawn on the pipe with a marker. if it is a cut then that's just plain scary
__________________
RIP: '88 YJ 2.5L Ax-5 NP231
Posi-Loked. Herculined. Optima yellow top. 1" Shackle, 2" BDS. Cragar 397's Aussie front.

92 YJ 4.0L Ax-15 231
5" springs, 1" shackle 31's or 35's depending on my mood
sentinal02 is offline   Reply With Quote
Unread 08-31-2005, 07:39 AM   #88
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
thread has been dead for a while. Anyone actually build a cage yet?? What techniques did you use? Any ideas used that have been discussed?
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 08-31-2005, 09:10 AM   #89
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
I just went back and browsed thru this entire thread looking at pics of cages. I just got my Model 3 bender and a 1.75"x6.5" die. I've already got a cage in Big Lime but I'm gonna redo some areas and beef it up a bit. Also, gonna do some radiator protection. I'll post pics when I'm done.. hopefully in the next week or two...
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 08-31-2005, 09:22 AM   #90
sjlplat
Registered User

Join Date: Oct 2004
Posts: 1,226
Just had my cage "repaired". Good design, bad craftsmanship. SOB did a killer job with the repairs, and it should be good for at least few moderate rolls or one really hard roll.

The factory B and C pillars were used as a base to build off of. The cage was originally built with 1.75" OD .120 wall DOM. The X between the B pillars was cut out, due to space restrictions with the seats, the dash and windshield bars were cut out and replaced with 1.75" OD .120 wall HREW due to short tubing being filled in with a welder, and the main hoop was sleeved at the B pillar for the same reason. The C pillars were tied into the frame with a sandwich plate and 1.75" OD .120 wall HREW, and a harness bar was installed at the B pillars. Seat bars were built with 1.75" OD .120 wall HREW, and the seats were bolted to 1/4" plate tabs. The cage is bolted in 6 places with 3/8" Grade 8 bolts. 4 front and rear with sandwich plates to frame tie-ins, and in the factory location at the B pillars, where the body crossmember attaches directly to body mounts.
