Unread 12-30-2012, 12:18 AM   #871
WSS
Registered User
1972 CJ5

Join Date: Oct 2012
Location: Chino, Ca
Posts: 2,044
Here are some progress pics. The front A pillar has no bend in the center but still has a brow/eyes look. LOL. CJ5's are fairly small were head and legroom are concerned. I have worked myself into a corner as far as the last details go, I do not have a good plan for front seat (B pillar) shoulder harness mounts. Originally, I had hoped to put some triangulation going to the floor and gusset some harness tabs here, but the B pillar sits right at the seat and foot room for the back is only about 10". How have other CJ5s worked this out (please don't say "trade it for a 7")?

Thanks for any help here,
WSS

dscn7092.jpg   dscn7090.jpg   dscn7087.jpg
WSS is offline   Reply With Quote Quick reply to this message
Unread 12-31-2012, 06:38 PM   #872
KMD
Registered User
1976 CJ7

Join Date: Apr 2009
Location: Modesto, California
Posts: 1,284
Nice Cj^^^
__________________
Locked and Loaded 4x4 Club
KMD is offline   Reply With Quote Quick reply to this message
Unread 01-17-2013, 10:26 AM   #873
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,928
THIS is why you need a good solid, well designed, frame mounted cage. This is my friend James' Jeep. He rolled/flipped 8 times off the side of a mountain. He walked away. The Cage has been replaced and he wheels it still.

Here are the videos.

The roll
https://www.youtube.com/watch?v=uACVL1aKK6k

The aftermath
https://www.youtube.com/watch?v=dbn7Q2u3vAo
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2013, 10:40 AM   #874
IEcrawlerTJ01
Registered User
2000 TJ Wrangler

Join Date: Sep 2010
Location: lake elsinore, southern california
Posts: 1,195
Quote:
Originally Posted by 82JeepCJ7
THIS is why you need a good solid, well designed, frame mounted cage. This is my friend James' Jeep. He rolled/flipped 8 times off the side of a mountain. He walked away. The Cage has been replaced and he wheels it still.

Here are the videos.

The roll
https://www.youtube.com/watch?v=uACVL1aKK6k

The aftermath
https://www.youtube.com/watch?v=dbn7Q2u3vAo

Not doggin on your friend at all. And glad he is ok

But had that cage had triangulation in it. I think it would have held its shape alot better and not deformed as much.

Pretty good roll down that hill though haha
__________________
[CENTER]SAVVY,CURRIE,GOODYEAR

Nuff said...[/CENTER]
IEcrawlerTJ01 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2013, 11:01 AM   #875
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,928
I've seen so called "expert fabrication" company cages fold under less. A lot has to be said for that cage to experience what it did and hold up so well.
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2013, 12:13 PM   #876
WSS
Registered User
1972 CJ5

Join Date: Oct 2012
Location: Chino, Ca
Posts: 2,044
Quote:
Originally Posted by 82JeepCJ7 View Post
I've seen so called "expert fabrication" company cages fold under less. A lot has to be said for that cage to experience what it did and hold up so well.
Not enough can be said about how it held up. That was amazing how fast that "typical" situation changed. Well done!

A lot has to be said for the "built not bought" cliche. All the hours of work put in that rig paid off. Thanks for posting that, I have been frustrated at the amount of time I am putting in our cj5 and just want to get in the dirt. That was a reality check, do it right once the first time, you may not get a second chance at it.
WSS is offline   Reply With Quote Quick reply to this message
Unread 01-21-2013, 07:01 PM   #877
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,619

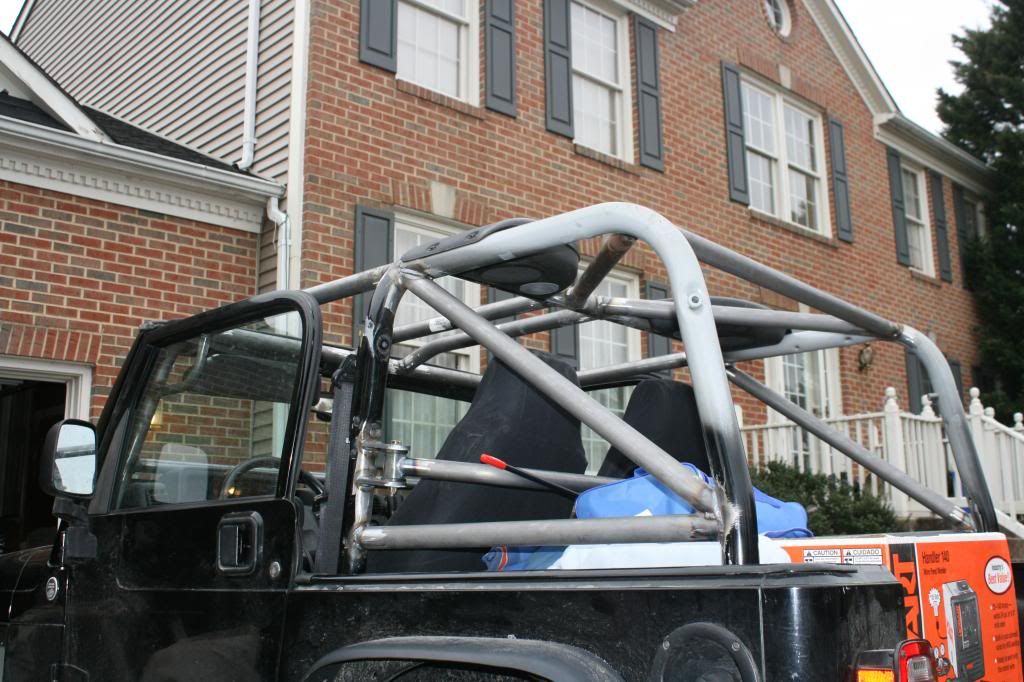

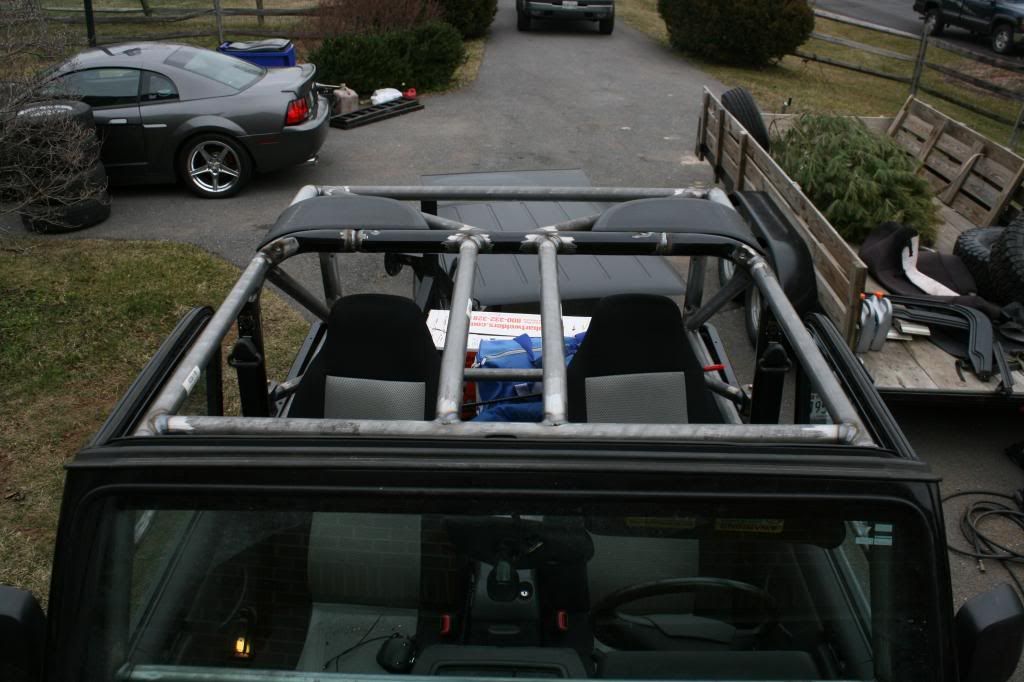

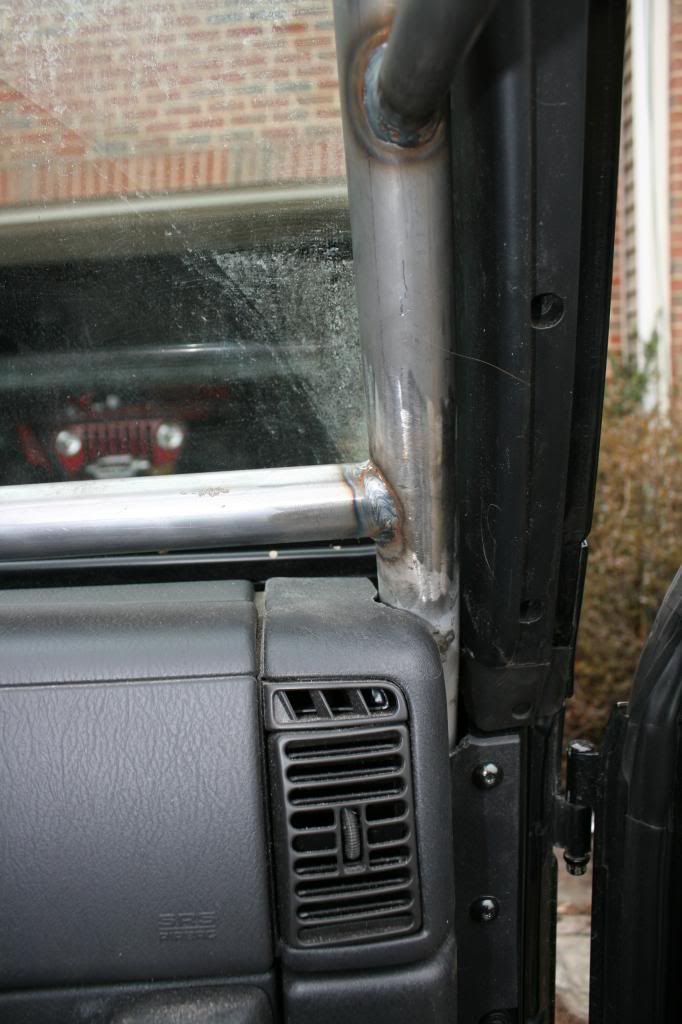

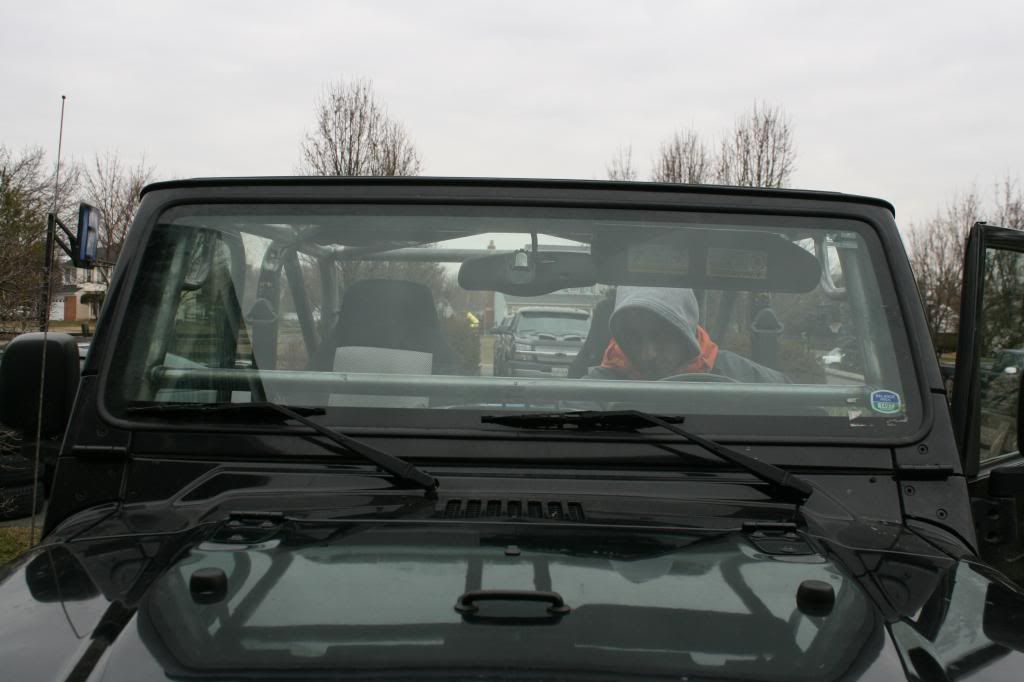

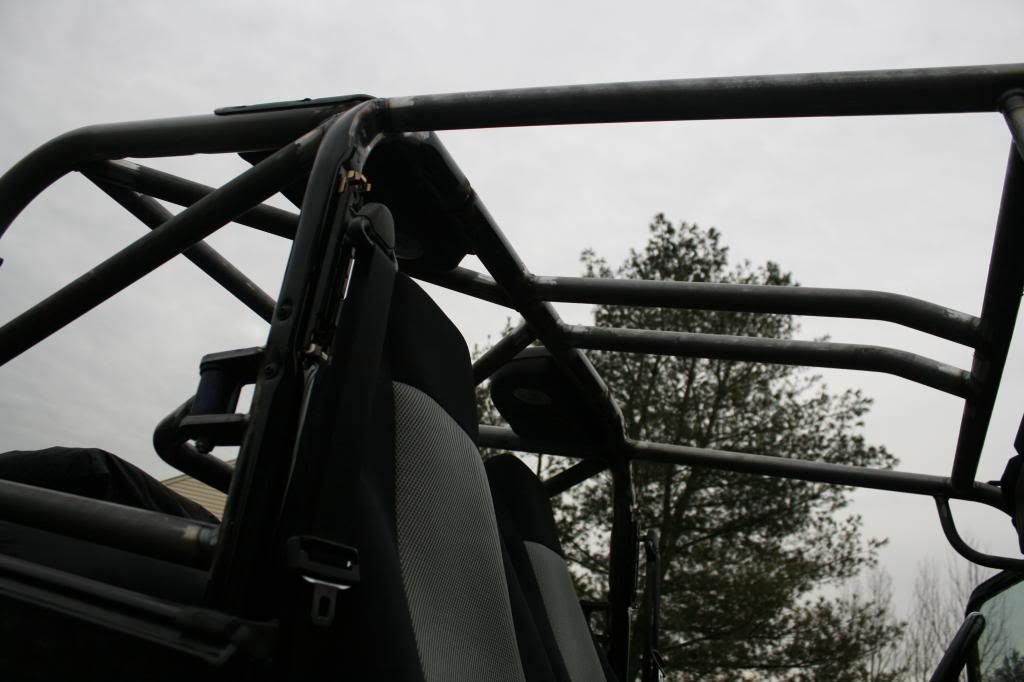

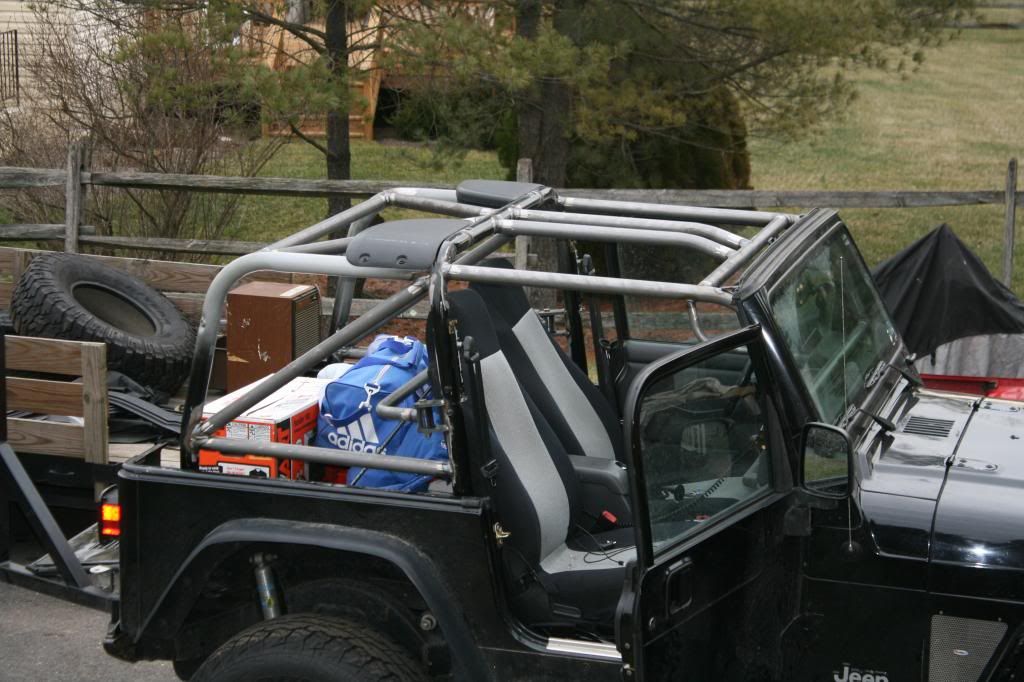

Just did another cage this weekend for a friend. The front half is a Ploy Performance kit and then I added some custom additions to the rear as well as frame tie-ins. Fairly simple and clean and I think it turned out nice.








__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 01-21-2013, 07:29 PM   #878
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 2,723
Quote:
Originally Posted by IEcrawlerTJ01 View Post
Not doggin on your friend at all. And glad he is ok

But had that cage had triangulation in it. I think it would have held its shape alot better and not deformed as much.

Pretty good roll down that hill though haha
Agreed.

i find it suprising how many Kit cages for jeeps have little to no triangulation in them. and that was a custom built cage, but did not appear to have much triangulation in it from what you could see. Yes it held up surprisingly well considering the roll it went through.
__________________
1998 ZJ 2" bb and 31's. street queen but sees the woods once in a while.

2000 powerjoke tow pig

Anti-jeep--1989 K5 blazer. the new off road ride
underpowered is offline   Reply With Quote Quick reply to this message
Unread 01-21-2013, 08:58 PM   #879
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,182

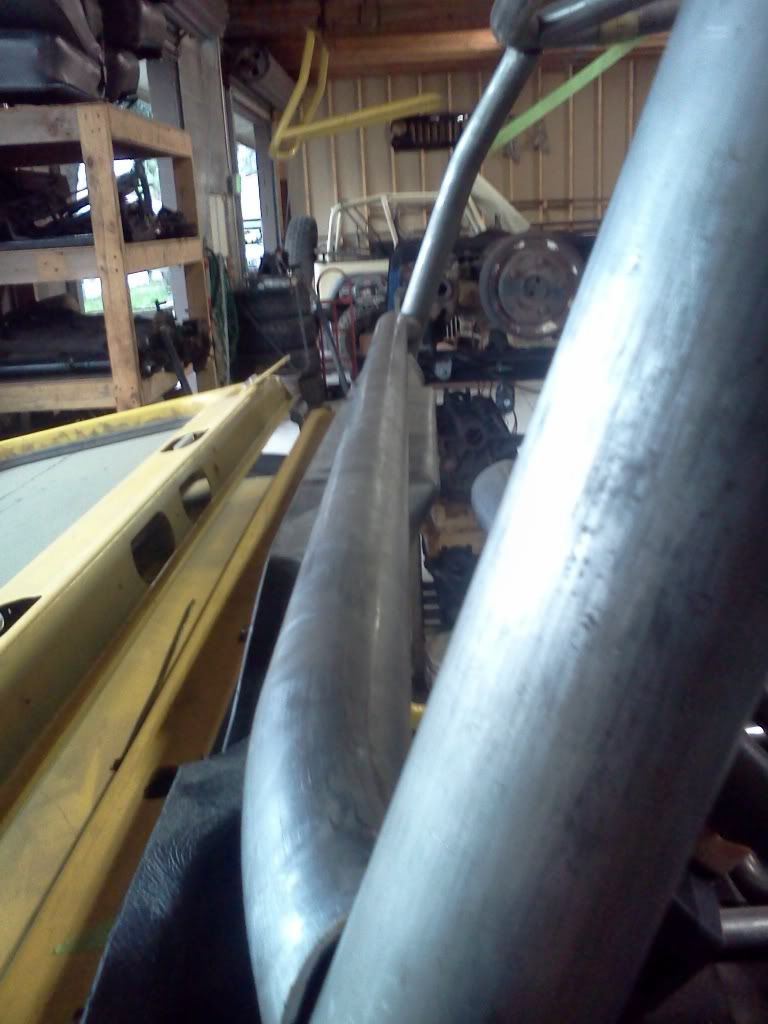

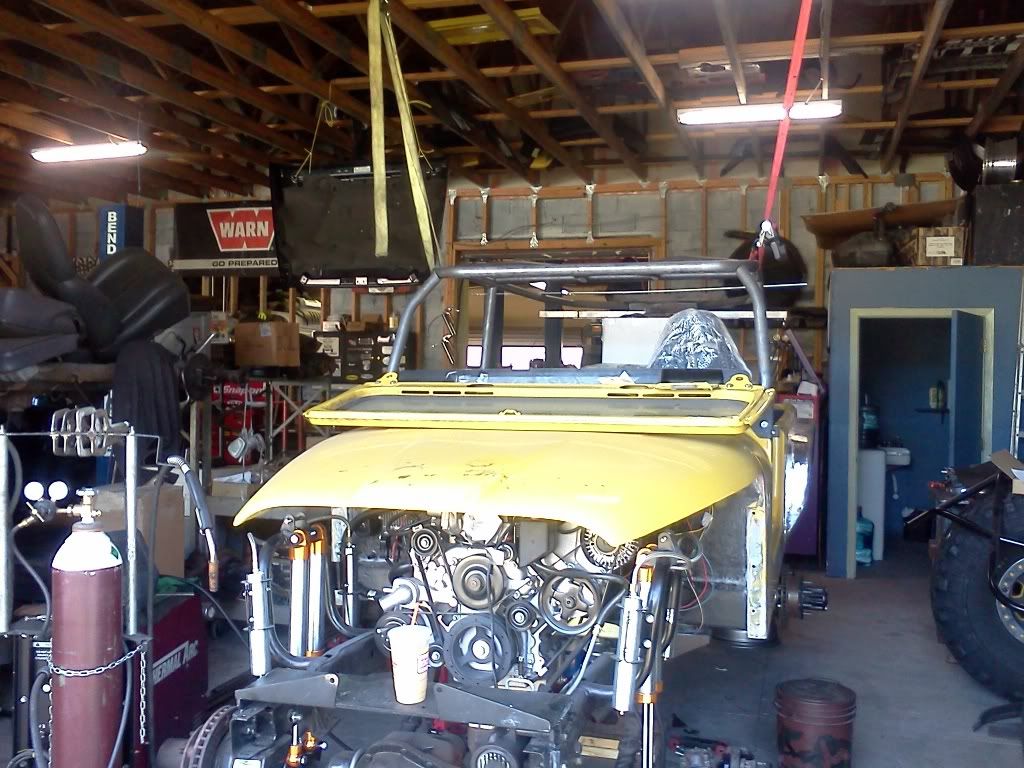

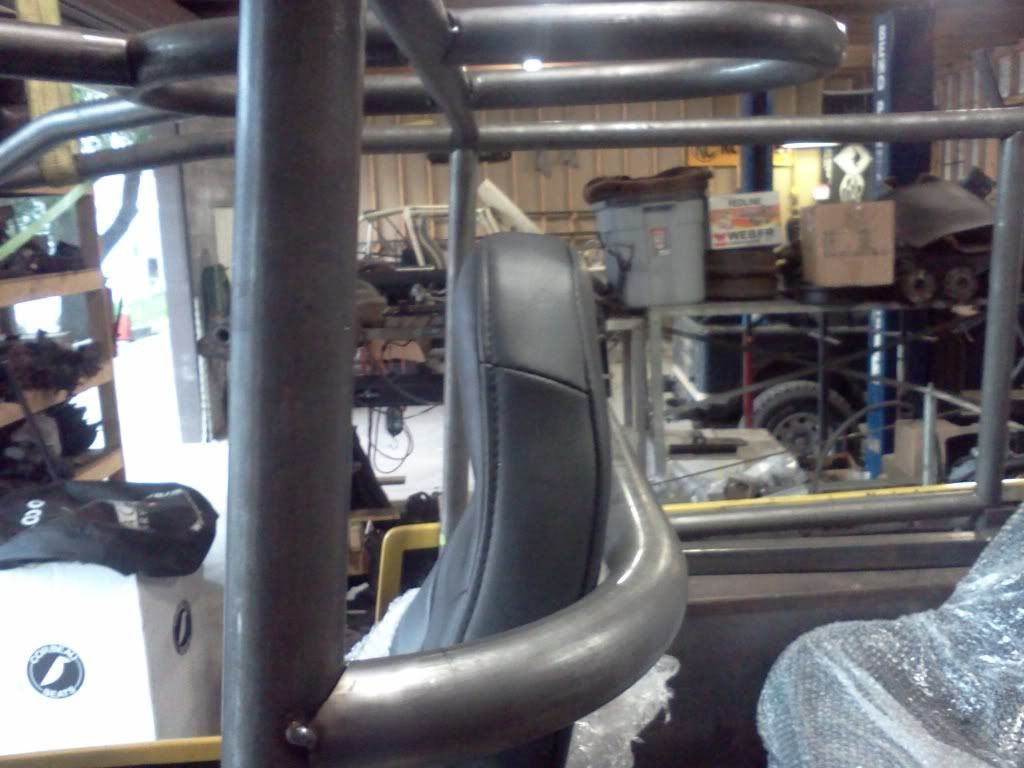

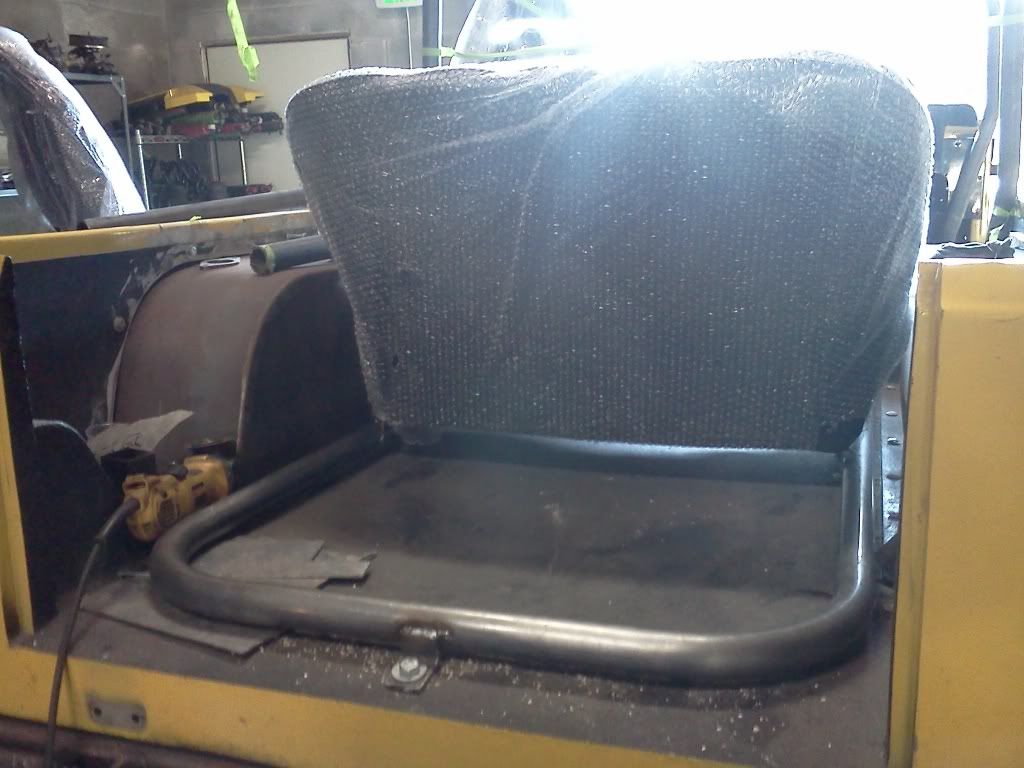

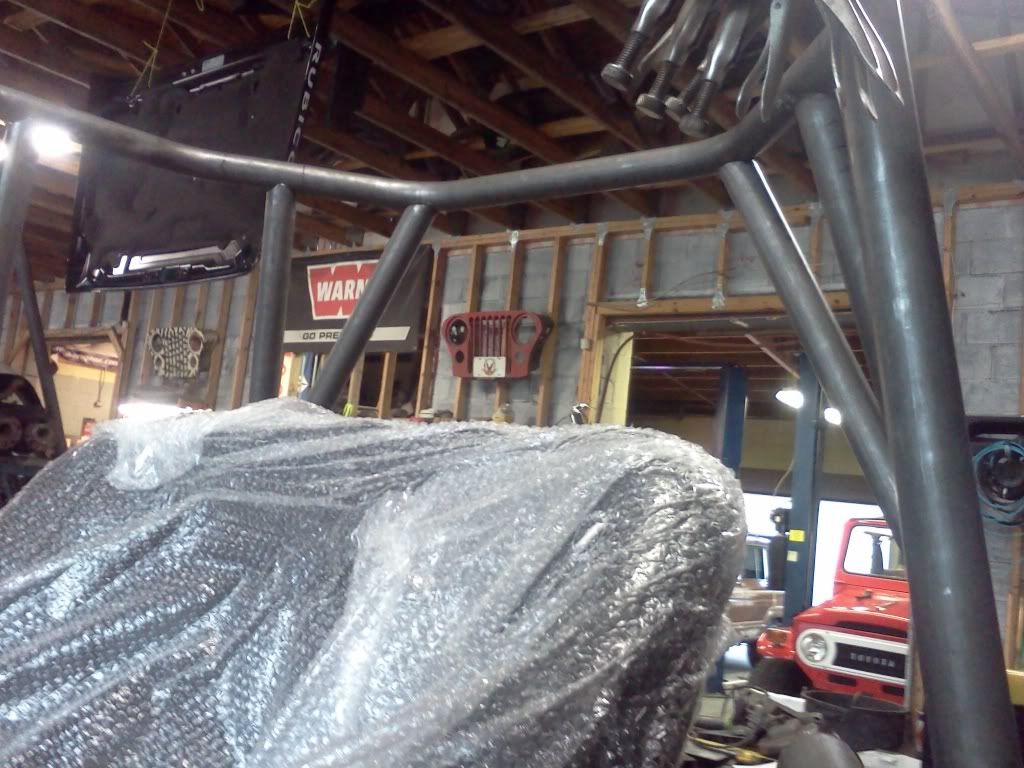

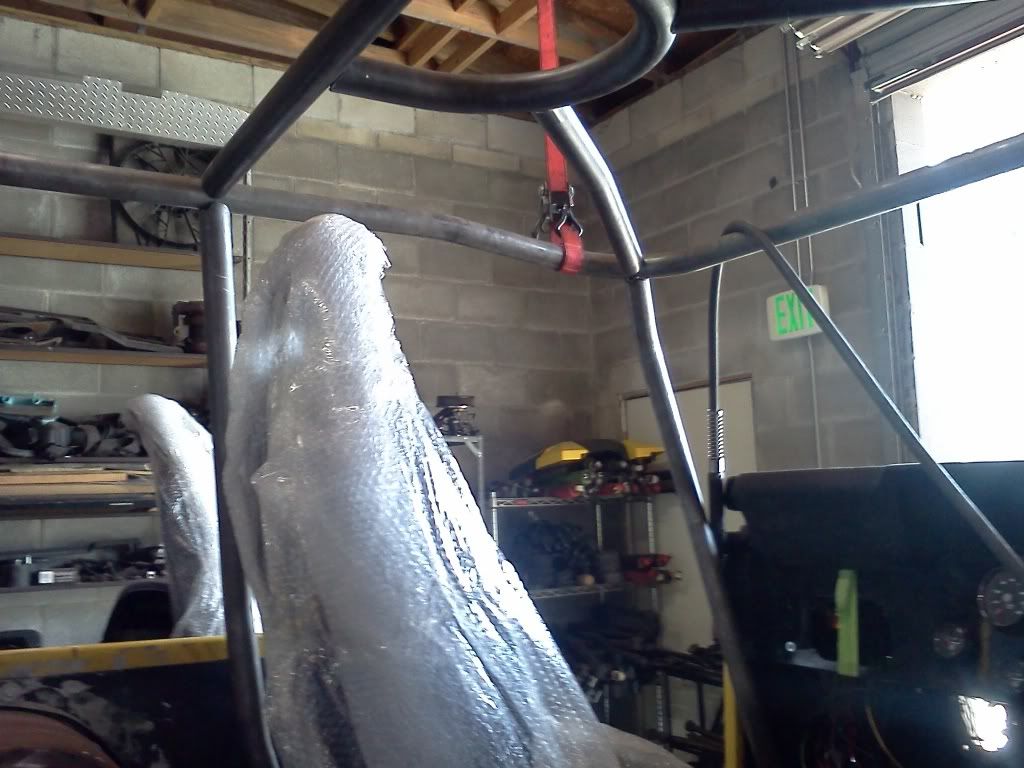

One im in the middle of building right now.

Built off a halo , and a bit more tube to add. But all seats and harnesses are built into the cage.






__________________
92xj....Linked, Locked, Caged, Armored...
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote Quick reply to this message
Unread 01-22-2013, 04:57 AM   #880
soonermatt
Registered User
1994 YJ Wrangler

Join Date: Feb 2009
Location: Norman, OK
Posts: 1,407
Quote:
Originally Posted by SFRautomotive View Post
One im in the middle of building right now.

Built off a halo , and a bit more tube to add. But all seats and harnesses are built into the cage.
That back seat isn't that common. I like it. I want to see finished pics.
soonermatt is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 07:17 AM   #881
Renegade82
Web Wheeler

Renegade82's Avatar
1982 CJ7

Join Date: Apr 2011
Location: Lewistown, PA
Posts: 3,748
Does anyone know of or have you come across any roll tube attachment collars that bolt on, besides the ones from Rockhard 4x4? I'd like to be able to add some pieces to my 6 pt. frame tied in cage such as an angled tube across the B-pillars behind the seat or to tie the angled C-pillars together, but have them be removable when utilizing the rear seat for passengers.
__________________
The end of a defining era.... JEEP R.I.P. 1941-1986
My frame off Re-Build: (still in progress....)
http://www.jeepforum.com/forum/f8/30...e-off-1280850/
Renegade82 is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 07:34 AM   #882
jeepinhokie
Web Wheeler

jeepinhokie's Avatar
2004 TJ Wrangler

Join Date: Apr 2010
Location: MD, Maryland
Posts: 2,385
Quote:
Originally Posted by Renegade82 View Post
Does anyone know of or have you come across any roll tube attachment collars that bolt on, besides the ones from Rockhard 4x4? I'd like to be able to add some pieces to my 6 pt. frame tied in cage such as an angled tube across the B-pillars behind the seat or to tie the angled C-pillars together, but have them be removable when utilizing the rear seat for passengers.
look into these tube clamps,

alot of guys use them for exo cages and shock hoop spreaders above engines.

__________________
HOKIES UNITED!

A Hokie build

check out my jeepin videos!
jeepinhokie is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 07:42 AM   #883
bigt2317
Mall Crawler
2005 LJ Wrangler

Join Date: Jan 2012
Location: Leander, TX
Posts: 414
Quote:
Originally Posted by Renegade82 View Post
Does anyone know of or have you come across any roll tube attachment collars that bolt on, besides the ones from Rockhard 4x4? I'd like to be able to add some pieces to my 6 pt. frame tied in cage such as an angled tube across the B-pillars behind the seat or to tie the angled C-pillars together, but have them be removable when utilizing the rear seat for passengers.
I was looking into that as well for a "X" on the B pillar but after looking at it my B pillar is just a tad behind my shoulder when sitting down, that would cause me to have a bend in each outer point at the "X". It may not be much but I know that a bend in any piece of metal reduces it's ability to stay straight and will aid in bending.

I think the only way I'd do an "X" would be to move the B pillar back as far as you can behind the seat so that the "X" tubing will be a straight shot without any bends.
__________________
2005 LJ Rubicon - slightly modified

Build thread
Flickr pictures
Crawler Hauler build FOR SALE
bigt2317 is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 08:41 AM   #884
Renegade82
Web Wheeler

Renegade82's Avatar
1982 CJ7

Join Date: Apr 2011
Location: Lewistown, PA
Posts: 3,748
Yes, I know what your saying. I was wondering what of room I might have. Mine is currently apart so I couldn't check it out. I've seen the ones for shoulder harness connections and they have a curve right before their attachment to the B-pillar, but they also aren't diagonal either. And to use the A-Z type above that jeepinhokie posted would almost have to have a short pigtail tube welded off the side to add that coupler, but then theres still the issue of seat clearance.
My B-pillar is the stock Jeep one and the rest is aftermarket hrew added to it. So moving mine back isn't an option for me.
__________________
The end of a defining era.... JEEP R.I.P. 1941-1986
My frame off Re-Build: (still in progress....)
http://www.jeepforum.com/forum/f8/30...e-off-1280850/
Renegade82 is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 08:50 AM   #885
bigt2317
Mall Crawler
2005 LJ Wrangler

Join Date: Jan 2012
Location: Leander, TX
Posts: 414
Quote:
Originally Posted by Renegade82 View Post
Yes, I know what your saying. I was wondering what of room I might have. Mine is currently apart so I couldn't check it out. I've seen the ones for shoulder harness connections and they have a curve right before their attachment to the B-pillar, but they also aren't diagonal either. And to use the ones above that jeepinhokie posted would almost have to have a short pigtail tube welded off the side to add that coupler, but then theres still the issue of seat clearance.
My B-pillar is the stock Jeep one and the rest is aftermarket hrew added to it. So moving mine back isn't an option for me.
I hear you. Not sure in a CJ but in my TJ even if I left the B pillar in the stock location and ran a "X" with bends in it the back seat would be unusable when the bracing installed. I have a 2 year old son so having easy access is a must for me, with the adapters pictured above, there would be a small piece welded to the cage and stick off just like you said. That would be a head and foot banger for rear seat passengers all the time even without the bracing installed.

I think once my son gets a few years older I'll start adding some more tubing here and there as I see fit. Then I can make it to where the seats are bolted to the cage and more my rear seat back a few inches to help with the legroom when my "X" brace is installed. There is a choice to be made when deciding what to build, it's hard to balance convenience and safety.
__________________
2005 LJ Rubicon - slightly modified

Build thread
Flickr pictures
Crawler Hauler build FOR SALE
bigt2317 is offline   Reply With Quote Quick reply to this message
