post #856 of 1110 Old 11-24-2012, 10:32 AM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by danielbuck View Post

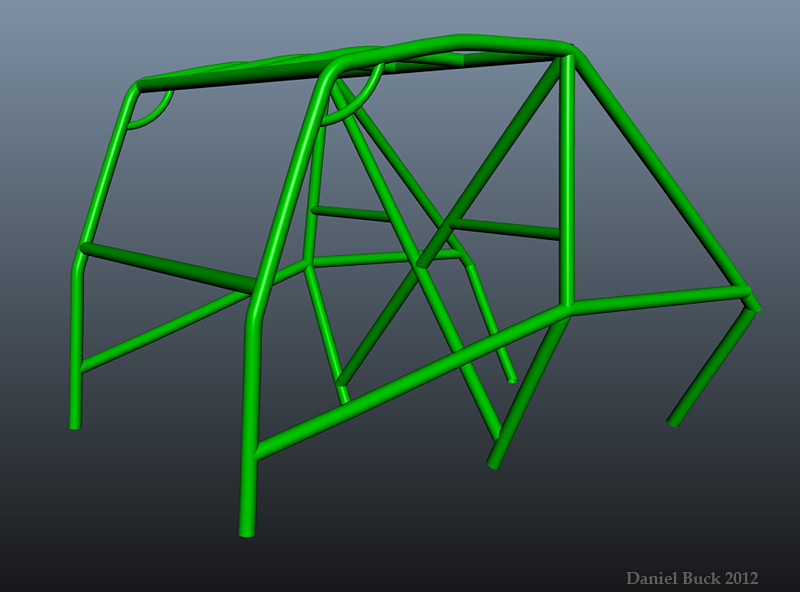

Here's a version with a full X in the B-pillar, I think this might be sufficient?

I wonder, for a vehicle that is not going to see hard core trails, would this cage minus the X on the b-pillar be sufficient? Seems like for a flop or a mild roll over it would be plenty sufficient? Being that the vehicle only weighs something like 2400 pounds. I'd like to make it safe & secure, but I don't want to go over kill and end up with a jungle gym that isn't enjoyable/practical to drive around town in.





If you have the space to pull that off I think you will be golden. I was unable to do a X in the back since I didn't have access the a bender. For a flop to mild roll I think this design will be pretty trick. Planning on going a windsheild ^?



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Molon Labe
Molonlabemike is offline
Sponsored Links
Advertisement

post #857 of 1110 Old 11-24-2012, 06:53 PM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,266
I'll just be leaving the factory windshield there, and strapping it down to the cage, with some rubber bump stops or something.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #858 of 1110 Old 11-24-2012, 08:43 PM
1982cj8
Registered User
2005 LJ Wrangler

Join Date: Nov 2008
Location: Everett, WA.
Posts: 657
My factory cage with a front add on survived and saved my wife and i during a 60mph rollover, we rolled 3 times and walked away. Rolling a different way may have had a different outcome but you cannot plan for everything.

Always bring a compass, it is awkward to have to eat your friends.

4X4XNORTHWEST.COM
1982cj8 is offline

post #859 of 1110 Old 11-25-2012, 10:26 AM
soonermatt
Registered User
1994 YJ Wrangler

Join Date: Feb 2009
Location: Norman, OK
Posts: 1,407
Quote:
Originally Posted by 1982cj8
My factory cage with a front add on survived and saved my wife and i during a 60mph rollover, we rolled 3 times and walked away. Rolling a different way may have had a different outcome but you cannot plan for everything.
Jesus! This spring I'm planning to reweld and gusset / support my already modified cage. Stories like this make me prioritize that.

How did your seat mounts hold up? Any recommendations concerning factory seat mounts and seat belts after the 60mph roll? (Question not directly related to cage pics but relevant to everyone following)
soonermatt is offline
post #860 of 1110 Old 11-25-2012, 03:18 PM
Fatman
Registered User

Fatman's Avatar
2008 CJ7

Join Date: May 2006
Location: Raleigh
Posts: 2,444
Quote:
Originally Posted by 1982cj8 View Post
My factory cage with a front add on survived and saved my wife and i during a 60mph rollover, we rolled 3 times and walked away. Rolling a different way may have had a different outcome but you cannot plan for everything.
Not into the gore factor, but can you post carnage pics so we can see how things held up ? What tore, ripped, bent ...


Thread Links:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Fatman is offline
post #861 of 1110 Old 11-26-2012, 12:23 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by danielbuck View Post
I'll just be leaving the factory windshield there, and strapping it down to the cage, with some rubber bump stops or something.
Sorry I meant a windsheild spreader from the lateral bars to prevent any flex in the event of a flop. Hope that makes sense


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Molon Labe
Molonlabemike is offline
post #862 of 1110 Old 11-26-2012, 03:24 PM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,266
still not sure what you are referring to, sorry! Right now the plan is to have a bar going from the top of the A-pillar to the top of the A-pillar from driver to passenger side, right along the windshield top line.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #863 of 1110 Old 11-26-2012, 03:47 PM
MO2500
Registered User
1997 TJ Wrangler

Join Date: Mar 2009
Location: Denver
Posts: 7,191
Quote:
Originally Posted by danielbuck View Post
still not sure what you are referring to, sorry! Right now the plan is to have a bar going from the top of the A-pillar to the top of the A-pillar from driver to passenger side, right along the windshield top line.
He is referring to tubes that run from the bar you are describing (from top of A to top of A) down to the bar across the dash. Usually configured in an upside-down "V" like so "^" for triangulation and to spread the forces through the dash bar. They add a lot of strength to the front of the A-pillar and prevent the windshield area from deforming into a rhombus in a flop or roll.

Here is a picture from Google to help.


I would also suggest adding some triangulation to the overhead spreaders (tubes from the windshield top bar to the B-pillar) that currently run straight front to back in your rendering. That would help prevent the a-pillars from shifting left or right in a roll.

As far as the X in the b-pillar goes, it ads a substantial amount of strength to the cage in a rollover and helps prevent the b-pillar above your head from shifting. You have to decide what is more important to you, ultimate strength and protection or a usable back seat/storage area and compromise one or the other.

Your rendering looks like a good start though


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Instagram: @omsmike
MO2500 is offline
post #864 of 1110 Old 11-27-2012, 11:00 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by MO2500 View Post
He is referring to tubes that run from the bar you are describing (from top of A to top of A) down to the bar across the dash. Usually configured in an upside-down "V" like so "^" for triangulation and to spread the forces through the dash bar. They add a lot of strength to the front of the A-pillar and prevent the windshield area from deforming into a rhombus in a flop or roll.

Here is a picture from Google to help.


I would also suggest adding some triangulation to the overhead spreaders (tubes from the windshield top bar to the B-pillar) that currently run straight front to back in your rendering. That would help prevent the a-pillars from shifting left or right in a roll.

As far as the X in the b-pillar goes, it ads a substantial amount of strength to the cage in a rollover and helps prevent the b-pillar above your head from shifting. You have to decide what is more important to you, ultimate strength and protection or a usable back seat/storage area and compromise one or the other.

Your rendering looks like a good start though
Pretty much what Mike said thanks for the Google upload


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Molon Labe
Molonlabemike is offline
post #865 of 1110 Old 12-02-2012, 07:33 PM
WSS
Web Wheeler

WSS's Avatar
1972 CJ5

Join Date: Oct 2012
Location: Chino
Posts: 3,080
Hossfeld Hydraulic bender!!

Well, I managed to get my hands on my buddy's Hydraulic bender this weekend. It is the coolest tool. I decided rather than jump right in and start messing up 2" DOM, I would tackle a few smaller projects using 1.5" ERW. I started with some rear tube fenders. I will put some diamond plate on them for a dual step/slider, this way the kid can climb in from the back. I made a few "bad bends" but I found other uses for them. When I get around to my front bumper, the stinger is ready LOL. I had a four year old helper this weekend. This is going to be great family project

WSS
Attached Thumbnails
Photo253.jpg   Photo250.jpg   Photo256.jpg   Photo252.jpg
WSS is offline
post #866 of 1110 Old 12-03-2012, 02:23 PM
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,280

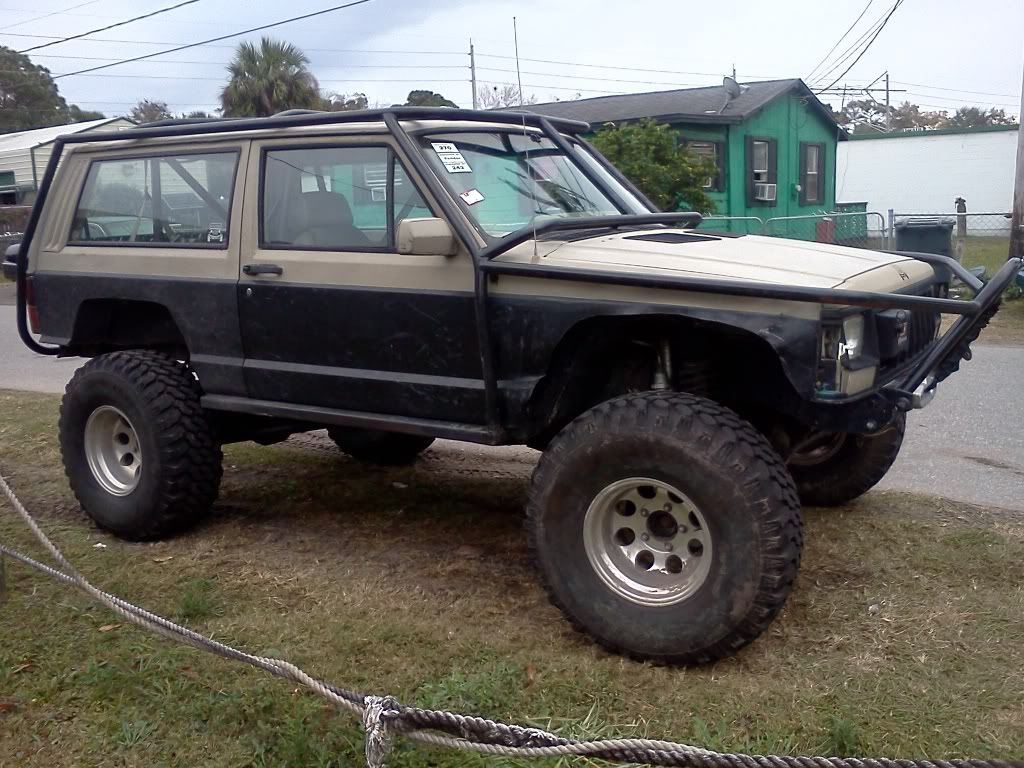

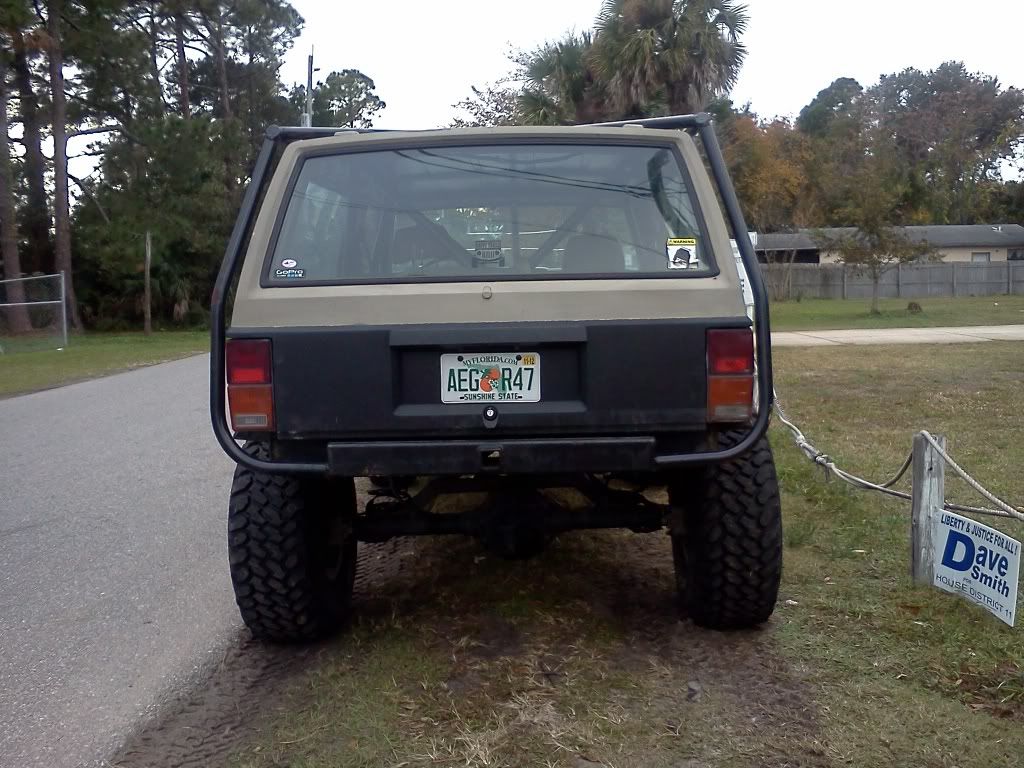

here's mine as of now.

i still need to add a couple pieces to the inside, like harness mounts, seat mounting frame, and another couple pieces in the back .

and on the outside i still need to add a b pillar bar and then another bar to go from the bpiller to the rear pillar right under the back window.

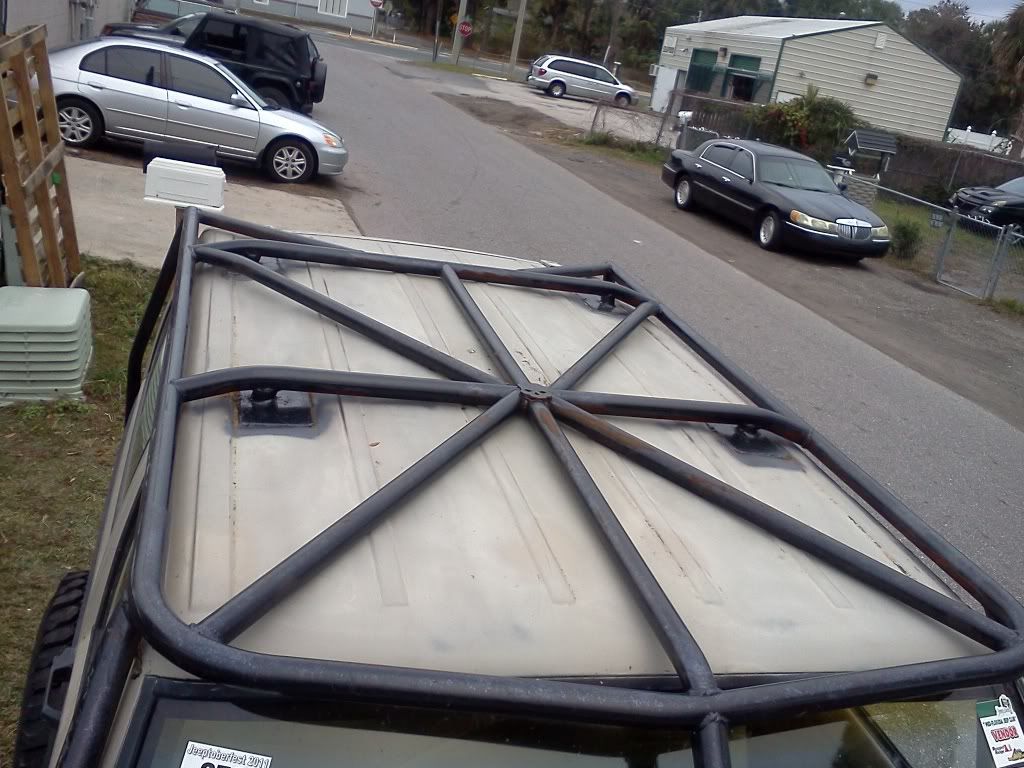

as it sits now the cage is tied into 6 frame rail (adding 2 more), tied into 4 plates on the roof, 4 spots on the floor board (adding 4 more)





00XJ limited.....Tons, ORI's, Caged
92xj....Linked, Locked, Caged, Armored...RIP
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline
post #867 of 1110 Old 12-04-2012, 02:29 PM
WSS
Web Wheeler

WSS's Avatar
1972 CJ5

Join Date: Oct 2012
Location: Chino
Posts: 3,080
I am wondering why some put center bends in their A pillar like shown in the pics? Is it for a gain in triangulation?

THX!
WSS
Attached Thumbnails
apillarmidbend1.jpg   apillarmidbend2.jpg
WSS is offline
post #868 of 1110 Old 12-04-2012, 02:34 PM
bigt2317
Mall Crawler

bigt2317's Avatar
2005 LJ Wrangler

Join Date: Jan 2012
Location: Leander
Posts: 483
Garage
Quote:
Originally Posted by WSS View Post
I am wondering why some put center bends in their A pillar like shown in the pics? Is it for a gain in triangulation?

THX!
WSS
I would think it's for looks. If anything it would hinder the tube's ablility to stay straight. I may be wrong here but a tube with a bend in it is more likely to bend in that area than anywhere else.

2005 LJ Black Rubicon - Boring mallcrawler

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

2005 LJ Khaki Rubicon - slightly modified - TOTALED

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
FOR SALE
PM me for great deals on enclosed or open trailers
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
bigt2317 is offline
post #869 of 1110 Old 12-05-2012, 08:19 AM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,211
It is for the Angry Brow look. If properly gusseted they do not seem to be a major weak point, but un-gusseted would be a bad idea.

Have a great day!!!
Zach Vaughn.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

570-385-3931--shop
zachv is offline
post #870 of 1110 Old 12-05-2012, 07:59 PM
WSS
Web Wheeler

WSS's Avatar
1972 CJ5

Join Date: Oct 2012
Location: Chino
Posts: 3,080
Actually I am glad it is for looks. I can skip it. The fewer bends the better for me, means less wasted tube! I will add the inverted "V" though.

Thanks for the help guys!
WSS
WSS is offline
