post #796 of 1106 Old 06-07-2012, 12:50 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by zachv
Mike, that is fine. It could have been down 2-3" and still been fine, but you are on the right track--you want the shoulder harnesses to pull you back, not pull you down and compress your spine. The lap belts are supposed to hold you down.

BTW, I do not know who the harness straps in the seats are for--we have never used them either.

P.S. Now that you mentioned a 5'2" female we all need to see pictures of said young lady.
Thanks Zach, I did lots of reading and just wanted to double check my work. The harness slot would be nice so I don't have to fab up stops but man their really low.

Thanks again Zach!


My Build thread

Molon Labe
Molonlabemike is offline
Sponsored Links
Advertisement

post #797 of 1106 Old 06-07-2012, 12:57 PM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,209
If you make the harness straps tight to the tube, like they should be, then beefy zip ties work well as locators so the harnesses don't move side-to-side.

Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline
post #798 of 1106 Old 06-07-2012, 01:05 PM
PDK
Registered User
2000 TJ Wrangler

Join Date: Jun 2006
Location: N Alabama
Posts: 95
I bought those same seats when doing my cage and came to the same conclusion as you...they just aren't a good seat! They are entirely too short and your head could end up hitting tubing behind you since you essentially have no headrest. They only have the single slot...not designed to work with most everyone's double strap with the 5 point harness.

By and large, i bought them because they were the cheapest. After building up the cage and trying to make those fit/work...I finally just gave up. Sold 'em on Craigslist for not much less than I paid for them. I then saved up a bit and bought some PRP seats. I even had an extra 2" height added on my side (I'm over 6' 4"). Decided on colors I wanted and everything. So, my suggestion is to do the same/similar because you are not going to be as safe/comfortable in thos short Corb's. My .01 cent
PDK is offline
post #799 of 1106 Old 06-07-2012, 01:10 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by zachv
If you make the harness straps tight to the tube, like they should be, then beefy zip ties work well as locators so the harnesses don't move side-to-side.
Good idea thanks, I was planning on cutting some 1 3/4 and welding it lol.

My Build thread

Molon Labe
Molonlabemike is offline
post #800 of 1106 Old 06-07-2012, 01:12 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Quote:
Originally Posted by PDK
I bought those same seats when doing my cage and came to the same conclusion as you...they just aren't a good seat! They are entirely too short and your head could end up hitting tubing behind you since you essentially have no headrest. They only have the single slot...not designed to work with most everyone's double strap with the 5 point harness.

By and large, i bought them because they were the cheapest. After building up the cage and trying to make those fit/work...I finally just gave up. Sold 'em on Craigslist for not much less than I paid for them. I then saved up a bit and bought some PRP seats. I even had an extra 2" height added on my side (I'm over 6' 4"). Decided on colors I wanted and everything. So, my suggestion is to do the same/similar because you are not going to be as safe/comfortable in thos short Corb's. My .01 cent
Thanks for the input, my head hits the top of the head rest so they should be ok. I would go master craft or PRP if I had to do it over as Corbeau quality control seams to be lead by Stevie Wonder lol

My Build thread

Molon Labe
Molonlabemike is offline
post #801 of 1106 Old 06-21-2012, 07:39 AM
rozzo842
Registered User

Join Date: Jan 2007
Location: jersey
Posts: 9

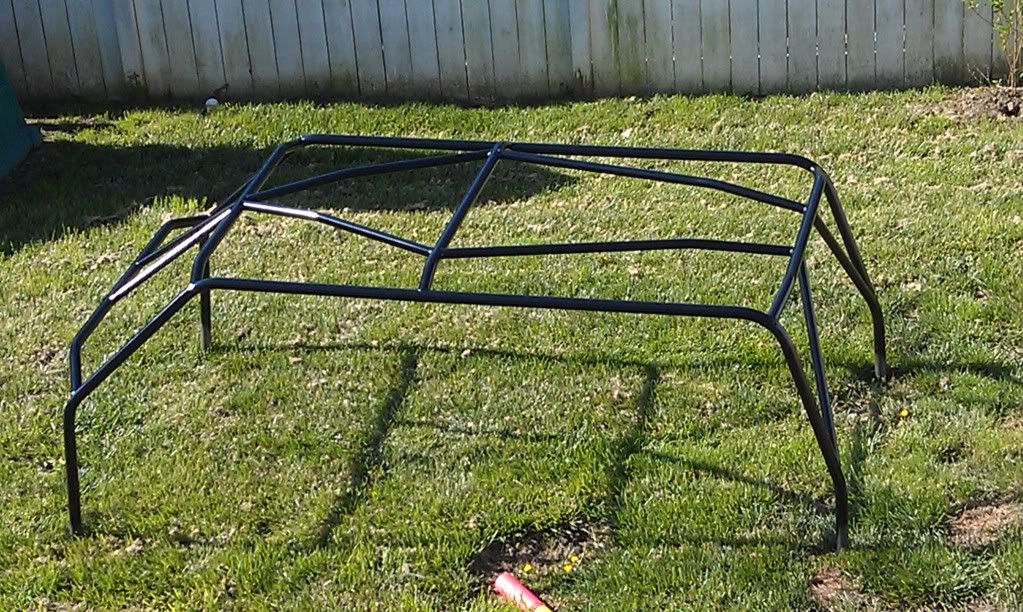

XJ cage pics












Last edited by rozzo842; 06-21-2012 at 07:56 AM. Reason: Added pics
rozzo842 is offline
post #802 of 1106 Old 06-21-2012, 07:59 AM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,209
Looks very well thought out and the nodes all look to hit well--nice work. How did you weld the underneath of joints on the top? Lift it up, weld, paint, and then lower it back down to burn it to the main mounts?

Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline
post #803 of 1106 Old 06-21-2012, 10:02 AM
Renegade82
Registered User
1982 CJ7

Join Date: Apr 2011
Location: Lewistown
Posts: 4,817
Garage
Nice job. Might be a bugger to get the rear hatch closed though!

The end of a defining era.... JEEP R.I.P. 1941-1986
My frame off Re-Build: (the 4 year saga....)
http://www.jeepforum.com/forum/f8/30...e-off-1280850/
Renegade82 is online now
post #804 of 1106 Old 06-21-2012, 12:04 PM
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 5,416
What rear hatch....

Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline
post #805 of 1106 Old 06-21-2012, 12:22 PM
rozzo842
Registered User

Join Date: Jan 2007
Location: jersey
Posts: 9
Quote:
Originally Posted by zachv View Post
Looks very well thought out and the nodes all look to hit well--nice work. How did you weld the underneath of joints on the top? Lift it up, weld, paint, and then lower it back down to burn it to the main mounts?
Yeah,pretty much Zach. The whole thing was removed exept for the B pillar. welded, painted then dropped back on. tacked the B together then lifted each side as much as I could to get better access.
rozzo842 is offline
post #806 of 1106 Old 06-21-2012, 12:26 PM
rozzo842
Registered User

Join Date: Jan 2007
Location: jersey
Posts: 9
Out for finish welds

rozzo842 is offline
post #807 of 1106 Old 07-20-2012, 08:16 AM
Ben
Hack

Ben's Avatar
1998 TJ Wrangler

Join Date: Sep 2006
Location: Malvern PA
Posts: 3,003
I picked up my S&W front half conversion wednesday, getting started here.



I read this whole thread, this was the only bit I found about mounting the A pillar landing pad:

Quote:
Originally Posted by UTmike View Post
This is my AtoZ cage at the floor. I was able to tie the outter two bolts into my Shrockworks rocksliders and the medial two into the double layered floor.
Attachment 94430
Attachment 94431
I don't really like that, is that how everyone has landed that A pillar?
It leaves almost an inch of dead space between the sandwich plates.
What I'd like to do is cut the inside floor pan of the tub.
Probably cut the tub (on the red rectangle) in a H like shape, so I can fold it down and tack it together to keep it nice and firm there.



That puts the cage down to the lower piece of the tub channel there.



here's a kick *** drawing I did.



Then my lower sandwich plate will just be incorporated into new rock sliders
Any comments on this?

If you landed an A pillar in a TJ and have any other ideas or pics I'm open to thoughts on this one.

Thanks,
Ben
Ben is offline
post #808 of 1106 Old 07-23-2012, 07:41 AM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,209
FWIW, we have been doing it our way for almost ten years and dozens of cages without one failure and many rollovers.

Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline
post #809 of 1106 Old 07-23-2012, 08:13 AM
Ben
Hack

Ben's Avatar
1998 TJ Wrangler

Join Date: Sep 2006
Location: Malvern PA
Posts: 3,003
Quote:
Originally Posted by zachv View Post
FWIW, we have been doing it our way for almost ten years and dozens of cages without one failure and many rollovers.
Thanks Zach. Nice of you to chime in even though I didn't buy your product.
Do you use a sandwich plate on the bottom?
I tried looking for pics of the AtoZ installs, cause I know you've cranked out a lot of them, and have a lot of satisfied customers.
Best I can see is 2 of your 4 bolts go through that channel, the other 2 are off to the side through the single-ply floor. Maybe just a plate on the single ply side?
Ben is offline
post #810 of 1106 Old 08-02-2012, 12:51 PM
stealthjk
Registered User
2008 JK Wrangler

Join Date: Aug 2012
Location: Foothill Ranch
Posts: 27
Those are all awesome cages.
stealthjk is offline
