Unread 01-16-2009, 09:05 PM   #301
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,274
Marten, a 110v welder should be able to do a cage since most of it is 1/8" thick. I built the entire back half of the frame/cage on an old CJ5 with a Craftsman 110v welder and flux core about 10 years ago. However, the bottom line is gonna be your ability with the welder. Only you know for sure. At the very least, practice with a few joints.. welding at different angles. Maybe even take a sawzall and cut thru a few of those joints to see how your penetration is.

__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 01-16-2009, 09:44 PM   #302
1Rustycj5
Registered User
1980 CJ5

Join Date: Jun 2008
Location: Grain Valley MO
Posts: 173
BESRK, Thank you for your response I was pretty sure it had been done before but I figured I would at least make sure that Im not attempting anything that has been a complete disaster.

What type of flux-core wire did you use?

Also Im planning on doing some custom bumpers and sports cages for my friends and I found some cheep tools at HF and I was wondering if these are any good?
http://www.harborfreight.com/cpi/cta...emnumber=38024
http://www.harborfreight.com/cpi/cta...emnumber=42324

Also what is the best way to go about tying the cage into the frame?
Remember that I have a body that has basically no stock floor supports, All custom fab.

Thanks again,
Marten
1Rustycj5 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 07:01 AM   #303
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
The best way would probably be to go throught the floor and weld to the frame. BUT What I did on my TJ and will again on my XJ is use a 4x4 plate and bolt to the floor. Then another 4x4 on the other side of the floor board (sandwitch the floorboard). Then weld a piece of tube to the bottom 4x4 plate that goes to the frame and then either weld the tube directly to the frame OR weld another 4x4 plate to that tube and bolt it to the frame.

For what its worth my entire cage was done with a Lincoln 100 and flux core wire
__________________
Built 92 XJ For Sale
Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 04:13 PM   #304
bikeboy
Registered User
1982 CJ8

Join Date: Sep 2008
Location: Denver
Posts: 16
cage advice


Hi Everyone,
I'm rebuilding a Scrambler for DD and weekend camping/wheeling; nothing crazy.
Here's my cage design. I'm using the large diameter tubing from CJ Roll Bars.
Do you see any weaknesses for my intended use?
Thanks.
__________________
Live Justly, Love Mercy,
Walk Humbly with God.
Micah 6:8

Last edited by bikeboy; 01-17-2009 at 05:59 PM..
bikeboy is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 08:05 PM   #305
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
Looks like it would be pretty stout. You can run one more tube from the front drop down legs to the B Pillar (middle one) on the bottm by the floor
__________________
Built 92 XJ For Sale
Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 08:34 PM   #306
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,367
Quote:
Originally Posted by 1Rustycj5 View Post
BESRK, Thank you for your response I was pretty sure it had been done before but I figured I would at least make sure that Im not attempting anything that has been a complete disaster.

What type of flux-core wire did you use?

Also Im planning on doing some custom bumpers and sports cages for my friends and I found some cheep tools at HF and I was wondering if these are any good?
http://www.harborfreight.com/cpi/cta...emnumber=38024
http://www.harborfreight.com/cpi/cta...emnumber=42324

Also what is the best way to go about tying the cage into the frame?
Remember that I have a body that has basically no stock floor supports, All custom fab.

Thanks again,
Marten
Harbor Freight sells PIPE BENDERS. What you need is a TUBING BENDER. http://www.jd2.com/

Pipe is NOT the same as Tubing. Pipe is designed to have stuff like air, water or some liquid flowing inside it. Tubing is designed to provide structural support in some application. The actual type of steel used is different, and they are manufactured differently. Use the correct type for the correct application.
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 08:48 PM   #307
jason m
Moderator

jason m's Avatar

Join Date: Aug 2004
Location: Holland mass USA
Posts: 2,936
this is how i tied my buddy's YJ into the fame. he had a set of warn rocker panels that were made of 3/16. so i spray welded the top tube to the rocker, then bent a chunk of tube to go under it. of course its welded to the frame to, but i dont have a pic of that.

jason.
kens-cage-3.jpg   kens-cage-2.jpg
__________________
1993 YJ 4.0 60 Front, Rear steer 60, bolth spooled, 5.38's, 700r/241 39.5 iroks and beating it like it owes me money.

And on the 8th day, God created the 14 bolt....
jason m is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 10:29 PM   #308
1Rustycj5
Registered User
1980 CJ5

Join Date: Jun 2008
Location: Grain Valley MO
Posts: 173
Quote:
Originally Posted by Unlimited04 View Post
Harbor Freight sells PIPE BENDERS. What you need is a TUBING BENDER. http://www.jd2.com/

Pipe is NOT the same as Tubing. Pipe is designed to have stuff like air, water or some liquid flowing inside it. Tubing is designed to provide structural support in some application. The actual type of steel used is different, and they are manufactured differently. Use the correct type for the correct application.
Ya i figured that out last night, This looks like the cheapest way to go for a "tubing bender"
http://www.tjdieselperformance.com/s...-bender/Detail

Mostly because it also comes with the die and a hydraulic jack for only 319.
that dosent seem like a bad deal at all....

Also, is renting a tubing bender an option?
1Rustycj5 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 10:37 PM   #309
goldswim5
Registered User
2005 LJ Wrangler

Join Date: Apr 2008
Location: Springfield, MO
Posts: 1,379
I'm going to pick up some steel this week to get the back half of my cage going, is 1.75 x .12 going to look funny welded to my stock cage?
__________________
2005 Wrangler Unlimited
6 speed, hard top, bone stock
goldswim5 is offline   Reply With Quote Quick reply to this message
Unread 01-17-2009, 10:42 PM   #310
jason m
Moderator

jason m's Avatar

Join Date: Aug 2004
Location: Holland mass USA
Posts: 2,936
Quote:
Originally Posted by goldswim5 View Post
I'm going to pick up some steel this week to get the back half of my cage going, is 1.75 x .12 going to look funny welded to my stock cage?
i used 1.5 .120 wall. i think 1.75 will be plenty strong. you can see the factory cage end about half way down and i capped he ends, the 1.75should look fine.

jason.
__________________
1993 YJ 4.0 60 Front, Rear steer 60, bolth spooled, 5.38's, 700r/241 39.5 iroks and beating it like it owes me money.

And on the 8th day, God created the 14 bolt....
jason m is offline   Reply With Quote Quick reply to this message
Unread 01-18-2009, 11:32 PM   #311
1Rustycj5
Registered User
1980 CJ5

Join Date: Jun 2008
Location: Grain Valley MO
Posts: 173
Quote:
Originally Posted by 1Rustycj5 View Post
Ya i figured that out last night, This looks like the cheapest way to go for a "tubing bender"
http://www.tjdieselperformance.com/s...-bender/Detail

Mostly because it also comes with the die and a hydraulic jack for only 319.
that dosent seem like a bad deal at all....

Also, is renting a tubing bender an option?
^^^ Does this seem like a good bender? its reasonably inexpensive for building a cage.^^^
1Rustycj5 is offline   Reply With Quote Quick reply to this message
Unread 01-19-2009, 05:19 PM   #312
goldswim5
Registered User
2005 LJ Wrangler

Join Date: Apr 2008
Location: Springfield, MO
Posts: 1,379
Alright the metal supply here didn't have .12 wall but they had 1.75x.095 which I think will be fine. I'm going to use the bluetorch dash tie ins to build off of, may not be as strong as a tube going to the floor but I've been informed I can't cut up my dash. Other than that I am just buying tube and making everything myself. Not planning on making any bends but I know there are a few people here that could do it if need be. Hopefully it will be done within the month, I'll post pics when it is.

Also, I looked though the whole topic and didn't see any diagonals that would still allow a backseat, can this be done?
__________________
2005 Wrangler Unlimited
6 speed, hard top, bone stock

Last edited by goldswim5; 01-19-2009 at 09:17 PM.. Reason: backseat stuff
goldswim5 is offline   Reply With Quote Quick reply to this message
Unread 01-20-2009, 03:29 PM   #313
Stan99
Registered User
1978 CJ7

Join Date: Aug 2007
Location: Antioch
Posts: 869

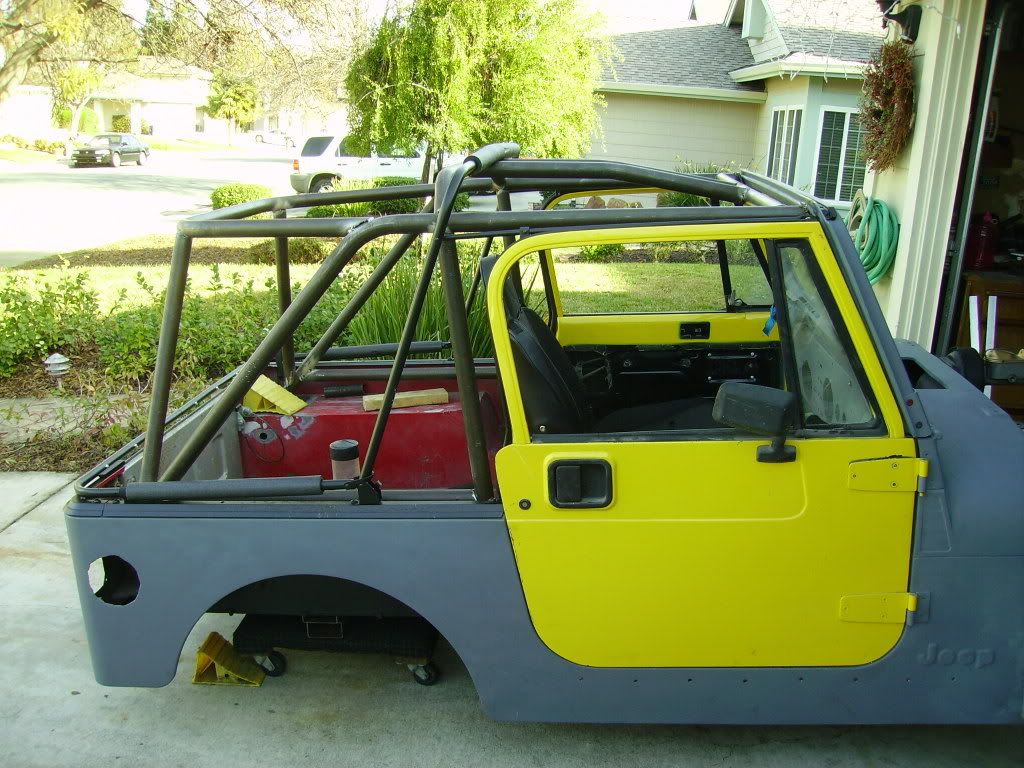

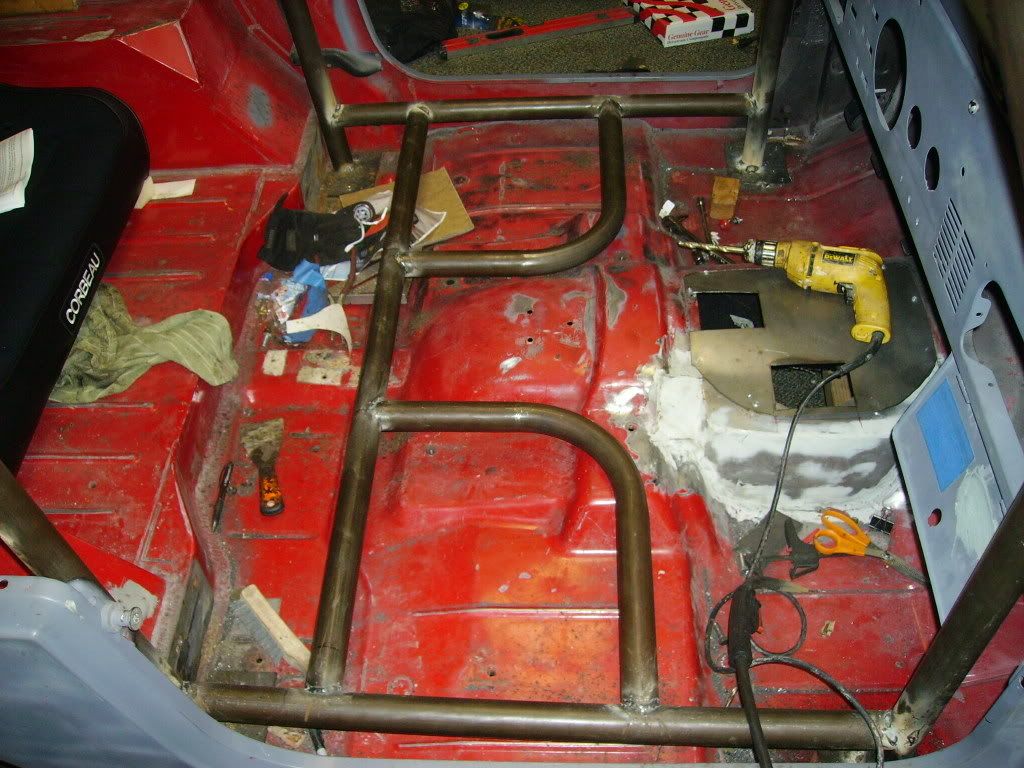

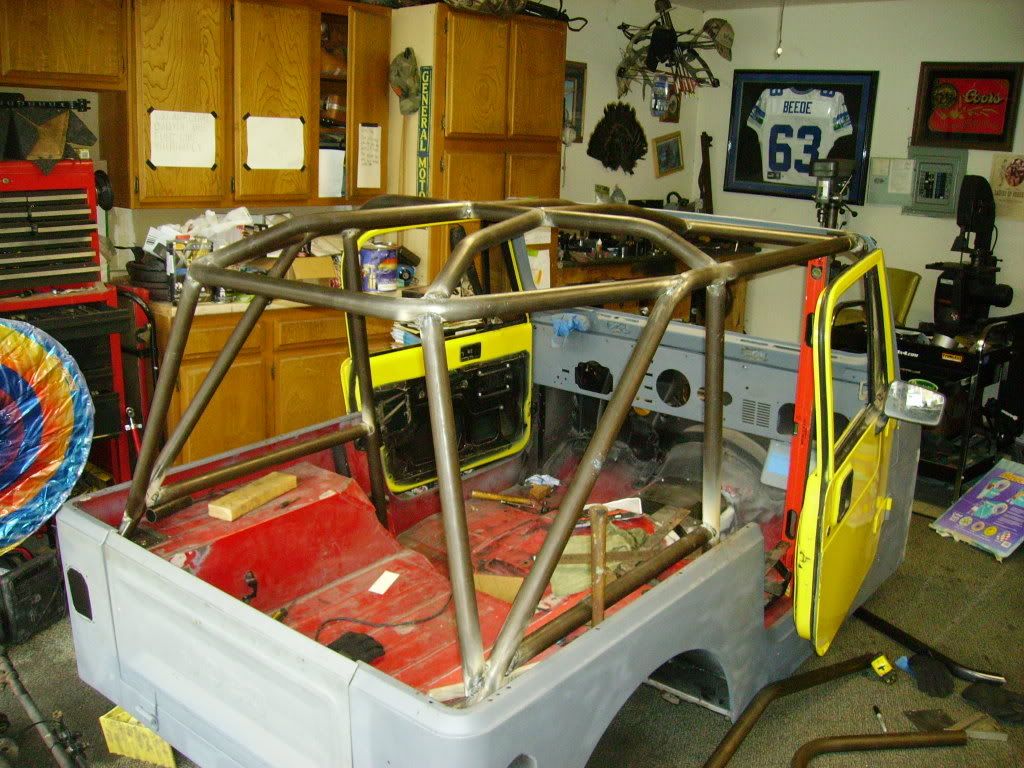

Thought I would post a few of mine. I am still doing a few thing to it and I will post those up when I am done. But this is the finished design. I pretty much just did a knock off of a poison spyder TJ cage.

[IMG][/IMG]


[IMG][/IMG]

[IMG][/IMG]
__________________
1978 Jeep Cj7 Soa, Shackle Reversle, 36x13.5x15 Irocks, 4.5 Stroker MPI, Dana 300 twin Sticked, 4.88's
Stan99 is offline   Reply With Quote Quick reply to this message
Unread 01-20-2009, 08:02 PM   #314
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
Not bad Are there going to be legs dropping down in the front? What welder are you useing?
__________________
Built 92 XJ For Sale
Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 01-20-2009, 08:59 PM   #315
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,367
Quote:
Originally Posted by goldswim5 View Post
I'm going to pick up some steel this week to get the back half of my cage going, is 1.75 x .12 going to look funny welded to my stock cage?
nope. lots of cages made of that...including mine (post #274)
Unlimited04 is offline   Reply With Quote Quick reply to this message
