post #271 of 1106 Old 07-13-2008, 08:04 AM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
looks pretty clean especially the welds, what type of tubing did you have put in?

FunkSkunk is offline
Sponsored Links
Advertisement

post #272 of 1106 Old 07-13-2008, 10:00 AM
sebastian22
Registered User
1995 YJ Wrangler

Join Date: Dec 2007
Location: Orange, CA
Posts: 2,037
yeah he did a great job welding it. he used .120 HREW. i was going to fork out some extra $ for DOM but i was told HREW was good enough for the wheeling im doing.

95 Black YJ
sebastian22 is offline
post #273 of 1106 Old 08-28-2008, 08:16 PM
aaronc88
Registered User
1993 YJ Wrangler

Join Date: Mar 2007
Location: Ft.collins CO/ IL
Posts: 567
Well i am thinking the awnser is going to be "no" or "probally not the gresteast idea" but i have to ask anyways.

At work I have been given to go head to take some lengths of 1 3/8" with 3/16 wall DOM tubing.
Can this tubing be used to make a rollcage that may take a flip say once every other season?
I try to get out wheeling every other weekend or so. Usually more mud and rockgardens no montains or such around here but there are a few steep climbs. Dont plan on flipping it but just incase. also this would be used to complete the existing fammily style cage.

My work

jeep
aaronc88 is offline
post #274 of 1106 Old 08-28-2008, 08:40 PM
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,140
I recently finished my PSC Trail Cage with upgrades:
- windshield bars replaced with 1.75x.120" DOM
- roll bar flanges welded to B-pillar, windshield bar fully butted to flange & welded - eliminating the bolt
- 1/4" gussets added to A-pillar
- 1/4" diamond plate gussets added to rear spreader
- 1.75x.120" DOM tied into speader & B-pillar
- Front cage was tacked in place, pulled out after support brackets were attached, then skip welded out of vehicle
- some warpage was seen, resulting in a 1/4" gap in the center spreaders to B-pillar junction, this was filled by turning up the wire speed and skip welding multiple passes & grinding, allowing time to cool.
- rear of cage was welded in place in vehicle, zero warpage seen here.
- Welds done with a Lincoln Electric 175 AMP, big spool of 0.030 solid wire and CO2/Argon mix.
- I've still got 2 sticks cut long enough to make a diagonal between B and C pillars....maybe next year...

Pics:




Last edited by Unlimited04; 03-25-2009 at 07:17 AM.
Unlimited04 is offline
post #275 of 1106 Old 09-20-2008, 01:24 PM
HankyDanky
Registered User
1989 XJ Cherokee

Join Date: Jun 2008
Location: Scottsdale, AZ
Posts: 595
Lets get this thread going again! Wanna see some XJ's with exterior roll cages, going to be starting a project soon and wanna see what you guys did. Likes, dislikes, things you would have done different.

1989 Cherokee 4.0l, Rubicon Express 4.5" XJ Super-Flex System, 33x12.50x15 KM2's

The XJ Rebuild- http://www.jeepforum.com/forum/f22/m...build-1327643/

People are always grabbing the handles, clutching the seat, or stomping an imaginary brake peddle when we're out having fun.
HankyDanky is offline
post #276 of 1106 Old 09-20-2008, 04:58 PM
aaronc88
Registered User
1993 YJ Wrangler

Join Date: Mar 2007
Location: Ft.collins CO/ IL
Posts: 567

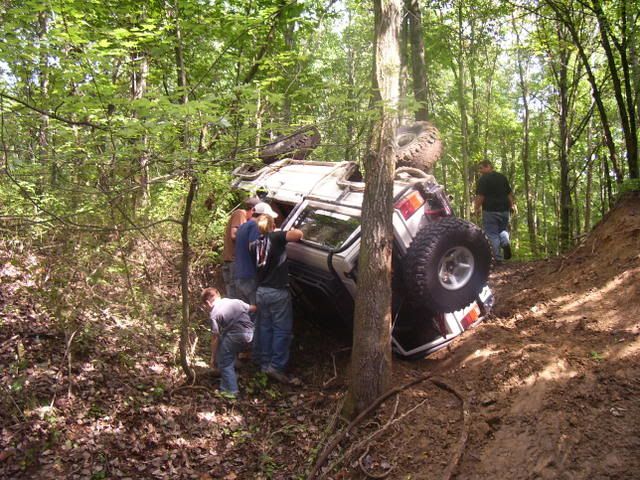

This is not my vehicle but it someones that I had wheelded with. He did a little this.



When we got it back over no shifting had occured prety good cage IMO.


My work

jeep
aaronc88 is offline
post #277 of 1106 Old 09-20-2008, 07:29 PM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,209
This is how we test cages...and hoods.

http://www.youtube.com/watch?v=d3pVagdGx64

Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline
post #278 of 1106 Old 09-21-2008, 12:03 PM
HankyDanky
Registered User
1989 XJ Cherokee

Join Date: Jun 2008
Location: Scottsdale, AZ
Posts: 595
Looks good, Part on the front fenders is the same style I am going with. I am assuming he has that tied into to front/rear bumper as well as the frame. Wheel in alot of rocks so Gotta cage it, plus love the look of the exo cage!

1989 Cherokee 4.0l, Rubicon Express 4.5" XJ Super-Flex System, 33x12.50x15 KM2's

The XJ Rebuild- http://www.jeepforum.com/forum/f22/m...build-1327643/

People are always grabbing the handles, clutching the seat, or stomping an imaginary brake peddle when we're out having fun.
HankyDanky is offline
post #279 of 1106 Old 09-21-2008, 12:30 PM
aaronc88
Registered User
1993 YJ Wrangler

Join Date: Mar 2007
Location: Ft.collins CO/ IL
Posts: 567
Quote:
Originally Posted by HankyDanky View Post
Looks good, Part on the front fenders is the same style I am going with. I am assuming he has that tied into to front/rear bumper as well as the frame. Wheel in alot of rocks so Gotta cage it, plus love the look of the exo cage!
yes that cage it is tied into those bumpers.

Personnaly I wasnt a fan of the exo cage on his cherokee but after seeing how it saved his vehicle in the roll from several other trees that day I got liking it a bit more.

My work

jeep
aaronc88 is offline
post #280 of 1106 Old 09-23-2008, 11:35 AM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
I don't know why i never thought of using diamond plate for that! Great idea (doh!)

FunkSkunk is offline
post #281 of 1106 Old 09-28-2008, 10:49 PM
CJfreak
Registered User
1975 CJ5

Join Date: Aug 2005
Location: Allendale MI
Posts: 276
Just finished my way through all the posts on cages and haven't seen what I was thinkin of, although I did see GPER in another thread had done it. I was wondering about using a second factory sport bar mounted on the fenderwells at the rear and tied to the bar right behind the driver. Obviously I would find a way to tie them both to the frame. Anyone done this or have any pics of it? I would still need to get the front cage bar bent but this was just an idea for the rear cause I need to protect passengers.

'75 CJ5 w/304/T150/D20/D44's/3.07/33" Thornbirds/Glass Body...
CJfreak is offline
post #282 of 1106 Old 11-09-2008, 09:18 AM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
AWESOME write-up at the RangerStation.com --> http://www.therangerstation.com/tech...y/rollcage.htm













FunkSkunk is offline
post #283 of 1106 Old 11-09-2008, 10:16 AM Thread Starter
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814

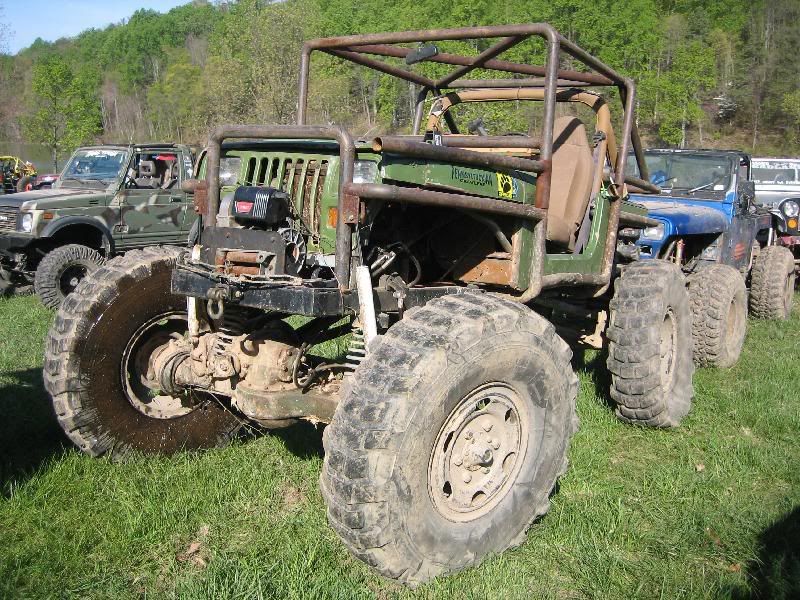

And here are some really bad Cage Fabrication ideas

Check out the steering goes through the cage!



Pipe connections are not valid bend points!





Tubing is waaay to small, his head is above the tubes, etc....


One extreme rear view mirror bracing! (I do love how the factory cage is there for back up)


Square tubing could be used, but seriously?


Add to these if you wish, just thought you guys should see what are some horrible ideas!!
FunkSkunk is offline
post #284 of 1106 Old 11-11-2008, 12:19 AM
SKT
Registered User
1981 CJ7

Join Date: Nov 2006
Location: Location:
Posts: 6,461
^^^Wow, those are something else!

1981 CJ-7: Fresh 304, NV4500, Twin Stick Dana 300, Dual Tops, 33" Mud Terrains, etc.

Click here to see thousands of 'Abandoned and Neglected' Jeeps rotting away...
SKT is offline
post #285 of 1106 Old 11-11-2008, 06:53 AM
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,140
Quote:
Originally Posted by FunkSkunk View Post
I don't know why i never thought of using diamond plate for that! Great idea (doh!)
thanks I think it looks great (and its 1/4" not 3/16" like most gussets)


Quote:
Looks like schedule 40 too. they used prebent 90's like you would for handrail.

look at the angle of the springs on the front axle - what the heck!?
Unlimited04 is offline
