Unread 01-31-2008, 03:36 AM   #241
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
Quote:
Originally Posted by BozoWise
Got my cage done.
Where did you get those Gussets you used on the rear? I saw them in 4 wheel and offroad but couldn't find where to buy them.

Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 01-31-2008, 10:46 PM   #242
BozoWise
Registered User
2001 TJ Wrangler

Join Date: May 2007
Location: Lubbock
Posts: 736
Quote:
Originally Posted by Fred99TJ
Where did you get those Gussets you used on the rear? I saw them in 4 wheel and offroad but couldn't find where to buy them.
Tanner cage gussets. I had my bud at www.copperheadfab.com build me some on his plasma table also.


http://www.tannerracing.com/Chassis_Acc.htm
__________________
My 1 ton TJ build project "Evil Monkey": [url]http://www.jeepforum.com/forum/showthread.php?t=423989[/url]
BozoWise is offline   Reply With Quote Quick reply to this message
Unread 02-02-2008, 06:33 AM   #243
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
Quote:
Originally Posted by BozoWise
Tanner cage gussets. I had my bud at www.copperheadfab.com build me some on his plasma table also.


http://www.tannerracing.com/Chassis_Acc.htm
Thanks for the links. Copper Head was less $$ I ordered 12 for my cage. everyone says they will be an over kill but I say $25 is no expense if it will save my life or my jeep.
Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 02-02-2008, 06:38 AM   #244
Fred99TJ
Registered User

Join Date: Oct 2005
Location: Clarksville, TN
Posts: 366
These are the ones for those who are unsure what I am talking about

Fred99TJ is offline   Reply With Quote Quick reply to this message
Unread 02-13-2008, 09:26 PM   #245
iismet
Registered User

Join Date: May 2005
Location: None
Posts: 289
This thread has been very educational and I want to thank all of the contributors. I started the process of adding strength to the stock setup on my TJ. We threw away everything except the B hoop. Using a version of Zachs methodolgy we attached the hoop to frame. I am unsure of the strength compromise doing it this way but seems signifcantly stronger than stock.

I did not want to cut away the tub channel as I live in a muddy environment. We used a hole saw to open the cavity and fabricated an aluminum block that tightly fits around the nut cert and provides surface contact to the base plate when it is installed.


We fabricated a base plate out of 3/16', installed it under the factory foot, and tacked them together. We also reinstalled the soft top to assure there would not be any issues with the slightly lifted height.


Stitched the two plates together 4 sides.


Painted with rubberized under coating and filled open joints with body filler.


After installing, the welded nuts on the pinch weld seemed kind of comical. I drilled them out and added a third hole thru the pinch weld and fabricated this angle to sandwich the pinch weld.




iismet is offline   Reply With Quote Quick reply to this message
Unread 02-27-2008, 11:24 AM   #246
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
found this cage, just digging how they used a full tube to run the entire length of the jeep. Neat simple design, found it here --> http://www.overkilloffroad.net/jeff.htm
longtubecage.jpg   jeff-drivers-side.jpg
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote Quick reply to this message
Unread 02-27-2008, 12:18 PM   #247
zachv
Web Wheeler

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,197

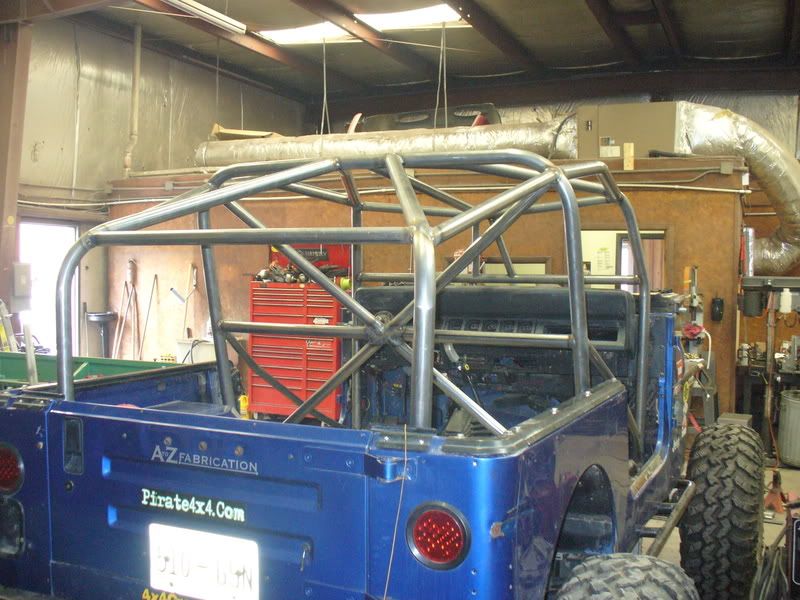

That is indeed one of the best ways to run a full cage for most rigs. The challenge doing it that way for a TJ is the bend at the upper windshield location usually gets in the way of the door surrounds if the owner is still going to use them. For example, below is one we did in a TJ like that where the owner said he would not be using the door surrounds so we were able to do that, but you can see where the bend would be in the way. For YJs and CJs it is very nice to do the whole tube in one piece...as long as you can keep in the same plane of bend.



Here is the link to that picture if you want to see it bigger:
http://atozfabrication.com/gallery/d...&cat=0&pos=-18
__________________
Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline   Reply With Quote Quick reply to this message
Unread 03-01-2008, 09:06 PM   #248
Hokie_YJ
The RockFather

Hokie_YJ's Avatar
2004 TJ Wrangler

Join Date: Feb 2004
Location: Kingsport, TN.
Posts: 631

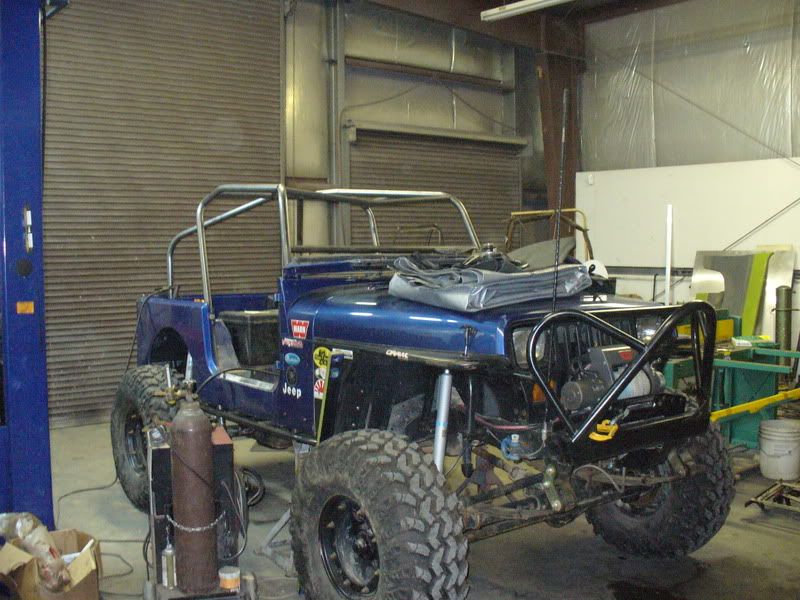

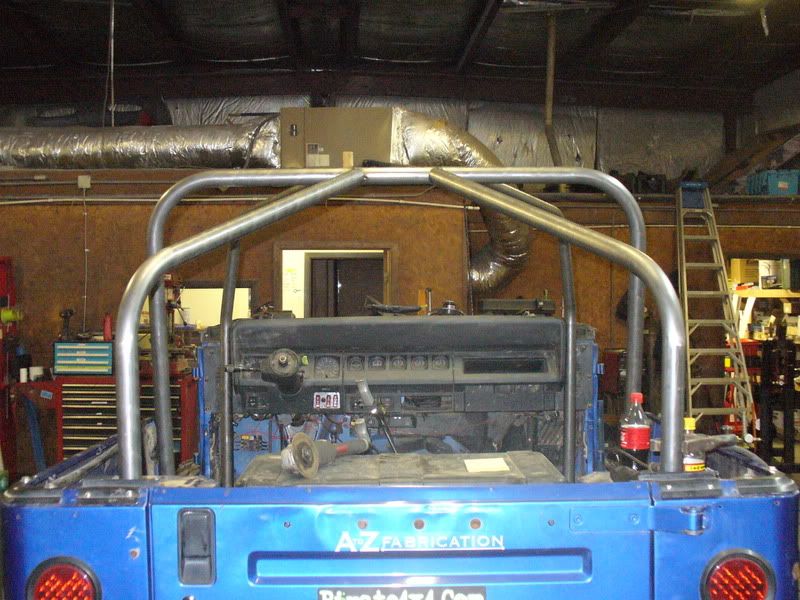

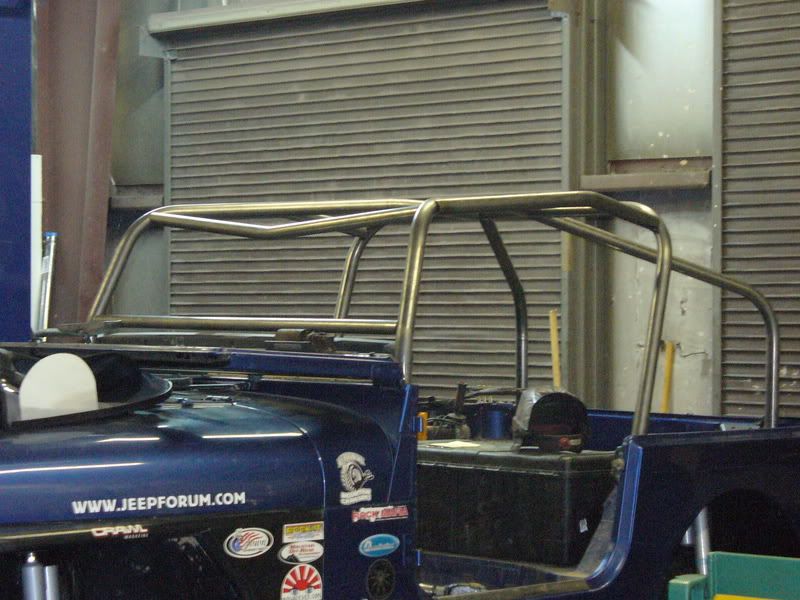

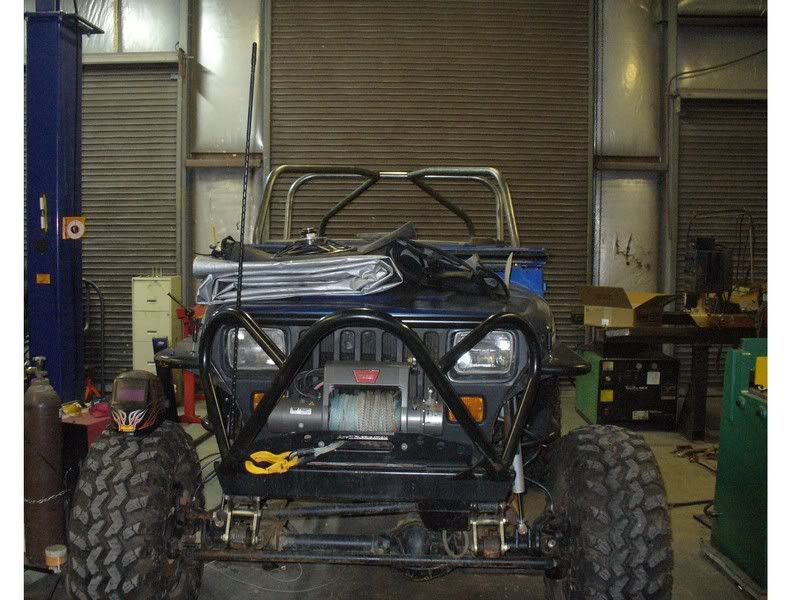

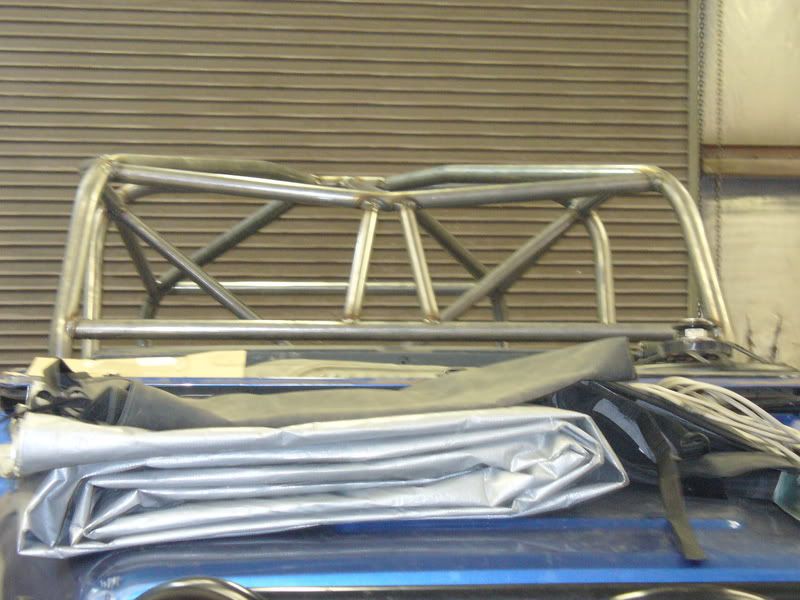

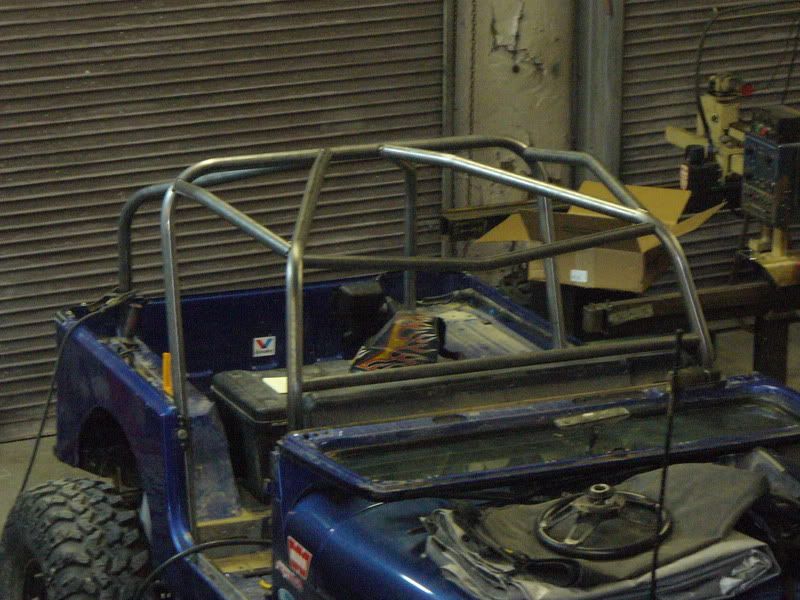

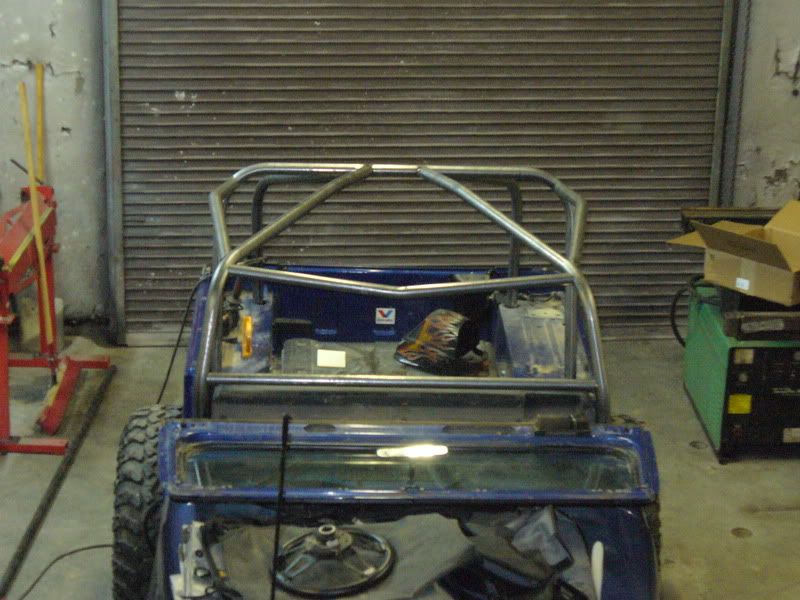

Here's some pics of the cage currently being built in my YJ. It's still got a ways to go, and there is still quite a bit of tube to be added. I'll post more pics when it's done.







__________________
http://www.4x4grace.com

"Beat it like it owes you money"

Jeep Wrangler with some bolt-on "stuff"
Hokie_YJ is offline   Reply With Quote Quick reply to this message
Unread 03-04-2008, 10:06 PM   #249
Hokie_YJ
The RockFather

Hokie_YJ's Avatar
2004 TJ Wrangler

Join Date: Feb 2004
Location: Kingsport, TN.
Posts: 631

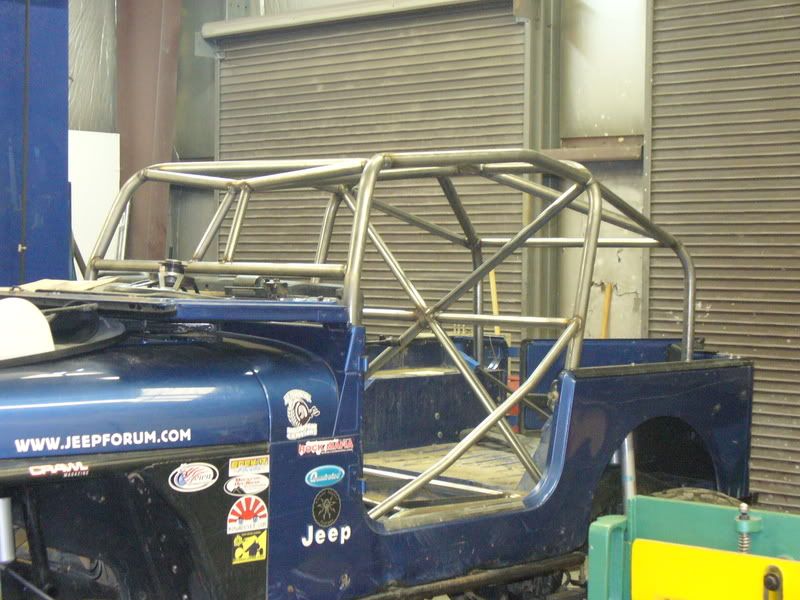

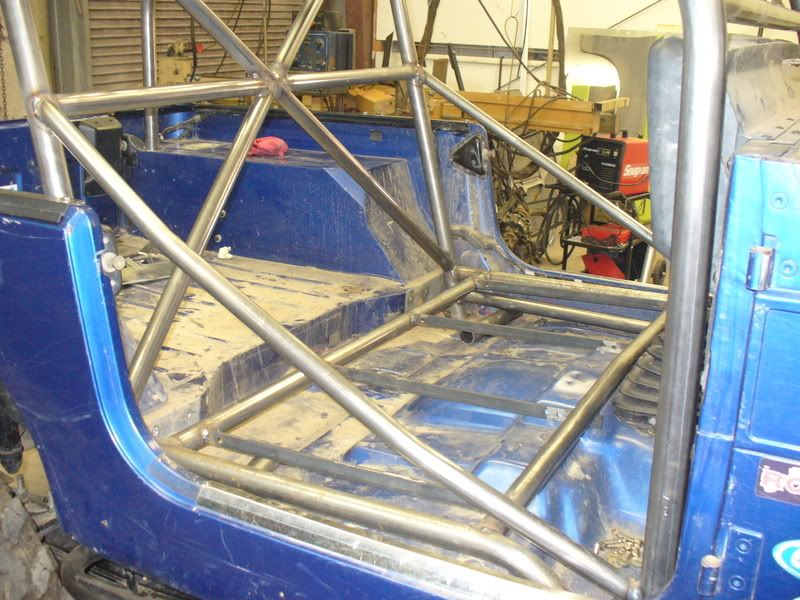

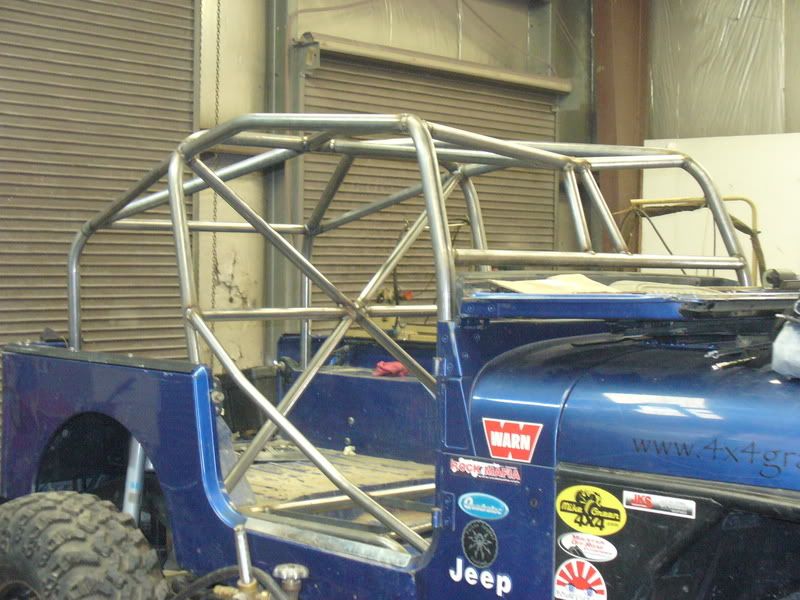

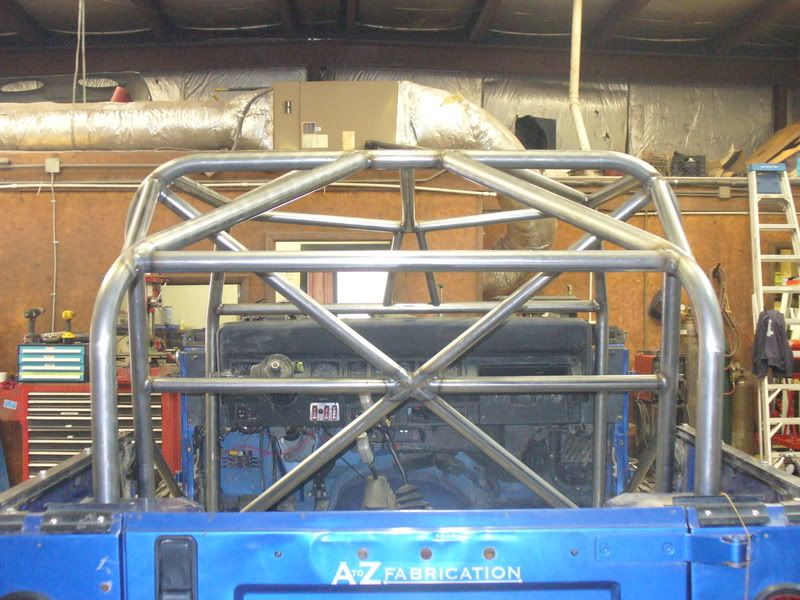

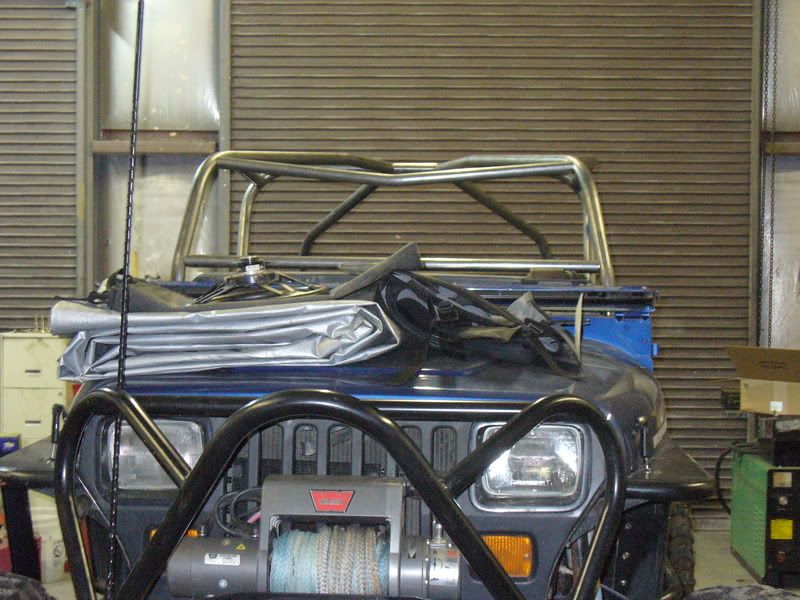

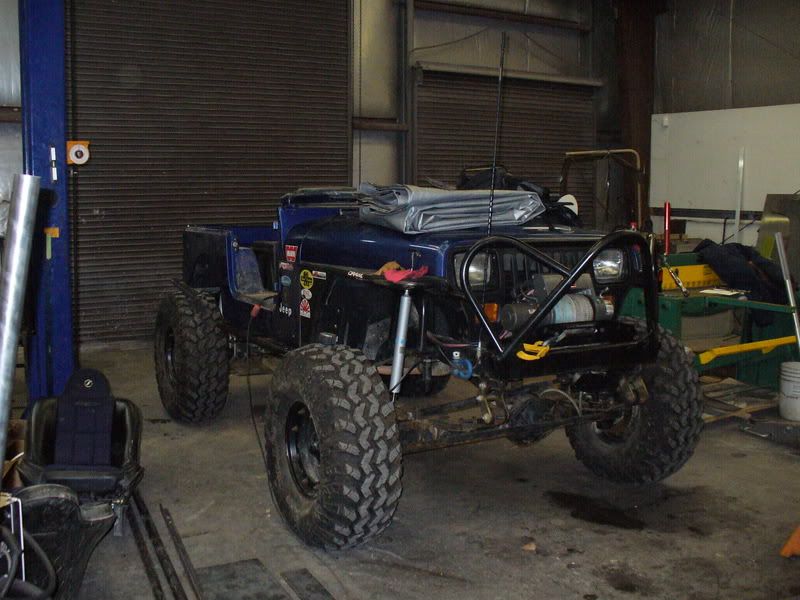

Cage is done for the most part! Just have to set it out, and do the final welding on a couple spots that we couldn't get to. Then spray bomb it and set it back in and weld it solid to the frame. Here's a few more pics. I'll have some action shots after next weekend, who knows I may even test it out.






__________________
http://www.4x4grace.com

"Beat it like it owes you money"

Jeep Wrangler with some bolt-on "stuff"
Hokie_YJ is offline   Reply With Quote Quick reply to this message
Unread 03-08-2008, 07:01 PM   #250
brooksjeep
Registered User
1999 TJ Wrangler

Join Date: Aug 2007
Location: Maryland
Posts: 255
Hey guys I have been reading through this thread vigorously and alot of the jeeps that get pictures up are really into hardcore wheeling. My jeep is my dd and is used occasionaly on the trail, more of a weekend warrior than what most of these are. I want to build a simple cage, but tough. I want to know what size pipe to use and whether to use hollow or solid pipe. I have a welder and all the tools its just the building of the cage i get confused about. Correct me if im wrong A pillar is on the windshield B pillar is behing the seat and C pillar would be the biggest upright in the back.
__________________
1999 TJ SE 2.5L- DD, and Weekend Warrior
brooksjeep is offline   Reply With Quote Quick reply to this message
Unread 03-09-2008, 10:21 AM   #251
BozoWise
Registered User
2001 TJ Wrangler

Join Date: May 2007
Location: Lubbock
Posts: 736
Quote:
Originally Posted by brooksjeep View Post
Hey guys I have been reading through this thread vigorously and alot of the jeeps that get pictures up are really into hardcore wheeling. My jeep is my dd and is used occasionaly on the trail, more of a weekend warrior than what most of these are. I want to build a simple cage, but tough. I want to know what size pipe to use and whether to use hollow or solid pipe. I have a welder and all the tools its just the building of the cage i get confused about. Correct me if im wrong A pillar is on the windshield B pillar is behing the seat and C pillar would be the biggest upright in the back.
Use tube not pipe as tube is structural. There are tons of arguements over types of tube but I prefer DOM. 1.75x.20 wall.

You are correct in the pillar placement.
__________________
My 1 ton TJ build project "Evil Monkey": [url]http://www.jeepforum.com/forum/showthread.php?t=423989[/url]
BozoWise is offline   Reply With Quote Quick reply to this message
Unread 03-11-2008, 09:05 PM   #252
jeepcj-7
Registered User
1974 CJ5

Join Date: Feb 2006
Location: Batson, Texas
Posts: 40
Does pillar B have to be tied into the frame??? My CJ-5 has such a small wheel base, Pillar B will be in the way of my 38.5's suspension travel. Can i brace Pillar B to Pillar A with a tube? Pillar C WILL be tied in on the frame no problem. Gussets will be use on just about all angles where i can see that the extra strength will be needed.
__________________
"I wouldn't say i did, i wouldn't say i didn't but ANY MAN THAT WOULDN'T CHEAT FOR A POKE doesn't want one bad enough"- "Agustas McCray"-"Lonesome Dove"

I like to picture Jesus in a tuxedo T-Shirt because it says I want to be formal, but I'm here to party because I like to party and I like my Jesus to party.
jeepcj-7 is offline   Reply With Quote Quick reply to this message
Unread 03-17-2008, 07:09 PM   #253
CompGuru
Registered User
1983 CJ7

Join Date: Sep 2007
Location: Grover Beach, CA
Posts: 201
Does anyone know of any good/suggested fabricators in the Las Vegas area that could build me a cage? Also, what are the opinions of the Rock Hard cage kit and the Spyder customs CJ cage kit? Would it be cheaper to have one made for me or go with one of these kits? I have a 1983 CJ7.

Thanks.

Dustin.
__________________
1983 Jeep CJ7 White

Team Rush, Halogen Headlights, Nutter Bypass, more to come...

"There is no mechanical problem too tough that cannot be fixed by brute strength and ignorance."

"Remember, Amateurs built the Ark, Professionals built the Titanic."
CompGuru is offline   Reply With Quote Quick reply to this message
Unread 03-27-2008, 10:50 AM   #254
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
With metal prices as high as they are it's still cheaper to do it yourself or go with a local fab shop. Buying a kit is great but it may not be exactly what you want. I'm sure somebody on here knows of a good fab show out there, heck your in one of the best places to wheel in the country so I'm sure theres a decent fab shop in town!
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote Quick reply to this message
Unread 03-28-2008, 01:28 PM   #255
zachv
Web Wheeler

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,197
Quote:
Originally Posted by CompGuru View Post
Does anyone know of any good/suggested fabricators in the Las Vegas area that could build me a cage? Also, what are the opinions of the Rock Hard cage kit and the Spyder customs CJ cage kit? Would it be cheaper to have one made for me or go with one of these kits? I have a 1983 CJ7.

Thanks.

Dustin.

Maybe try a search of fab shops near you on Pirate 4x4. There is Shaffers Offroad near Reno, but that is a little far. I think there are some hot shops near you that are closer.
Good luck.
__________________
Have a great day!!!
Zach Vaughn.
AtoZ Fabrication
570-385-3931--shop
zachv is offline   Reply With Quote Quick reply to this message
