post #196 of 1110 Old 07-05-2007, 10:34 AM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716
Is there a good way to add diagonals to the B pillar when re-using the stock hoop in a TJ? The only way I can see it happening is with big bends or tieing in a few inches from the node.. Neither of which seem ideal..

Tom



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
tommaho is offline
Sponsored Links
Advertisement

post #197 of 1110 Old 07-06-2007, 07:12 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
I've seen one cage with the big bends in the X bars. It also ran a straight bar to the "apex" of the X bars down to the corners to keep them from folding. While not an ideal setup, it is probably the best option when retaining the stock pillar and using diagonals with the stock seat mounting position.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #198 of 1110 Old 07-23-2007, 10:39 PM
extreme69
Registered User
1990 XJ Cherokee

Join Date: Jun 2007
Location: B.C. Canada
Posts: 241
wheres all the xj exo's?
extreme69 is offline
post #199 of 1110 Old 07-23-2007, 10:51 PM
pair8hd
Registered User

pair8hd's Avatar

Join Date: Jun 2002
Location: Kansas
Posts: 336
Quote:
Originally Posted by extreme69
wheres all the xj exo's?
They are out to lunch. Didn't you get the memo?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
pair8hd is offline
post #200 of 1110 Old 08-04-2007, 09:20 PM
dirtgrip
Registered User

dirtgrip's Avatar
1999 TJ Wrangler

Join Date: May 2004
Location: Sierra Vista
Posts: 1,461
Front is a thru the dash kit from Koz Offroad.Kept the rear section so the Viking Fastback top would be sure to fit.Braced it with some 1.75 dom. I have 8 points to the floor now & hope to tie them to the frame,add some A to B pillar door bars,and tie the seats in this yr.
Oh yea add a new harness bar up to where it should be.



Large vacuum leak sucking all the dead presidents out of my wallet.
dirtgrip is offline
post #201 of 1110 Old 08-10-2007, 02:02 PM
Fatman
Registered User

Fatman's Avatar
2008 CJ7

Join Date: May 2006
Location: Raleigh
Posts: 2,434
I've seen some isolation type cage / frame tie-ins before but can't seem to find them anywhere.

They look something like this, not sure if they were a home brew or if there is a manufacture for the parts.

Any help?

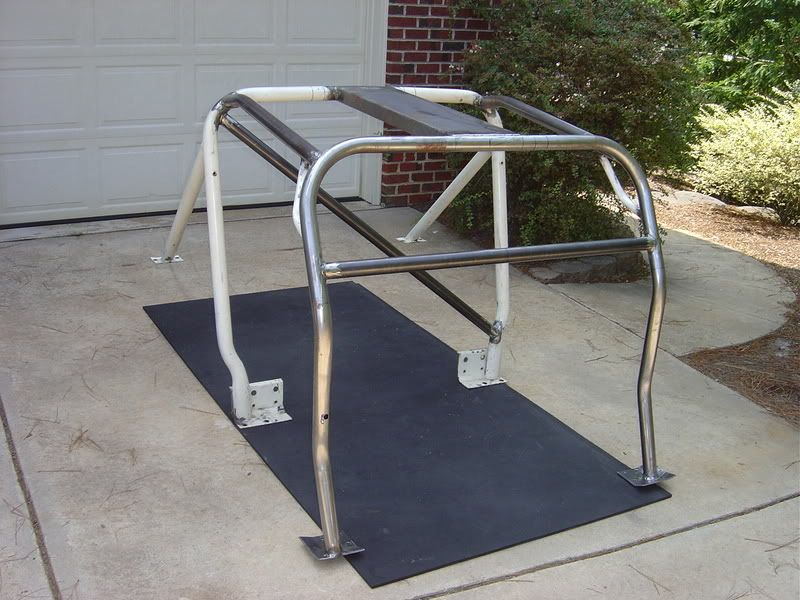

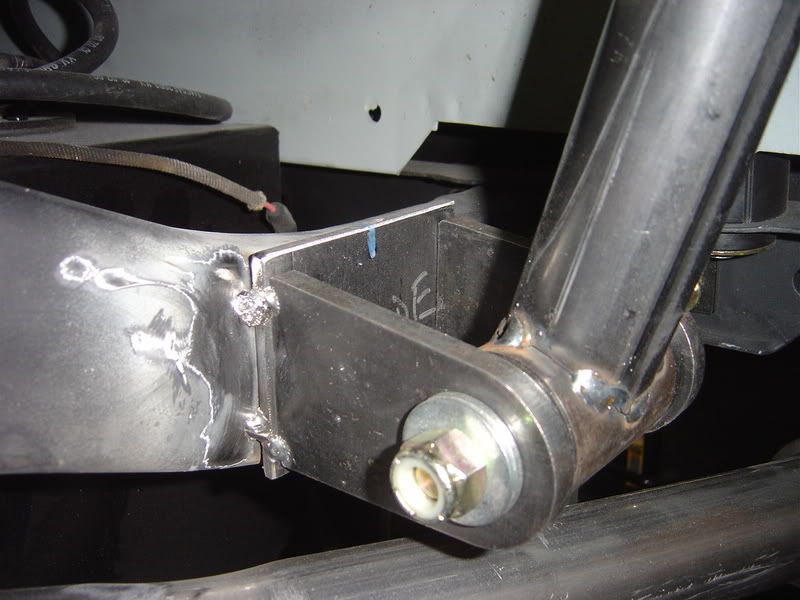

Well, I went ahead and made them myself:





.


Thread Links:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Fatman; 09-04-2007 at 10:39 AM.
Fatman is offline
post #202 of 1110 Old 08-10-2007, 04:29 PM
dirtgrip
Registered User

dirtgrip's Avatar
1999 TJ Wrangler

Join Date: May 2004
Location: Sierra Vista
Posts: 1,461
Fatman check these out: http://www.polyperformance.com/shop/...cat=551&page=1

Large vacuum leak sucking all the dead presidents out of my wallet.
dirtgrip is offline
post #203 of 1110 Old 08-13-2007, 08:07 PM
Fatman
Registered User

Fatman's Avatar
2008 CJ7

Join Date: May 2006
Location: Raleigh
Posts: 2,434
Thanks dirtgrip, that's exactly what I'm looking for.
Started the front bar this afternoon.
Rebent my plates in the press to match the new floor work

dirtgrip, did / do you have any trouble with inspections giving you a hard time with the height of your dash bar?
I want to set mine above the dash pad, will net me 12.25" of clear view. ???

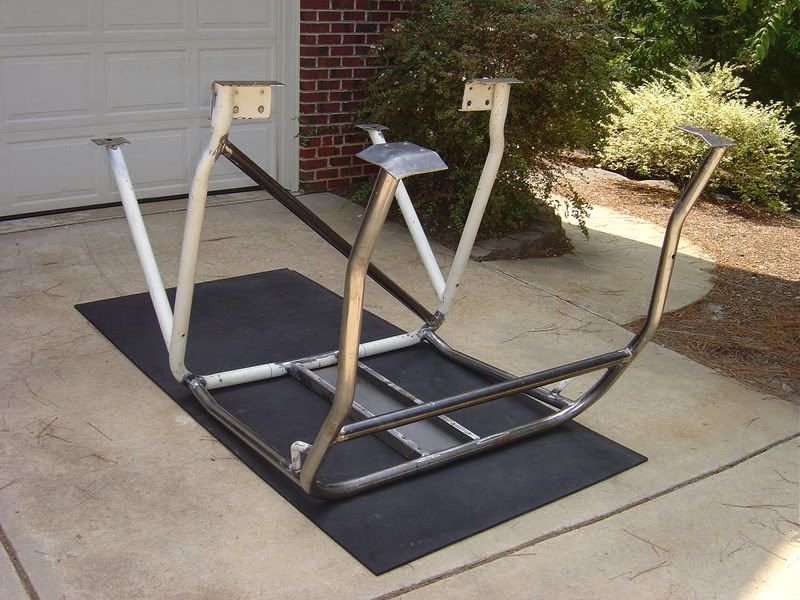

Unpainted:



Finished product:




.


Thread Links:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Fatman; 10-28-2007 at 08:27 PM.
Fatman is offline
post #204 of 1110 Old 08-13-2007, 08:51 PM
dirtgrip
Registered User

dirtgrip's Avatar
1999 TJ Wrangler

Join Date: May 2004
Location: Sierra Vista
Posts: 1,461
My dash bar is as low as you can go.It is barely off of the dash.No inspections in NM-I love the west.Good luck on your cage.

Large vacuum leak sucking all the dead presidents out of my wallet.
dirtgrip is offline
post #205 of 1110 Old 08-17-2007, 06:42 PM
NicholasJ
Registered User

Join Date: Aug 2007
Location: Grandview, wa
Posts: 7
Any pics of cages that utilize the back seat? I know, I know just asking...
NicholasJ is offline
post #206 of 1110 Old 08-24-2007, 05:10 PM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716
Quote:
Originally Posted by BESRK
I've seen one cage with the big bends in the X bars. It also ran a straight bar to the "apex" of the X bars down to the corners to keep them from folding. While not an ideal setup, it is probably the best option when retaining the stock pillar and using diagonals with the stock seat mounting position.
Ok, stealing someone elses pic from this thread, I think I'll probably do something like this with the x. It'll tie in a few inches behind the node, but I'll be gusseting. Too bad I need to keep the b pillar where it's at to keep the soft top functioning. I think it should still be fine.
Attached Images



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
tommaho is offline
post #207 of 1110 Old 08-25-2007, 07:18 AM
zachv
Registered User

Join Date: Aug 2003
Location: SCHUYLKILL HAVEN, PA
Posts: 1,211
That is my buddy's rig and it has been rolled a few times without any issues. The X not hitting the nodes has not been detrimental at all and make for a ton more head room.

Have a great day!!!
Zach Vaughn.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

570-385-3931--shop
zachv is offline
post #208 of 1110 Old 08-28-2007, 05:51 PM
KUK9
Web Wheeler

KUK9's Avatar
2000 TJ Wrangler

Join Date: Oct 2003
Location: Denver
Posts: 3,225
Ok, I know this thread is more dedicated towards custom fabbed cages and full replacements, but what does everyone think of the pre-fabbed stuff? In particular, I'm wondering about the Poison Spyder trail cage (the part that just goes over the front two seats), the bolt in style cages, etc.? For a majority of people, these seem to be more feasible (and more cost effective) cages to obtain.

Granted, I know that nothing will beat a complete new cage, but I would assume that even something like the PSC, TBT, etc. would be better than stock. I'm sure we've all seen the infamous roll with the TBT cage on Hells Revenge- that obviously took a beating. How are they in comparison as far as strength goes?

REDLYNER Racing #4550

My Build Thread:
http://www.jeepforum.com/forum/f22/adapt-die-kuk9s-stretch-tj-build-1160620
KUK9 is offline
post #209 of 1110 Old 09-09-2007, 09:24 PM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716

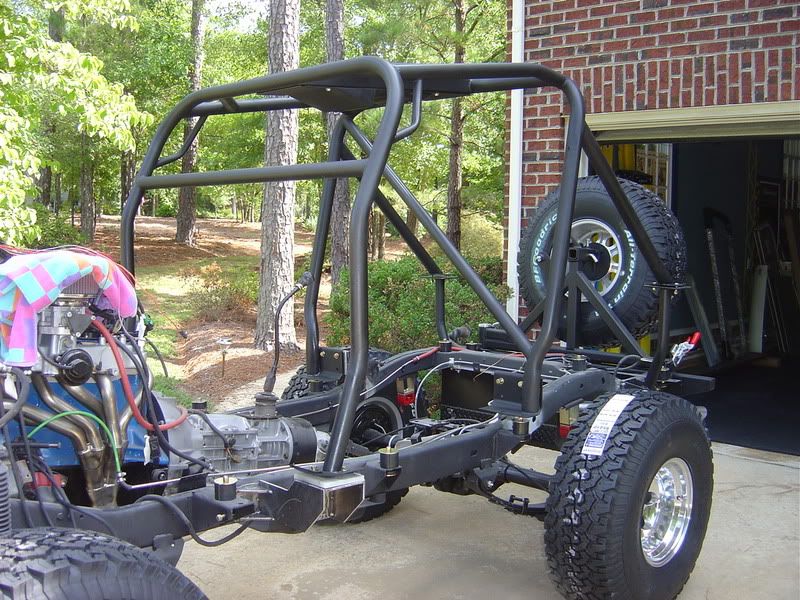

Well, here's my contribution. This comes from a combination of stuff I've been gleaning from Pirate mostly. I still have some more work, but you can see all the major stuff in this pic. The X will go just behind the B pillar - I'll be putting that in once the cage goes back in (welding to frame).
