New rear winch bumper build

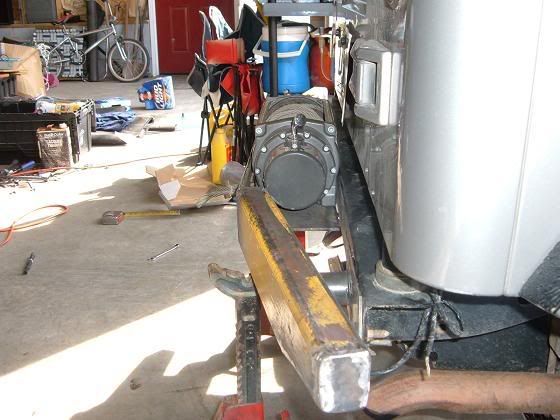

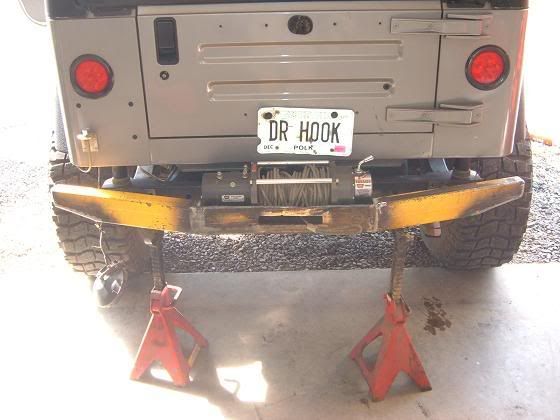

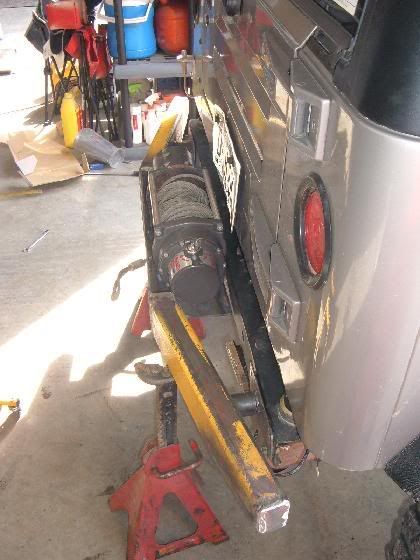

Heres a few pics of the progress so far on my new rear winch bumper. My swingout is also pretty much done, my hinge is supposed to be here today. The bumper is 1/4'' wall 2x4 tubing, and the winch plate is also 1/4''.






Lifted ZJ with stuff.
dr hook is offline
Sponsored Links
Advertisement

post #2 of 17 Old 03-08-2007, 08:42 AM
highrisetj39.5
Registered User
2000 TJ Wrangler

Join Date: May 2006
Location: Michigan
Posts: 298
fricken Sweet!!

2000 Tj 4.7L supercharged, with a nv3500 and SYE np231. Currie Hp 9"s w/ 4.56 and arbs, rubicon express 4.5" SF, 1" BL, 35" BFG M/T, warn m8000, all custom armor, cage and bumpers front and rear with tire swing away, CB, Currie HD steering, and some other things
highrisetj39.5 is offline
post #3 of 17 Old 03-08-2007, 09:17 AM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
thanks. it's not quite finished yet, I've still got to add frame tie ins and crossmember tie ins, but it's close. I'll snap some pics tonight of the tire carrier and post em' up tomorrow.

Lifted ZJ with stuff.
dr hook is offline
post #4 of 17 Old 03-08-2007, 10:15 AM
JJs99TJ
Registered User
1999 TJ Wrangler

Join Date: Oct 2004
Location: ABQ, New Mexico
Posts: 1,498
looks good, i was wondering if you planned on adding some frame
tie ins. im interested to see how your doing the tire carrier with the
winch being positioned as is.
JJs99TJ is offline
post #5 of 17 Old 03-08-2007, 11:02 AM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
the tire carrier is 1/4 wall round tubing, and it steps up in the center to go over the winch, and it also has a "stepped" bar going around the front of the winch. it's kinda hard to explain, but the pictures will show it much better lol.

Lifted ZJ with stuff.
dr hook is offline
post #6 of 17 Old 03-08-2007, 12:11 PM
junglejeep
Registered User

Join Date: Jan 2004
Location: Franklin, TN
Posts: 317
I think it would look better on the front of my jeep I mean it would serve the same purpose except you're battery wouldn't be the one pulling my crap up the hill.

John

I want a CJ-6 with a hardtop.
junglejeep is offline
post #7 of 17 Old 03-08-2007, 12:19 PM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
Quote:
Originally Posted by junglejeep
I think it would look better on the front of my jeep I mean it would serve the same purpose except you're battery wouldn't be the one pulling my crap up the hill.

John

I've already got the front end covered... good ol' 8274.


Lifted ZJ with stuff.
dr hook is offline
post #8 of 17 Old 03-09-2007, 06:28 AM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
as promised, here's the tire carrier pics:


Lifted ZJ with stuff.
dr hook is offline
post #9 of 17 Old 03-09-2007, 08:20 AM
RatherBeJeeping
Registered User

Join Date: Nov 2000
Location: Moore, OK
Posts: 123
Good to see someone else smart enough to put one on the back too


John
95.5 YJ with "stuff"
RatherBeJeeping is offline
post #10 of 17 Old 03-09-2007, 11:26 AM
Scotch740
Web Wheeler

Scotch740's Avatar
2005 LJ Wrangler

Join Date: Apr 2004
Location: Charlottesville VA
Posts: 2,334
Ratherbejeeping,
Do you have a BL on there? If so how much.
Do you feel it nessecary to have a BL to make a rear winch bumper? I know this probably depends on what winch/design of bumper, but in general is a BL needed?
Scotch740 is offline
post #11 of 17 Old 03-09-2007, 12:34 PM
RatherBeJeeping
Registered User

Join Date: Nov 2000
Location: Moore, OK
Posts: 123
I've got a JKS 1.25" body lift, but that's on there to get a flat skid- not for the winch. Even without it the tailgate would open

John
95.5 YJ with "stuff"
RatherBeJeeping is offline
post #12 of 17 Old 03-09-2007, 01:09 PM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
RatherBeJeeping, looks good man! My hinge assy. from A to Z Fab. just got here so I'll be finishing mine up tonight.

Lifted ZJ with stuff.
dr hook is offline
post #13 of 17 Old 03-12-2007, 08:00 AM Thread Starter
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662
Ok, heres the finished pics. I still have to finish my frame tie-ins, but as long as I have em done and on the Jeep by the weekend I'll be ok.







the solenoid box for the winch is mounted inside the back of the jeep, I will snap a pic or two of that during lunch today.

Lifted ZJ with stuff.
dr hook is offline
post #14 of 17 Old 03-21-2007, 10:51 PM
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Louisville, KY/ Columbus, IN
Posts: 6,358
Still looking good

Stretched TJ , Coil overs, 42" IROKS, 60/14 bolt...
'95 YJ fuel injected 302, 8.8, cage, ARBs.
'04 QC LB Cummins 4x4
My TJ Build Thread.
www.kifourwheelers.com
For Sale:
TJ Rear Dana 44 shaftsfor sale
3 11"& 2 13" BBCS shocks



JeepRocks86 is offline
post #15 of 17 Old 03-22-2007, 10:29 AM
WingnuTJ
Registered User

Join Date: Nov 2005
Location: Grand Rapids, Michigan
Posts: 94
Very Very Nice!
Does it rattle a lot? Is that a screw pin or just a pin for the latch?
Reason I'm asking is b/c it looks like it would shake a lot? (Broken glass not cool) Do you have another latch behind the tire to the tub/t-gate?
Looking to fab one myself and love your design. Yours is "ONE OF A KIND"
I'm not slamming your frick'n Awesome work just wondering.
Keep up the great work! Hell that really gets

~WingnuTJ

Lifes a Jeep! Wheel IT!
WingnuTJ is offline
