new rear bumper/tire carrier

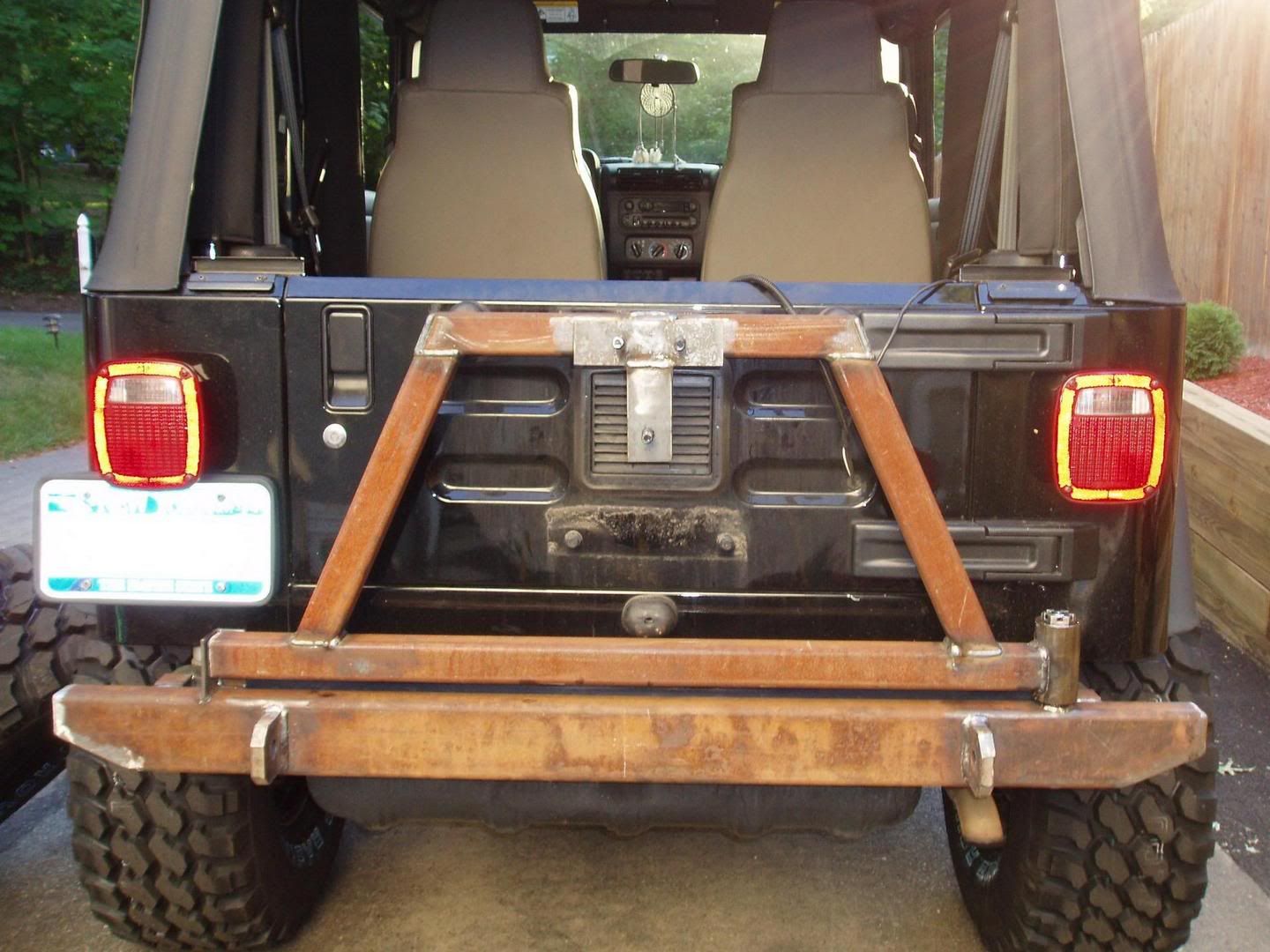

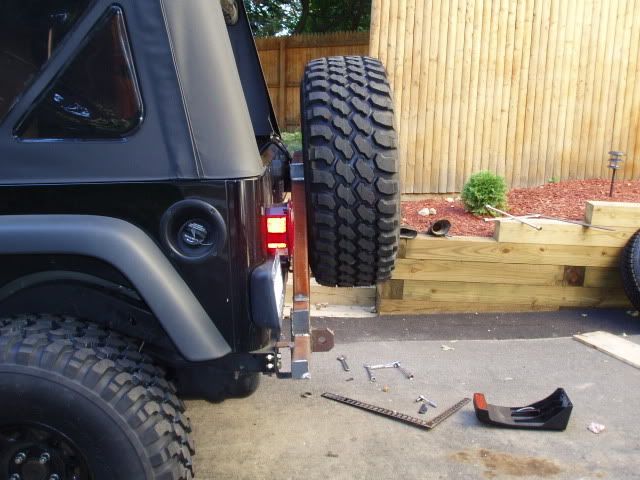

Hey all, I am fabricating a new rear bumper/tire carrier .

Do you think the tire sits too low?







2004 Jeep Wrangler Sport - Black
WARN steering box skid,Nth degree Oil pan skid
RE 3.5" - M.O.R.E. 1" BL - M.O.R.E. 1" MML
15x8 Tech1 Rock Crawlers (4.5" BS)
35"x12.50x15 Dunlop Radial Mud Rovers
Aussie locked 30/ Ultimate 35 kit w/detroit

Black Jeep Club v2.0 Member #49
See Jeep Here
And here

Last edited by sbninja; 09-06-2005 at 07:46 PM.
sbninja is offline
Sponsored Links
Advertisement

post #2 of 12 Old 09-04-2005, 07:39 AM
FrankZ
Registered User
1997 XJ Cherokee

Join Date: Nov 2004
Location: Colorado Springs, Colorado
Posts: 1,237
Maybe not too low, but I'd strongly recommend a better mounting method for the bumper itself.
FrankZ is offline
post #3 of 12 Old 09-04-2005, 08:23 AM
Gerg
Registered User

Gerg's Avatar

Join Date: Jul 2005
Posts: 444
Put a string under the rear tire on the ground. Then pull the string up until it hits the bumper. Is doesn't matter if you pull straight back or pull at an angle (like right under the spare tire). Which hits first the spare or the bumper?

I don't care how tough your carrier is, it only take a hard hit or two to start bending something on that carrier.

HTH

Greg
Bakersfield, Ca.
Red Jeep Club #321
Gerg is offline
post #4 of 12 Old 09-04-2005, 08:41 AM
copbait
Member

Join Date: Jun 2005
Location: San Diego, CA
Posts: 355
it looks like a work in progress, so im sure there are some frame straps or the current mount is just temporary...?
copbait is offline
post #5 of 12 Old 09-04-2005, 12:37 PM Thread Starter
sbninja
Registered User

sbninja's Avatar
2004 TJ Wrangler

Join Date: Aug 2004
Location: Long Island, NY
Posts: 690
Quote:
Originally Posted by copbait
it looks like a work in progress, so im sure there are some frame straps or the current mount is just temporary...?
Yep , today I added the mounts that tie in under the frame ends. , I think I'll beef up the other mounts too.

2004 Jeep Wrangler Sport - Black
WARN steering box skid,Nth degree Oil pan skid
RE 3.5" - M.O.R.E. 1" BL - M.O.R.E. 1" MML
15x8 Tech1 Rock Crawlers (4.5" BS)
35"x12.50x15 Dunlop Radial Mud Rovers
Aussie locked 30/ Ultimate 35 kit w/detroit

Black Jeep Club v2.0 Member #49
See Jeep Here
And here
sbninja is offline
post #6 of 12 Old 09-04-2005, 05:25 PM
hurleywranglerx
Registered User

Join Date: Dec 2004
Location: Emory, Va
Posts: 75
i think it'll look great when its finished.

nice work

2008 Black Wrangler Unlimited Sahara
2004 Red Wrangler X RME (traded in on the 08)
2001 Silver Honda Prelude
hurleywranglerx is offline
post #7 of 12 Old 09-04-2005, 06:03 PM
-RocknRoll-
Registered User
2002 TJ Wrangler

Join Date: Mar 2005
Location: North Texas
Posts: 177
i think it looks fine. Only thing to MAYBE consider when doing one in the future is this: If you make the 2x2 piece of metal that the tire swings on, more like 2x3(just a bit bigger), then you can hide any body lift nicely, and it seems to be much stronger.

I have a similar bumper to the one your building, metal is a bit thicker where it swings the tire away, and my tire does sit a bit higher. Good job!

2002 Sahara
D60/14b
Atlas, 42" Iroks
-RocknRoll- is offline
post #8 of 12 Old 09-04-2005, 09:12 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Looks great! I would do like Gerg said though, make sure your bumper is gonna be the limiting factor for your departure angle.. not the bottom of the tire..

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline
post #9 of 12 Old 09-06-2005, 10:50 AM
97TJGUZZY
Registered User

97TJGUZZY's Avatar
1997 TJ Wrangler

Join Date: Feb 2003
Location: Columbia
Posts: 1,796
looks awsome man, nice work, looks similar to mine. what thickness 2x2 did you use for the bumper?

For info on outdoor adventures in South Carolina check out OffroadSC.com
97TJGUZZY is offline
post #10 of 12 Old 09-07-2005, 08:44 AM
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
Looks decent man, i'd probably raise it an inch or so. Also think about if you go bigger with your tires down the road, it will need to be taller to fit the bigger meats, also the back spacing as well may need to be adjusted for larger tires. just my .02

lets see some updated pics!
FunkSkunk is offline
post #11 of 12 Old 09-07-2005, 06:11 PM Thread Starter
sbninja
Registered User

sbninja's Avatar
2004 TJ Wrangler

Join Date: Aug 2004
Location: Long Island, NY
Posts: 690
Quote:
Originally Posted by 97TJGUZZY
looks awsome man, nice work, looks similar to mine. what thickness 2x2 did you use for the bumper?
Thank's The 2x2 is 1/4" thick.

2004 Jeep Wrangler Sport - Black
WARN steering box skid,Nth degree Oil pan skid
RE 3.5" - M.O.R.E. 1" BL - M.O.R.E. 1" MML
15x8 Tech1 Rock Crawlers (4.5" BS)
35"x12.50x15 Dunlop Radial Mud Rovers
Aussie locked 30/ Ultimate 35 kit w/detroit

Black Jeep Club v2.0 Member #49
See Jeep Here
And here
sbninja is offline
post #12 of 12 Old 09-07-2005, 07:07 PM Thread Starter
sbninja
Registered User

sbninja's Avatar
2004 TJ Wrangler

Join Date: Aug 2004
Location: Long Island, NY
Posts: 690
Well, it's done for the most part, I still will fab a frame tie-in.

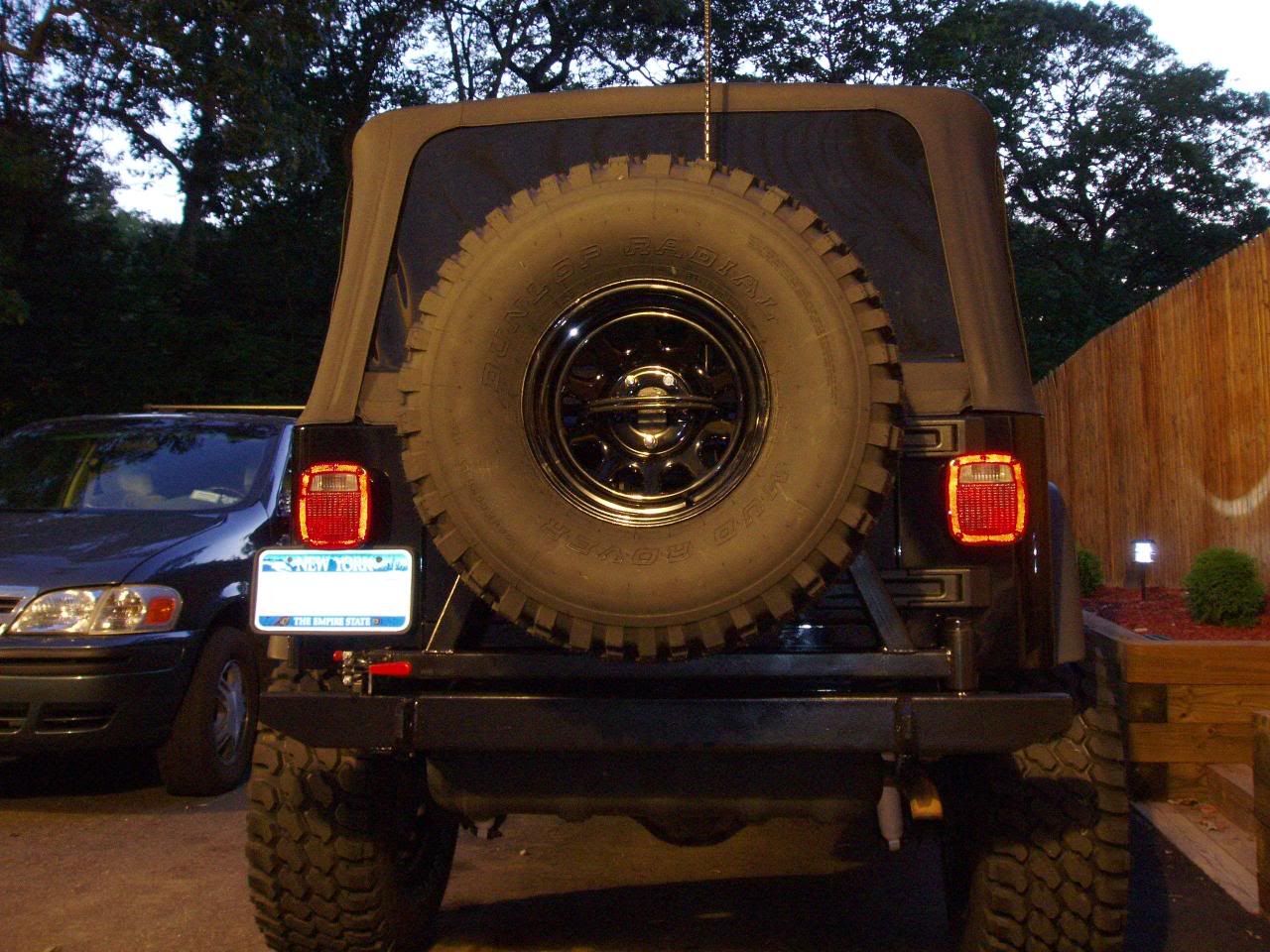

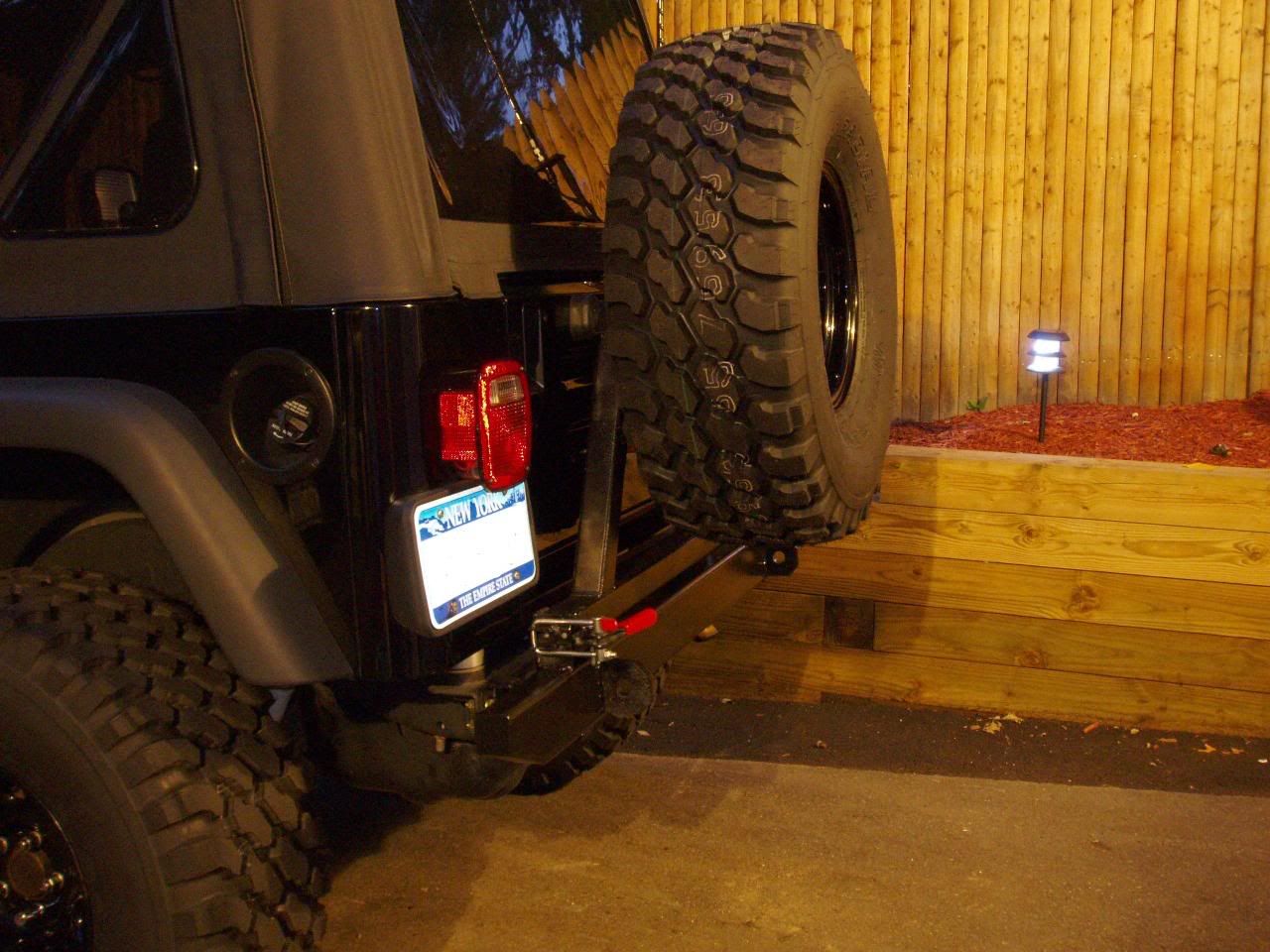

I did raise the tire location. here are some pics.
