Need some welding advice on a crossmember

Would some of the welding experts here be kind enough to give me a recommendationi on how to weld this up without warping it so bad it doesn't fit anymore?



The application is a crossmember for a TJ engine swap project intended for daily driving and light wheeling.
Plate will be bolted to frame through sleeved holes (not drilled yet), tube is currently tacked to plate. Plate-to-frame tacks will be ground off after I get it drilled, just to keep my holes lined up.
Tube is 2-1/2" x 2-1/2" x 1/4"
Plate is 3/16"

I have at home:
- A Miller 135 with .030" solid ER70S-6, and years of practice
- Ability to run .035 flux core, but I've never done it
- A Victor oxy-acetylene rig for preheating

At work, I have access to a Miller Synchrowave 250 DX TIG, but I just learned how to use it this year. I've done 1/4" with it (all flat or fillet), and I still undercut the edges of my beads sometimes.

So which option will get me a strong crossmember that will fit in the same spot after welding?
A. Keep it in the frame, preheat with the torch, then fill the bevel with several passes with my 110V welder
B. Take it out of the frame, and bring it into work after hours to lay a serious bead with the TIG
C. Give up and take it to a pro?

Thanks in advance for the help!

mcneil is offline   Reply With Quote
Unread 06-06-2013, 11:02 AM   #2
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
More pictures
Drivetrain is a VW TDI mated to a 4L65e to a NP241OR. Long story.. build thread will follow eventually.



mcneil is offline   Reply With Quote
Unread 06-06-2013, 11:16 AM   #3
AquaToe
Registered User
2003 KJ Liberty

Join Date: Jun 2013
Location: Ann Arbor, MI
Posts: 3
Hi! Which part is being welded?
AquaToe is offline   Reply With Quote
Unread 06-06-2013, 11:23 AM   #4
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
Sorry, let me clear that up a bit.
I'm trying to figure out the beads in red, particularly between the tube and the plate. I'm worried that laying multi-pass in the bevel at the end of the tube is going to cause the plate to warp away from the frame. Also, I'm slightly less concerned that filling in the cuts in the bend will make the whole crossmember warp away from the frame rails.

mcneil is offline   Reply With Quote
Unread 06-06-2013, 03:53 PM   #5
TimV
Registered User
2003 TJ Wrangler

Join Date: Jul 2010
Location: MD
Posts: 755
Im no expert, but I think just welding it up would be fine. I don't think you will manage to warp 1/4" tube with those small welds. I would probably do one weld at a time, with a bit of cooling time.
__________________
It's not an addiction. It's a way of life.
TimV is online now   Reply With Quote
Unread 06-06-2013, 04:41 PM   #6
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,260
Maybe fill your slits (in the tube) in place with the little 110 wire feed, and do the end flanges with the TIG. Reinstall the crossmember and then drill.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 06-06-2013, 07:43 PM   #7
Ironworker709
Moderator

Ironworker709's Avatar
1995 YJ Wrangler

Join Date: Nov 2006
Location: Millen Area,Georgia
Posts: 3,283
I'd tack it all real good in place where it will bolt to the frame..GOOD SIZED tacks...weld it all up in place..let cool all night or at least a few good hours...then cut the tacks to the frame loose and clean it up and continue on..

If it is warped enough to concern you in where you want it to bolt,use a torch to heat a little "V" on the side you want to bend back...don;t do it cherry red..just enough where the steel turns a different color..immediatly use a soak n wet rag to cool that spot,,it'll move back...

Do little section at a time untill you have it where you want it.
__________________
Don't DREAM your life, LIVE your dreams

Never forget 9/11

"Welding is like a woman,Get 'er HOT and Penetrate"

Gotta LOVE a person who knows everything about NOTHING

The only Thing necessary for the Evil to win is a good man to do nothing....

"How far you go in life depends on your being tender with the young,compassionate with the aged,sympathetic with the striving,and tolerant with the weak and strong--because someday YOU will have been all of these"....George Washington Carver

Want to know what an Ironworker is and the job scope of a Journeyman?..click here...http://www.ironworkers.org/becoming/careers.aspx
Ironworker709 is online now   Reply With Quote
Unread 06-06-2013, 10:14 PM   #8
schitzangiggles
King of Macastan

schitzangiggles's Avatar
1993 YJ Wrangler

Join Date: May 2005
Location: Rigby, Idaho, Macastan (Idaho)
Posts: 6,005
Take a grinder and round the corners on the part you are welding to the frame or you will get cracks there( ) not l l
__________________
"Axeheads are supposed to be sharp, but you are one blunt tool."
FLynes



If you love wealth more than liberty,the tranquility of servitude more than the animating contest of freedom, go home from us in peace. We seek not your counsel nor your arms. Crouch down and lick the hand that feeds you. May your chains sit lightly on your shoulders and may posterity forget that you were our countrymen.
-Samual Adams

A government big enough to give you everything you want is big enough to take everything you have.
Thomas Jefferson

Calling Illegal Aliens "Undocumented Immigrants" is like calling drug dealers "Unlicensed Pharmacists"

Nemo Me Impune Lacessit
"No one provokes (attacks) me with impunity".


"Your right, the Tea Party and the OWS are the same, just like the America Revolution and the French Revolution were the same. The only problem is the American Revolution ended with Liberty, Freedom, Justice for all and a shining light upon a hill. The French Revolution ended with lynchings, guillotines, murder and socialism. So yeah, I could see how one could confuse the two..."

Mac Wilson
schitzangiggles is offline   Reply With Quote
Unread 06-07-2013, 12:59 PM   #9
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
Thanks for the tips. Here's a better picture of the gap I need to fill between the tube & plate. The tube is beveled and the gap is about 1/4" at the top of the bevel, and in some spots around the tube there's up to 1/8" gap between the bottom of the bevel and the plate


This is the best quality stuff I can do with my skill level & machine..


..but this is what I more commonly end up with (this shot is in-process, still have two edges to weld up)
mcneil is offline   Reply With Quote
Unread 06-07-2013, 04:30 PM   #10
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,260
If those were done with the 110 MIG, you should be good to go with using that on everything..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 06-08-2013, 08:31 PM   #11
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,810
I agree too many people get hung up on 220V vs 110V. You should be fine. i would pull the crossmember out and redo the tack up including tape on the framerails. The idea is to build up the tape to mimic the thickness that the paint will take up on either piece as well as giving a bit of room to work with once you want to bolt it back on. If the framerails have to squeeze in 1/8" when bolted no big deal. This will also allow you to reduce the gaps in your original tack-up.
__________________
-insert meaningless out-of-place political diatribe-
fratis is offline   Reply With Quote
Unread 06-14-2013, 12:00 PM   #12
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
Again, thanks for all the advice. I also reviewed the "Show your Welds" thread for more tips.

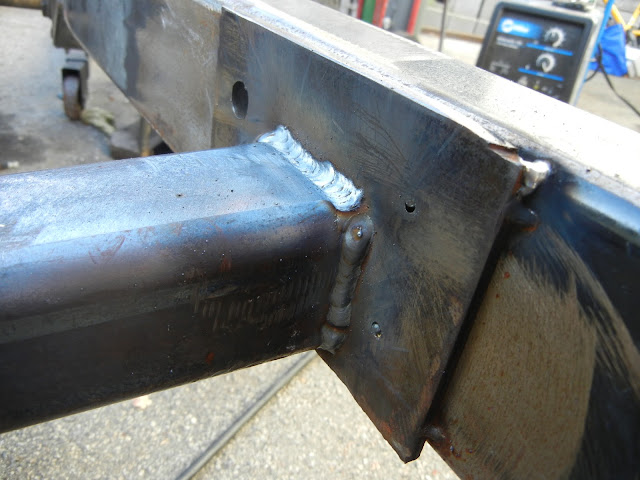

Preheated to 500F with rosebud tip, Miller 135 at max voltage, .030" wire with feed at 5, here's how it came out:
1st pass:

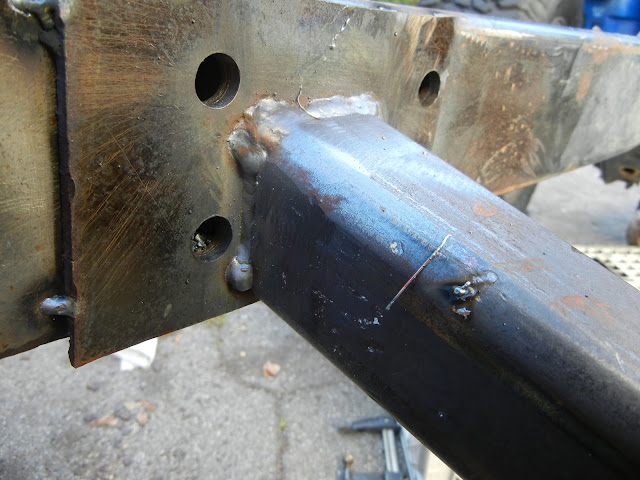

Got a lot of splatter, and a piece down my neck caused me to flinch bad and mess this side up:

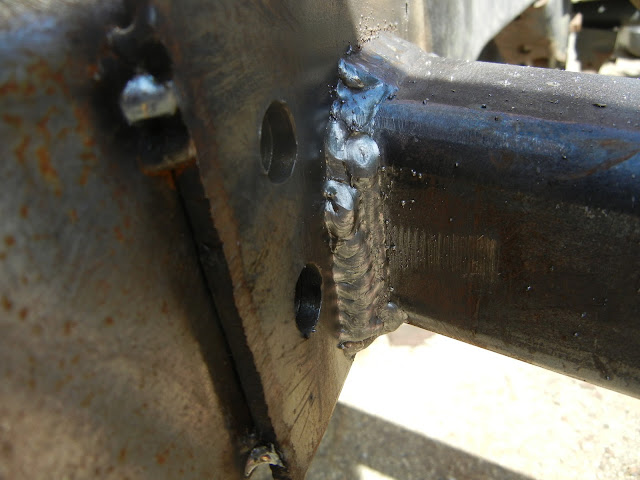

But with 3 more passes it looks ok


Need to improve where I start & stop beads, I had to come back and hit the corners with additional passes.

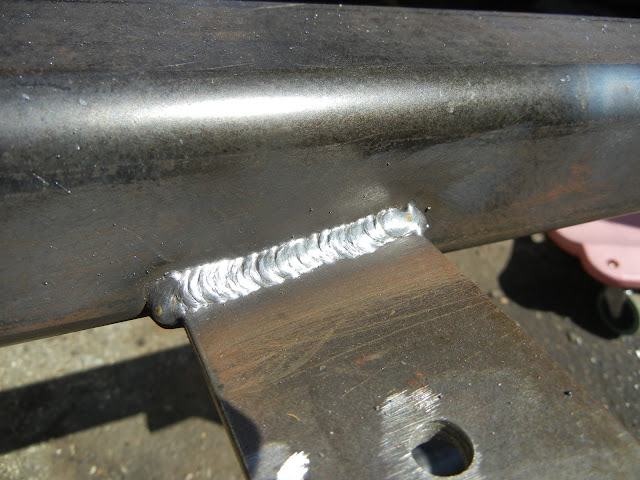

This is the second pass, 1/4" plate meeting 1/4" tube, with edge beveled on the plate

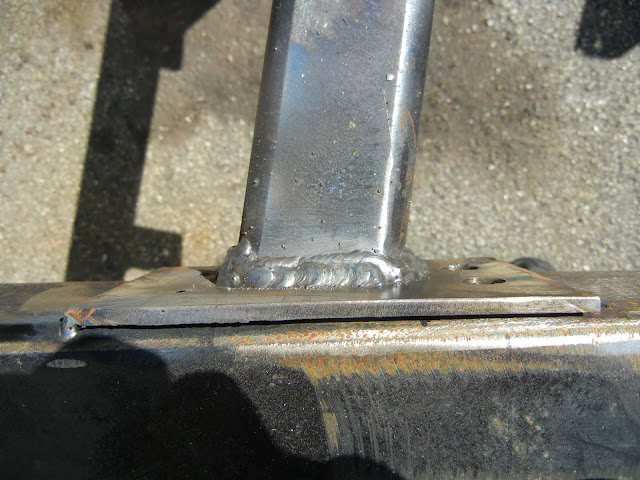

The frame tacks held, no warping, looks good!
mcneil is offline   Reply With Quote
Unread 06-14-2013, 07:57 PM   #13
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,810
you always have to give yourself a bit of extra room for the weldment when drilling the holes.
__________________
-insert meaningless out-of-place political diatribe-
fratis is offline   Reply With Quote
Unread 06-14-2013, 10:58 PM   #14
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
Quote:
Originally Posted by fratis View Post
you always have to give yourself a bit of extra room for the weldment when drilling the holes.
Yeah, there's two holes that are going to take a bit of cleanup. They're also too close to the square tube for a nut to clear, so I'll have to add a spacer to it.
mcneil is offline   Reply With Quote
Unread 06-24-2013, 04:21 PM   #15
andrewmacc
Registered User
1998 XJ Cherokee

Join Date: May 2010
Location: BC Canada
Posts: 607
One thing I would recommend is to not weave like a drunkman when trying to make a wider pass. Do a small weave if you have to, and follow something akin to a typical procedural multi-pass:

quickest pic I could find online, but from a legit site, weldingtipsandtricks.com

root pass, and two caps slightly overlapping each other (typically root, top pass, bottom pass, depending on your orientation).




Other than that, I doubt that crossmember is going anywhere.
