My Front Winch Bumper Build Thread

Finally decided to tackle a big project to put my skills to the test, along with my welding/grinding/fabricating skills.

I will be making a Front winch Bumper for my ZJ, over the next...while. I guess when ever I get time. Spring break will provide lots of opportunities, which is next week. I just ordered my Winch from www.WinchDepot.com and should recieve that next week probably monday. $299.95 shipped, however they have it listed for $284.95 shipped so I will see if I can get that price instead. For some reason it goes to 299 when you add to cart. Winch is pictured without the control box.

Smittybilt Winches - XRC8 Winch

* XRC8 Winch
* Line Pull: 8000 lbs.
* Voltage: 12V
* Motor: 4.1 hp
* Remote Control: 12 Ft. Lead
* Gear Ratio: 265:1
* Size: 21 in. x 6.22 in. x 7.28 in.
* Weight: 80 lbs.
* Wire rope: 92 Ft. of 5/16
* Fairlead Roller
* Type of Winch: Electric

"The new Smittybilt XRC-8 Winch encompassses all the best features you would want in a winch. Every XRC-8 (8000 lb) winch features a 4.1HP Permanent Magentic Motor and a Planetary Gear Sytem with 265:1 gear ratio that will deliver you power and reliability without hitting your pocket book."



Anyway, for those of you with ZJ's know there arent many options out there besides CRB (not winch version), and Kevins Offroad (Very nice, yet run about $850 shipped). And, the recently discontinued Hanson Offroad Bumper line. Since this is not a TJ, you have to find your own mounting points. I have chose the framerails. I will grind out the frame rails to acieve the flat part (will see picture).





One I finish Grinding that out I will use 3" x 2" x 1/4" Angle Mild Steel in there. 2" being width, 3 inches being height. The gap when fully cut is 5" x 2". I will then take my nuts that match up with the threads of some grade 8 bolts, and weld them to the angle steel in the correct places. This way I can tighten the bolt without screwing around with a wrench too.

The Angle Mounts will stick out probably a foot or two from the flush part of the bumper fascia, and here is where I will mount my winch. I will have a plate of steel the length of the gap, and probably about 7 inches wide, 1/4" thick. I will weld this fully to the angle iron with some angle left still. gussets and all types of supports will be put into action. For added security, I will drill 2 holes on each side, 4 total through the winch mounting plate and through the angle iron on the top, but to the left and right sides. I will put grade 8 bolts in here, with nuts on the other side. This ensures that if the welds fails for some reason the bolts should catch it. I will also weld a fair lead mount on the front face of the mounting plate. The entire mounting system will be 1/4" Steel.

From here, I have yet to decide what to do. I figure if I make the rest of the bumper with 1/4" steel it will be heavier than the Jeep itself (not really, but darn heavy) and I would rather have the stress go to the mounts when pulling, not just from every day driving. So I was thinking 1/8" for the rest of the bumper? I already have tow points in the front, so I do not need D-Ring mounts. The rest of the bumper would just be for show anyway, with some possible mounts for my Hellas.

Thanks for reading. All input appreciated greatly. I am only 16, not an engineer so dont completely cuss me out lol.

Let me know what you think
-Pat


-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.

Last edited by redhatman; 05-19-2008 at 10:28 PM.
redhatman is offline
Sponsored Links
Advertisement

post #2 of 91 Old 03-18-2008, 05:38 AM
TJ-Marine PA
Registered User
1999 TJ Wrangler

Join Date: Aug 2005
Location: Spring Mills, PA
Posts: 121
It sounds like it should work keep us posted.

99 Gun Metal Blue TJ 4.0 w/ Cooper Discover STTs, Optima Red Top, Kilby Steering and Gas Tank Skids
10 Gray WK 4X4 Hemi Stock
09 Blue Ram 1500 4x4 Hemi Stock
JarHead Jeep Club Member #8 www.bbnt4x4.org
Go Pittsburgh!!! Go Penn State!!!
TJ-Marine PA is offline
post #3 of 91 Old 03-18-2008, 05:39 AM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Quote:
Originally Posted by TJ-Marine PA View Post
I wouldn't weld the fairlead to the bumper face as they need to be replaced on occasion as the rollers wear, and cutting welds to replace a "minor" part is never fun.
I thought fairleads mounted with 2 bolts?

-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline
post #4 of 91 Old 03-18-2008, 06:35 AM
PBR
Registered User

PBR's Avatar
2000 TJ Wrangler

Join Date: Aug 2007
Location: SW Michigan
Posts: 1,120
they do mount with 2 bolts
PBR is offline
post #5 of 91 Old 03-18-2008, 02:07 PM
aircruiser
Registered User

aircruiser's Avatar
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,774
so youve actually got it ordered now?

this will be cool man

1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline
post #6 of 91 Old 03-18-2008, 02:59 PM
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
I like how you thought to open up that front crossmember. Gonna follow this thread, father-in-law is gonna want a bumper at some point.


Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #7 of 91 Old 03-18-2008, 09:09 PM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Quote:
Originally Posted by aircruiser View Post
so youve actually got it ordered now?

this will be cool man
Yup, ordered and already shipped on its way to me. It will be cool for sure!

rustywrangler, hopefully I will do a good enough writeup for people to follow. I hate writeups with no detail. I will take pics as I go.

As of now, I really cannot decide whether or not to mount the winch plate on the brackets and then the rest of the bumper separate, or to have brackets, with a bumper separate as one piece and then have the winch plate on there.

Both have advantages/disadvantages. With the winch on the mounting plate, I will trust it a ton more. However, the bumper would be harder to mount steadily onto the brackets to a point where its fairly easy to remove.

With the winchplate on the bumper itself, it would be easy to mount and such, however I would need to make the entire bumper 1/4" to prevent bending.

With the winch on brackets I would do all the mounting 1/4" and then the rest of the bumper 1/8" being it is just for show anyway.

What do you guys think? Any Ideas?

-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.

Last edited by redhatman; 05-19-2008 at 10:28 PM.
redhatman is offline
post #8 of 91 Old 03-18-2008, 09:20 PM
aircruiser
Registered User

aircruiser's Avatar
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,774
just for show? wtf pat, you know youre gonna want to ram ****!

having a steel bumper just for show kind of defeats the purpose..id say winch and bumper seperate to give a stronger, sturdier support that is more reliable...but hey, thats just me

1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline
post #9 of 91 Old 03-18-2008, 09:37 PM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Quote:
Originally Posted by aircruiser View Post
just for show? wtf pat, you know youre gonna want to ram ****!

having a steel bumper just for show kind of defeats the purpose..id say winch and bumper seperate to give a stronger, sturdier support that is more reliable...but hey, thats just me
Grant, 1/8" is plenty to ram things...especially those that roll on 4 casters and weigh around 40 lbs aimlessly in parking lots.

I am leaning towards the winch/bracket setup very much, its more of just finding a way to mount the rest of the bumper too.

By just for show, I meant that I will not be welding D-Ring mounts to it being I already have Kevins Front Tow Pointz. There will be no major force applied to it.

-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline
post #10 of 91 Old 03-18-2008, 09:41 PM
aircruiser
Registered User

aircruiser's Avatar
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,774
i guess i was thinking that you would weld on d-ring tabs...never mind then

1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline
post #11 of 91 Old 03-18-2008, 10:38 PM
USMCredneck
Registered User
1979 CJ5

Join Date: Dec 2007
Location: Clearwater, FL
Posts: 359
Quote:
Originally Posted by redhatman View Post
As of now, I really cannot decide whether or not to mount the winch plate on the brackets and then the rest of the bumper separate, or to have brackets, with a bumper separate as one piece and then have the winch plate on there.


What do you guys think? Any Ideas?

When I built the bumper on my old ranger I used 3x1.5x1/4 c-channel and just made a "subframe" type deal under the 1/8" diamond plate. Is it possible to do something like this on yours or would that be more trouble than its worth?

79 CJ5. 258, T-18A, D20. 33s
08 Dodge Ram 3500 DRW DD/tow rig
USMCredneck is offline
post #12 of 91 Old 03-18-2008, 11:04 PM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388

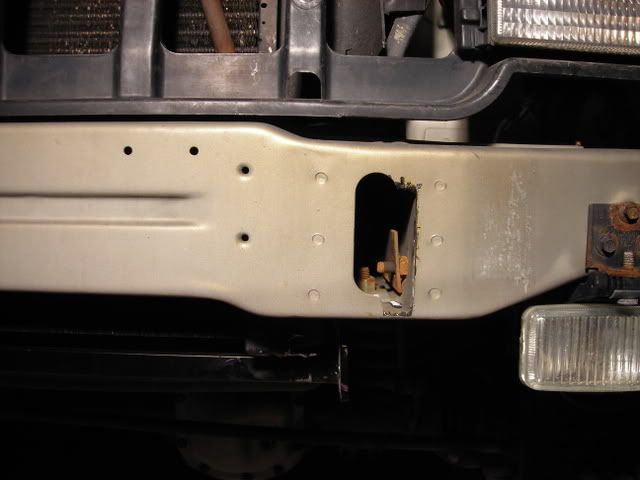

I am not sure what you mean by that USMC, Basically from this pic:



You can see that there is room in there, however those bolts that are in there do have to go back in. I know for sure the right side wall nut plate is removable, and I would assume the bottom one is aswell. These were involved in the Radiator Supports/Tow Pointz. I really would love to run some 2"x4" in there, but I do not know how to get the bolts and nuts to line up without lots of hassle.

That is why I was thinking of :



I would trim to accommodate that angle steel there. The 2 nut plates, technically pull at the same time being there is an L bracket for the radiator support hugging the rail (90 degrees) that bolts into all 4 bolts. So I should be safe in just mounting to the 2 bolts in both sides right? (Other side is identical)

Other than that, I don't know what to do.

???

-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.

Last edited by redhatman; 05-19-2008 at 10:31 PM.
redhatman is offline
post #13 of 91 Old 03-18-2008, 11:38 PM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
Well, I just thought of something a lot better. It's 12:35 AM and this bumper thing is driving me nuts, I just want to get a solid plan so I am ready to work thursday when I have the day off (ironically enough) I get a day off, and spend the whole day working on other things lol.

So basically, assuming when I take out the 4 bolts per channel both plates can be moved, I will just make something like this:



That way, there is plenty of support when pulling from all angles, and I use a total of 8 bolts in the rails alone...All Grade 8.

My steel supply does not show a 2x4 channel, only 2 x 4 x 1/4" rectangle tubes. I would do that, but how am I supposed to get the nuts inside there?

-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline
post #14 of 91 Old 03-21-2008, 01:34 AM Thread Starter
redhatman
Registered User

redhatman's Avatar
1998 ZJ

Join Date: Jul 2007
Location: Minnesota
Posts: 2,388
UPDATE:

Got to work on it tonight, I will get more steel tomorrow for the winch plate and a start on the bumper part. Mounts are done, I went with the 4 side ones which should be plenty. These are also tied to the lower 2 via the KOR Radiator Support/Tow Pointz.

Bottom Nut Plate that came factory was welded in, so I had to think of a new plan (opposed to the angle steel in the rails) Its all 1/4" Steel Plate, all Grade 8 hardware, cut to fit, nuts welded to stay in place. I will have to drill out more holes tomorrow when I get the rest of my material. Winch also comes tomorrow. Seems to be a strong mounting point, I am sandwiching the frame at every screw so it should help that way also.

At least I can stand on it and it doesnt break! LOL i hope it doesnt.

Onto the pics:








-Pat

I am now a dealer for Iron Rock Off Road
I offer the same great products you already know about,
the same low prices you have been seeing, and with
the same experienced customer support, but I can offer it nearly 24/7

"Project Dirty Princess"
5.9 ZJ 7" IRO, 35s, 8.8, hp30, locked, blah blah

"Project Grow A Set"

Quote:
Originally Posted by CMARJEEP View Post
Those tires look freakin awesome Redhat... took the ZJ up a notch in my book. Now you're at notch 2.
redhatman is offline
post #15 of 91 Old 03-21-2008, 06:06 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Are you going to weld the nuts on a little more? Those tacks might break loose leaving the nut to spin inside the frame. Looks pretty good so far. From the first few pics, I thought you were only going to use 1 bolt in the side of your plate.. but the last pic showing the 4 bolts per plate looks pretty good.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.



Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Similar Threads
Thread Thread Starter Jeep Forums Replies Last Post
Front Bumper/Winch Plate Build! (pic heavy) MO2500 Fabrication Shop 110 02-27-2013 04:59 AM
ZJ Front Bumper Build Thread jonzj Fabrication Shop 52 12-07-2010 09:30 PM
Lowered (between the rails) winch bumper design/build YJhobby Fabrication Shop 15 02-13-2010 07:02 AM
ZJ Winch Bumper build PICS ezrider327 Fabrication Shop 10 12-23-2007 07:10 AM
New rear winch bumper build dr hook Fabrication Shop 16 04-09-2007 09:55 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
