post #61 of 72 Old 12-21-2008, 11:08 PM Thread Starter
PBR
Registered User

PBR's Avatar
2000 TJ Wrangler

Join Date: Aug 2007
Location: SW Michigan
Posts: 1,120
Quote:
Originally Posted by timritchieblue View Post
i have an auto, so i have a trans mount shoe on the bottom of my mount, i was just going to remove the shoe?

i wish i knew how the auto was mounted but i dont, sorry!

PBR is offline
Sponsored Links
Advertisement

post #62 of 72 Old 12-22-2008, 01:54 PM
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,805

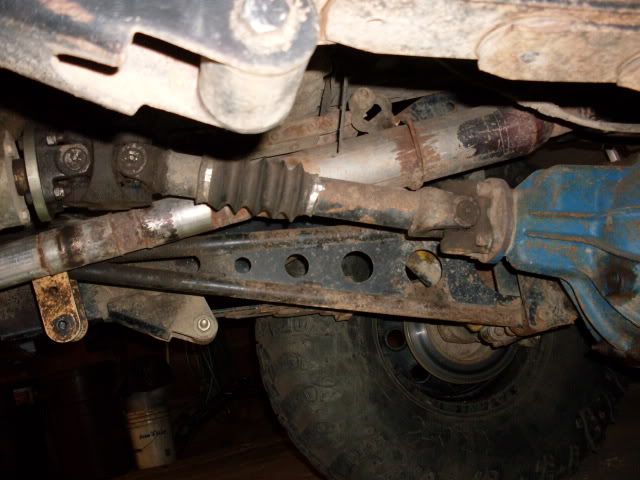

Driveshaft angle pictures as promised.
[IMG][/IMG]

[IMG][/IMG]

Things always look better with paint.

[IMG][/IMG]

I have not driven this yet. I am planning on doing the Cherokee spring stretch next so it will be a while.

93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TSEJEEPERS is offline
post #63 of 72 Old 12-22-2008, 05:44 PM
Scotch740
Registered User

Scotch740's Avatar
2005 LJ Wrangler

Join Date: Apr 2004
Location: Charlottesville VA
Posts: 2,334
Quote:
Originally Posted by timritchieblue View Post
im getting my skid cut out of 1/4 steel using scotch740s measurements, only thing im concerned about is the trans mount, can i just remove the 4 bolt plate, and bolt the mount to the skid? how much does it pull your cv driveshft out moving up the skid? mine is extended pretty far already 2.5" out?
Have you checked the measurements of the holes on you 2000? I think the skid changed at some point. I am not sure if the change affected the hole placement. My drawing was for my 05.

As for how much it extends your drive shaft. Measure the vertical distance from your axle yoke to your tc yoke ("b" in the pic below). Then measure your horizontal distance of the two ("a" in the pic). Then use the Pythagorean theorem to give you your current drive shaft length.


To find your new length add how much you are raising your mount to the vertical distance "b" then solve for "c".

Last edited by Scotch740; 12-22-2008 at 08:10 PM.
Scotch740 is offline

post #64 of 72 Old 12-22-2008, 05:46 PM
Scotch740
Registered User

Scotch740's Avatar
2005 LJ Wrangler

Join Date: Apr 2004
Location: Charlottesville VA
Posts: 2,334
TSEJEEPERS,
What size piece did you use to drop the skid down? I have a tc drop kit from a YJ but the tube wall is just 1/8". Anyone think that is too thin?
Scotch740 is offline
post #65 of 72 Old 12-22-2008, 06:08 PM
timritchieblue
Registered User
2000 TJ Wrangler

Join Date: Oct 2008
Location: on a boat
Posts: 725
does anyone know if the mounting holes are diff before/after 03?

FOR SALE:SOLD

2000 TJ 2.5" CLAYTON L.A. W/HYDROS, SYE/XJ SHAFT, 4:10 GEARS, 8.8 MINI SPOOLED, LOC-RIGHT FRONT, 1" BODY LIFT, 1" MML, 35" MAXXIS BIGHORNS, RE GEN 2DISCOs, BELLY UP, ALCOS IN FRONT, WARN X8000I
timritchieblue is offline
post #66 of 72 Old 12-22-2008, 07:20 PM
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,805
I used 1" x 2". Not sure what the thickness was for sure. 1/8" would work but remember mine does not hold anything but the skid up. The transmission is held up with a separate cross member.

93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TSEJEEPERS is offline
post #67 of 72 Old 12-22-2008, 09:20 PM Thread Starter
PBR
Registered User

PBR's Avatar
2000 TJ Wrangler

Join Date: Aug 2007
Location: SW Michigan
Posts: 1,120
nice man! the angle at the double cardin looks good! Mines was just insane with out the MML. I guess if you did it I shouldnt have a problem once i get a MML.
PBR is offline
post #68 of 72 Old 12-23-2008, 11:07 AM
MattGATRTJ
Registered User
1999 TJ Wrangler

Join Date: Jan 2008
Location: Braselton
Posts: 476
Looking good. This is of course on my todo list.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
MattGATRTJ is offline
post #69 of 72 Old 12-23-2008, 07:28 PM
TSEJEEPERS
Registered User
1993 YJ Wrangler

Join Date: Dec 2003
Location: Morton IL
Posts: 5,805
My full write up is on our clubs website. Oh and thanks for the complements! I will have to wait and see how it holds up.
http://www.mijc.org/phpBB3/viewtopic.php?f=6&t=1776

93 YJ SOA 2" springs front, XJ springs rear w/main leaf added, High pinon 9 inch rear detroit locker front Dana 44 ARB 4.56 Gears, 36 inch Irok tires too much to list.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TSEJEEPERS is offline
post #70 of 72 Old 01-27-2009, 10:26 PM
CSCmrwizard
Registered User
1982 CJ5

Join Date: Jan 2009
Location: Bokoshe
Posts: 261
i think an motor lift like 1 in. that would lower you tailshift

Jeeps dont FLOAT!!!!!!
------------------------------------------------------
93 YJ
82 CJ5
CSCmrwizard is offline
post #71 of 72 Old 02-06-2009, 02:21 PM
472cid
Registered User
1997 TJ Wrangler

Join Date: Jul 2008
Location: ohio
Posts: 1,332
i may use this i have a belly up skid but i think i like this design better and far as 03 newer i know the bolts changed that hold it up but not sure about the skids but the catalogs list different tcase lower kits and skids for 03 newer versus 02 and older

1997 Jeep Wrangler 5.0 ho gt40p motor w/ e303 cam, ax15 trans. 241j rock trac transfer case from 05 rubicon. 05 front rubicon 44 with yukon chromoly shafts and rear rubicon dana 44 and rubicon rims with 33x11.50x16 mtrs
472cid is offline
post #72 of 72 Old 10-09-2009, 02:05 PM
Boodyrider
Registered User
1997 TJ Wrangler

Join Date: Feb 2008
Location: Maryland
Posts: 2,526
Quote:
Originally Posted by timritchieblue View Post
does anyone know if the mounting holes are diff before/after 03?
YES. The location of the mounting holes in the frame is different between the 97-02 and the 03+ TJ.

This means Scotch 740s dimensions DO NOT work for 97-02!!!

97 TJ Sport - 4.0/HP D30 w ARB/8.8 w LS/4.88s; 35s and flat fenders on 2.5 lift

84 CJ7; frame off restoration in progress.

The technical advice you get from me here is worth exactly what you paid me for it. Warranty issues will be reimbursed at double what you paid me for the advice.
Boodyrider is offline
