My first fab work on my TJ

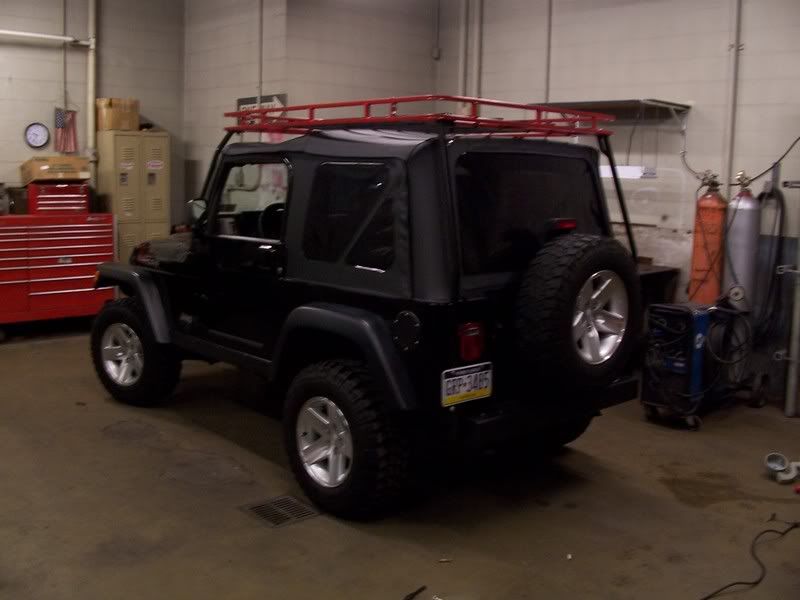

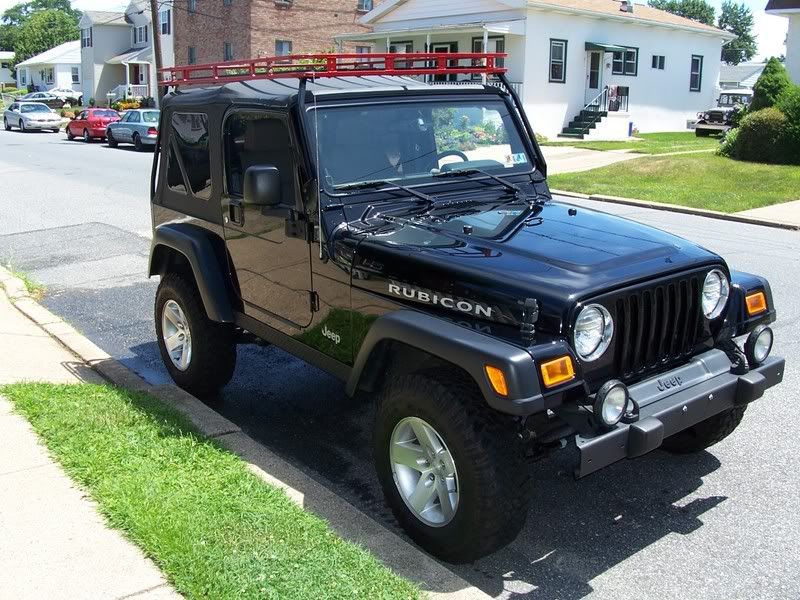

I bought a wilderness roof rack for a good price from the sale section here. It needed paint and a good cleaning. I had no instructions, so I searched the web and found a site where a guy did an install and showed the original instructions. Then I realized the instructions said I had to drill 6 holes in the body. I really didn't want to do that, so I made this. Pretty simple, just figured I'd share... In the future when I build my rear bumper I'll make a bolt on receiver, which will end up looking a lot better.
