my Bumper build up (XJ)

ok well i thought i would post up a build up of the bumper that im making.

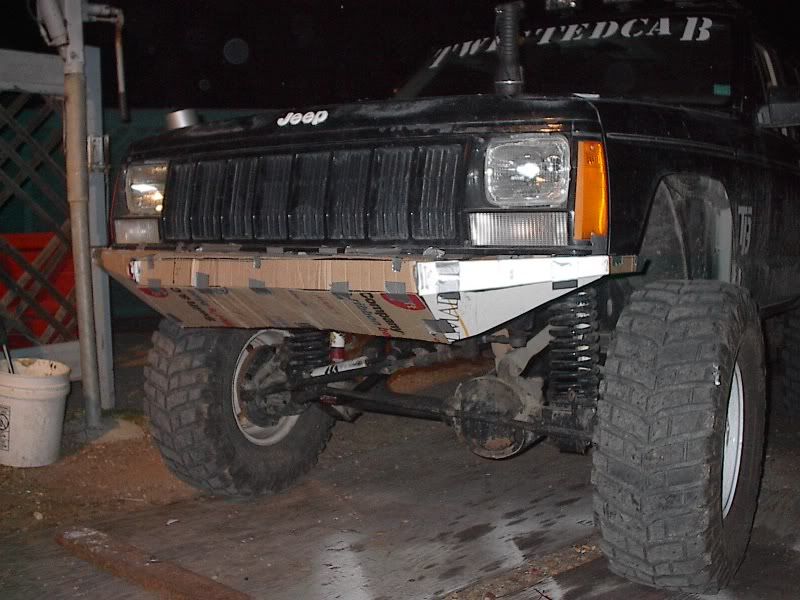

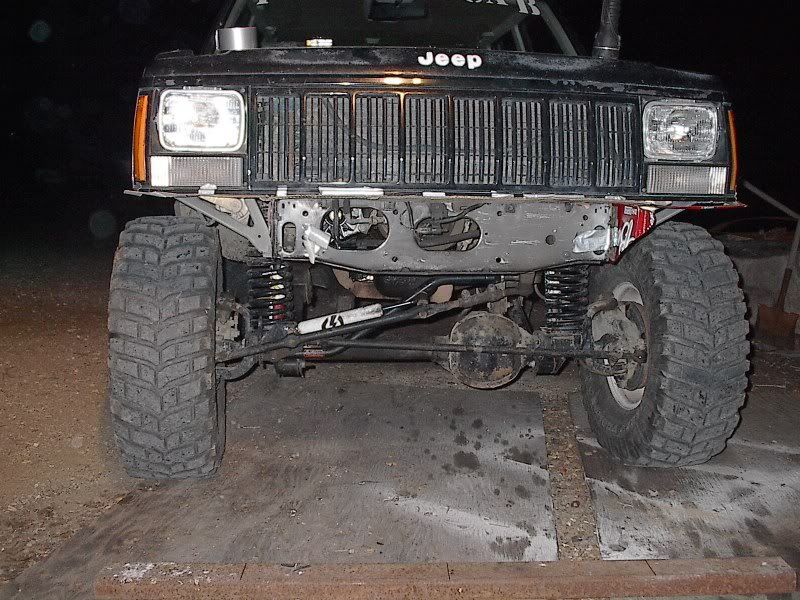

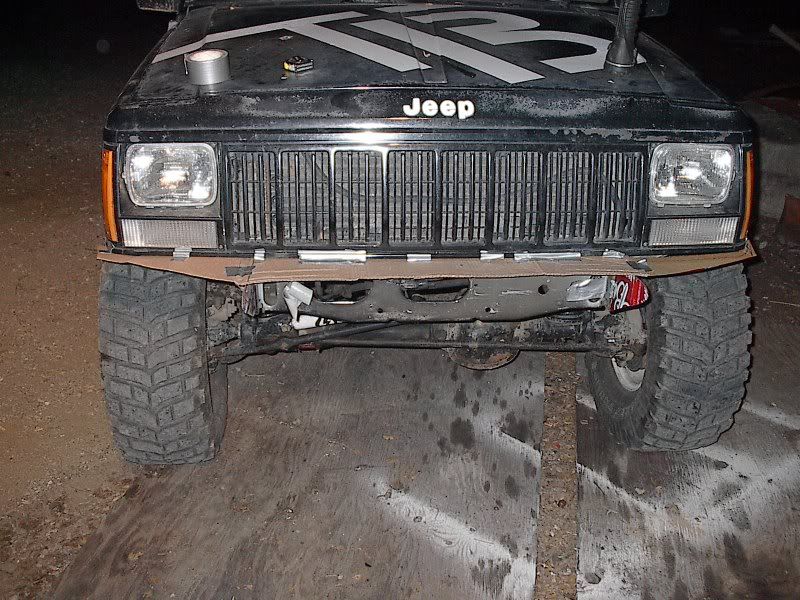

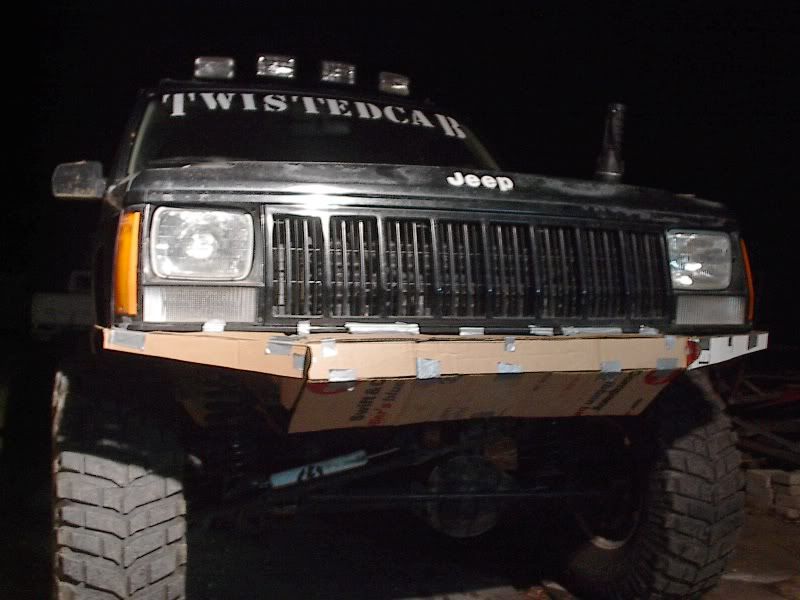

well today i mocked up the whole bumper with cardboard which was the biggest PITA haha.the only thing i think im gona change is to have the bottom not so bulky looking but...anyways heres some pics of what i got done today:






__________________
TwistedcaB industries
1991 XJ. 8" lift, 35" BFG KM2's. the new project
1990 XJ. 6.5 lift, 33" BFG ATKO's. SOLD : (
TwistedcaB- is offline   Reply With Quote
Unread 11-23-2008, 07:36 PM   #2
njbowhntr
Registered User
2005 TJ Wrangler

Join Date: Apr 2006
Location: Oxford, NJ
Posts: 431
I am liking the design.
__________________
Ron
US Navy 1993-'97
njbowhntr is offline   Reply With Quote
Unread 11-23-2008, 10:10 PM   #3
TwistedcaB-
Registered User
1991 XJ Cherokee

Join Date: Mar 2008
Location: California, S.L.O.
Posts: 1,769
thanks man. and the real on is gona be less bulky than this one. the cardboard is kinda sagin on the bottom haha
__________________
TwistedcaB industries
1991 XJ. 8" lift, 35" BFG KM2's. the new project
1990 XJ. 6.5 lift, 33" BFG ATKO's. SOLD : (
TwistedcaB- is offline   Reply With Quote
Unread 11-24-2008, 08:51 AM   #4
242much
Registered User
2009 JK Wrangler

Join Date: Aug 2007
Location: Uncle Sam's Cabin
Posts: 1,176
looks good. just build it to withstand a hit from a deer or something. oh, tie it back into the unibody too, in case you actually hit something.
__________________
"The stoke was palpable..."

good grief, just buy the Rubicon.
242much is offline   Reply With Quote
Unread 11-24-2008, 07:56 PM   #5
KarenCaren
Registered User

Join Date: Nov 2008
Location: Beltsville, MD
Posts: 96
Nice. what kind of metal you used? How thick is it?
KarenCaren is offline   Reply With Quote
Unread 11-24-2008, 08:40 PM   #6
TwistedcaB-
Registered User
1991 XJ Cherokee

Join Date: Mar 2008
Location: California, S.L.O.
Posts: 1,769

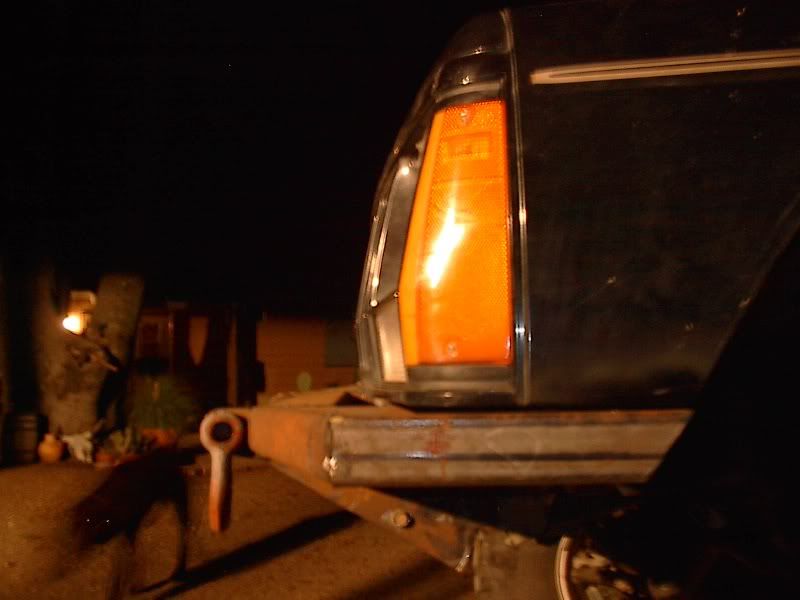

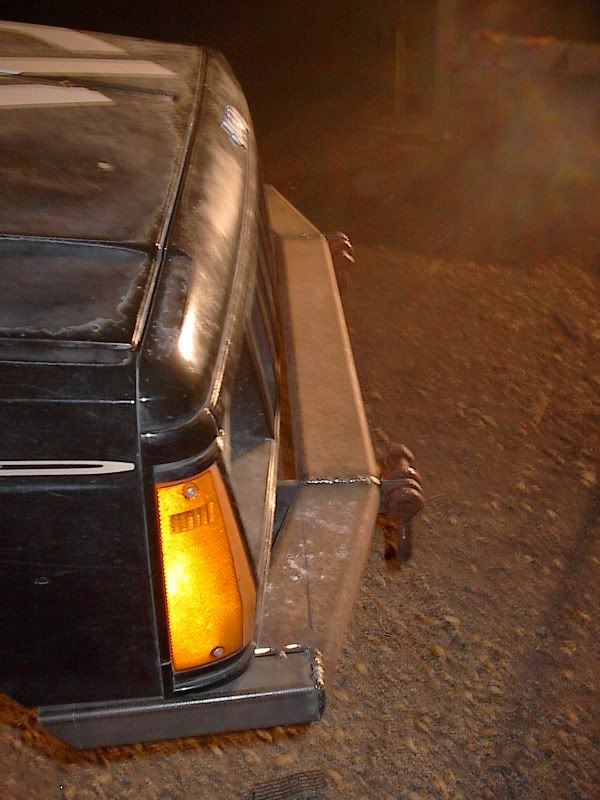

im using mostly 1/4 and some 3/16. heres some pics from what i got done today before i ran out of wire




__________________
TwistedcaB industries
1991 XJ. 8" lift, 35" BFG KM2's. the new project
1990 XJ. 6.5 lift, 33" BFG ATKO's. SOLD : (

Last edited by TwistedcaB-; 11-24-2008 at 08:56 PM..
TwistedcaB- is offline   Reply With Quote
Unread 11-25-2008, 09:14 AM   #7
BRad704
Nothing to see here...

BRad704's Avatar
1996 XJ Cherokee

Join Date: Apr 2005
Location: Somerville, TN
Posts: 1,615
I'm lovin the design of your original... I'd like to see how this comes out...

And I hope you have bigger plans for those clevis mounts, cause a single 3/8" layer isnt gonna be very strong...
BRad704 is offline   Reply With Quote
Unread 11-25-2008, 11:10 AM   #8
TwistedcaB-
Registered User
1991 XJ Cherokee

Join Date: Mar 2008
Location: California, S.L.O.
Posts: 1,769
haha yea its gona be 3/4 " when im done. i just have that peice to tie it into the " frame "
__________________
TwistedcaB industries
1991 XJ. 8" lift, 35" BFG KM2's. the new project
1990 XJ. 6.5 lift, 33" BFG ATKO's. SOLD : (
TwistedcaB- is offline   Reply With Quote
Unread 12-01-2008, 11:37 PM   #9
TwistedcaB-
Registered User
1991 XJ Cherokee

Join Date: Mar 2008
Location: California, S.L.O.
Posts: 1,769

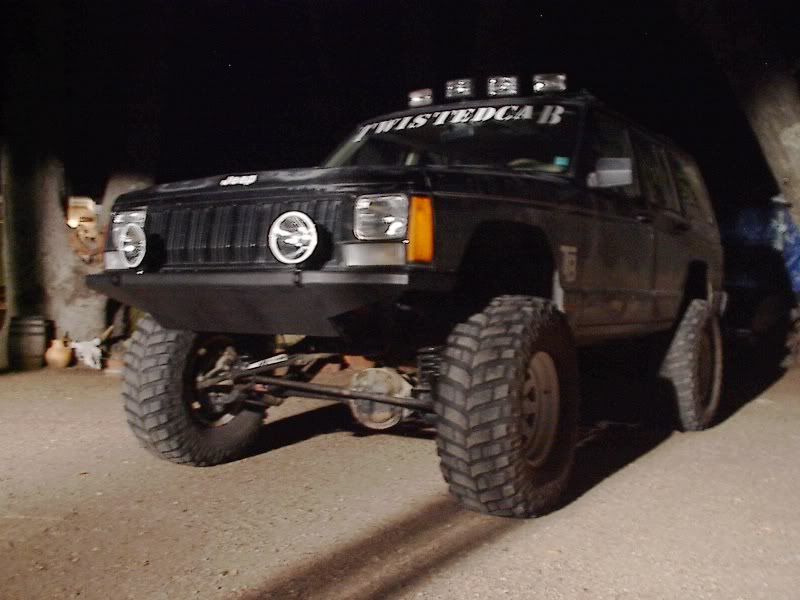

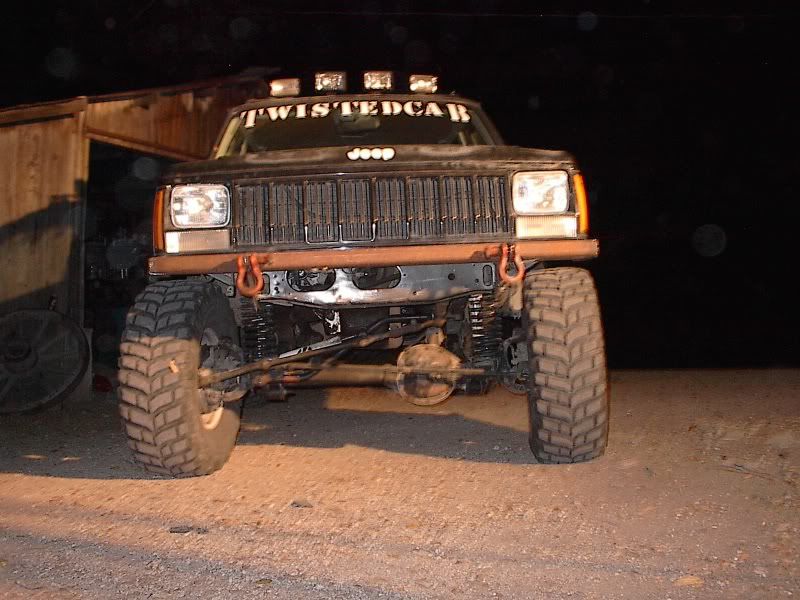

well i got a lot of smoothing done just doin a little at a time now cause i have to finish a tire carrier for someone and that comes first. but i got some light mounts on it and some paint still have a lot to do ( prerunner bars, beef up d-ring mounts, and cap of ends ) :


__________________
TwistedcaB industries
1991 XJ. 8" lift, 35" BFG KM2's. the new project
1990 XJ. 6.5 lift, 33" BFG ATKO's. SOLD : (
TwistedcaB- is offline   Reply With Quote
Unread 12-02-2008, 09:57 PM   #10
TacoMalo
Registered User
