Mike's Custom Rear Bumper Build

Okay, so I couldn't decide what style rear bumper I wanted, so I got to thinking, got to drawing, and finally came up with a basic idea of what I wanted. Thanks to Trevor at Fortin Ironworks (Grandview, OH) for taking my idea and turning it into a real cut plan. He cut the 2 inch box iron for me, I spent today putting it all together (keep in mind this is my first time ever welding).

Okay so here is the iron sitting on the floor, pre-weld...there were some substantial gaps, I spent awhile getting everything exactly as I wanted it to keep the filling of gaps to a minimum



A few of the gaps, managed to keep them to less than 1/4"





Welding (all mig)



Figured this was a good idea for traction as a step, and a solid surface to weld the reese style hitch to the bottom.

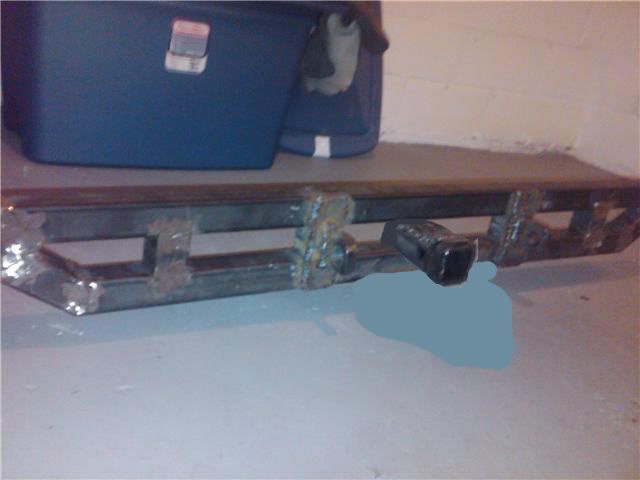

Almost finished product, have to finsih with cleanup, some grinding left, primer, spray on bedliner. I am looking for any advice as to how to mount this to my jeep, I had an idea, but couldn't make it happen...I felt that my method would not have been as sturdy as I would like....please any suggestions are welcome!





Let me know what you think...Trevor gave me a great idea for a double swingaway...will probably end up doing a typical swingaway. HOW DO I MOUNT THIS TO MY REAR BUMPER????

Mol is offline   Reply With Quote Quick reply to this message
Unread 08-13-2009, 07:55 PM   #2
Snowplow
Registered User
2003 TJ Wrangler

Join Date: Dec 2006
Location: , Florida
Posts: 358
Your reciever Hitch, what do you plan on using it for? I really hope not recovery, even with strong welds it will brake loose ( Trust me i have done it, i have made it broke it and made it agin ).
Snowplow is offline   Reply With Quote Quick reply to this message
Unread 08-13-2009, 11:59 PM   #3
prd_cdn
Web Wheeler

Join Date: Apr 2004
Location: !!
Posts: 1,048
you could take some plate 3/16 th or 1/4 inch~4x8 works, drill some 1/2 holes in them using the existing holes on each end of the cross member.

take some tubing and sandwich (mmm sandwich) it between the bumper and plate above.

heres one idea http://www.4x4xplor.com/LoD-Xtreme.html



its a web site you needed to access to see the pics

Last edited by prd_cdn; 08-14-2009 at 09:49 AM..
prd_cdn is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 01:04 AM   #4
reverie02tj
Registered User
2002 TJ Wrangler

Join Date: Oct 2007
Location: MA
Posts: 45
looks cool.
scroll down to TJ rear bumper mounting brackets. $20 can't beat it.
I've got their D-ring shackle tabs and am very happy with them. Just make sure to change the shipping to USPS and not UPS. HUGE price difference.
reverie02tj is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 07:33 AM   #5
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,643
Quote:
Originally Posted by Snowplow View Post
Your reciever Hitch, what do you plan on using it for? I really hope not recovery, even with strong welds it will brake loose ( Trust me i have done it, i have made it broke it and made it agin ).
Was planning on mounting a winch that can be moved from the front to the rear via reese hitch...you think this is a bad idea?
Mol is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 07:38 AM   #6
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,643
Quote:
Originally Posted by prd_cdn View Post
you could take some plate 3/16 th or 1/4 inch~4x8 works, drill some 1/2 holes in them using the existing holes on each end of the cross member.

take some tubing and sandwich (mmm sandwich) it between the bumper and plate above.

heres one idea http://www.4x4xplor.com/LoD-Xtreme.html
mounts to the cross member and sandwich the bumper top and bottom? Having trouble seeing the pics
Mol is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 09:31 AM   #7
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 3,003
How's that receiver tube welded on? & what size plate is on top of it? Got any more pics?
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 09:44 AM   #8
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,643
It is just welded around the edge currently, I am going to weld on a few L brackets for extra support. The plate is 3/16th I believe. I'll take some more pics later (at work till 6) with a better quality camera...the ones above are all from my BlackBerry Storm
Mol is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 10:04 AM   #9
prd_cdn
Web Wheeler

Join Date: Apr 2004
Location: !!
Posts: 1,048
and no, not a bad idea making your winch move able front to rear.

Some things to consider ... the pulling stress on the receiver can or could warp the tube especially at the holes, any twisting will put the hole line up out of whack.

wiring.. do you want those hot wires running front and rear full time? maybe a cut off switch like this and how do you keep the connections from falling the dirt??

receiver pin needs to be mounted in a direction that gonna need to make it easy when trying to hold the 80 lbs plus winch.

I am incorporating the same thing in my bumper and those are just some things I've come across in my build.

Also here a close up of mine, its only tacked in as I am in need of a welder, you can see how I am mounting my bumper.

Last edited by prd_cdn; 08-14-2009 at 10:19 AM..
prd_cdn is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 10:14 AM   #10
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,643
I need to find a way to better secure the receiver...I think it doesnt really look finished the way I have it either...

My idea for the wiring was something similar to what tow trucks use, a big femal connector mounted on the front bumper and one on the rear that is run directly from the battery...tow trucks plug their jumper cables into these for power, so clamps are only on the one end....I haven't figured the specifics out yet, but that was my basic idea, all I have to do is unplug the winch from the female outlet on the front, swap to the rear plug in there...make sense?

Like this:

Mol is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 01:03 PM   #11
Snowplow
Registered User
2003 TJ Wrangler

Join Date: Dec 2006
Location: , Florida
Posts: 358
Quote:
Originally Posted by molshove View Post
Was planning on mounting a winch that can be moved from the front to the rear via reese hitch...you think this is a bad idea?
If you do some more supports on the reese hitch you should be good.

Key points, Recovery is not just a stright pull, it's every direction so your braces have to support in every direction, But you got a good plan.
Snowplow is offline   Reply With Quote Quick reply to this message
Unread 08-14-2009, 09:05 PM   #12
Bigboyky
Registered User
1995 YJ Wrangler

Join Date: Feb 2008
Location: Northern Kentucky
Posts: 1,075
I'm thinking that receiver will be a reason you use the winch. Why not move it up and back into your bumper? hanging down and sticking out will be a hang up point while off road.
__________________
1995 4.0l, 5spd., 4:88's, ARB's F/R, 4"RC lift, homebrew bumpers & tire carrier, homebrew gas tank skid, lined inside, Cobra cb, smitty winch, 130w & 55w Hella lights



Envy our past, Fear our future Go Cats!


Take a look at our club
www.torcoffroad.com & here on JF
http://www.jeepforum.com/forum/f163/brand-new-ky-offroad-club-678937/
Bigboyky is offline   Reply With Quote Quick reply to this message
Unread 08-15-2009, 09:58 AM   #13
Mol
Disclaimer: I'm Polish

Mol's Avatar
2008 JK Wrangler

Join Date: Mar 2009
Location: Columbus, OH
Posts: 7,643
Quote:
Originally Posted by Bigboyky View Post
I'm thinking that receiver will be a reason you use the winch. Why not move it up and back into your bumper? hanging down and sticking out will be a hang up point while off road.
That is a good point...thanks for the input, a lot of trial and error here. I'll get some more pics posted as I get closer to the finished product, you guys have given me some great ideas, thanks! Anything else you might suggest is always appreciated!

Mike
Mol is offline   Reply With Quote Quick reply to this message
Unread 08-15-2009, 10:03 PM   #14
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,616
If you are going to use it for the winch, as said above, put it like this (excuse the bad photoshop):
__________________

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline   Reply With Quote Quick reply to this message
Unread 08-15-2009, 10:15 PM   #15
little_Jeep
Registered User
1998 TJ Wrangler

Join Date: Nov 2006
Location: Louisville, KY
Posts: 5,947
Quote:
Originally Posted by rustywrangler View Post
If you are going to use it for the winch, as said above, put it like this (excuse the bad photoshop):
I would put a piece of tube on the left and right side of the reciever, then weld everything front & rear. If no one has said it, add frame tie in brackets. Either make them, or go to Gen Right and purchase them. Basic idea is if you are going to use this bumper for recovery, you need to be able to lift the Jeep totally off the ground using nothing but this bumper as an attachment point.
