post #16 of 47 Old 06-10-2012, 09:18 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402
The first design would essentially look like the Rokmen setup, and you wouldn't see the bracing from behind.
I do think the second design would still look pretty good. I'm going to run it by the guys and see what they think as far as what will be better to get the stronger results.

TXST8tj is offline
Sponsored Links
Advertisement

post #17 of 47 Old 06-11-2012, 03:12 PM
JPH1486
Registered User
2001 TJ Wrangler

Join Date: Dec 2010
Location: spring
Posts: 58
what are your plans for the sway bar? or are you running a currie?
JPH1486 is offline
post #18 of 47 Old 06-12-2012, 12:09 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402
I am not running an Antirock yet, but do plan to in the future. Currently, my plan is to continue using the stock swaybar with the quick disconnect I have. Either way, I plan to use the swaybar mounting holes as an additional bolt-up point. I figure it can't hurt to tie it in back there anyway....even if I didn't run the stock swaybar. Rokmen uses the rearmost swaybar hole with their setup. The grille hoop gets in the way of the forward hole. I won't have a grill hoop for a while, so I might as well use the bolt point.
TXST8tj is offline
post #19 of 47 Old 06-13-2012, 11:05 AM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402

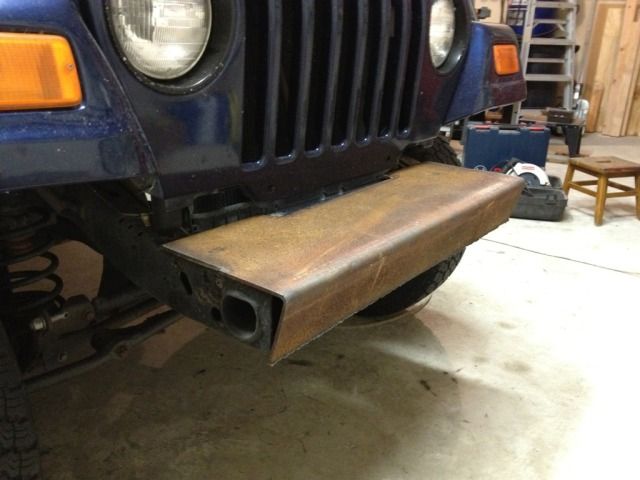

We notched the top center part of the bumper to wrap around the grille a bit and then cut the long lower lip off the front. My job now is to line up the shackles so they can be welded in (going with design #2 from the previous page), and then the bottom piece of the bumper will get welded on. We left it off yesterday because with it off, they will have more room to get the backside of the shackles welded in place.


TXST8tj is offline
post #20 of 47 Old 06-18-2012, 06:38 PM
JPH1486
Registered User
2001 TJ Wrangler

Join Date: Dec 2010
Location: spring
Posts: 58
What angle did you bend that at?
JPH1486 is offline
post #21 of 47 Old 06-19-2012, 08:50 AM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402
haha...I couldn't tell you.
The press die only goes to 90*, but the initial bend actually went a little more than that. It wasn't enough and after trying a couple different dies, they just heated it up and bent it some more like that.

I could get a measurement though.

I started working on fitting the shackles. I got one hole cut, but have not started on the second.
TXST8tj is offline
post #22 of 47 Old 06-19-2012, 02:37 PM
JPH1486
Registered User
2001 TJ Wrangler

Join Date: Dec 2010
Location: spring
Posts: 58
Quote:
Originally Posted by TXST8tj View Post
haha...I couldn't tell you.
The press die only goes to 90*, but the initial bend actually went a little more than that. It wasn't enough and after trying a couple different dies, they just heated it up and bent it some more like that.

I could get a measurement though.

I started working on fitting the shackles. I got one hole cut, but have not started on the second.
i have the same problem, my bender will only do a 90. so i was thinking about bending the bottom and welding the top plate on.
JPH1486 is offline
post #23 of 47 Old 06-19-2012, 03:10 PM
04WJny
Registered User
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island
Posts: 614
Haha seems like everyone has that problem. My bender only goes up to 90 . Like JPH1486 i also plan on welding the top on too once everything fits. I was thinking of using a straight piece of steel as a guide at the bending point and carefully cut half the depth so you can bend it by hand then fill it in with some filler and weld the back up too (thats only an idea i have, not too sure if it works well or not) You want to make sure you cut it on the outside of the bend so that as you bend it it begins to open up

2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline
post #24 of 47 Old 06-20-2012, 08:54 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402
I figured since the top bend is what will be seen the most, I wanted the absolute clean lines of the bend. The bottom part really won't be seen, so I thought it would be better to weld the bottom piece to that.
TXST8tj is offline
post #25 of 47 Old 07-16-2012, 09:55 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402

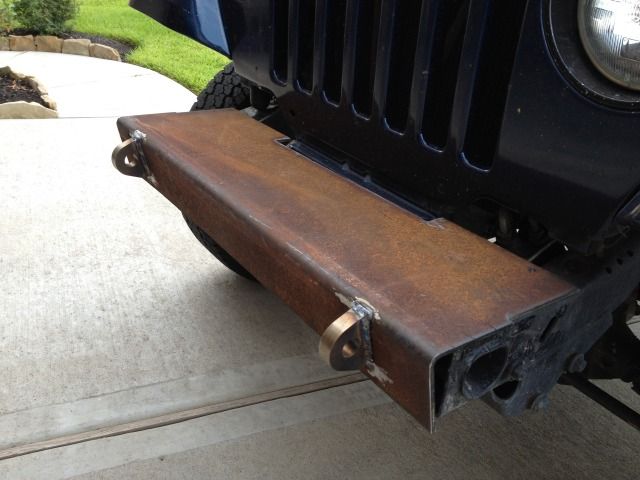

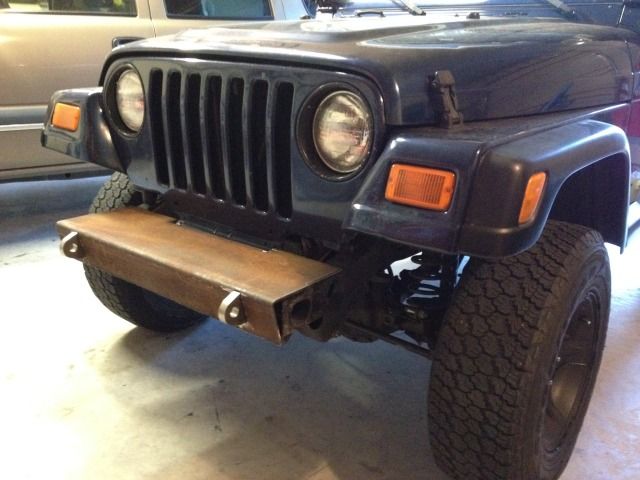

I fit the shackles in place this evening. I think I'm going to like the way it looks. The shackles fit right up under the top side of the plate making a large weld surface. I will snap a picture of that tomorrow.
I threw it in the back of the Tahoe to bring up to work to have my bud weld them up.




TXST8tj is offline
post #26 of 47 Old 07-17-2012, 03:32 PM
JPH1486
Registered User
2001 TJ Wrangler

Join Date: Dec 2010
Location: spring
Posts: 58
looking good!
JPH1486 is offline
post #27 of 47 Old 07-18-2012, 10:42 AM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402

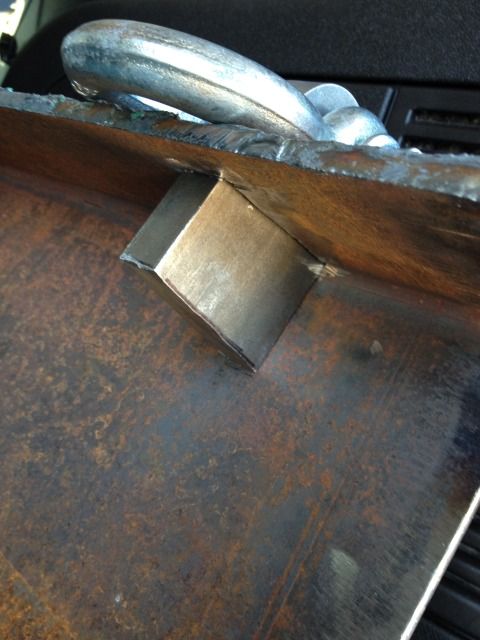

This pic shows the contact points of the shackles from the underside/backside. I attached the d-ring to aid as a reference point.

A typical shackle that is welded front and back of a bumper has 8 total weld passes (4 front, 4 back). The way this is setup with the shackle fitting right under the top part of the bumper, it allows an additional two surface/contact points for welds to be made, for a total of 10 total weld passes front and rear.


TXST8tj is offline
post #28 of 47 Old 07-26-2012, 08:39 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402

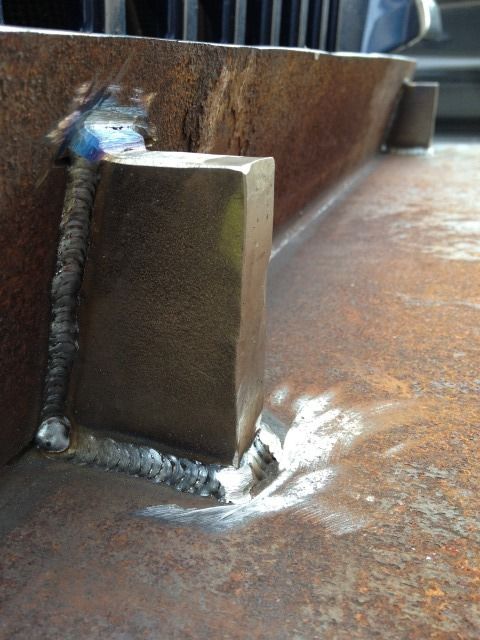

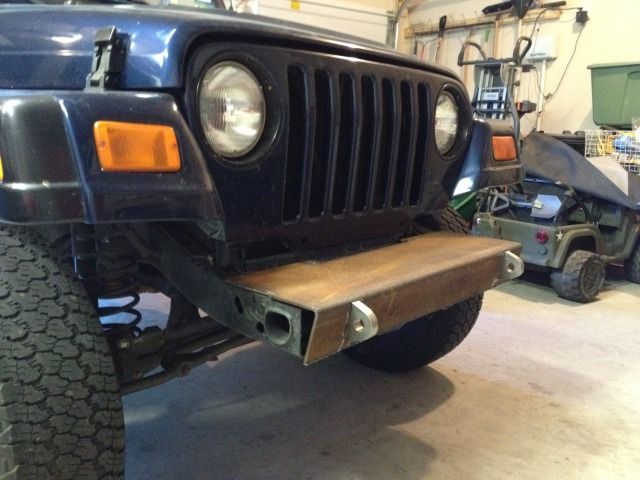

Shackles are welded up! I drilled the top mounting holes this evening (not shown).

I will be mocking up the bottom and sides this weekend so those pieces can be welded.

I am working with someone to custom laser cut a fairlead mount for me. I could go with some basic tabs, but I kinda wanted something "trick" for that since the rest of the bumper is fairly plain.

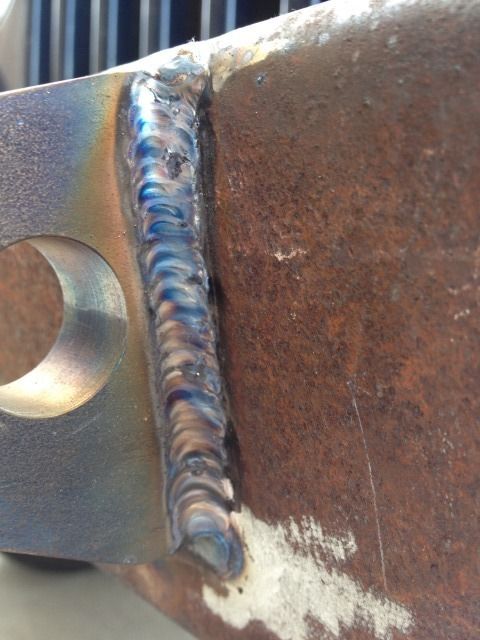

I'm not a welder, but it looks like he did a good job.







TXST8tj is offline
post #29 of 47 Old 08-03-2012, 07:32 AM
KP_1000orTJ
Registered User
1999 TJ Wrangler

Join Date: Apr 2012
Location: Grand Rapids
Posts: 168
Quote:
Originally Posted by TXST8tj View Post

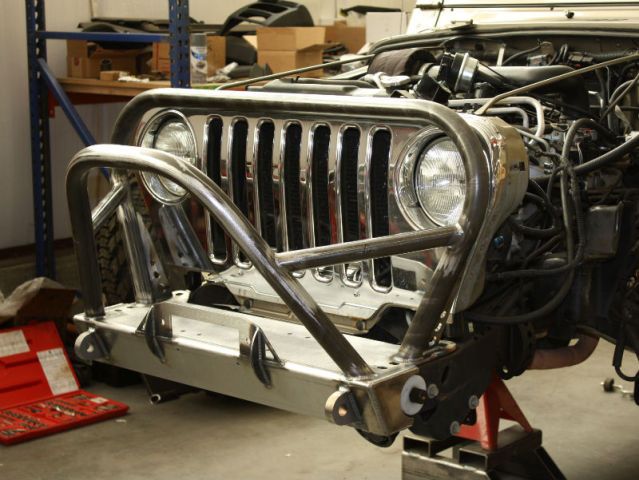

My Rokmen inspiration:

Is it just me or does it seem like a bad idea to connect the stinger to the grill hoop? I just feel like if something connects pretty solidly with the front it could force the hoop into the grill.
KP_1000orTJ is offline
post #30 of 47 Old 08-03-2012, 01:56 PM Thread Starter
TXST8tj
Registered User

TXST8tj's Avatar
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,402
Tying the stinger into the hoop adds rididity to the stinger. Without that, the stinger would flop back and serve even less function than it may or may not already (depends on who you talk to).
The grille hoop in that picture is braced by a large gusset on the backside of the hoop. That will do a pretty decent job of keeping the hoop vertical.
TXST8tj is offline
