latch for swing out

I need some ideas for a latch on tire swing out.Something that is tried and true,with no rattles.

damian H is offline
Sponsored Links
Advertisement

post #2 of 5 Old 10-16-2009, 08:18 AM
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland
Posts: 1,700
Here's how I did mine. Sorry for the crappy cell pics, I'm at work.

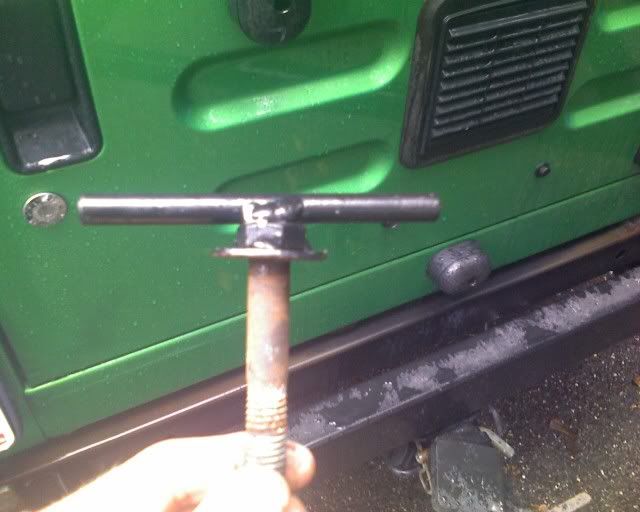

Welded a washer and rod to a bolt

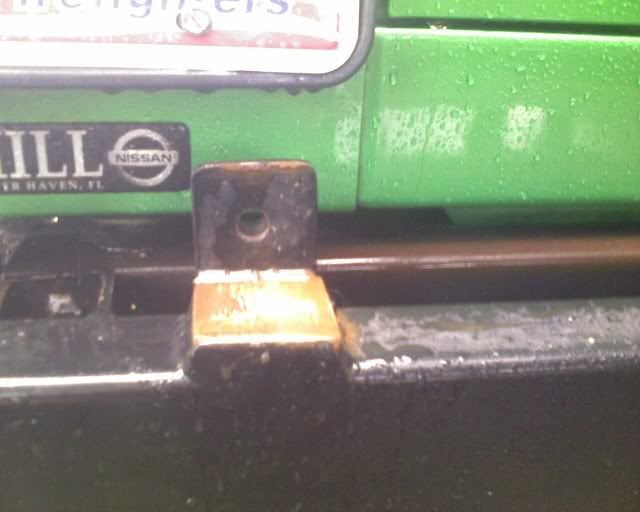

Welded a nut to the backside of the tab

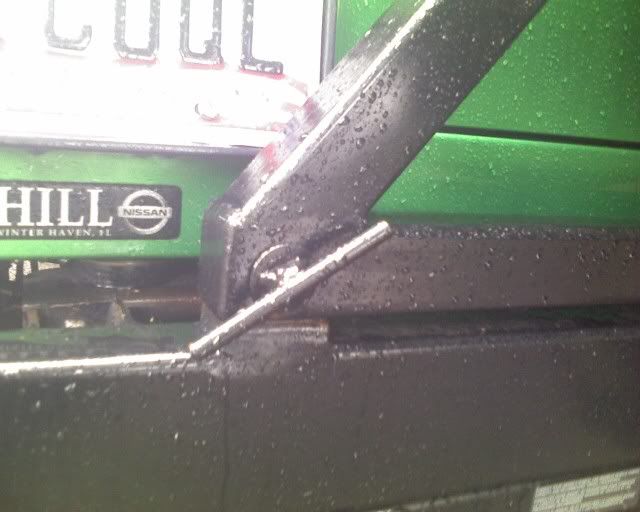

No rattles and stays tight



'13 10th Anniversary Unlimited Rubi

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
...now parting out
jkl is offline
post #3 of 5 Old 10-16-2009, 10:10 AM
timatoe
Web Wheeler

timatoe's Avatar
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 16,020
Have you read through this thread???? http://www.jeepforum.com/forum/f37/r...-along-101332/ Tons of great info in there.

This is the one I got.... DE STA CO 341-R Pull Action Clamp with Threaded U-Bolt - SmallParts.com

The one above is also a proven method, it's quite similar to the ones A to Z fab uses.

Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline

post #5 of 5 Old 10-17-2009, 03:49 PM
ej's tj
Member

ej's tj's Avatar
2005 LJ Wrangler

Join Date: Jan 2005
Location: Fairfax County, Virginia
Posts: 167
no rattles until I backed into a tree

take a look in my gallery, I built my carrier so it would open with the tailgate. I used two links with heim joints to a simple bracket bolted on the tailgate where the stock carrier used to be. it works very well, I had no rattles until I backed into a tree pretty hard and tweaked the tail gate a little. The rattle is almost not even noticeable. I think I need to just flex the tail gate back straight and life will be quiet again....... All in all I am very happy with the design, it easily supports my tire and my 200 pounds with no problems.... what I like best is that there is not another latch that has to be opened just to get into the back of my Jeep......
