post #16 of 24 Old 10-08-2009, 04:42 PM Thread Starter
Chester405
Registered User
2000 TJ Wrangler

Join Date: May 2008
Location: Asheville, NC
Posts: 862

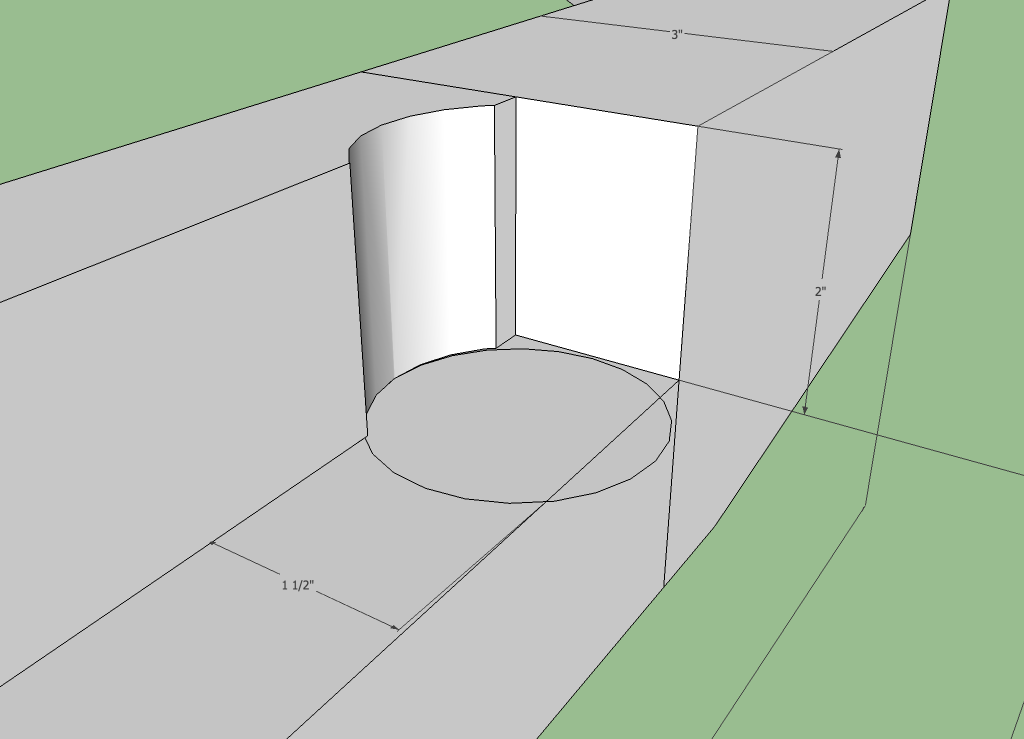

so something like this

sorry for the roughness...doing multiple things at once.

Chester405 is offline
Sponsored Links
Advertisement

post #17 of 24 Old 10-08-2009, 05:42 PM
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Yes, just like that. My only concern now would be, how far can that actually open.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #18 of 24 Old 10-08-2009, 05:47 PM
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Maybe make a angle cut away just to the right of the spindle so the swing out could come around another 45 or so degrees.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline

post #19 of 24 Old 10-08-2009, 06:40 PM Thread Starter
Chester405
Registered User
2000 TJ Wrangler

Join Date: May 2008
Location: Asheville, NC
Posts: 862
yeah...this is starting to become more and more complicated hahaha.
Chester405 is offline
post #20 of 24 Old 10-08-2009, 07:00 PM
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,165
It usually does....
wushaw is offline
post #21 of 24 Old 10-08-2009, 07:04 PM
johnny9
Registered User
2012 JK Wrangler

Join Date: May 2009
Location: ocala,fla
Posts: 1,986
i just ordered my builders spindle kit today fro a to z fab..rusty wrangler is right about the angle also for it to open properlly..

my spindle kit was just under 100 bucks shipped..its worth it to get that part right(unless you have a old zero turn mower to cut it off the front)haha
if you just spend the 40 bucks or whatever and get the tubeing you want its much easyer to do it than think about it lol
i do that all the time but once you start it all goes together fine

good luck ..i will hopefully have mine done in a few weeks,time permitting.

im thinking of insetting it also..your drawing look great too..john
johnny9 is offline
post #22 of 24 Old 10-08-2009, 07:14 PM Thread Starter
Chester405
Registered User
2000 TJ Wrangler

Join Date: May 2008
Location: Asheville, NC
Posts: 862

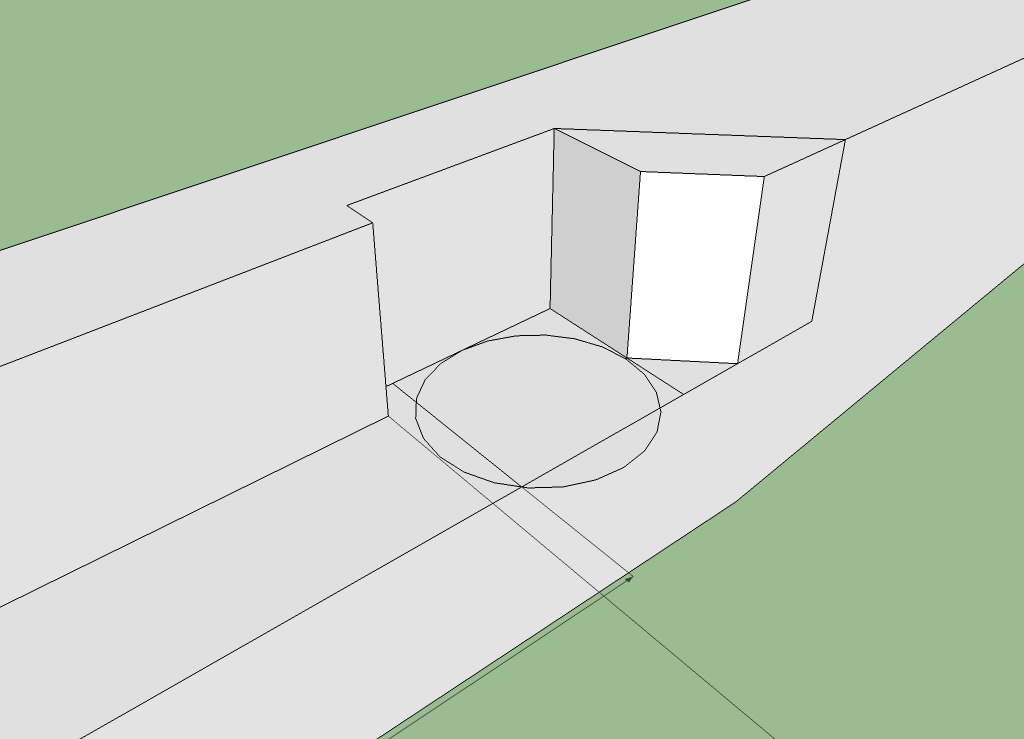

well after some thought, I decided to take away the radius and make it simple. I also added a notch so the arm can swing out more.
Chester405 is offline
post #23 of 24 Old 10-08-2009, 07:30 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,283
Make sure to leave a little "wiggle room" between your pivot tube and the bumper.. maybe something on the order of 1/4" or so.

If you want to keep that notch rounded, just take a flat of 3/16" and beat it into shape with a big hammer.. it helps relieve stress.

Plan it out correctly and you can probably cut your main rectangular tube, flip the cutout piece inside out, and make that your "inset" piece. Make sure to locate the "seam" inside the tube and position that on the backside so it doesn't show.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #24 of 24 Old 10-08-2009, 07:58 PM Thread Starter
Chester405
Registered User
2000 TJ Wrangler

Join Date: May 2008
Location: Asheville, NC
Posts: 862
Thanks BESRK...I'll definitely keep all of that in mind.

As far as the spindle...I know that the AtoZ spindle is made for 5" tall bumpers. Obviously I do not have 5 inches for the bottom of the spindle. Would it affect the hinge at all if I cut off what hangs out and weld it like I normally would? In the current drawings I only have 2" of room but I am planning on making that 3" or 4" soon...I just do not have the time to make another drawing as I have a midterm in the morning and then I have to go to court after that (rather not get into that area).
Chester405 is offline
