Unread 11-22-2010, 06:08 PM   #16
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,336
Wow, nice work!

__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote
Unread 11-22-2010, 06:10 PM   #17
-dirt-
Registered User
2005 TJ Wrangler

Join Date: Oct 2004
Location: Montgomery, AL
Posts: 1,007
What "method" will you use? I just got my first welder and am interested in the processes used for material besides mild steel.
-dirt- is offline   Reply With Quote
Unread 11-22-2010, 06:21 PM   #18
Area.3.Fiftyone
Registered User
1996 ZJ

Join Date: Sep 2009
Location: Kingston, Pa. 18704, Pennsylvania
Posts: 3,469
Quote:
Originally Posted by -dirt- View Post
What "method" will you use? I just got my first welder and am interested in the processes used for material besides mild steel.
I welded the axle tubes to the diff housing and I used my MIG. Most people prefer stick welding the tubes to diff housing using nickel rod. I used a good amount of heat and let it cool really slow and did not see any cracking in the welds. I also stood the axle on end while cooling to help prevent warping.

I have both a Miller 172 MIG and Sychrowave 180 TIG. Both are 220 volt units and are rated right around 180 amps. 1/4" steel is about the max thickness using a single pass with no preheat. I could probably go a little thicker using .035 flux core on my MIG.

I do have a roll of .035 flux core and only use it when welding outside in the wind or on really dirty stuff that can't easily be cleaned up. Depending on the thickness of the steel, I will use either .023 (for thin stuff) or .035 for 1/8" and up with a mix of CO2 and Argon for the gas.
__________________
79' CJ7 - 82' CJ8 - 94' YJ - 96' ZJ
Diagonally parked in a parallel universe.......
Area.3.Fiftyone is offline   Reply With Quote
Unread 11-22-2010, 08:41 PM   #19
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
Stan the truss, knuckles, etc. are looking great. I'll be watching!!
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 11-23-2010, 03:09 AM   #20
Ironworker709
Moderator

Ironworker709's Avatar
1995 YJ Wrangler

Join Date: Nov 2006
Location: Millen Area,Georgia
Posts: 3,281
Nice work!

That's gonna be 1 beefy HP30!
__________________
Don't DREAM your life, LIVE your dreams

Never forget 9/11

"Welding is like a woman,Get 'er HOT and Penetrate"

Gotta LOVE a person who knows everything about NOTHING

The only Thing necessary for the Evil to win is a good man to do nothing....

"How far you go in life depends on your being tender with the young,compassionate with the aged,sympathetic with the striving,and tolerant with the weak and strong--because someday YOU will have been all of these"....George Washington Carver

Want to know what an Ironworker is and the job scope of a Journeyman?..click here...http://www.ironworkers.org/becoming/careers.aspx
Ironworker709 is offline   Reply With Quote
Unread 11-23-2010, 07:22 AM   #21
Chris98TJ
Registered User
1998 TJ Wrangler

Join Date: Feb 2008
Location: South Louisiana
Posts: 270
the angle of the lower control arm mount is 10 deg. just a FYI.
__________________
98 tj sport Aussie locked front and rear 4.10's HPD30 8.8 super short sye cv shaft 4.5 lift johnny joint adj. control arms 36in TSL's gen right hi fenders header exhaust custom rockers Solid axle covers f/r the list goes on
Leading bullet sponge for JF Call of Duty crew
X BOX GT- CHRIS98TJ
Chris98TJ is offline   Reply With Quote
Unread 11-23-2010, 03:03 PM   #22
Area.3.Fiftyone
Registered User
1996 ZJ

Join Date: Sep 2009
Location: Kingston, Pa. 18704, Pennsylvania
Posts: 3,469
Update

I took more pictures today of the reaming process and the parts for the high steer in case anyone is interested.

Here is a pic of the Moog stuff you'll need:





And the Snap On reamer that I borrowed from another Jeep Forum member (Thanks Jim - it's on it's way back to you):

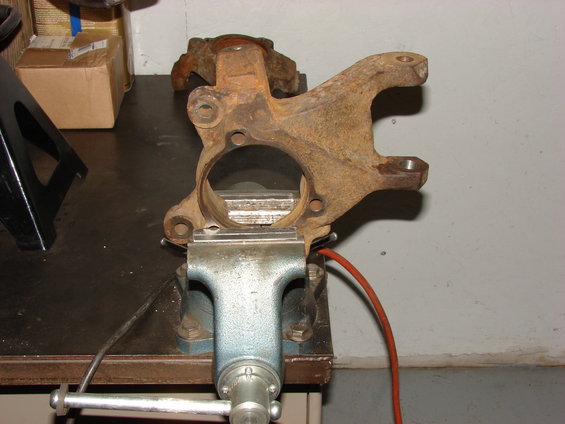

The knuckles were really easy to ream. The pitman arm on the other hand was a lot harder due to the difference in material (cast vs. forged). Here you can see how I have it held in a vise with soft jaws to protect the knuckle. The one hole has already been reamed and the upper is stock. Use lots of cutting oil and go really slow with the drill to prevent chatter:

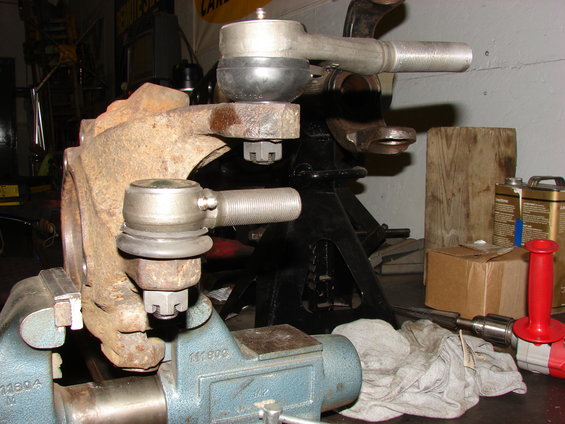

Both holes reamed and TRE's inserted to check for clearance on the passenger side. It'll be tight with the jamb nut installed and the DOM. Notice the difference in zerk fitting location using these TRE's. Once the wheels and tires are on, it would be a really tight fit with zerk on top. Having it on the side will be much easier to get at:

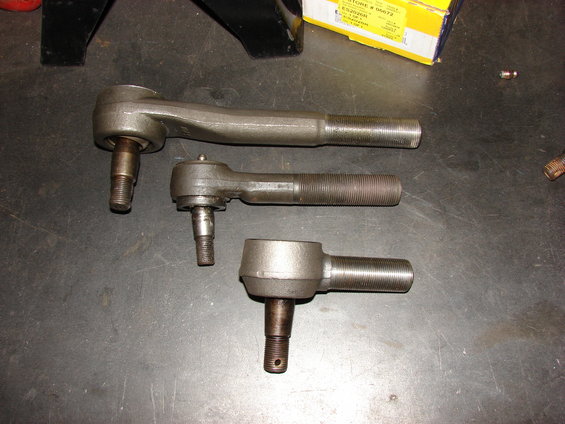

The size difference between stock ZJ (middle) and true 1 ton TRE's. The one shown on the top is for the drag link and gives much more misalignment than that short one shown on the bottom. I chose the shortest I could for the tie rod for strength. It does not need nearly as much movement as the drag link:



I chose to ream the pitman arm while still in the Jeep. I was not in the mood to rent a puller. It was much harder to ream the pitman arm compared to the knuckles. The pitman arm is a little galled up on the bottom from the previous lift and track bar. The angle was not good and the body of the TRE was making contact with the pitman arm.

__________________
79' CJ7 - 82' CJ8 - 94' YJ - 96' ZJ
Diagonally parked in a parallel universe.......
Area.3.Fiftyone is offline   Reply With Quote
Unread 11-23-2010, 03:14 PM   #23
schitzangiggles
King of Macastan

schitzangiggles's Avatar
1993 YJ Wrangler

Join Date: May 2005
Location: Rigby, Idaho, Macastan (Idaho)
Posts: 6,000
Looking great.
__________________
"Axeheads are supposed to be sharp, but you are one blunt tool."
FLynes



If you love wealth more than liberty,the tranquility of servitude more than the animating contest of freedom, go home from us in peace. We seek not your counsel nor your arms. Crouch down and lick the hand that feeds you. May your chains sit lightly on your shoulders and may posterity forget that you were our countrymen.
-Samual Adams

A government big enough to give you everything you want is big enough to take everything you have.
Thomas Jefferson

Calling Illegal Aliens "Undocumented Immigrants" is like calling drug dealers "Unlicensed Pharmacists"

Nemo Me Impune Lacessit
"No one provokes (attacks) me with impunity".


"Your right, the Tea Party and the OWS are the same, just like the America Revolution and the French Revolution were the same. The only problem is the American Revolution ended with Liberty, Freedom, Justice for all and a shining light upon a hill. The French Revolution ended with lynchings, guillotines, murder and socialism. So yeah, I could see how one could confuse the two..."

Mac Wilson
schitzangiggles is offline   Reply With Quote
Unread 11-29-2010, 12:51 PM   #24
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
Thanks for posting the info Stan. Looks to be a great job.
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 11-29-2010, 12:57 PM   #25
Hussler
Registered User
1992 XJ Cherokee

Join Date: Jan 2009
Location: utica, new york
Posts: 5,288
I really like the sleeving in the truss holes
__________________
Quote:
Originally Posted by chris87xj View Post
Sometimes a restoration project is a labor of love, at which point cost, time, and labor involved become irrelevant.
Quote:
Originally Posted by BorderC View Post
I see you also twizzled your scart lead. Well done! :thumbsup:
92 XJ with ARB's, 5" lift, too much armor, 33's and some other garbage
Hussler is offline   Reply With Quote
Unread 11-29-2010, 08:38 PM   #26
RuffShod
Registered User
1989 YJ Wrangler

Join Date: Oct 2010
Location: alvin, texas
Posts: 63
Nice work!
RuffShod is offline   Reply With Quote
Unread 12-05-2010, 04:16 PM   #27
kowboydmac
Registered User
1997 ZJ

Join Date: Dec 2009
Location: kissimmee, FL
Posts: 496
updates?

I want to do the same type of project (minus the wj knuckles) to a hp30 and dana 44a for my zj.

I've never welded before so knowing what type of welder to get on a very low budget would be awesome.
kowboydmac is offline   Reply With Quote
Unread 01-04-2011, 05:41 PM   #28
YJhobby
Registered User
1993 YJ Wrangler

Join Date: Oct 2009
Location: Lexington, KY
Posts: 509
This is one of the nicest trusses I've seen for a D30... And exactly what I have envisioned for my YJ HP30... I think the CAD system is going to mess up the truss though.

Stan, since you've got a YJ and a ZJ, would the HP30 off a YJ that has the CAD system on the passenger side kinda mess up this type of truss? Maybe I'll get an XJ HP30...
__________________
~Steve~

[QUOTE=SnowdogMarc] YJ's don't get stuck....they get temporarily impeeded in their forward progress.[/QUOTE]



I'm patiently waiting for the "foot-in-mouth" moment to end... but since I've posted, its not today
YJhobby is offline   Reply With Quote
Unread 01-04-2011, 05:47 PM   #29
BriansCJ
Registered User
1994 XJ Cherokee

Join Date: Dec 2008
Location: South Jersey
Posts: 3,958
Quote:
Originally Posted by YJhobby View Post
This is one of the nicest trusses I've seen for a D30... And exactly what I have envisioned for my YJ HP30... I think the CAD system is going to mess up the truss though.

Stan, since you've got a YJ and a ZJ, would the HP30 off a YJ that has the CAD system on the passenger side kinda mess up this type of truss? Maybe I'll get an XJ HP30...
You could cut it out and retube, or maybe cut off the upper CA mount on the disconnect and build the truss over it.

I'd just get an XJ HP30 as you can get one complete for around $150-$200 and it comes with shafts you can use as spares.


OP, D30 looks good. Pretty much what I will be doing when I build mine.
__________________
5 Speed XJ Build - Daily Driver & Weekend Wheeler
1978 CJ5 Resto, w/ heavy mods - Slow
BriansCJ is offline   Reply With Quote
Unread 01-04-2011, 06:18 PM   #30
Goobersbro
Registered User
2007

Join Date: Oct 2008
Location: Yuba City, California
Posts: 4,138
Its looking really good
__________________
My marshmallow build
http://www.jeepforum.com/forum/f12/m...-build-873442/
Goobersbro is offline   Reply With Quote
