Home-made wooden shift knob

Any other woodworkers out there? I'm not but my dad made this for me, basically I gave him the stock shift knob to recreate the shape(but just slightly larger) since mine was all chewed up from prying the stupid shift pattern button off to get to the 15mm nut.

Here are some pics from start to finish:

Started out as a block of wood(duh). This is cherry to be exact.



He cut down all the sides to get it square and clean on every side



It was also cut to an appropriate length prior to this pic, but it was then chucked into his wood lathe:



And here is a sequence of it getting taken down to a workable shape:







Now down to a cylinder, making reference marks:



Shaping it by eye:





Looking close to done:



It was then taken off and retained the extra piece on the "top" of the shifter for a flat spot to be left to make it easier to drill straight down from the opposite side with the drill press:



It was a 3/4" hole:



...

__________________
SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase
Build thread here.

Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline   Reply With Quote Quick reply to this message
Unread 12-19-2009, 06:39 PM   #2
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton, Ohio
Posts: 5,417

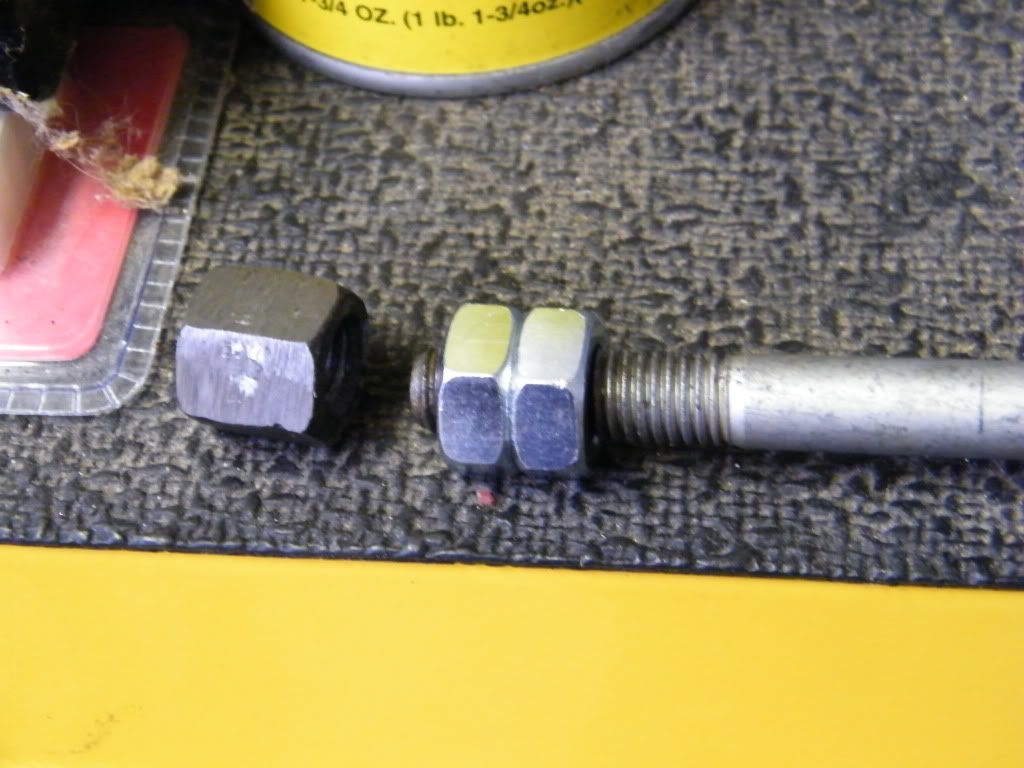

For the insert I tacked 4 nuts together while threaded onto a bolt(M10-1.5 is the NV3550 shifter thread). Then welded them together and ran a tap through to clean it up after everything cooled. Was originally going to only use 2 but opted for 2 more... sorry no pics of what actually went in. They were epoxied inside with some 2 part Loctite epoxy.



It was then stained with some red mahogany stuff by Minwax... I think the number was #242?

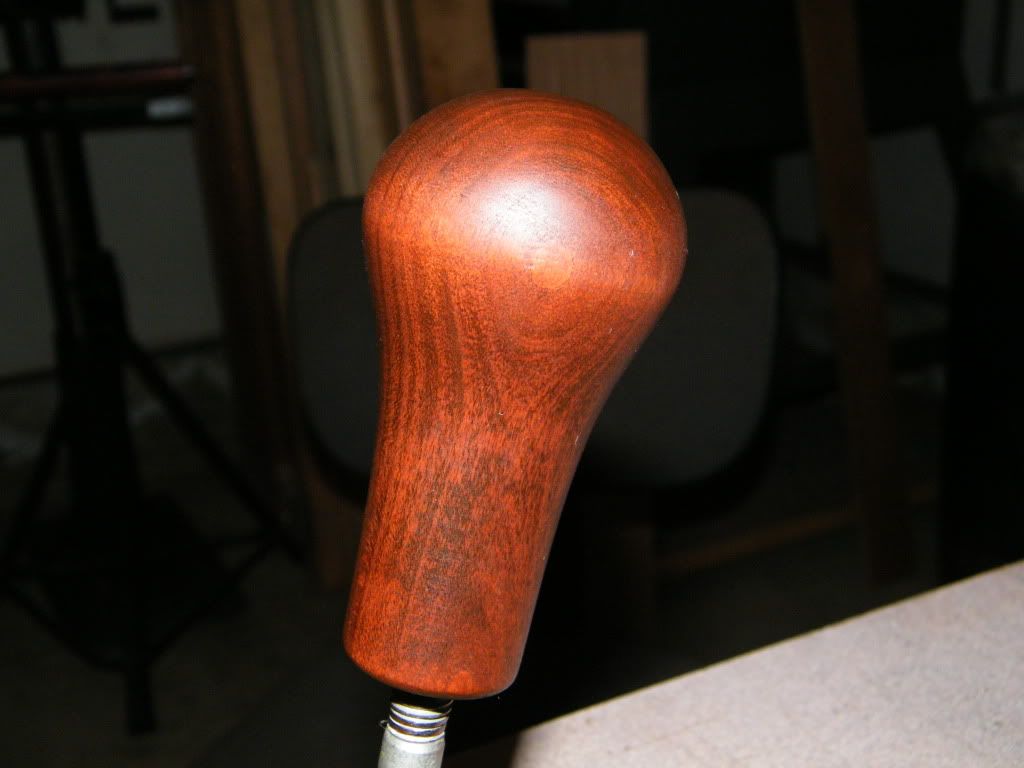

A pic w/ flash to highlight the grains:

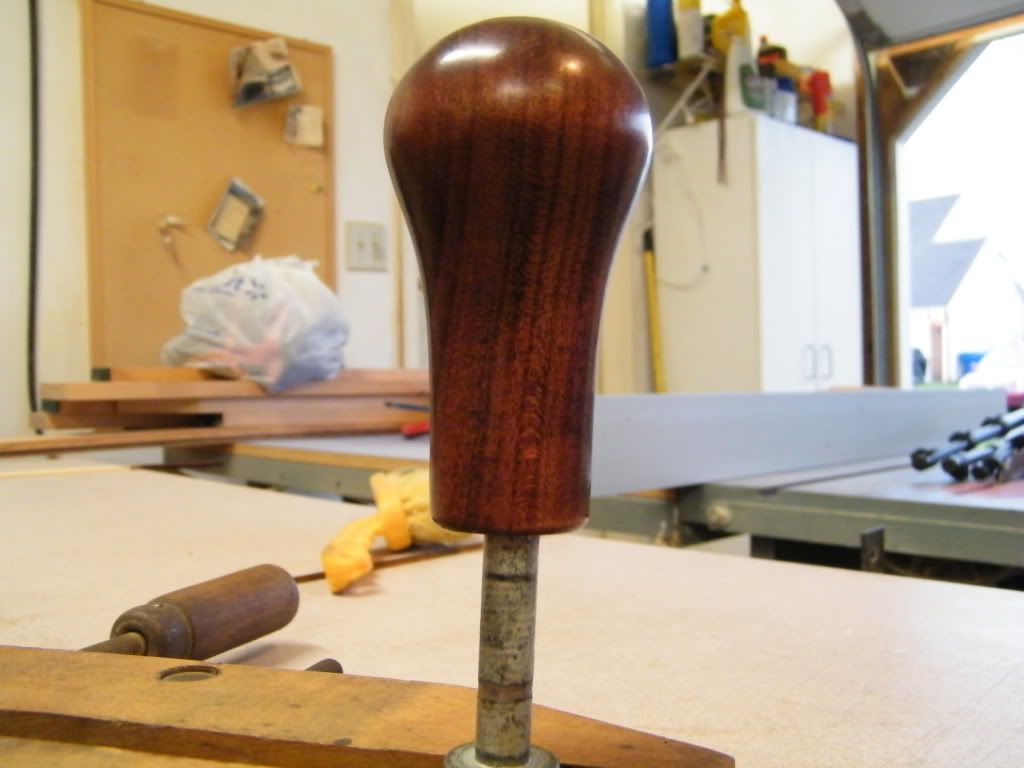

The next day my dad applied 7 coats of sealer to it and this is the result... very nice:





And finally installed:




Any of you guys turned your own shift knobs on a lathe?
