home made hard tonneau with pics and info....

well, to preface this build write up, i would like to say that i have wanted a hard tonneau for a long time. here is what the cali tops one looks like if you are not familliar....


i REALLY like the one that california tops offers, but b/c of the astronomical $$$ and terrible customer relations, i chose to pass....

what i did was look at his design and try to make what i thought would be something functional...one reason for this is easier access. another reason is that i feel like i have out grown my tuffy security drawer and need a little more space than it alots. (also, i needed to get to my tools on the trail in hot springs 3 weeks ago and could not let my PSC stinger all the way down and open my tailgate b.c i was b/t a rock and a hard place.... :shush: )

we staretd by removing my tuffy security drawer, and relocating my 2 sony amps to the top of the rear fenderwells from their previoous home on opposing side of my sony sub. one reason for relocating the amps was i needed more room in the back and we pushed my sub box further forward, thus i did not want the amps being vulnerable to behind the seat debris that can accumulate.



with the sub box pushed up to my liking, we began thinking about how to add a support/hinge piece for the hard tonneau itself to attach to....

we came up with a cross brace that is wedged flush b/t the sides of the tub right against the front of the sub box. we cut it down and test fit it. after the test fit, we notched it so that it would not interfere with the sub in any fashion, and attached it in place. we used some 2" 'L' brackets at the tub and also put some flat 'L' brackets at the top of the 2x4 attaching it to the sub box. for good measure, we also ran about 6 2.25" wood screws through the brace into the sub box.

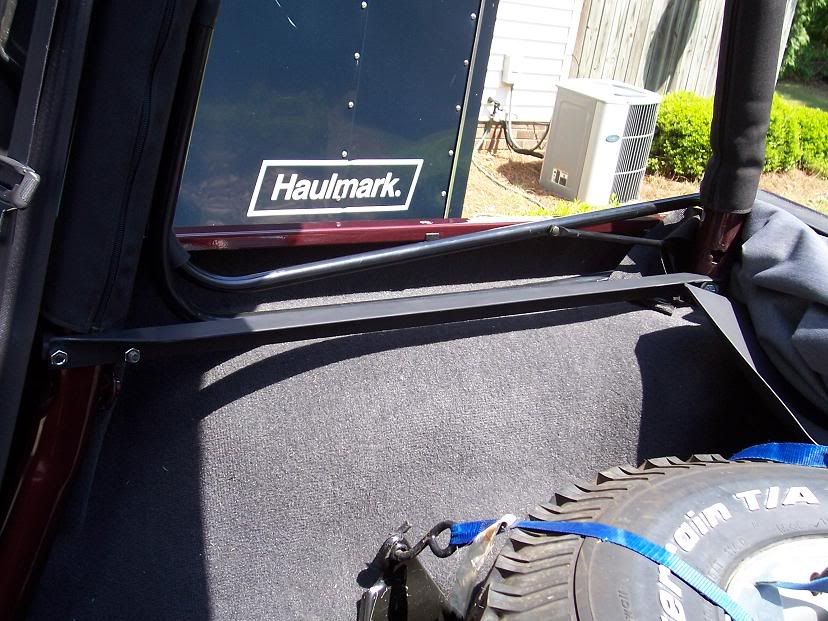

here is what it looked like at that point....

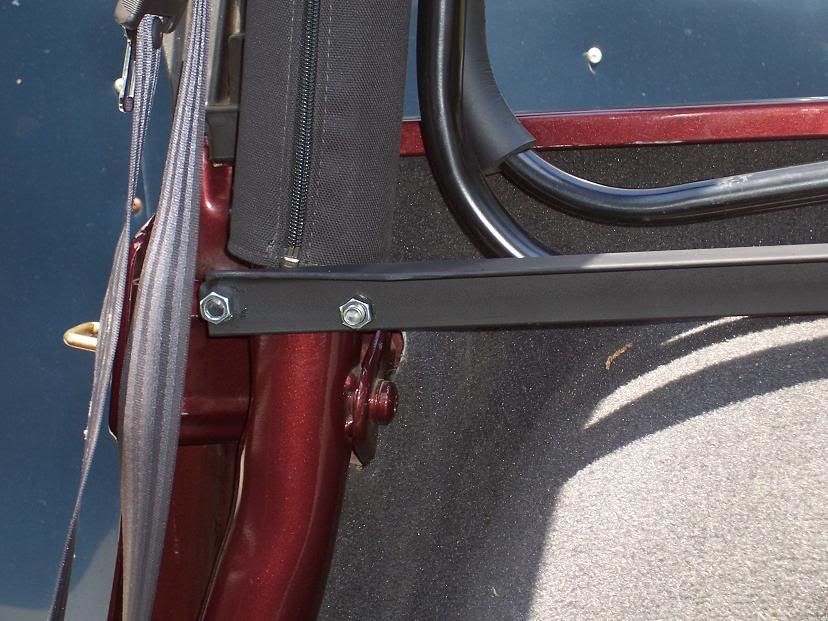

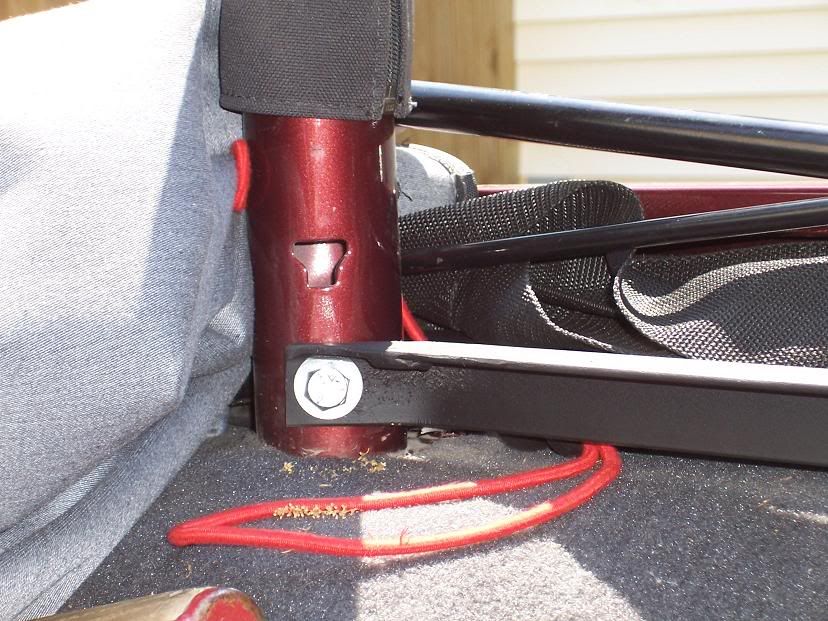

and painted...notice the upper flat 'L' brackets......


from there, we simply measure the dimensions of the tub from side to side and about 3" back from the main hoop to teh tailgate.....

we then took some measurements from the interior side of the roll bars and on teh outter edge of them as well....this was to make the notched so that the hard tonneau would lift properly and not be interfered with by the slant in the rear bars....

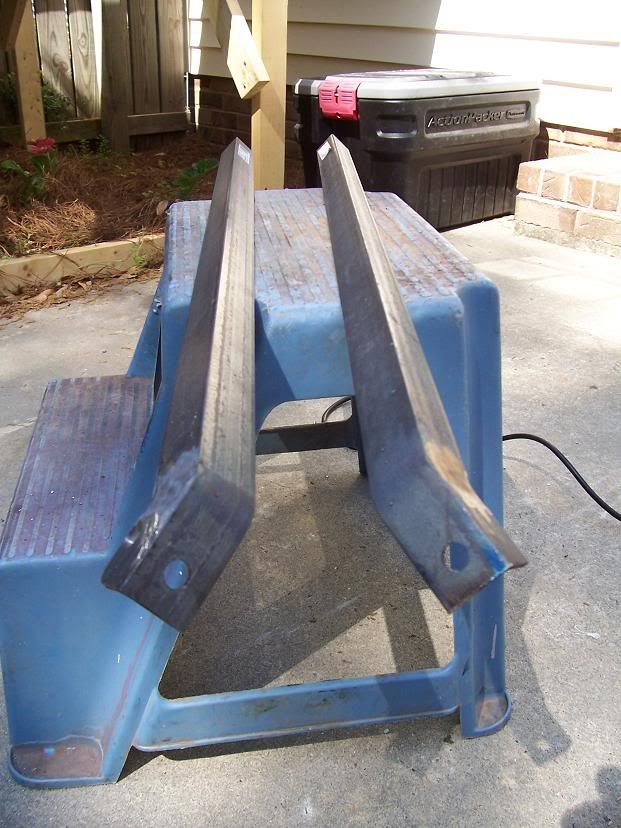

first cut and test fit...


some paint on it....


after it was fit to my liking we place some standard door hinges across the brace/main support and and made sure that it lifted properly without any interference.....YEA! no issues...

now to the best part.....i really wanted a 'stealth' look to this and it sure turned out that way....

why?


b/c my bestop soft toneau cover fits over it just perfectly.....who'd a thunk it?

here are some pics after we rounded the edges and fith teh tonneau on.....








that is it....about $50 in supplies and vuala....hard tonneau in a few hours work....

i would like to giev a big thanks to tweba99 for his assistance....he cut most of the wood, i guess he likes wood, but hey, that's him.....anyways...thanks again....

**the 'finishing' touches have not been done as of yet...i am going to cover the wood in fibergalss resin this weekend and then use some adhesive to stick the bestop tonneau to it so that it does not flop around in the wind....the plastic runners on the bestop tonneau that tuck under the new cover will be screwed in place, and i also have a cartridge style truck tonneau cover lock that i got to secure the top down to keep unwanted peeps from getting in......***
