Home made corner armor

So, I've decided to make my own corner armor since I can't find what I want premade...

I want diamond plate corner guards that actually protect...not the thin aluminum ones, or the smittybilt plastic crap that came on my TJ when I bought it. Now, I know diamond plate isn't for everyone, but my AtoZ rockers are diamond plate, and I like the look. And since I had the smitty plastic corners on for so long, the look has grown on me for the corners. As for what I will be using them for... mild offroading right now...I just graduated from mud in Miami, to rocks in TX. Nothing too serious yet.

Now to the technical aspect and where I need the advice.

My local options right now are 1/8" or 3/16" steel diamond plate (cheapest option but heaviest)

Or

3/16" 6061-T6 aluminum diamond. (lighter but more $$$)


My tooling options for DIY are limited. I can work with the steel by doing 1/2" bends myself, or by using the telephone pole outside my house...

I know the aluminum is harder to work with, and I've never had to bend any aluminum that thick...I have worked with other thicknesses (.020, .032, .060) while working on aircraft.


Would the 1/8" steel be strong enough for what I need, or should I stick with the 3/16" and suck up the weight issue?

Would I be able to bend the 3/16" aluminum myself, and keep the strength?

__________________
2006 I6 6-Speed X, 33" Goodyear Duratrac, 8.8.
athos76 is offline   Reply With Quote
Unread 09-13-2011, 04:36 PM   #2
athos76
Registered User
2006 TJ Wrangler

Join Date: Jul 2008
Location: El Paso, TX
Posts: 1,540
Well, I found an eBay source for 6061 Diamond plate that is cheaper than the local shop, and also found another nearby shop that has 1/8 and 3/16 steel diamond in stock in the size I need for cheap... After doing some research, the 6061 will be ok if I'm only doing small bends with little chance of cracks and fatigue.
__________________
2006 I6 6-Speed X, 33" Goodyear Duratrac, 8.8.
athos76 is offline   Reply With Quote
Unread 09-26-2011, 09:45 PM   #3
matthewh_1
Registered User
2003 TJ Wrangler

Join Date: Oct 2007
Location: Winnipeg, MB, Canada
Posts: 233
It seems like most company's corner armor is 3/16", so if you're planning on taking some hits to them, you should stick to the industry standard. I'm interested to see how bending these to match works out for you. May become a project on my list if it works well.
__________________
National Topless Day 2010 winner!
Zombie Outbreak Response Unit #70
Quote:
Originally Posted by jclauson View Post
When a girl tells you your flex is sexy then you are doing something right in life.
matthewh_1 is offline   Reply With Quote
Unread 09-27-2011, 10:28 PM   #4
djflyy
Registered User
1999 TJ Wrangler

Join Date: Mar 2008
Location: Boston, MA
Posts: 3,472
Interested to see this play out as well.
__________________
Boston Jeep Build Thread
North Shore Jeeps Website

Quote:
Originally Posted by bmosing View Post
Cleaning this thing up is similar to a slightly abused pornstar throwing on a bunch of makeup to try to hide her eternal scars, but I think she doesn't look too bad
djflyy is offline   Reply With Quote
Unread 09-28-2011, 02:09 PM   #5
addicted2dunes
Registered User
1981 CJ8

Join Date: Jan 2006
Location: Orcutt, California
Posts: 866

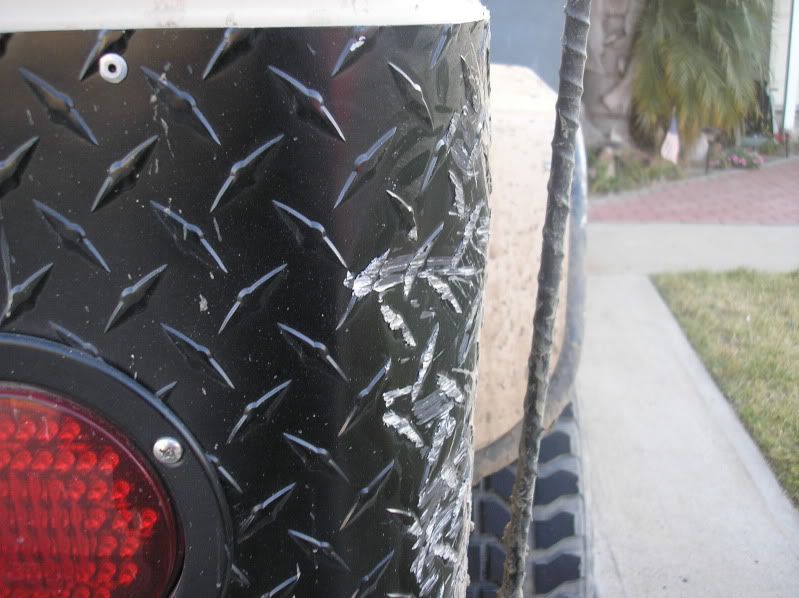

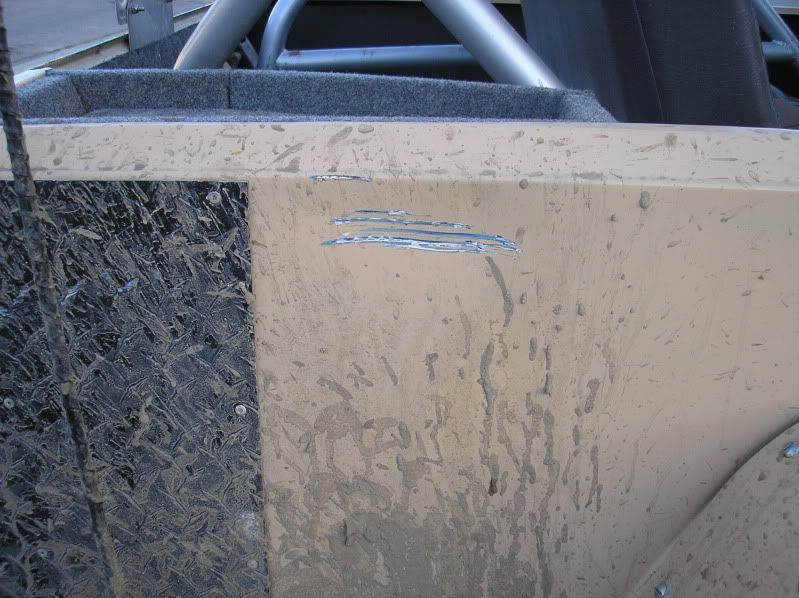

I wanna see how you bend it.... I am in the same predicament. I have the cheap aluminum diamond plate ones and this is what happens:





I'd like to make my own because no one makes the style I like for the Scrambler, they're always way too long, and too pricey to buy and cut down. All I have to do is figure out how to get the radius.
__________________
Cameron Gunlock
1981 CJ8 - http://www.jeepforum.com/forum/f8/project-krawln8-81-cj8-1276742/
http://www.facebook.com/pages/Central-Coast-Krawlers/139075302856004
addicted2dunes is offline   Reply With Quote
Unread 09-29-2011, 08:04 AM   #6
LilViper95
Web Wheeler

LilViper95's Avatar
1993 YJ Wrangler

Join Date: Oct 2003
Location: Glenburn, Maine
Posts: 1,195
I had my local steel supplier put the radius bend into the 3/16 that I am using to build my armor. These are 21" tall and 78" long (being used on yj stretched to LJ specs) they only cost 236.25 that is the steel and the bending compare to some of the vendors whose blanks would have been over 600 with shipping! I know we are comparing full length armor to corner armor, but my point is it may be worth talking to your steel supplier about putting the bends in for you. I dont recall the breakdown but I know it wasnt much to have the bends done.

__________________
04 Ram 2500 5.9L 24v HO Cummins

My Attempt at a Wrangler YJ Unlimited

No Stretch TJ Build For The Wife
LilViper95 is offline   Reply With Quote
Unread 09-30-2011, 01:36 PM   #7
counselor
Registered User
2005 LJ Wrangler

Join Date: Nov 2003
Posts: 171
Quote:
Originally Posted by LilViper95 View Post
I had my local steel supplier put the radius bend into the 3/16 that I am using to build my armor. These are 21" tall and 78" long (being used on yj stretched to LJ specs) they only cost 236.25 that is the steel and the bending compare to some of the vendors whose blanks would have been over 600 with shipping! I know we are comparing full length armor to corner armor, but my point is it may be worth talking to your steel supplier about putting the bends in for you. I dont recall the breakdown but I know it wasnt much to have the bends done.

What bend radius did you use? I *think* Jeep corners are a 6" radius. Your corners look pretty tight but it's hard to tell from a picture. Let us know how they work.

I've got an LJ that I want to stretch in the spring, and I can find corner blanks but they are all cut high in the front so they'd need custom rockers or they'd have a gap. I've got a 20 ton press in my garage, but I don't think I'm going to try to bend this.
counselor is offline   Reply With Quote
Unread 09-30-2011, 04:35 PM   #8
djflyy
Registered User
1999 TJ Wrangler

Join Date: Mar 2008
Location: Boston, MA
Posts: 3,472
Quote:
Originally Posted by LilViper95 View Post
I had my local steel supplier put the radius bend into the 3/16 that I am using to build my armor. These are 21" tall and 78" long (being used on yj stretched to LJ specs) they only cost 236.25 that is the steel and the bending compare to some of the vendors whose blanks would have been over 600 with shipping! I know we are comparing full length armor to corner armor, but my point is it may be worth talking to your steel supplier about putting the bends in for you. I dont recall the breakdown but I know it wasnt much to have the bends done.
Very cool idea. I'd be interested in having that done as well... It'd make a great starting point for home built rear tube fenders. Would you be able to post the bend measurement?
__________________
Boston Jeep Build Thread
North Shore Jeeps Website

Quote:
Originally Posted by bmosing View Post
Cleaning this thing up is similar to a slightly abused pornstar throwing on a bunch of makeup to try to hide her eternal scars, but I think she doesn't look too bad
djflyy is offline   Reply With Quote
Unread 09-30-2011, 06:01 PM   #9
LilViper95
Web Wheeler

LilViper95's Avatar
1993 YJ Wrangler

Join Date: Oct 2003
Location: Glenburn, Maine
Posts: 1,195
Let me start by saying that the counter guy at the steel supply shop I have is the man! When ever I need things bent up he just asks me to bring in a cardboard template of what I need!

All that I did for these was put a piece of heavy duty cardboard under the corner of the tub, mark it out with a sharpie and then cut along my marked line. I had to do a little shaving with a razor blade to get a nice tight fit.

reenacted it real quick tonight for ya!





Cut out the area without the squiggles and took in the part with the squiggles.

This is how they fit the tub of the Jeep! Like a glove if I do say so myself!



Here is where I have started to fit it to the door jambs and a couple of the countersunk bolts.



I used this same template method when I built the rocker armor for my JK.

Started with this



ended up with this (although I have since painted them to match the jeep with base clear)

__________________
04 Ram 2500 5.9L 24v HO Cummins

My Attempt at a Wrangler YJ Unlimited

No Stretch TJ Build For The Wife
LilViper95 is offline   Reply With Quote
Unread 09-30-2011, 06:41 PM   #10
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,138
Them corners fit better than GenRights. Looks good.
wushaw is offline   Reply With Quote
Unread 09-30-2011, 08:00 PM   #11
counselor
Registered User
2005 LJ Wrangler

Join Date: Nov 2003
Posts: 171
Man, that looks fantastic. I may start looking for a local bender.
counselor is offline   Reply With Quote
Unread 09-30-2011, 08:10 PM   #12
LilViper95
Web Wheeler

LilViper95's Avatar
1993 YJ Wrangler

Join Date: Oct 2003
Location: Glenburn, Maine
Posts: 1,195
My suggestion is make good friends with the counter guy at your steel shop. Stop in once in a while just to drop off some food and say hi! Don't be that guy who wants to walk in at 3pm on a friday and walk out with your steel bent! I always give my guy at least a few days to a couple weeks turn around time. The shop I use does a lot of industrial fabrication, my 200 dollar corners are not high on the priority list I am sure. I do my best to take care of them so that they will take care of me!
__________________
04 Ram 2500 5.9L 24v HO Cummins

My Attempt at a Wrangler YJ Unlimited

No Stretch TJ Build For The Wife
LilViper95 is offline   Reply With Quote
Unread 09-30-2011, 08:41 PM   #13
evolution
Registered User
1997 TJ Wrangler

Join Date: Jul 2010
Location: covington,va
Posts: 361
lol, its great you use a local shop... i work as a fabricator by trade and ive built all my own stuff too.. what you did is what i did on mine.. its cheaper and better quality.. next time you do it ask for pickled and oiled steel so you will have a great surface for your paint to stick... what you have was just hot rolled, which means it has scale on it and could fake off after you paint it..unless you sandblasted it..
__________________
97 TJ, custom long arm, custom tri link rear, 44 front-9in rear, Detroit and Yukon lockers, 4:88s, 37" bfg's ,tube fenders and crusher corners, process never ends...
[url]http://www.jeepforum.com/forum/f22/evolutions-97-tj-1061890/[/url]
evolution is offline   Reply With Quote
Unread 09-30-2011, 08:51 PM   #14
LilViper95
Web Wheeler

LilViper95's Avatar
1993 YJ Wrangler

Join Date: Oct 2003
Location: Glenburn, Maine
Posts: 1,195
Thanks for the info, explains why I had to repaint my rockers on the JK!
__________________
04 Ram 2500 5.9L 24v HO Cummins

My Attempt at a Wrangler YJ Unlimited

No Stretch TJ Build For The Wife
LilViper95 is offline   Reply With Quote
Unread 10-01-2011, 10:21 AM   #15
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
Very nice work sir! If I ever get my LJ ruby I may be ringing you to get a set of those corners shipped out. Ever thought of making aluminum ones?
