post #16 of 43 Old 02-02-2014, 08:21 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
got started on this. doing 2 1/2" in/out. muffler case size is 8"x14"x4". case is 11ga, baffles are 16 ga. went heavy on the case as it will undoubtedly come into contact with rocks and other offroad hindrances.

here is a few possibly baffle setups i am thinking of.

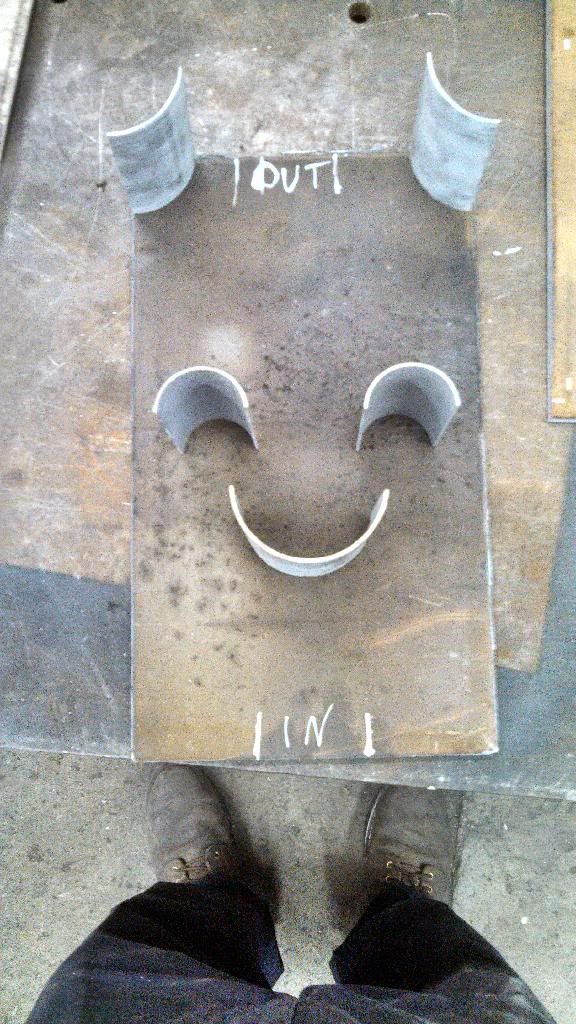

1.

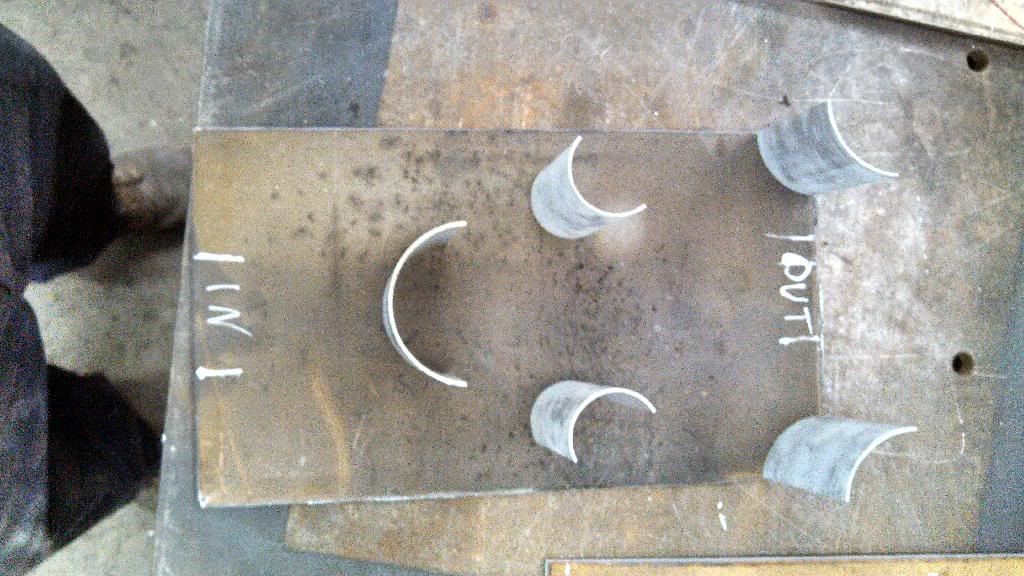

2.


3.



1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
Sponsored Links
Advertisement

post #17 of 43 Old 02-03-2014, 07:31 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
I'm kind of liking the first one.. that splits the flow and forces it into the 2 side baffles. However, I have no idea how that would affect actual exhaust gas flow.. nor soundwaves.

Here's where a CNC Plasma Table would be nice. It would allow you to make those 1/2 tube shapes, and position/cut them precisely where you want them in the top/bottom of the case.. so you could plug weld them.

I'm really looking forward to seeing/hearing the final product

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #18 of 43 Old 02-03-2014, 01:55 PM
danielbuck
Registered User
1946 CJ2

Join Date: Mar 2010
Location: Westchester
Posts: 5,201
looks like a fun project!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
danielbuck is offline
post #19 of 43 Old 02-03-2014, 04:20 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
Quote:
Originally Posted by BESRK View Post
I'm kind of liking the first one.. that splits the flow and forces it into the 2 side baffles. However, I have no idea how that would affect actual exhaust gas flow.. nor soundwaves.

Here's where a CNC Plasma Table would be nice. It would allow you to make those 1/2 tube shapes, and position/cut them precisely where you want them in the top/bottom of the case.. so you could plug weld them.

I'm really looking forward to seeing/hearing the final product
the first one is what i originally had in mind before ever starting this project. the other 2 were just thinking physically since i had the parts in hand to see what other possibilities i could come up with.

And i am slowly but surely collecting parts for one. it is next on the big things to buy list. buying the plasma in the next couple months, already have a computer with up to date copies of Mach 3 and mastercam. it would certainly be much easier that way.

1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
post #20 of 43 Old 02-04-2014, 05:27 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
possibly make it more of a true two chamber design.



thinking i am gonna roll with this setup and measure it all out and weld in place tomorrow.

1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
post #21 of 43 Old 02-04-2014, 06:25 PM
tjcj
Registered User
1998 TJ Wrangler

Join Date: Aug 2011
Location: Yakima
Posts: 1,135
Nice idea. Just thinking out load here but couldn't you tack the shell of the muffler together with the baffles, then install it to hear it. If you don't like the sound cut the tacks and move around the baffles till you get the sound you wanted.

Sent from my XT881freeze ray gun using JeepForum

Yakima Valley Mountaineers.
tjcj is offline
post #22 of 43 Old 02-04-2014, 07:25 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
that is an option but it may not get a true sound unless the case is pretty well sealed and almost fully welded.. I do know i am going to install it with clamps before i weld it just to be sure it is what i want.

1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
post #23 of 43 Old 02-04-2014, 08:44 PM
Lifted96ZJ
Registered User
1973 CJ5

Join Date: Mar 2010
Location: Livermore, CA
Posts: 207
The first design looks the best to me. Looks a lot like the Imco one chambers before Cherry Bomb bought them

Build Thread
http://www.jeepforum.com/forum/f8/1973-cj5-trail-rig-hunting-rig-build-1403107/
Lifted96ZJ is offline
post #24 of 43 Old 02-11-2014, 05:51 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
well here they are. just gotta build the headers so that i can get these installed and see how they are gonna work out.

Baffle set up


Case


built a 2nd identical to the first and added a bit of High temp paint

1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
post #25 of 43 Old 02-11-2014, 07:27 PM
5.7YJ
Senior Member

5.7YJ's Avatar
1987 YJ Wrangler

Join Date: Aug 2006
Location: Rockledge
Posts: 912
Great job, can't wait to hear what they sound like.

87 YJ, TPI 5.7, 700R4, NP231, BDS 3.5" lift, 1" front & 5/8" rear boomerang shackles, Rubicon Dana 44 rear axle, 33" Goodyear Duratracs











My brake boster/master cylinder upgrade:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
5.7YJ is offline
post #26 of 43 Old 02-11-2014, 08:53 PM
tjcj
Registered User
1998 TJ Wrangler

Join Date: Aug 2011
Location: Yakima
Posts: 1,135
Well those turned out nice.

Yakima Valley Mountaineers.
tjcj is offline
post #27 of 43 Old 02-11-2014, 09:26 PM Thread Starter
underpowered
Bouncin' on a Budget

underpowered's Avatar
1998 ZJ

Join Date: Nov 2005
Location: northern kentucky
Posts: 3,037
Thanks.


sadly it will probably be 2 weeks or so before i can hear them. Headers will be built next week, then it will probably be another week before i can get my hands on the exhaust bender to bend up the rest of the exhaust.

1998 ZJ-- lowered a touch

2005 GMC 2500HD 496 C.I.

Fat Amy-1989 K5 blazer. Linked, lifted, 38.5's on won tons. Big Girls can play in the woods too.
underpowered is offline
post #28 of 43 Old 02-11-2014, 09:29 PM
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa
Posts: 1,458
This is pretty neat. I didn't have any good advice to add but interested in the idea for sure. I'd like to see how it sounds!

84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline
post #29 of 43 Old 02-11-2014, 10:56 PM
andrewmacc
Registered User
1998 XJ Cherokee

Join Date: May 2010
Location: BC Canada
Posts: 608
I have a feeling they're gonna be freakin' loud. But if that's the goal, then perfect. The link I posted on the first page said his sounded like a deeper Flowmaster and flowed just as well on a flowmeter.

"Chilton's and Haynes are for brake jobs, oil changes and starting campfires." - CJ7-Tim
'98 2dr/5spd Cherokee rockin' on tons, 5.9L V8 Magnum, HP60/14b, 5.13:1, locked, 14" coilovers, Dana 300 4:1 twin stick... oink oink!
andrewmacc is offline
post #30 of 43 Old 02-12-2014, 08:23 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
I've been kind of wanting to build a Hot Rod sometime down the road.. maybe a rat rod of somesort. I will definately do my own mufflers now.. They can be loud.. as long as they eliminate the "cackle".
