Front Bumper/Winch Plate Build! (pic heavy)

Started building this bumper a few weeks ago and now its almost finished (need paint). This is the first thing i'v fabricated for the jeep since i bought my welder a few months ago so sorry for all the pics. i'm happy with the way it came out All done with Hobart 187 and an angle grinder (man do i want a plasma cutter, chop saw, and drill press now! )
Let me know what you all think. i'll run you through the build...

First, this is the steel i started with, 2x4" 3/16 thick rectangle for the bumper and 1/4" plate for the top and winch/fairlead mount

Cut the ends at the angle i wanted and also cut the holes for my shackle mounts that are welded on both sides of the bumper.

Shackles welded in place

Then tacked and welded the end caps in place

Finished end after grinding and smoothing with a flap disc

Tacked the top plate to the bumper while fitting everything to the frame

Thats how the bumper sat for the last few weeks while i waited for this

Now i could continue working on the winch and fairlead mount. Started fitting this together

Tacked into place

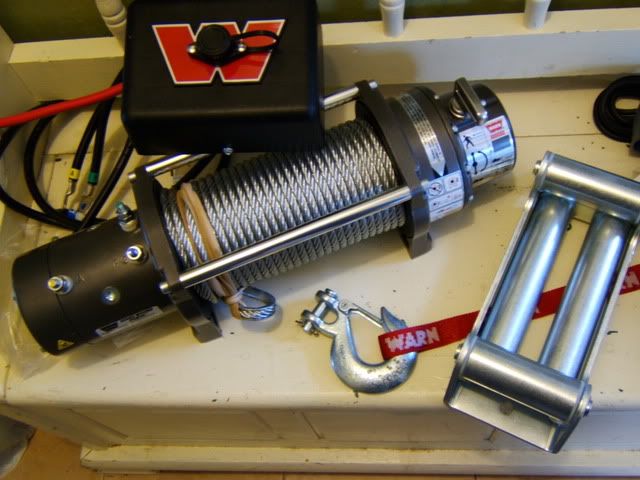

placed the winch and roller on to make sure everything fit before burning it all in

Stitch welded the fairlead mount to the bumper and winch plate. This is the front

Back

This is just to show how i offset the welds on the front and back

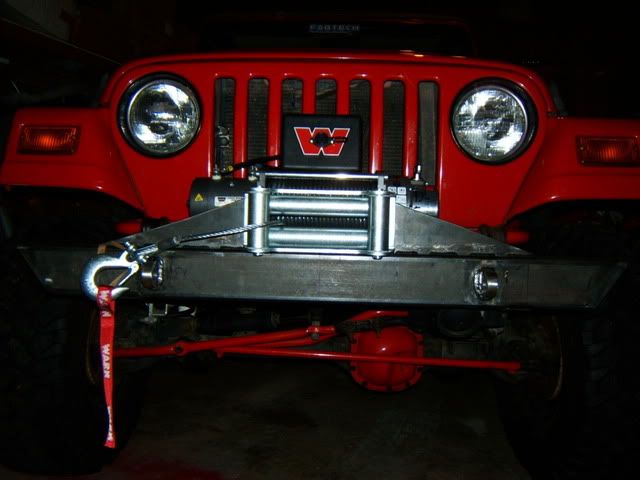

Okay so that finished up the fabricating part. Here it is mounted up unpainted. Whatcha think?




__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-

Last edited by MO2500; 08-01-2010 at 08:05 AM..
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:10 PM   #2
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
That is really nice!!

How did the front winch mounting bolts work out in relation to the bumper? Are the bolts sitting over the bumper at all?
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:18 PM   #3
DC4W-93XJ
Registered User
1990 XJ Cherokee

Join Date: Oct 2008
Location: Grand Junction, Crawlorado
Posts: 579
nice job.. why so wide?? narrow it up a bit and you'd gain lots on your approach angle..

looks good though
__________________
THIS AIN'T YOUR MAMA'S STATION WAGON!!
Built Jeep Tough With Chevy Stuff
"Tater 2" '91 2 door XJ chopped and bobbed, 4.0, AW4, dana 300, GM 60/70HD, 40" IROKs on H1s
SEE THE BUILD HERE
DC4W-93XJ is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:21 PM   #4
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,672
Quote:
Originally Posted by BESRK View Post
That is really nice!!

How did the front winch mounting bolts work out in relation to the bumper? Are the bolts sitting over the bumper at all?
Thanks
good catch, the front bolt holes for the winch feet ended up right at the back of the rectangular tube. i had to notch the tube just alittle bit to clear the bolt head so i could get a wrench on it. It was a tight fit, i couldnt move the winch back because of my stock sway bar and also wanted to keep from moving the bumper forward any
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:23 PM   #5
elpound
Registered User
2004 TJ Wrangler

Join Date: Mar 2008
Location: Union Gap, Wa
Posts: 21
Great job on your bumper! Looks real professional
elpound is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:25 PM   #6
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,672
Quote:
Originally Posted by DC4W-93XJ View Post
nice job.. why so wide?? narrow it up a bit and you'd gain lots on your approach angle..

looks good though
I actually like the 48" wide look. i mostly did it to protect the front end while i still have the stock fenders. i figure i could always chop the ends off later down the road when i go tube fenders
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:32 PM   #7
csail168516
Registered User
2004 TJ Wrangler

Join Date: Dec 2007
Location: Indianapolis
Posts: 5
wow! that looks awesome! i've been wanting to build my a front bumper as well. if you don't mind me asking what did the materials cost you?
csail168516 is offline   Reply With Quote Quick reply to this message
Unread 12-26-2009, 09:50 PM   #8
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,672
Thanks for the compliments guys! i had a lot of fun building it
I think i spent around $120 for everything. i feel like thats pretty good since i got a new bumper and winch plate all in one! you know the price of those if you buy them Although, the steel could probably be found cheaper than the local place i got mine since they tend to charge a lot for small pieces
__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 12-27-2009, 05:11 PM   #9
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,672

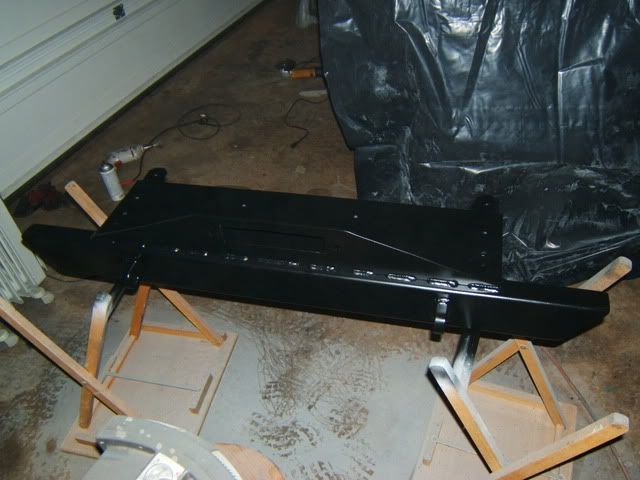

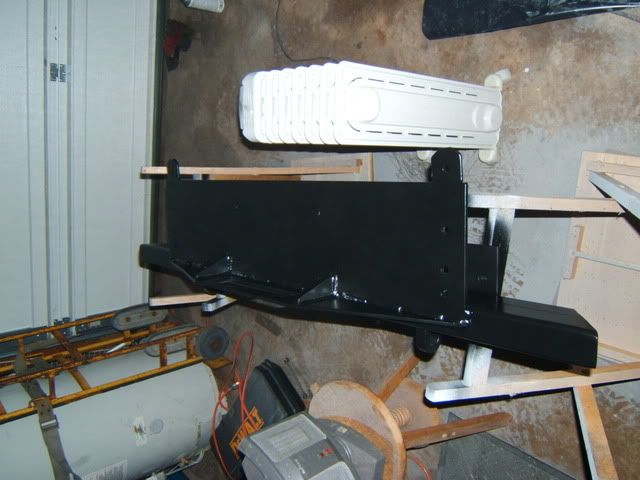

Well i had the heaters running all day and shot some paint. A few coats of self etch primer and then Krylon satin black. Now its inside curing.
I'll get a few shots after i get it all put back together. Hopefully i have some time tomorrow.

__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote Quick reply to this message
Unread 12-27-2009, 05:46 PM   #10
dwilliamsceg
Registered User
1997 TJ Wrangler

Join Date: Feb 2006
Posts: 503
Nice work. Looks great.
dwilliamsceg is offline   Reply With Quote Quick reply to this message
Unread 12-28-2009, 12:25 AM   #11
csail168516
Registered User
2004 TJ Wrangler

Join Date: Dec 2007
Location: Indianapolis
Posts: 5
i'd say for $120 thats pretty kick ***!
csail168516 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2009, 11:42 AM   #12
sebastian22
Registered User
1995 YJ Wrangler

Join Date: Dec 2007
Location: Orange, CA
Posts: 2,035
Looks awesome! great job.
__________________
95 Black YJ
sebastian22 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2009, 04:29 PM   #13
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,672

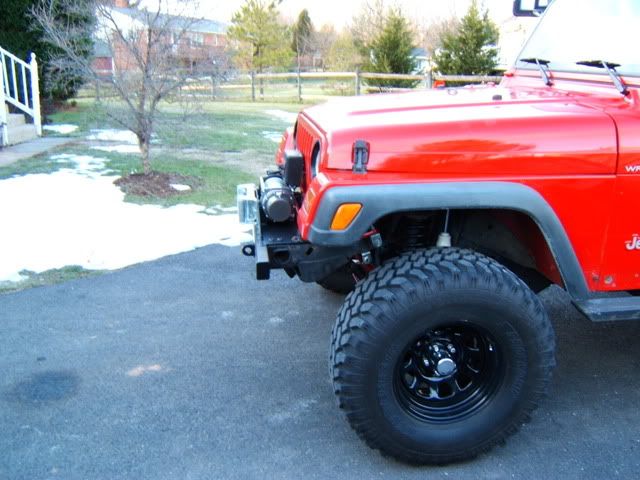

Well, got it all put back together this afternoon.
