01-02-2010, 12:04 PM
|
#1 | |
|
Registered User
1995 XJ Cherokee
|
front bumper design
well I've had the idea to build my own front bumper but the main problem has been the design. i don't have a bender or a press, so this would all be down with limited cutting welding and grinding tools. it took me some time to figure out a design that would be easy to do with my limited tools.
this is what i have come up with   its based off of jcrs bumpers, nates 4x4 winch bumper, and aj's customs. let me know what you think. i still need to design the frame tie-ins but its to dam cold to take measurements. also i could use some help with bracing/ gussets on the back side
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
|
|
|
01-02-2010, 08:38 PM
|
#2 |
|
Registered User
1990 XJ Cherokee
Join Date: Oct 2008
Location: Grand Junction, Crawlorado
Posts: 581
|
that looks awesome... get ir dun
__________________
THIS AIN'T YOUR MAMA'S STATION WAGON!! Built Jeep Tough With Chevy Stuff "Tater 2" '91 2 door XJ chopped and bobbed, 4.0, AW4, dana 300, GM 60/70HD, 40" IROKs on H1s SEE THE BUILD HERE |
|
|
|
|
03-15-2010, 06:00 PM
|
#3 |
|
Registered User
1994 XJ Cherokee
|
what program are you using to create these prints? this would help great with our small fab line we started.
|
|
|
|
|
03-15-2010, 09:19 PM
|
#4 |
|
Registered User
|
Really nice design. Would love to see the actual work.
__________________
|
|
|
|
|
03-16-2010, 12:08 AM
|
#5 |
|
Registered User
1997 TJ Wrangler
|
What tools do you have to build with? I built a front bumper kind of like that except it goes up on the sides so the winch sits down a little lower than the sides of the bumper. It has similar angles to yours though, which I like. I did all my cutting with a torch and cleaned the cuts with a 4.5" angle grinder. All the welds were done with my new to me Lincoln 180HD, gas shield and .030 wire. I used 3/16" plate for the entire bumper except the winch plate portion. It is 1/4". I incorporated a steering box guard into mine. Looks like yours is done that way too?
|
|
|
|
|
03-16-2010, 06:41 AM
|
#6 |
|
Registered User
1995 XJ Cherokee
|
i have a jig saw, and a circular saw... ya that sucked to cut 1/4 but w/e
its going on a cherokee so my steering box inst as exposed as you guys with tj's
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
Last edited by mr_imposible; 03-16-2010 at 04:04 PM.. |
|
|
|
|
03-16-2010, 09:51 AM
|
#7 | |||
|
Web Wheeler

2001 XJ Cherokee
Join Date: May 2009
Location: Louisville, Kentucky
Posts: 4,028
|
Quote:
Its free.
__________________
_=====o000o //__l_l_,\____\,____ l_--\_l__l_/--|lllll| _.(o)_)__.(o)_)--o-)_) "Dee", a Patriot Blue 2001 Cherokee Sport 4.0L High-Output Pictures Build Thread "Live Free Or Die; Death Is Not The Worst of Evils." -General John Stark Quote:
Quote:
|
|||
|
|
|
|
03-16-2010, 03:52 PM
|
#8 |
|
Registered User
1995 XJ Cherokee
|
yep, its google sketchup, and yes its free. i found it really easy to get started, more than solid works, or auto cad.
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
|
03-16-2010, 08:29 PM
|
#9 |
|
X-Y-J-Con

1988 YJ Wrangler
|
looks great, do you have measurments? would like to do something like this on my new project !! also what material ? thanks
__________________
88yj-94 4.0-ax15-2004 rubicon f/r axles-4.10's-factory air lockers-33"D!ck Cepek Crushers |
|
|
|
|
03-16-2010, 08:32 PM
|
#10 |
|
Registered User
1995 XJ Cherokee
|
the main 6x2 is 1/4 the rest besides the tie in plates are 3/16
pm me if you want other measurements
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
|
03-16-2010, 08:40 PM
|
#11 | ||
|
Web Wheeler
2001 XJ Cherokee
Join Date: May 2009
Location: Louisville, Kentucky
Posts: 4,028
|

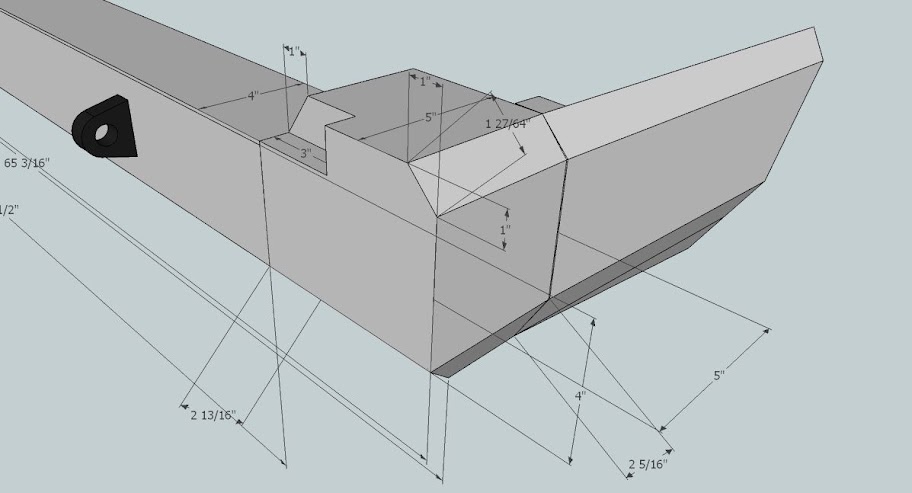

on sketchup you can show the dimensions like this and post it.
(This is a rear bumper i was desgning but am pursuing other ideas (i dont have a torch so I can't redily make long cuts, so I would need to buy a bunch of specific width flat steel, and would end up with way more than I need.. I can only get 20ft sticks that I know of around here).)
__________________
_=====o000o //__l_l_,\____\,____ l_--\_l__l_/--|lllll| _.(o)_)__.(o)_)--o-)_) "Dee", a Patriot Blue 2001 Cherokee Sport 4.0L High-Output Pictures Build Thread "Live Free Or Die; Death Is Not The Worst of Evils." -General John Stark Quote:
Quote:
|
||
|
|
|
|
03-16-2010, 08:57 PM
|
#12 |
|
Registered User
1995 XJ Cherokee
|
kettles, one thing i found that worked some what well for long cuts is a circular saw with a cut off wheel instead of a blade. a lot of sparks, but cuts better than a jig
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
|
05-13-2010, 10:37 AM
|
#13 |
|
Registered User
1995 XJ Cherokee
|
hate to revive a dead thread, but here is the outcome. its about 95% done just need to cap the ends, weld the winch plate in, some gussets, get another tow hook(autozone was out at the time) and possibly add a hoop.
 don't mind the booger weld. welder wasn't feeding right. its all better now   thoughts on a hoop? not a stinger, but a small prerunner style
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
|
05-13-2010, 12:37 PM
|
#14 |
|
Vendor

1985 CJ7
|
Your bumper really looks great. I'd move that tow hook though. In a hard pull you'll distort the top of that tubing.
Good job so far!
__________________
Aftermarket Jeep Parts www.crabtreetool.com  NRA LIFE MEMBER GOD BLESS AMERICA! Please "Let every man be swift to hear, slow to speak, slow to wrath." Jim's 85 CJ7 rebuild |
|
|
|
|
05-13-2010, 02:01 PM
|
#15 |
|
Registered User
1995 XJ Cherokee
|
where would you recommend it then? that place seemed to be the best spot. if i need to i could just wrap the strap around the middle piece
__________________
95 green 4dr. natural pinstriping, 4.5inch lift, 33 mud terrains, not much else, but working on it front bumper 99%(need a winch), roof rack 35%, rockers 99%, rear swing out bumper 90%, trip to Ohio 0%
|
|
|
|
 |
