FRAME FIX dont know where to start pics!!

How should I go about fixing this??


01blackws6 is offline   Reply With Quote
Unread 11-12-2008, 02:23 PM   #2
Exparrot
Registered User
1993 YJ Wrangler

Join Date: Dec 2006
Location: Port Edwards, Wisconsin
Posts: 1,058


I'd hate to say it, since I have some cancer back there as well, but a new frame might be in order. At the very minimum, I would back-half a better frame and replace the whole back end. I have a feeling if there's a lot more rust there than you think.
__________________
I got a Jeep, it's lifted and it's got crap bolted to it.
Color by Rattle-Can.
LO Jeep Club #111 [and not proud of it]
Red Jeep Club #MC399
Exparrot is offline   Reply With Quote
Unread 11-12-2008, 02:26 PM   #3
twobit
Registered User
2006 TJ Wrangler

Join Date: Apr 2008
Location: Texas
Posts: 280
new frame might be in order
__________________
06 Solar Yellow TJ X obtained 10-2009 with 3400 miles
99 Cherokee Sport, bought new, now @ 223,000 miles
Southwest Texas
twobit is offline   Reply With Quote
Unread 11-12-2008, 03:21 PM   #4
BlackBellamy
Registered User
1999 TJ Wrangler

Join Date: Oct 2007
Location: The Empire State
Posts: 2,209
__________________
The top and doors on this vehicle are designed only for protection against the elements. Do not rely on the top and doors to contain occupants within the vehicle or to protect against injury during an accident. Wear seatbelts at all times.
BlackBellamy is offline   Reply With Quote
Unread 11-12-2008, 03:42 PM   #5
leftlanetruckin
XJ on 37's

leftlanetruckin's Avatar
1998 XJ Cherokee

Join Date: Jul 2006
Location: missouri via blackpool,lancs.
Posts: 10,452
maybe try a search?
http://www.jeepforum.com/forum/searc...archid=3235064
it can and has been done plenty of times, but as already said, you probably have more rust than what you are seeing right there.
as a hint, make sure you drill a 1/2" hole at the bottom of the lowest part on that section if you repair or get a new frame. it is a water trap!

martin
__________________
1998 XJ on 37's.JK Rubi axles with chromo shafts and ctm's, 4:1 transfer case, etc etc etc.The Cherylkee....
2003 Range Rover HSE, 4.4 Quad Cam.
1998 Range Rover 4.6 HSE
2000 4.7 4WD WJ with a rebuilt motor.
4.3/700r4/new frame buildup (YJ)....
http://www.jeepforum.com/forum/f12/swap-offically-underway-324622/

Years to gain the hands on experience, and offer it freely.
Minutes to gain the knowledge from the internet, and quote it just as freely.
Choose wisely!
leftlanetruckin is offline   Reply With Quote
Unread 11-12-2008, 04:30 PM   #6
mcneil
Registered User
2000 TJ Wrangler

Join Date: May 2005
Location: Pasadena, CA
Posts: 287
Quote:
Originally Posted by Exparrot View Post


I'd hate to say it, since I have some cancer back there as well, but a new frame might be in order. At the very minimum, I would back-half a better frame and replace the whole back end. I have a feeling if there's a lot more rust there than you think.
Yeah, probably going to have to go pretty far forward on the frame to find something solid enough to weld to.

More pictures?
mcneil is offline   Reply With Quote
Unread 11-12-2008, 09:14 PM   #7
harley2003rkc
Registered User
1995 YJ Wrangler

Join Date: Sep 2008
Location: Burton, MI
Posts: 57
Mine looked like that when I started my rebuild. I went and bought some 3"x3"x3/16" tube steel, and rebuilt from the rear hoops back. I chose the 3/16" because the ID of the 3" tube matched the OD on the width of the frame. Which when I cut off the top and botton of the tube, left me about 8" of the tube sides to match up on the frame and give me a good strong transition into the new tube. I found it to be extremely close in the height of the original frame, and 3/16" wider on each side. I'll post pics if I have time before leaving for deer camp friday.
harley2003rkc is offline   Reply With Quote
Unread 11-12-2008, 10:18 PM   #8
Lifesgoodhere
Registered User
1949

Join Date: Jul 2008
Location: Waynesboro, Virginia, Virginia
Posts: 1,315
Quote:
Originally Posted by BlackBellamy View Post
dude im wearing that shirt RIGHT NOW
__________________
1949 Jeep Truck, A.K.A. The Hammer...just needs finishing
*My YouTube videos Subscribe!
*My Jeep Build Thread, The Flyin' Hammer >>Epic project
*The Homestretch ---- Finishing the Hammer. It's on!!
Lifesgoodhere is offline   Reply With Quote
Unread 11-13-2008, 06:48 AM   #9
1 ton yj
Registered User
2000 XJ Cherokee

Join Date: Feb 2006
Location: New Milford NJ
Posts: 2,053
Best way to do it is to cut a peice out of a good frame and weld it in. All of the comercially availible kits I've seen are like putting a bandaid on skin cancer, they just cover it up and don't get rid of it.
1 ton yj is offline   Reply With Quote
Unread 11-13-2008, 02:21 PM   #10
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
You're going to have to see how far that cancer has reached. If it's that bad there, it's probably affected other components than just your frame such as your body and mounts, gas tank skid, muffler, etc. Oh and make sure your Tetnus shot is up to date!! (every 10 years) If your not experienced at fabrication the easiest route would be to find a wrecked YJ with no frame damage and swap out the frame. Keep us posted on what you decide!
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 11-13-2008, 02:23 PM   #11
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
oh and DONT DRIVE IT ANYWHERE!!
__________________
Don't Click Me!
FunkSkunk is offline   Reply With Quote
Unread 11-13-2008, 02:26 PM   #12
TrailWorthyFab
TrailWorthyFab.com

TrailWorthyFab's Avatar
2005 TJ Wrangler

Join Date: Jan 2007
Location: WICHITA, KANSAS
Posts: 1,743
It's an easy fix. Is that the only place you have it? I have to tell you DON'T DRIVE IT. Your about to lose your axle because of that shackle
__________________
BUY IT DONT' BUILD IT!! You will be money and time ahead. (Flip off)
TrailWorthyFab is offline   Reply With Quote
Unread 11-13-2008, 02:26 PM   #13
prjohnson
Registered User
2002 TJ Wrangler

Join Date: May 2008
Location: Marietta, GA
Posts: 559
WOW! How old is that car?!
prjohnson is offline   Reply With Quote
Unread 11-13-2008, 02:26 PM   #14
JeepMKcomin
Registered User
2006 TJ Wrangler

Join Date: Jul 2006
Location: Wilmington, NC
Posts: 478
bondo it?
__________________
06TJ Silver Ruby - REBB w/DT3000s, Quick Discos, Superwinch EPi9.0, Warn engine skid, PS Box Skid, Diff Guards, IPF Lenses, x51s soon
92YJ White - Slight Shackle Lift w/30x9.5 BFG ATs, Custom Beefy Bumpers
06TJ Khaki Sport - Traded in
JeepMKcomin is offline   Reply With Quote
Unread 11-13-2008, 02:27 PM   #15
TrailWorthyFab
TrailWorthyFab.com

TrailWorthyFab's Avatar
2005 TJ Wrangler

Join Date: Jan 2007
Location: WICHITA, KANSAS
Posts: 1,743

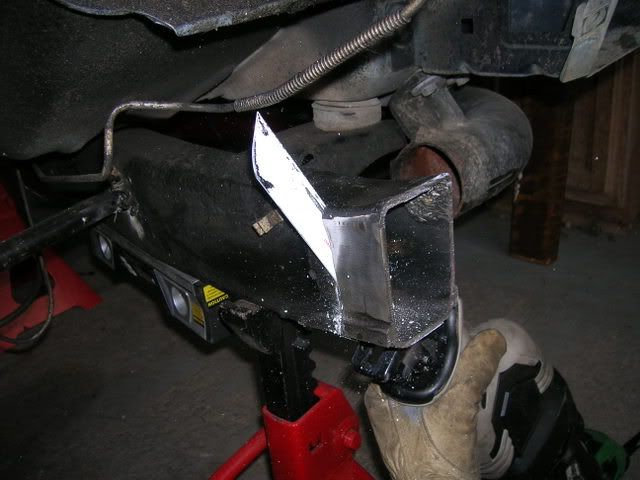

Do something like this. Cut the frame back to where it is good and clean

Get you some new 2x4 square tube and weld it to where you made your cut

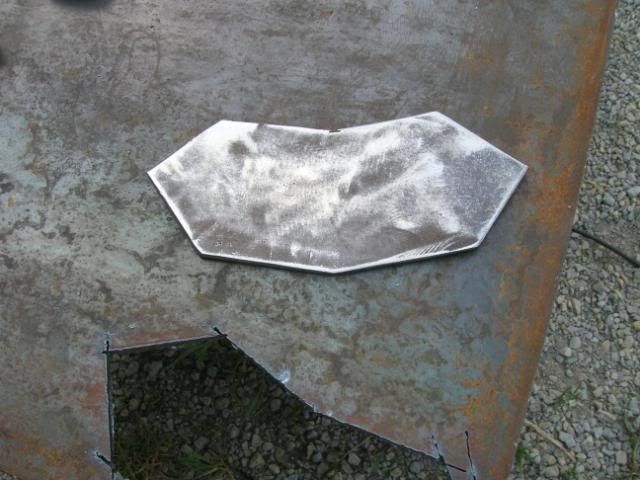

Cut you some fish plate

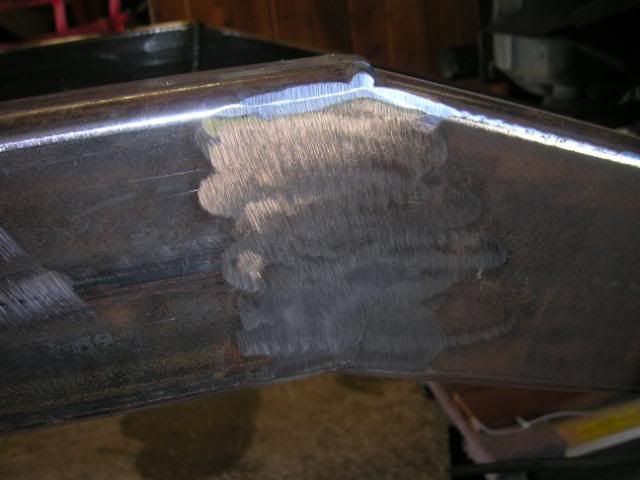

Grind your weld from the old frame to the new smooth.
