post #46 of 80 Old 07-17-2005, 06:21 PM
biffstephens
Registered User

biffstephens's Avatar

Join Date: Sep 2004
Location: Tulsa, Oklahoma
Posts: 1,200
Here is an aftermarket one that has a seperate tranny mount and then a skid plate. I realize it is not flat but it is very close...

http://www.rockcrawler.com/techrepor...skid/page2.asp

I really like the way this one looks....

It is above the frame rails.....leaves pleanty of roon for the FLAT skid.....in fact you could design this piece and then the skid. Then I could use 1/4 without much worry about bending or flexing....

Biff

Attached Images


Wheel Spacers? Aluminum Fairleads? Winch Rope? LEDS? Winches? Accessories.....
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



Biff
biffstephens is offline
Sponsored Links
Advertisement

post #47 of 80 Old 07-17-2005, 06:49 PM
phlex234
Registered User

phlex234's Avatar

Join Date: May 2004
Location: South Gate, Republic of California
Posts: 1,504
im building mine like the 33rd enginneering one, thanks biff for that link

HI, my name is phlex234 and i approve this message because it's my destiny

Jeep 2.5 Low Output club member #2
92 Red YJ, 3.5 Bds lift, 1" body lift, 1" motor mount lift, 33 in tires, long travel DT3000 shocks, m.o.r.e. 3/8 boomerang shackels, 4:56 gears, Tj flares, rock-it man front and rear bumper, Terraflex SYE and Tom Woods CV driveshaft, herculined tub, custom homemade rocker panels, powered by the almighty 4 cylinder



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
phlex234 is offline
post #48 of 80 Old 07-21-2005, 08:59 AM
HOOTIE
Registered User

Join Date: Apr 2004
Location: Alabama
Posts: 35
phlex234,

One thing to watch out for!!!!!!!
You need to relocate rear shocks. When you roll the pinion up the sring mounts on the axle are going to hit the socks and dent them. I had clearance but at full drop I got dents in my new rs 9000's.

Tim

2004 TJ X, RED, 5- Speed, Ecco Wheel Package, Detroit TRUE-TRACS Both ends. 2" lift,1" BL,1"MML, Rancho 9000X shocks, Warn M12000# winch, 31"x10.50" BFG MT'S. Homemade Flat T.C. Skid,SYE, Rock-It-Man Ultimate Rockers
HOOTIE is offline

post #49 of 80 Old 07-21-2005, 09:09 AM
phlex234
Registered User

phlex234's Avatar

Join Date: May 2004
Location: South Gate, Republic of California
Posts: 1,504
Quote:
Originally Posted by HOOTIE
phlex234,

One thing to watch out for!!!!!!!
You need to relocate rear shocks. When you roll the pinion up the sring mounts on the axle are going to hit the socks and dent them. I had clearance but at full drop I got dents in my new rs 9000's.

Tim
not cool!
bit you have a TJ, and yours are bhind the axle, mine are in front, but in the same area, i will have to see what i can work out, with this, thanks for the heads up!

HI, my name is phlex234 and i approve this message because it's my destiny

Jeep 2.5 Low Output club member #2
92 Red YJ, 3.5 Bds lift, 1" body lift, 1" motor mount lift, 33 in tires, long travel DT3000 shocks, m.o.r.e. 3/8 boomerang shackels, 4:56 gears, Tj flares, rock-it man front and rear bumper, Terraflex SYE and Tom Woods CV driveshaft, herculined tub, custom homemade rocker panels, powered by the almighty 4 cylinder



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
phlex234 is offline
post #50 of 80 Old 10-07-2005, 11:22 AM
FunkSkunk
Sold my soul to JeepForum

FunkSkunk's Avatar
1992 YJ Wrangler

Join Date: Mar 2002
Location: Marble, NC
Posts: 1,814
anyone finish their skid yet????????


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
FunkSkunk is offline
post #51 of 80 Old 01-16-2006, 06:43 PM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716
..Also wondering if anyone has created their own flat skid for a TJ. I have some ideas, but haven't done any serious measuring to determine if I'll have enough clearance.

FWIW, I have the 1.25" bl, 1" mml, adjustable rear uca's and will have the sye and tc linkage bracket in a week.

Anyone?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
tommaho is offline
post #52 of 80 Old 01-17-2006, 06:47 PM
HOOTIE
Registered User

Join Date: Apr 2004
Location: Alabama
Posts: 35

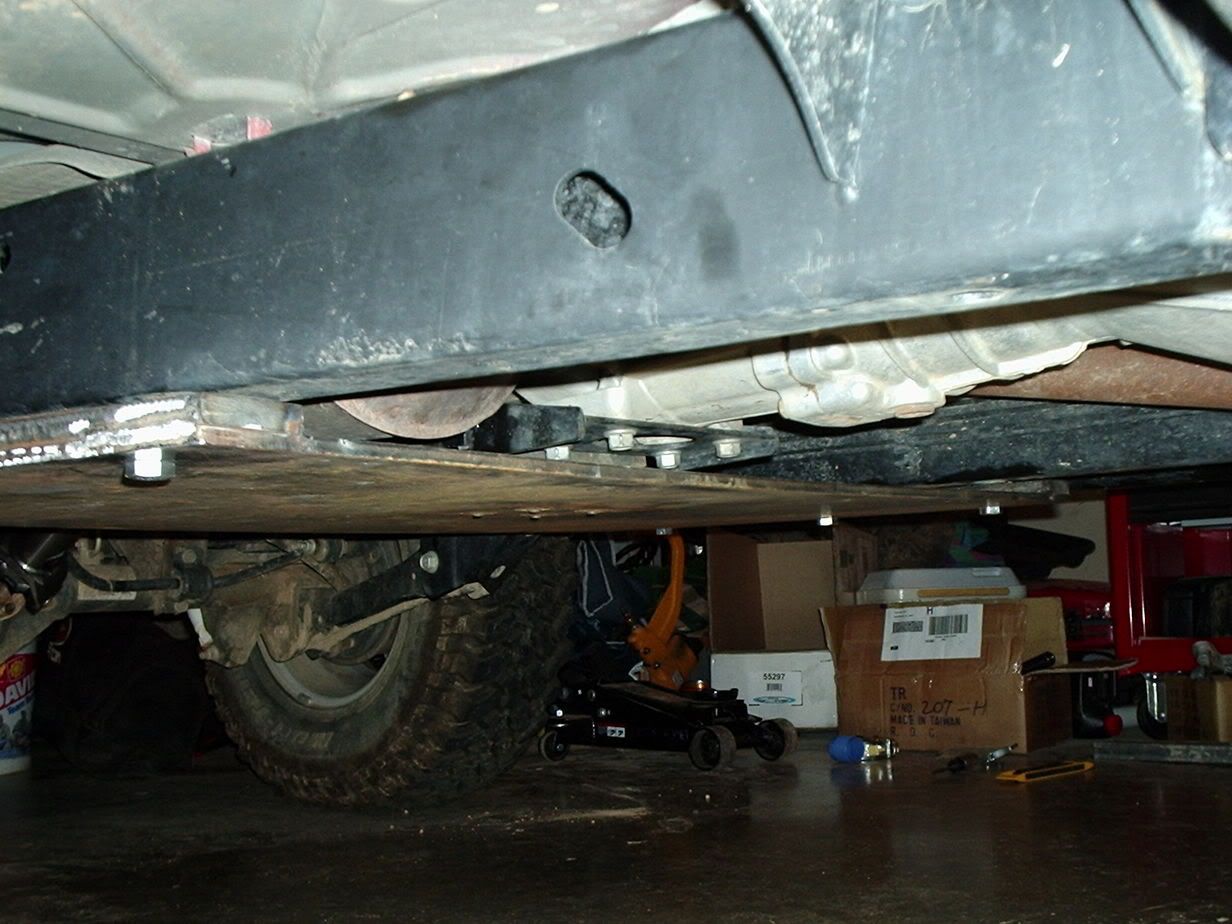

Here's mine.

2004 TJ X, RED, 5- Speed, Ecco Wheel Package, Detroit TRUE-TRACS Both ends. 2" lift,1" BL,1"MML, Rancho 9000X shocks, Warn M12000# winch, 31"x10.50" BFG MT'S. Homemade Flat T.C. Skid,SYE, Rock-It-Man Ultimate Rockers
HOOTIE is offline
post #53 of 80 Old 01-17-2006, 08:21 PM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716
Nice job. I'll be doing something very similar to that. Few questions:

Did you re-use any parts of the factory tc mount? What kind of clearance do you have between the tub and case? Did you change the tc shift linkage?

TIA, Tom


[edited, removing questions I saw you already answered.]


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
tommaho is offline
post #54 of 80 Old 01-20-2006, 01:05 PM
rsm688
Registered User

Join Date: Aug 2005
Posts: 356
hootie how thick is the metal you used for the skid and how thick is the little drop pieces you used on the side? i think im gonna do a 1" drop on the sides so i wont need a mm lift or a body lift, thats just something else i would have to buy

04 TJ Columbia Edition with some junk in the trunk
rsm688 is offline
post #55 of 80 Old 01-21-2006, 08:14 PM
HOOTIE
Registered User

Join Date: Apr 2004
Location: Alabama
Posts: 35
Quote:
Originally Posted by rsm688
hootie how thick is the metal you used for the skid and how thick is the little drop pieces you used on the side? i think im gonna do a 1" drop on the sides so i wont need a mm lift or a body lift, thats just something else i would have to buy

rsm688, I used 5/16" plate and the drop pieces are 1/2". 1" drop will be very close, you may need 1-1/2" without the body lift.

2004 TJ X, RED, 5- Speed, Ecco Wheel Package, Detroit TRUE-TRACS Both ends. 2" lift,1" BL,1"MML, Rancho 9000X shocks, Warn M12000# winch, 31"x10.50" BFG MT'S. Homemade Flat T.C. Skid,SYE, Rock-It-Man Ultimate Rockers
HOOTIE is offline
post #56 of 80 Old 01-23-2006, 01:14 PM
rsm688
Registered User

Join Date: Aug 2005
Posts: 356
looks good, i have a friend that owns a large steel company so i get metal for cheap to nothing really, would it be worth it to use 3/8" or 1/2" steel or is that overkill?

04 TJ Columbia Edition with some junk in the trunk
rsm688 is offline
post #57 of 80 Old 01-23-2006, 01:15 PM
rsm688
Registered User

Join Date: Aug 2005
Posts: 356
also is the 1/2" steel piece welded in place or is it just bolted in there?

04 TJ Columbia Edition with some junk in the trunk
rsm688 is offline
post #58 of 80 Old 01-23-2006, 03:31 PM
HOOTIE
Registered User

Join Date: Apr 2004
Location: Alabama
Posts: 35
Quote:
Originally Posted by rsm688
looks good, i have a friend that owns a large steel company so i get metal for cheap to nothing really, would it be worth it to use 3/8" or 1/2" steel or is that overkill?
If I were to do it again, I would use 1/4" plate because I had to brace the 5/16" to stop it from flexing. The 1/2" pieces are welded in.

2004 TJ X, RED, 5- Speed, Ecco Wheel Package, Detroit TRUE-TRACS Both ends. 2" lift,1" BL,1"MML, Rancho 9000X shocks, Warn M12000# winch, 31"x10.50" BFG MT'S. Homemade Flat T.C. Skid,SYE, Rock-It-Man Ultimate Rockers
HOOTIE is offline
post #59 of 80 Old 01-23-2006, 06:24 PM
tommaho
Registered User

tommaho's Avatar
1998 TJ Wrangler

Join Date: Feb 2005
Location: Williamsport
Posts: 1,716
Did you install a tc shift relo bracket? If so, which one and how much clearance did it give you?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
tommaho is offline
post #60 of 80 Old 01-24-2006, 08:52 AM
Bigbob
Registered User

Bigbob's Avatar

Join Date: Jul 2005
Location: Bakersfield
Posts: 3,743
Quote:
Originally Posted by biffstephens
Here is an aftermarket one that has a seperate tranny mount and then a skid plate. I realize it is not flat but it is very close...

http://www.rockcrawler.com/techrepor...skid/page2.asp

I really like the way this one looks....

It is above the frame rails.....leaves pleanty of roon for the FLAT skid.....in fact you could design this piece and then the skid. Then I could use 1/4 without much worry about bending or flexing....

Biff
A problem you can have with that sort of mounting is having the bellhousing or trans case crack. The powertrain wants to be mounted in a triangle to be able to flex. As the frame flexs it can twist the trans case and crack something. The idea is good, but I'd put the rubber mount at the trans and mount the ends solidly to the frame.

2006 Solar Yellow Rubicon Unlimited
Jeep Club Member #1340
6 Speed, Hardtop
Mods done: Hurst tee handle, cheap hand throttle, Rokmen Merc front bumper, Warn 9.5 TI winch with 3/8" X 100 worth of Viking yellow rope, DPG OME Ultimate with JKS ACOS up front, Kilby Gas Tank Skid, Kilby Steering Box Skid, Jeep Medic Belly Up, Skidrow Engine Skid, Rockcrusher Diff Skid in the rear, Warn Diff cover in front, , AR Outlaw II's and MTR 12:50/15's, Homemade rear Bumper, Cheap Cobra CB, Puma OBA, Sirius Radio, Locker Defeat, Rockhard cage, Rockmen short corners, homemade tire swing/tailgate hinge affair, Airlift air bags on the rear- - - - - - and more to come!
Bigbob is offline
