Fabbing a subframe for my bike...

I've got an idea to "bob" my SV. It's not an original idea, but I don't like most of the ones out there.

First, a couple pics of bobbed SVs:

What I like, but the seat would sit way to high for me:



Very clean and very minimalist. He has probably the nicest example of a bobbed SV.

What I don't like is basically just a shortened subframe. It's not bad, it's just not minimal enough for me. An example:



Here's my plans, I just need to know if it will be plenty strong to support a rider (namely, Me ).



Black and blue are the frame of the bike. White holes are factory mounting points for the factory subframe. Green is a gusset. Red is my new subframe. 1" square tubing is what I'm thinking 1/8" wall. The gussets, 3/16" plate or whatever I have lying around. I'm thinking that should be plenty strong to support my, or anybody else's, ***.

I pull my steel out of the drop pile at one of the local suppliers, so my materials are pretty much whatever is available in the quantity closest to what I need. What would the minimum tubing and wall be that would still be plenty strong?

This will be welded with my shop's MIG.

I hope that's clear as mud


2004 Wrangler X: 4.0 auto, black on black on black, REBB, 1.5" JKS BL, 1" JKS MML, 33x12.5x15, Black Soft 8's, homemade front bumper and steering skid...more armor to come in a year or so
1989 Mustang GT vert: stripped shell of a project that hasn't been started.
2006 Suzuki SV650S: Went nekkid. Aztec8 setup, Pazzo levers, M4 full Ti exhaust, PCIII, Poly26 belly plan, GSXR rear shock upgrade, Sonic springs and emulators
Xtant is offline
Sponsored Links
Advertisement

post #2 of 10 Old 03-03-2009, 04:16 AM
VACJ5
Registered User
1991 YJ Wrangler

Join Date: Jul 2008
Location: Chesapeake/Virginia Beach
Posts: 829
Dude, I can't wait to see this...

79 CJ5 Silver Anniversary Edition... revived & sold *sniff
91 YJ 4.0 L, with some stuff bolted to it... 3/4 Ton YJ
91 2 door Cherocar... in progress

BeachMetalWorks Custom CNC cut Jeep parts & more
VACJ5 is offline
post #3 of 10 Old 03-03-2009, 06:45 AM
lurkeryj
Senior Member
1997 XJ Cherokee

Join Date: Mar 2008
Location: jersey
Posts: 538
sv's rock. i love mine
lurkeryj is offline
post #4 of 10 Old 03-03-2009, 06:51 AM
prjohnson
Registered User
2002 TJ Wrangler

Join Date: May 2008
Location: Marietta, GA
Posts: 643
Let me give you a warning about making it like the one in the first picture....Don't wear anything you care about, you'll fling all kinds of stuff on your back.

Ask me how I know...
prjohnson is offline
post #5 of 10 Old 03-03-2009, 03:18 PM Thread Starter
Xtant
Currently Depolyed

Xtant's Avatar

Join Date: Jan 2005
Location: Bagram Air Field, Afghanistan
Posts: 49
I'll putting a hugger on, too. Don't need that much of a roooster tail flying up my back

I'm trying to piece together the parts I need, right now. Budget is slim, but hopefully by mid-summer I can have a bobber.

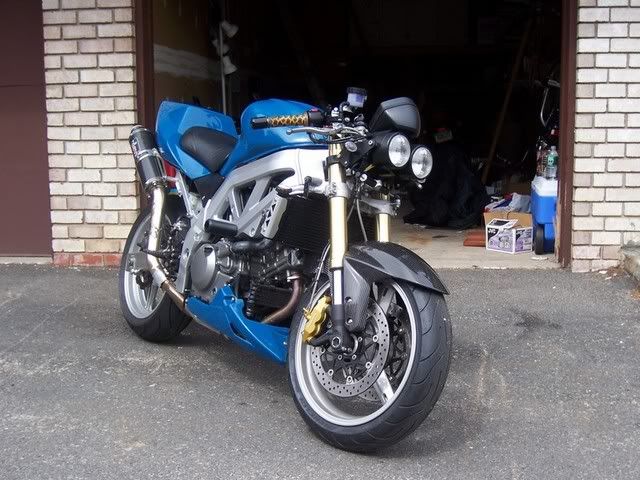

Here's mine, minus the Poly26 chin:



So...do you guys see any major flaws in my design?

2004 Wrangler X: 4.0 auto, black on black on black, REBB, 1.5" JKS BL, 1" JKS MML, 33x12.5x15, Black Soft 8's, homemade front bumper and steering skid...more armor to come in a year or so
1989 Mustang GT vert: stripped shell of a project that hasn't been started.
2006 Suzuki SV650S: Went nekkid. Aztec8 setup, Pazzo levers, M4 full Ti exhaust, PCIII, Poly26 belly plan, GSXR rear shock upgrade, Sonic springs and emulators
Xtant is offline
post #6 of 10 Old 03-04-2009, 06:19 AM
prjohnson
Registered User
2002 TJ Wrangler

Join Date: May 2008
Location: Marietta, GA
Posts: 643
I don't see any problems with it. Will you be able to use your existing battery tray?
I've seen plenty of things like this done on k a w i f o r u m s.com
prjohnson is offline
post #7 of 10 Old 03-04-2009, 10:39 AM
mudwhoreTJ
Registered User
1998 TJ Wrangler

Join Date: Dec 2008
Location: USA
Posts: 78
I always thought that "bob" meant battery operated boyfriend???
mudwhoreTJ is offline
post #8 of 10 Old 03-04-2009, 03:02 PM
oteps
Registered User
1980 CJ5

Join Date: Jul 2007
Location: pennsylvania
Posts: 678
Sv's are fun, i race a sv1000 and 650. The second pic would probably work better because you need room for the battery, fuse box, ecu and a couple other things. Where are you going to put the taillight and turn signals? Or dont you need them where you live? It would be easier to get a subframe off ebay and cut it, then reinforce it with a couple tubes. That way you can have an exhaust hanger and put the taillight under it so the cops dont bother you.
oteps is offline
post #9 of 10 Old 03-05-2009, 08:51 PM
kzjim
Registered User
1996 XJ Cherokee

Join Date: Oct 2006
Location: West Covina, CA
Posts: 201
Quote:
Originally Posted by lurkeryj View Post
sv's rock. i love mine
Nice!! I like it

"Those who hammer their guns into plows will plow for those who do not"...Thomas Jefferson

"Beware lest the Stone Age return on the gleaming wings of science." - Winston Churchill
kzjim is offline
post #10 of 10 Old 03-10-2009, 04:16 PM Thread Starter
Xtant
Currently Depolyed

Xtant's Avatar

Join Date: Jan 2005
Location: Bagram Air Field, Afghanistan
Posts: 49
Friday I'm going to buy the steel and get started. One last question. Square tubing, better bent or cut and welded? I cannot bend anything, but I've found a local fab shop that would do the six bends I would need.

What are the pros and cons of bent vs welded?

Just checked on Air filters. Need to go to pod style for room for battery and electronics under the tank. The air filters (one for each throttle body) are $40 a piece

2004 Wrangler X: 4.0 auto, black on black on black, REBB, 1.5" JKS BL, 1" JKS MML, 33x12.5x15, Black Soft 8's, homemade front bumper and steering skid...more armor to come in a year or so
1989 Mustang GT vert: stripped shell of a project that hasn't been started.
2006 Suzuki SV650S: Went nekkid. Aztec8 setup, Pazzo levers, M4 full Ti exhaust, PCIII, Poly26 belly plan, GSXR rear shock upgrade, Sonic springs and emulators

Last edited by Xtant; 03-10-2009 at 04:34 PM.
Xtant is offline
