DOM weldable surface area question

Making control arms.

1.5" OD tube
1.5" joint housing width

Is there enough surface area to weld the two pieces together? Considering the joint housing staying the same 1.5", should the tubing be dropped down to 1" OD, or is the 1.5" on 1.5" ok?

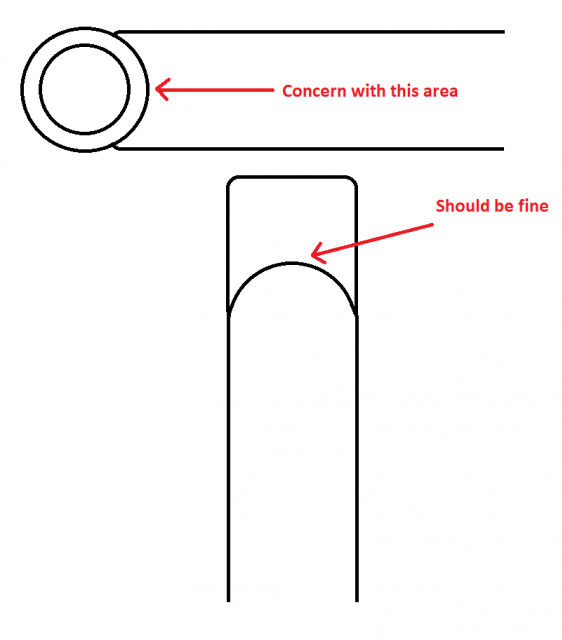

A CAD illustration:




TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 08:37 AM   #2
Danno6102
Web Wheeler

Danno6102's Avatar
2003 TJ Wrangler

Join Date: Jun 2011
Location: , Indiana
Posts: 1,555
Grind a bevel around the side of the arm tube to give you a pocket for the weld.

What joints are you using in those? That's a small ID. (if drawn to scale)
__________________
IndyORV
My Build

"Evolution through carnage, the Jeep will keep what it needs."
Danno6102 is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 08:49 AM   #3
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,321
Haha. Definitely not drawn to scale. It's what I'm good for in MS Paint.

Using Metal Cloak Joints.
TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 08:53 AM   #4
Danno6102
Web Wheeler

Danno6102's Avatar
2003 TJ Wrangler

Join Date: Jun 2011
Location: , Indiana
Posts: 1,555
Quote:
Originally Posted by TXST8tj View Post
Haha. Definitely not drawn to scale. It's what I'm good for in MS Paint.

Using Metal Cloak Joints.
thought the narrowest one was 2".

they have a snap ring groove around them, id' be careful about burning into this groove. The snap ring won't fully seat.
__________________
IndyORV
My Build

"Evolution through carnage, the Jeep will keep what it needs."
Danno6102 is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 09:05 AM   #5
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,321

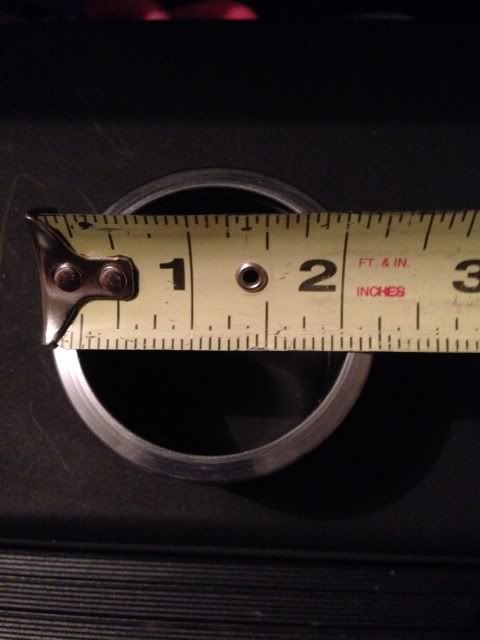

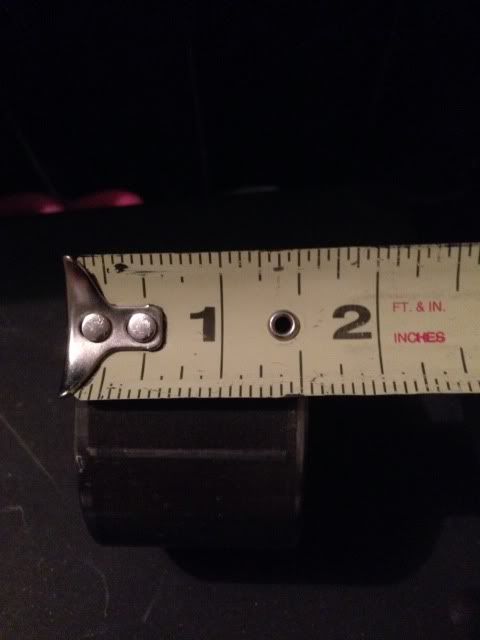

These are the 2.25" diameter, 2" joints. The joint housing width is 1.5". The joint itself is 2".



TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 09:13 AM   #6
Danno6102
Web Wheeler

Danno6102's Avatar
2003 TJ Wrangler

Join Date: Jun 2011
Location: , Indiana
Posts: 1,555
Brain fart. 2" mounting width. Durrrr.

I assume with 2" joints these are for uppers. You'd be fine with smaller tube. Currie uses 1"x.156" wall DOM on all their arms, upper & lower. But if it were me, I'd still use the 1.5" on the lowers, they're wider & shouldn't have a problem.
__________________
IndyORV
My Build

"Evolution through carnage, the Jeep will keep what it needs."
Danno6102 is offline   Reply With Quote Quick reply to this message
Unread 11-15-2013, 09:22 AM   #7
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,321
Yes, these are for the rear uppers. I bought the joints a while ago when I was looking for projects to do. Ironically, I never got around to it, but it's time to do something with the parts. I will probably just buy them made from MC next time, but it seemed like a good project.
