DIY Swing out tire carrier Bumper

I have ordered all my parts to build a swing out tire carrier bumper. Can anyone give me some suggestions on how you built yours or what you may have done different or added...Post pictures if you like...Thanks


2005 SILVER Unlimited, Cobra 25LTD CB w/400 watt linear amp (yes I want to be heard), Wilderness rack, 8 KC daylighters...Coming Soon 4" Lift, Body Lift and more

(OIIIIIO) Real Jeeps have round headlights
Ala05Unlimited is offline
Sponsored Links
Advertisement

post #2 of 21 Old 10-11-2006, 08:55 PM
RockRunner85
Registered User
2004 TJ Wrangler

Join Date: Mar 2004
Location: Fairfax, VA
Posts: 3,334
Ummm if you've ordered your parts don't you already have the plan in mind. Not like you can change it too much your you'll have to order more parts.

I would look at different tire carriers availabe to buy and see what you like and don't like and go from there. I went with Jeeperman and really like how its built. If I was building from scratch I would base it off theres.

2004 Black Rubicon w/ 5 spd

RE 3.5 SuperFlex & Front Trackbar / JKS 1.25" BL & MML / 35x12.5 MTRs on 15x8 AR-23s / Currie Anti-Rock / Jeeperman Bumpers / Rokmen Sliders / York OBA / Harbor Freight 8k Winch
RockRunner85 is offline
post #3 of 21 Old 10-11-2006, 09:24 PM Thread Starter
Ala05Unlimited
Registered User

Join Date: Oct 2006
Location: Phenix City, AL
Posts: 38
Yes I have all my ideas planned out. I am going to have it mount to the tail gate on a hinge system, two Jerry can mounts, Hi jack mounts, CB and KC light mounts.

2005 SILVER Unlimited, Cobra 25LTD CB w/400 watt linear amp (yes I want to be heard), Wilderness rack, 8 KC daylighters...Coming Soon 4" Lift, Body Lift and more

(OIIIIIO) Real Jeeps have round headlights
Ala05Unlimited is offline
post #4 of 21 Old 10-12-2006, 06:37 AM
dr hook
Registered User
1998 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 662

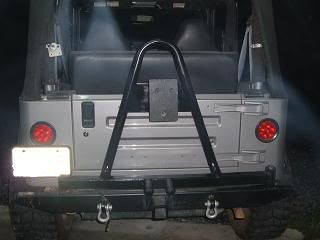

heres mine, but it's bumper based.




Lifted ZJ with stuff.
dr hook is offline
post #5 of 21 Old 10-12-2006, 07:12 AM
EaglesSJ
Registered User

EaglesSJ's Avatar
2005 TJ Wrangler

Join Date: Jun 2005
Location: The heart of KY
Posts: 2,246

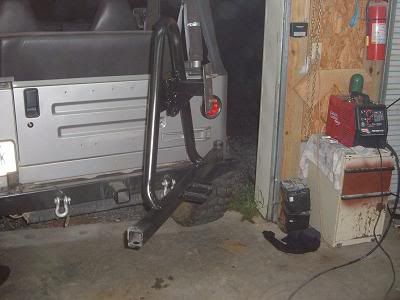

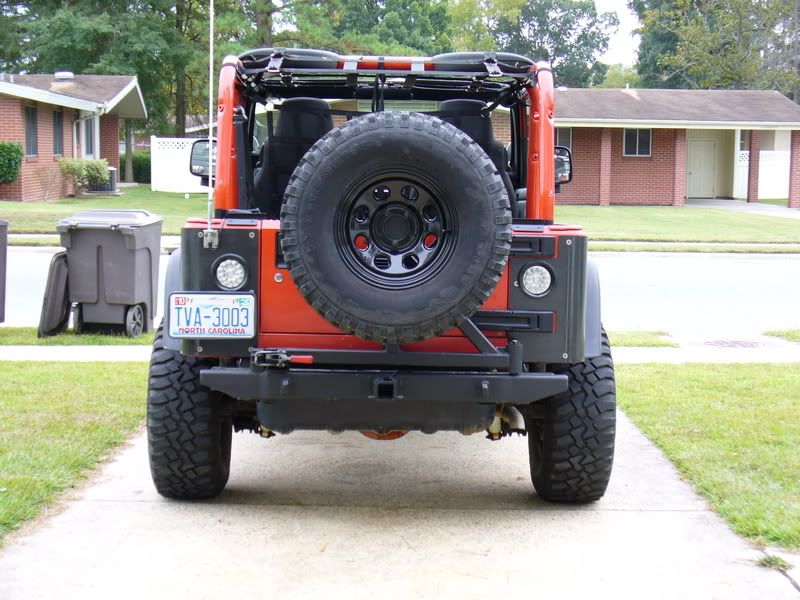

Heres mine I built from 1/4" materials. Its now for sale



EaglesSJ is offline
post #6 of 21 Old 10-12-2006, 08:32 AM
jonzer12
Registered User
2000 XJ Cherokee

Join Date: Aug 2006
Location: CANADA
Posts: 623
I am not quite sure I understand, you said you were going to build a "swing out tire carrier bumpber that mounts to the tailgate". DO NOT mount your planned jerry can moutns, etc to the tailgate, build it off the bumper has the tailgate can't support much weight.
jonzer12 is offline
post #7 of 21 Old 10-12-2006, 09:28 AM
dieseljeep
Registered User

Join Date: Apr 2004
Posts: 528
Quote:
Originally Posted by Ala05Unlimited
Yes I have all my ideas planned out. I am going to have it mount to the tail gate on a hinge system, two Jerry can mounts, Hi jack mounts, CB and KC light mounts.
When you get your parts, go ahead and throw them in the garage & let them collect a little dust. You haven't done nearly enough homework yet. Save yourself money, heartache & trouble and wait till someone can put you back on track.
dieseljeep is offline
post #8 of 21 Old 10-12-2006, 09:57 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
At the top of the Fabrication Forum main page there's a sticky about a rear bumper buildup. The writeup is decent but the guy who wrote it is a real jerk sometimes.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline
post #9 of 21 Old 10-12-2006, 10:47 AM
Bigbob
Registered User

Bigbob's Avatar

Join Date: Jul 2005
Location: Bakersfield
Posts: 3,594
Quote:
Originally Posted by BESRK
The writeup is decent but the guy who wrote it is a real jerk sometimes.
I noticed the same. It seems like the moderator of this forum would ban those type of poster/posers. bob

2006 Solar Yellow Rubicon Unlimited
Jeep Club Member #1340
6 Speed, Hardtop
Mods done: Hurst tee handle, cheap hand throttle, Rokmen Merc front bumper, Warn 9.5 TI winch with 3/8" X 100 worth of Viking yellow rope, DPG OME Ultimate with JKS ACOS up front, Kilby Gas Tank Skid, Kilby Steering Box Skid, Jeep Medic Belly Up, Skidrow Engine Skid, Rockcrusher Diff Skid in the rear, Warn Diff cover in front, , AR Outlaw II's and MTR 12:50/15's, Homemade rear Bumper, Cheap Cobra CB, Puma OBA, Sirius Radio, Locker Defeat, Rockhard cage, Rockmen short corners, homemade tire swing/tailgate hinge affair, Airlift air bags on the rear- - - - - - and more to come!
Bigbob is offline
post #10 of 21 Old 10-12-2006, 11:52 AM Thread Starter
Ala05Unlimited
Registered User

Join Date: Oct 2006
Location: Phenix City, AL
Posts: 38
Now, about mounting to the tail gate. The bumper will be mounted in the stock location, but I am adding a bracket to the tail gate. This giving it more support and hopefully stop the rattling that is common with swingout bumpers. I been doing my homework for awhile, just though I could get alittle more input.

2005 SILVER Unlimited, Cobra 25LTD CB w/400 watt linear amp (yes I want to be heard), Wilderness rack, 8 KC daylighters...Coming Soon 4" Lift, Body Lift and more

(OIIIIIO) Real Jeeps have round headlights
Ala05Unlimited is offline
post #11 of 21 Old 10-12-2006, 01:55 PM
Psyker
Registered User

Join Date: Oct 2004
Location: Marietta, GA
Posts: 373
Build it right and you wont need anything except the spindle and the latch.

Personally I used a screw-type latch when I built mine (cherokee, so no tailgate points to use) with rubber grommets at the screw. I have had no rattles, vibration or anything like that.

Rattles come from poor design, measurement and construction. Take your time, make tolerances close, weld well and you wont have problems.

Call Sign: KF4ZHT

'96 Green XJ SE - I6, AX15, NP231, 2.5" Lift

'90 White YJ - 4 squirrels spinning a toothpick (i4 w/ax5) - WIP
Psyker is offline
post #12 of 21 Old 10-12-2006, 03:24 PM Thread Starter
Ala05Unlimited
Registered User

Join Date: Oct 2006
Location: Phenix City, AL
Posts: 38
Thank you...

2005 SILVER Unlimited, Cobra 25LTD CB w/400 watt linear amp (yes I want to be heard), Wilderness rack, 8 KC daylighters...Coming Soon 4" Lift, Body Lift and more

(OIIIIIO) Real Jeeps have round headlights
Ala05Unlimited is offline
post #13 of 21 Old 01-29-2009, 11:52 AM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,027
Garage
Quote:
Originally Posted by jonzer12 View Post
I am not quite sure I understand, you said you were going to build a "swing out tire carrier bumpber that mounts to the tailgate". DO NOT mount your planned jerry can moutns, etc to the tailgate, build it off the bumper has the tailgate can't support much weight.
On my rig, '78 CJ 5, I built a security locker box that I've bolted to the floor in place of the rear seat (who can fit on that rear seat anyway) and my oversize rear tire mount bolts through the sheet metal tailgate to the locker box that is supported from the floor of the Jeep. (Note my CJ doesn't have a tailgate)
turbogus is offline
post #14 of 21 Old 01-26-2010, 07:41 AM
jesseleikerjeep
Registered User
1991 YJ Wrangler

Join Date: May 2009
Location: Colorado Springs, Co
Posts: 409
Quote:
Originally Posted by BESRK View Post
At the top of the Fabrication Forum main page there's a sticky about a rear bumper buildup. The writeup is decent but the guy who wrote it is a real jerk sometimes.
I noticed this as well...and his hands are always all "grinding wheel'd" and dirty....
jesseleikerjeep is offline
post #15 of 21 Old 02-28-2011, 08:56 PM
CMOfoSHO
Registered User
1999 TJ Wrangler

Join Date: Feb 2011
Location: boaz
Posts: 27
im buildin a tire carrier soon these have gave me a good picture for it. thanks guys
