Dez Racer XJ build - Page 10 - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > General Technical Discussions > Fabrication Shop > Dez Racer XJ build

XJ Rail Sale!The Ruffstuff NOT Universal 4 Link Kit!Vanco Big Brake Kit Promotion!

Reply
Unread 02-12-2008, 11:49 AM   #136
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
Too bad you are not in Cali Could use some help, sounds like you have the perfect background. There are people that travel from Texas to race Jeepspeed so get to building! You will not be disappointed. I am looking into the halon still but it is almost a sure thing we will have a system in place before we race. Thanks for the advice, much appreciated and best of luck!
Quote:
Originally Posted by ProMod1385 View Post
Too bad your not in MN. I worked in ProMod Drag racing and know a thing or two about fab and race prep, i would love to give you a hand. The jeep speed class intrigues me and it might be the best way for me and a couple of buddies to race at Baja I am thinking if we built one here in MN we could keep it in AZ at my families vacation house and travel for races.

I noticed a dialog about halon systems a couple pages back. If you can afford them and they don't push you over your 4K weight limit i would say to go for one! I have seen a couple guys burn up $100,000 race cars because there class didn't require halon and they were not running them. (one was a supercomp car and the other a fast door car) I had one crewman's daughter accidentally hit the lever in the garage and set off the bottle one time, it was a mess so make sure you keep the cotter pin in the bottle when not racing the car. Otherwise they are cheap piece of mind both from a $$$ point of view and from a safety point of view.

got the dash mocked up, made one set out of regular mild steel but we are most likely making the final product out of 6061 Aluminum, we have all the switches and buttons, just need to assemble and wire it all when I get some time, I'll take some pics of the mild steel dash in a bit:


__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/f37/dez-racer-xj-build-367176/
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-23-2008, 09:55 AM   #137
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966

__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 10:34 AM   #138
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966

__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 11:49 AM   #139
Matt Gertsch
www.lp.org

Matt Gertsch's Avatar
1999 XJ Cherokee

Join Date: Jan 2005
Location: Nor Cal
Posts: 8,862
Great progress, can wait to see it race.
__________________
Derpy Hooves for President in 2012
Matt Gertsch is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 12:08 PM   #140
aircruiser
Registered User
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,701
she's looking purty!
__________________
1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 04:29 PM   #141
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
Thanks guys! wife is due any day so on call! got the removable(to service the fuel cell) section of the tire rack/bumper almost done, may add some dimple die plates and a few more small tubes:

__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 04:45 PM   #142
Comanche_
Registered User
1985

Join Date: Sep 2007
Location: The not wet side,Washington
Posts: 1,301
Looks amazing. :twothumbsup:
__________________
Eppur si muove
Quote:
Originally Posted by Z0NAJEEP View Post
With more stupid comments? Two retards don't make a right.
Comanche_ is offline   Reply With Quote Quick reply to this message
Unread 02-24-2008, 05:21 PM   #143
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
Thanks much!

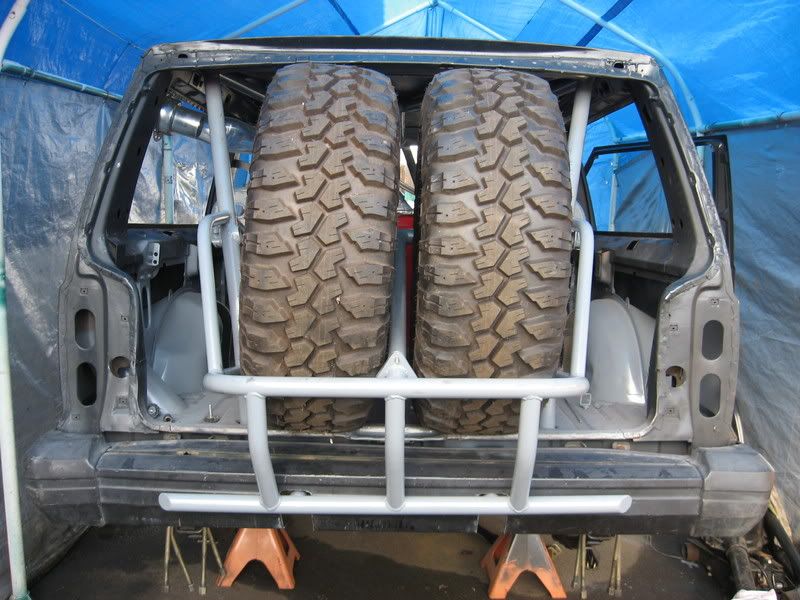

Got the tires in and have plenty of room for a spare D/S and highlift underneath:

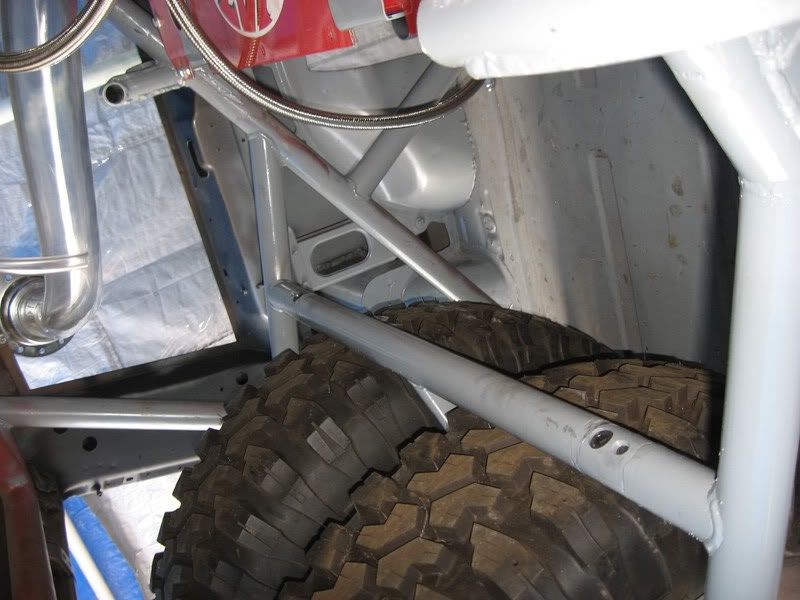

plenty of room for dual optimas and other spares:

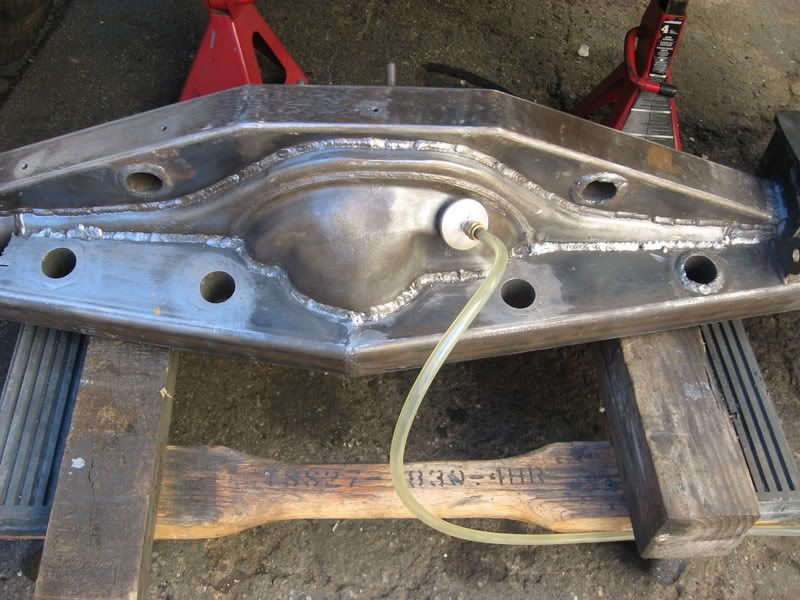

the 9" is getting some silt drain holes, a fill plug/vent, and a much needed drain plug in the bottom, no way to drain them(easily) without pulling the 3rd member, so had to do that for frequent gear oil changes/inspections:
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 02-26-2008, 12:16 PM   #144
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
fill plug and vent combined, anybody see a problem with this set-up?
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 03-01-2008, 02:24 PM   #145
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
decided to start on the front leaf spring hangers while I had the rear end out...again. What a major pain they were, even after searching out the spot welds and drilling them out, they were stubborn! Those factory spot welds are surprisingly hard to tear without drilling them out completely.

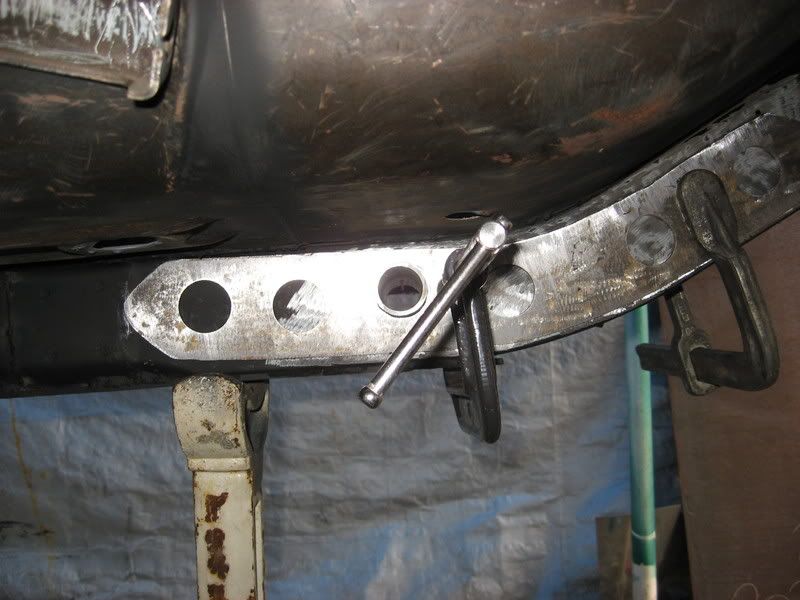

Whats left of the psgner side hanger:

the start of the inside bolt access tube:

the start of the inner mount itself, there will be a piece of .250" plate formed into an L for the outer mount, and a piece of plate along the roof/floor.
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 03-01-2008, 04:34 PM   #146
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
the outer "cup" for the inner leaf spring mounting surface, made from .250" cold roll plate, the piece and the template are upside down relative as the top portion had to be almost vertical:
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 03-01-2008, 05:27 PM   #147
aircruiser
Registered User
1996 XJ Cherokee

Join Date: Jun 2006
Location: minnesota
Posts: 9,701
Quote:
Originally Posted by skullver View Post
fill plug and vent combined, anybody see a problem with this set-up?

oh! oh! i know!!

it needs to be under the jeep to make the jeep move!

did i get it right?























__________________
1996 XJ on 36" TSLs, 4", locked F/R, stretched
aircruiser is offline   Reply With Quote Quick reply to this message
Unread 03-01-2008, 08:35 PM   #148
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
Love this build! Super work!
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 03-05-2008, 10:20 AM   #149
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
Thanks Besrk! Much appreciated! After a few different versions of parts,and many hours of wasted time, and many chunks of wasted steel, I think I finally finished up my final design, aside from the outer spring mount that will be a single formed piece of 3/16" cold roll that should be here today, cold roll is hard to find around here thicker than 20 guage so I have to order from online metals.

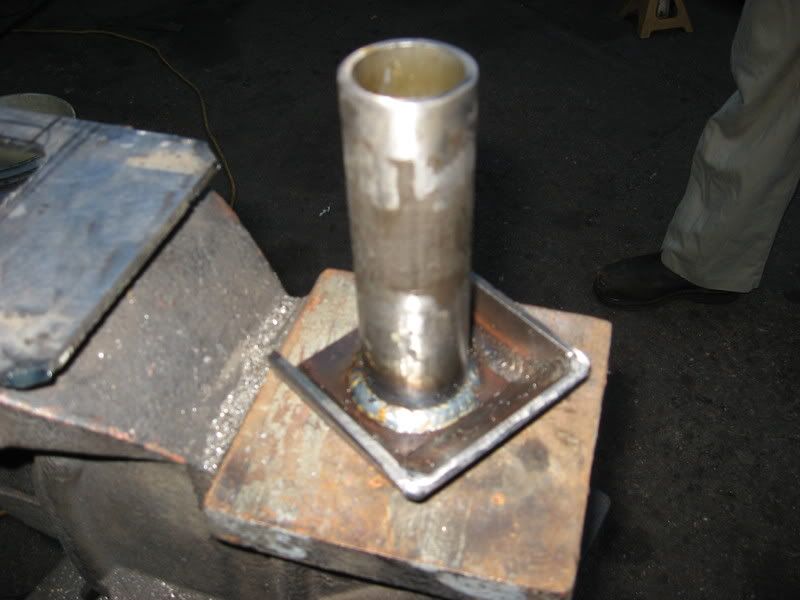

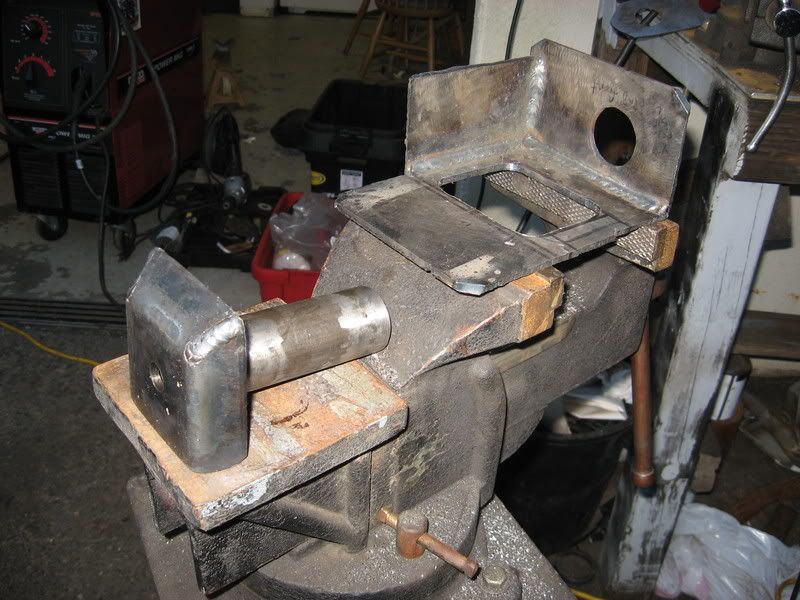

here are the pieces that will make it up:
the thru tube and inner spring mount:

the main piece and how they go together but upside down, the box is a single piece of 3/16 with 2 90 deg bends

and all the parts together, should be close to installing them this afternoon but still have to make the mirror image for the other side, that will be easy as I kept and labeled all of my cardboard templates for each piece and the version, currently at version 3
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Unread 03-05-2008, 04:43 PM   #150
skullver
Tarpitz
1991 XJ Cherokee

Join Date: Jan 2007
Location: Ventura, Carp, La Conchita, CA
Posts: 966
got them all formed, welded, and mocked up, perfect fit! The top portion of the plate with gussets will be tied to the cage from the inside, should never have a problem with those:

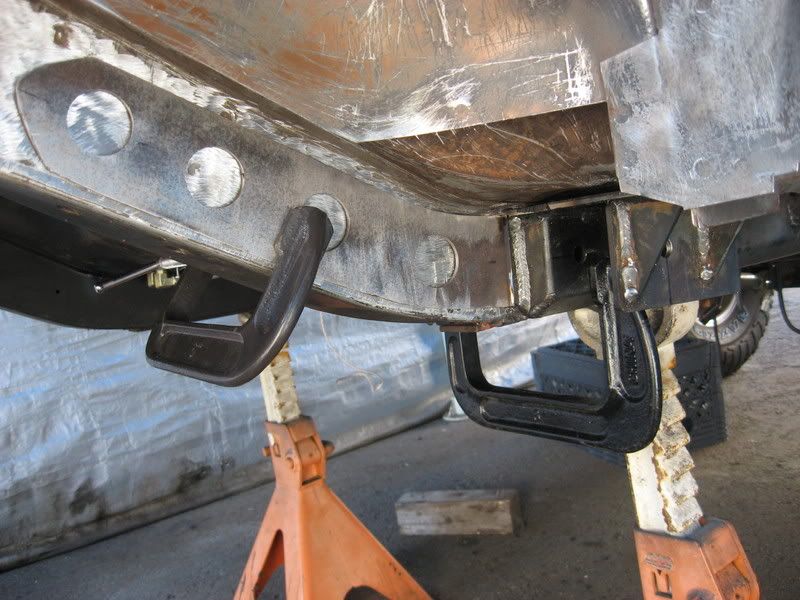

from the inside of the "frame" rail:



lighting is a little screwy with my camera
__________________
Blah blah blah blah.

my Jeepspeed build thread:
http://www.jeepforum.com/forum/showthread.php?t=367176
skullver is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
