Custom UHMV skid plate

figured some of you may be interested in this, i wish i would have taken more pictures during the framing part of the build but i was trying to move through it at a nice pace.


anyways, i needed to build a skid/trans mount for a customers CJ8 build. needed to be reasonably low profile and still protect the dana300 and TH400, along with containing a mounting point for the trans mount and the stub half of the 2 piece driveshaft setup.

i first drilled out some holes and welded in some 1/2 ID bosses



then took some 2x2x.25 angle and conformed it to the shape of the frame and framed it up with some 1x1x.120 box tube and some 1x2x3/16 tube, then welded some angle up for the driveshaft and trans mounts

painted it up




took some 1/8 plate steel and cut out the 3 panels i would need to cover the skid.




then began the process of drilling out all the plates and drilling and tapping the framework



painted the steel up


and the impact resistant 1/2" UHMV showed up



set the plates up and outlined the cuts i needed to make


bolted the plates to the framework and put a few welds on it to help it keep its shape


cut out the UHMV and put a shallow groove to help with the bending. and marked all the holes for drilling and countersinking



the UHMV was drilled and all the edges were angled

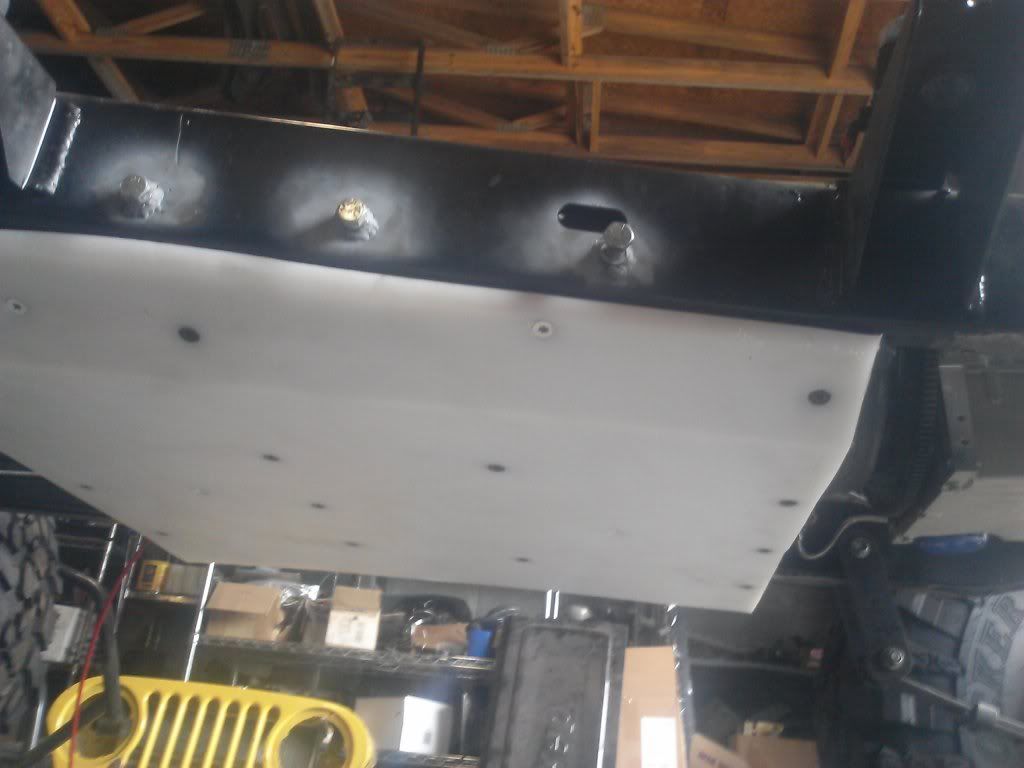

and bolted it all down and used a heat gun to help make the bends in the UHMV more permanent

and also added 6 seperate bolts that are only there to hold the UHMV to the steel plate so that when the skid is removed the plate stays attatched the UHMV. the bolts are painted white to keep from confusing them with the other bolts










annnnnd, thats it

__________________
00XJ limited.....Tons, ORI's, Caged
92xj....Linked, Locked, Caged, Armored...RIP
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote Quick reply to this message
Unread 05-20-2013, 07:59 PM   #2
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,164
Nice!
wushaw is offline   Reply With Quote Quick reply to this message
Unread 05-21-2013, 06:31 PM   #3
lar308
Member

lar308's Avatar
1990 YJ Wrangler

Join Date: Oct 2011
Location: Newark, Ohio
Posts: 282
Very nice, I'll be using some of you ideas, if you don't mind. Ron
lar308 is offline   Reply With Quote Quick reply to this message
Unread 05-22-2013, 10:03 AM   #4
SFRautomotive
#WannaBeRockBouncer

SFRautomotive's Avatar
1992 XJ Cherokee

Join Date: May 2010
Location: Jacksonville,FL
Posts: 2,189
Thanks.

Go ahead, use what you want
__________________
00XJ limited.....Tons, ORI's, Caged
92xj....Linked, Locked, Caged, Armored...RIP
what are leaf springs?
"You're what's wrong with America. You don't drink enough PBR and you probably run sway bars on the street. Fawking communist."-ibjeepin95
2013 COTY
SFRautomotive is offline   Reply With Quote Quick reply to this message
Unread 05-22-2013, 08:37 PM   #5
Copperhead89
Registered User
1989 YJ Wrangler

Join Date: Aug 2011
Location: Tampa, FL
Posts: 944
Nice job! BTW, the abbreviation for that type of plastic is UHMW. It stands for Ultra High Molecular Weight. I used to design parts made of that material for the food processing industry.
