creating a tire carrier on stock bumper

I want to create a tire carrier on my stock rear bumper does anyone have any idea. Any input would help thanks

Tkoffroad is offline   Reply With Quote Quick reply to this message
Unread 10-03-2012, 03:03 PM   #2
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,452
I don't think the stock bumper will support the extra weight of a carrier + tire.
Jason is offline   Reply With Quote Quick reply to this message
Unread 10-03-2012, 03:41 PM   #3
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa, AZ
Posts: 1,465
I second the weight issue. But if you are up for building something like this maybe build it to look like stock but more rigid for the added weight. Would be a good time to think about recovery points also. Maybe a few D rings?
__________________
84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline   Reply With Quote Quick reply to this message
Unread 10-03-2012, 03:45 PM   #4
sjones26573
Au revoir, gopher.

sjones26573's Avatar
2004 TJ Wrangler

Join Date: Aug 2011
Location: Concord/Harmony/Raleigh, NC
Posts: 9,498
The stock bumper is basically tin foil. It would crumple under the weight.
__________________
The Yellowtail Build

Quote:
Originally Posted by Jeremy Clarkson - Top Gear Botswana Special
Why don't all cars have no doors? When I come to power I'm going to make it a rule because this is just better.
sjones26573 is offline   Reply With Quote Quick reply to this message
Unread 10-03-2012, 03:47 PM   #5
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids, Michigan
Posts: 6,452
Quote:
Originally Posted by ltrail View Post
I second the weight issue. But if you are up for building something like this maybe build it to look like stock but more rigid for the added weight. Would be a good time to think about recovery points also. Maybe a few D rings?
Something that looks like this perhaps?

Jason is offline   Reply With Quote Quick reply to this message
Unread 10-04-2012, 01:21 PM   #6
Tkoffroad
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: Columbia city, INDIANA
Posts: 24
Ok thanks guy can anyone recommend a bumper with a tire carrier that looks close to stock a possible
Tkoffroad is offline   Reply With Quote Quick reply to this message
Unread 10-04-2012, 02:10 PM   #7
Apostle
Registered User
2013 JK Wrangler

Join Date: Jul 2008
Location: Lexington, KY
Posts: 1,880
Try looking at an XJ (cherokee) stock tire carrier. It is tied into the unibody with L brackets, then tied again onto the bumper. when all said and done, you have a C around the bumper and the carrier is part of that C.

Here is the one i did on an old rig. it was a pre 97, put onto a 97.

__________________
[CENTER]I take what i want from posts, and interpret them the way i see fit. If it's wrong, oh well[/CENTER]

[CENTER]You'll get over it[/CENTER]



[SIZE="1"]"To learn who rules over you, simply find out who you are not allowed to criticize.”
–Voltaire[/SIZE]
Apostle is offline   Reply With Quote Quick reply to this message
Unread 10-04-2012, 03:41 PM   #8
Diamond-x
Registered User
1991 XJ Cherokee

Join Date: Aug 2008
Location: Socal
Posts: 1,195
If you used the stock bumper as a skin that fit tightly over an internal structure you could make it work. But personally, I think a custom bumper could be made to look nicer than the stock unit.
Diamond-x is offline   Reply With Quote Quick reply to this message
Unread 10-04-2012, 08:10 PM   #9
sailsurf7713
Registered User
1999 TJ Wrangler

Join Date: Jun 2008
Location: Rhode Island
Posts: 1,117
Genright's mimics the rear crossmember. What size tire are you running?

What do you mean by stock? Tin bent into a squarish profile with some milk jugs shoved in the end?
__________________
'99 SE: The "It could be worse..." jeep

Quote:
Originally Posted by 97flexy View Post
...I say don't lift but CUT. :)
My Rusty Revival
sailsurf7713 is offline   Reply With Quote Quick reply to this message
Unread 10-05-2012, 07:29 AM   #10
monkers
Registered User
2010 JK Wrangler

Join Date: May 2007
Location: Upstate NY, NY
Posts: 637

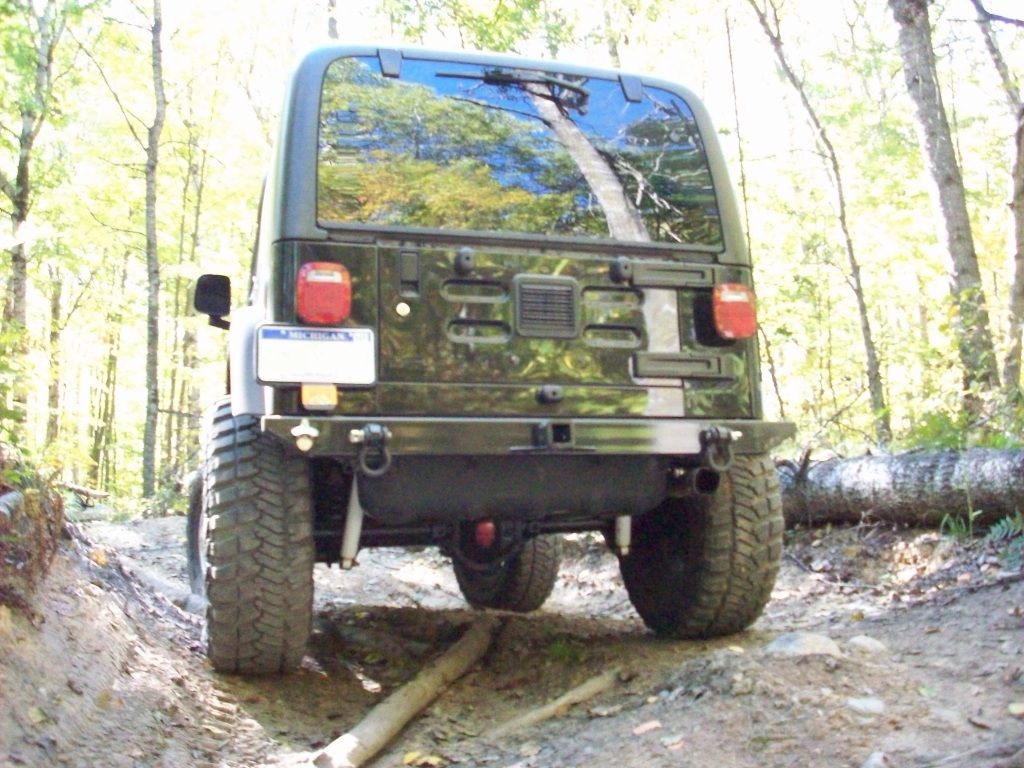

Aev makes a carrier that will work with the stock bumper. Ties to the frame not the bumper
__________________
2010 Rescue Green 2 Door 6 Spd, 2.5" RK Max Travel, Fox 2.0 IFP Shocks, 37" Nitto Trail Grappler M/T, EVO Sleeves, Gussets, Mini Skids, Rock Stars, Poly Perf Long Travel Upper Shock Mounts, Poison Spyder Evap Skid, Diff Covers, Grab Handles, Cobra 75WXSt, Stern Cibie/Osram Light Upgrade, Mopar Heated Seats, Trimmed Flares & Bumpers
monkers is offline   Reply With Quote Quick reply to this message
Unread 10-05-2012, 01:27 PM   #11
Tkoffroad
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: Columbia city, INDIANA
Posts: 24
Quote:
Originally Posted by Apostle
Try looking at an XJ (cherokee) stock tire carrier. It is tied into the unibody with L brackets, then tied again onto the bumper. when all said and done, you have a C around the bumper and the carrier is part of that C.

Here is the one i did on an old rig. it was a pre 97, put onto a 97.
Did you make this cause it is pretty awesome and I am running 33
Tkoffroad is offline   Reply With Quote Quick reply to this message
Unread 10-05-2012, 01:36 PM   #12
Tkoffroad
Registered User
2001 TJ Wrangler

Join Date: Sep 2012
Location: Columbia city, INDIANA
Posts: 24
What is the aev carrier called
Tkoffroad is offline   Reply With Quote Quick reply to this message
Unread 10-05-2012, 01:57 PM   #13
Apostle
Registered User
2013 JK Wrangler

Join Date: Jul 2008
Location: Lexington, KY
Posts: 1,880
Quote:
Originally Posted by Tkoffroad View Post
Did you make this cause it is pretty awesome and I am running 33
No, its a stock pre-97 cherokee carrier (few were put on over its lifespan). I jsut modified it to fit my 97.

but you can see how it is a plate with the carrier on it, then behind the bumper is another plate (bumper is sandwiched between) with all the mounts for the frame/unibody
__________________
[CENTER]I take what i want from posts, and interpret them the way i see fit. If it's wrong, oh well[/CENTER]

[CENTER]You'll get over it[/CENTER]



[SIZE="1"]"To learn who rules over you, simply find out who you are not allowed to criticize.”
–Voltaire[/SIZE]
Apostle is offline   Reply With Quote Quick reply to this message
Unread 10-07-2012, 06:18 PM   #14
CaseyTibbs
Registered User
1998 TJ Wrangler

Join Date: Aug 2012
Location: Grand Junction, CO
Posts: 27

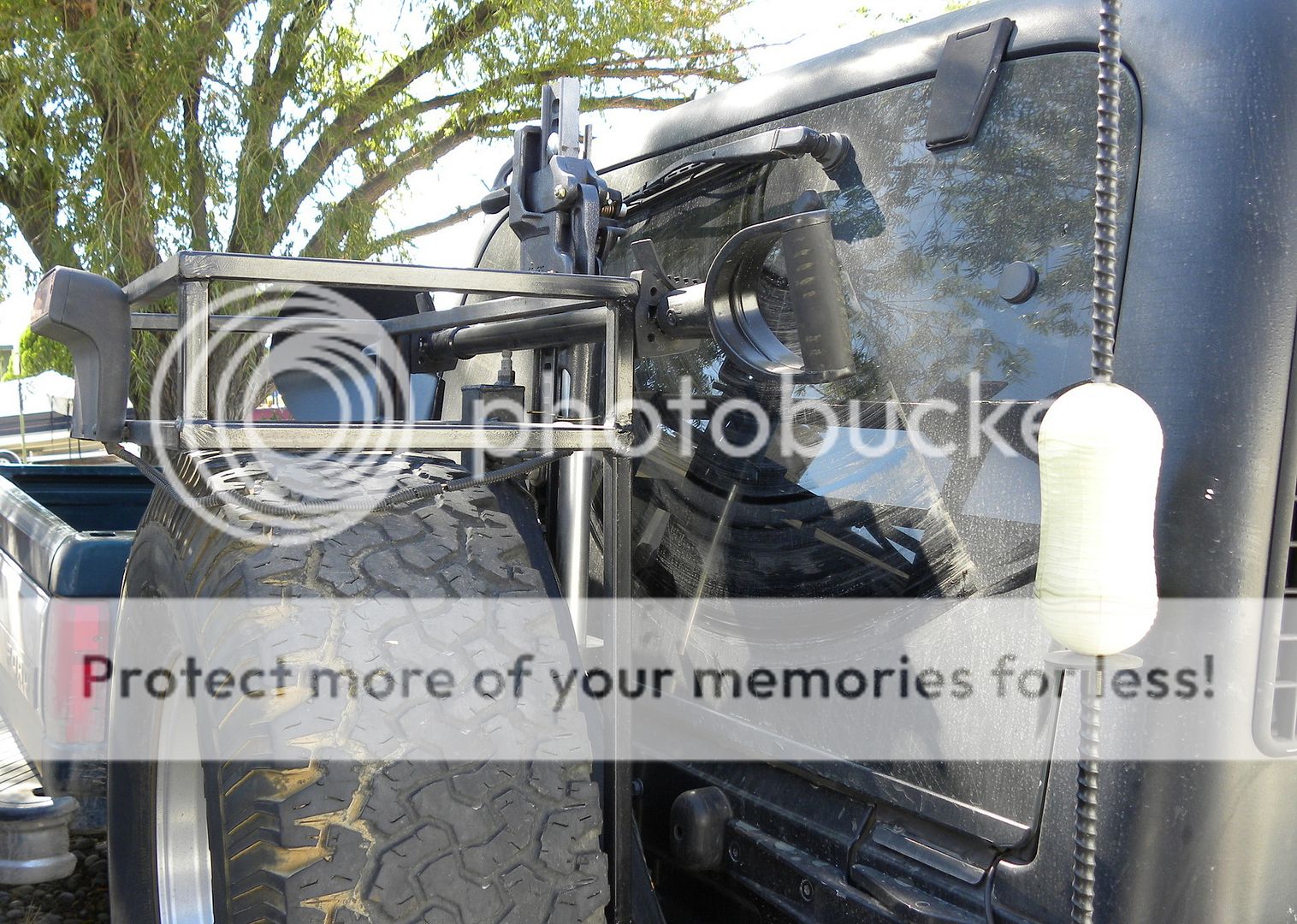

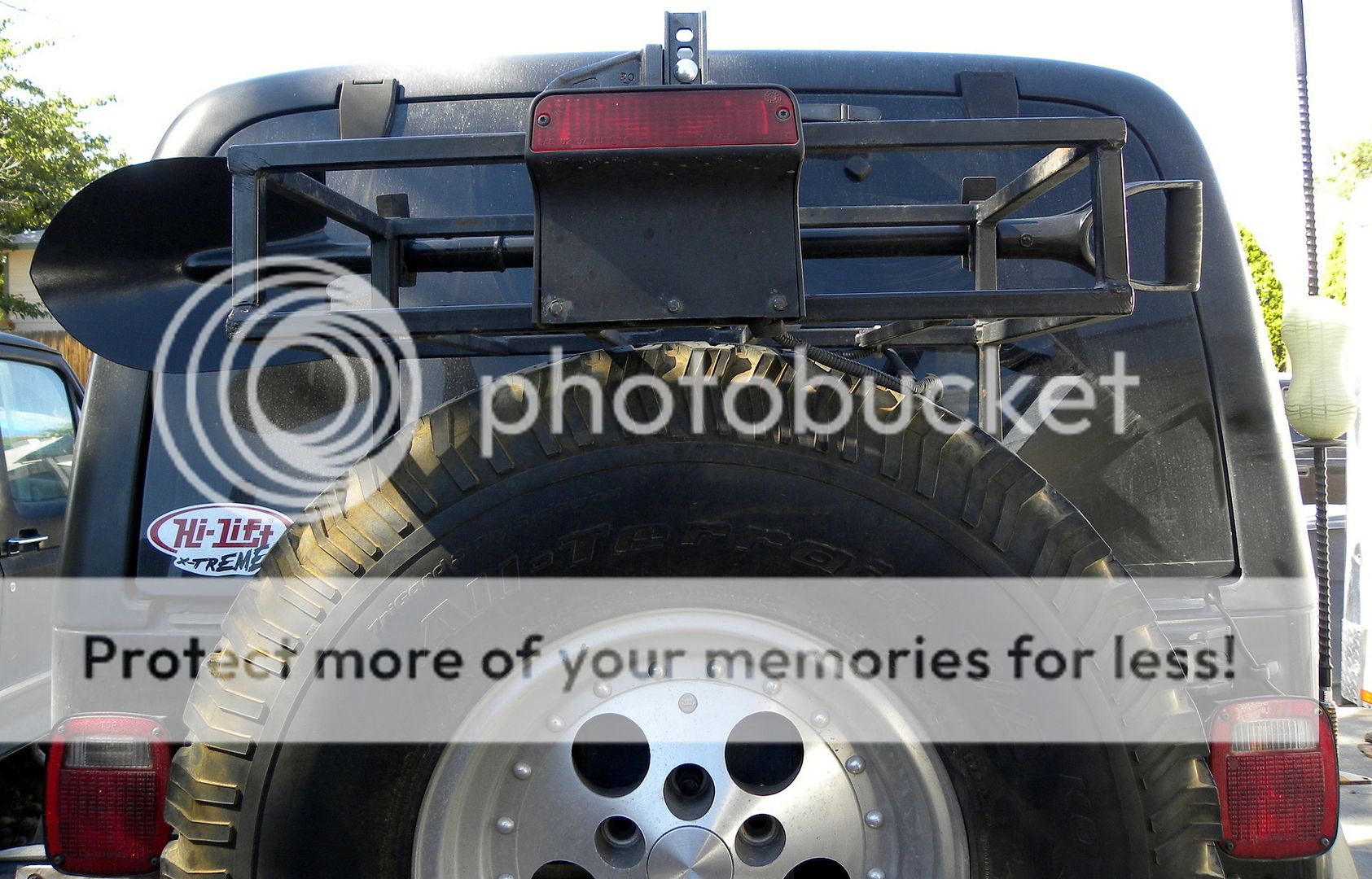

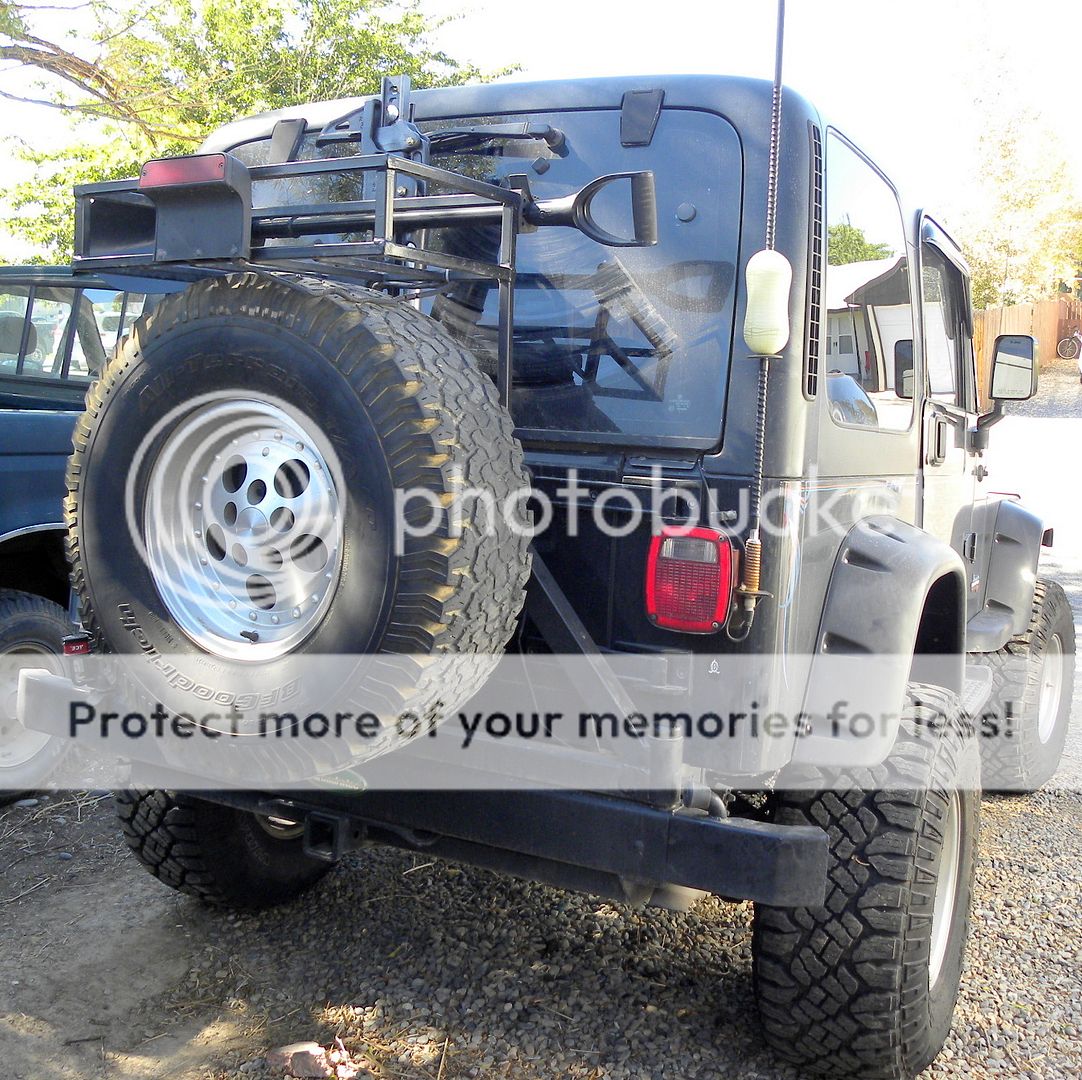

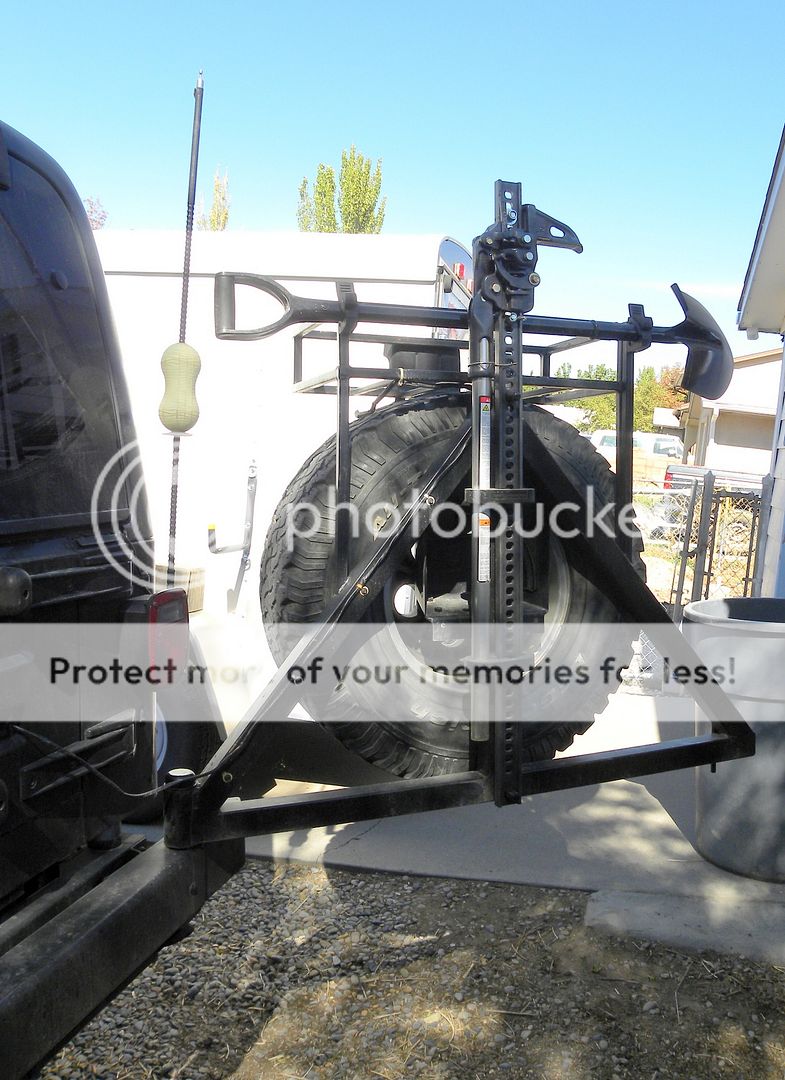

The original owner built this for my TJ.....

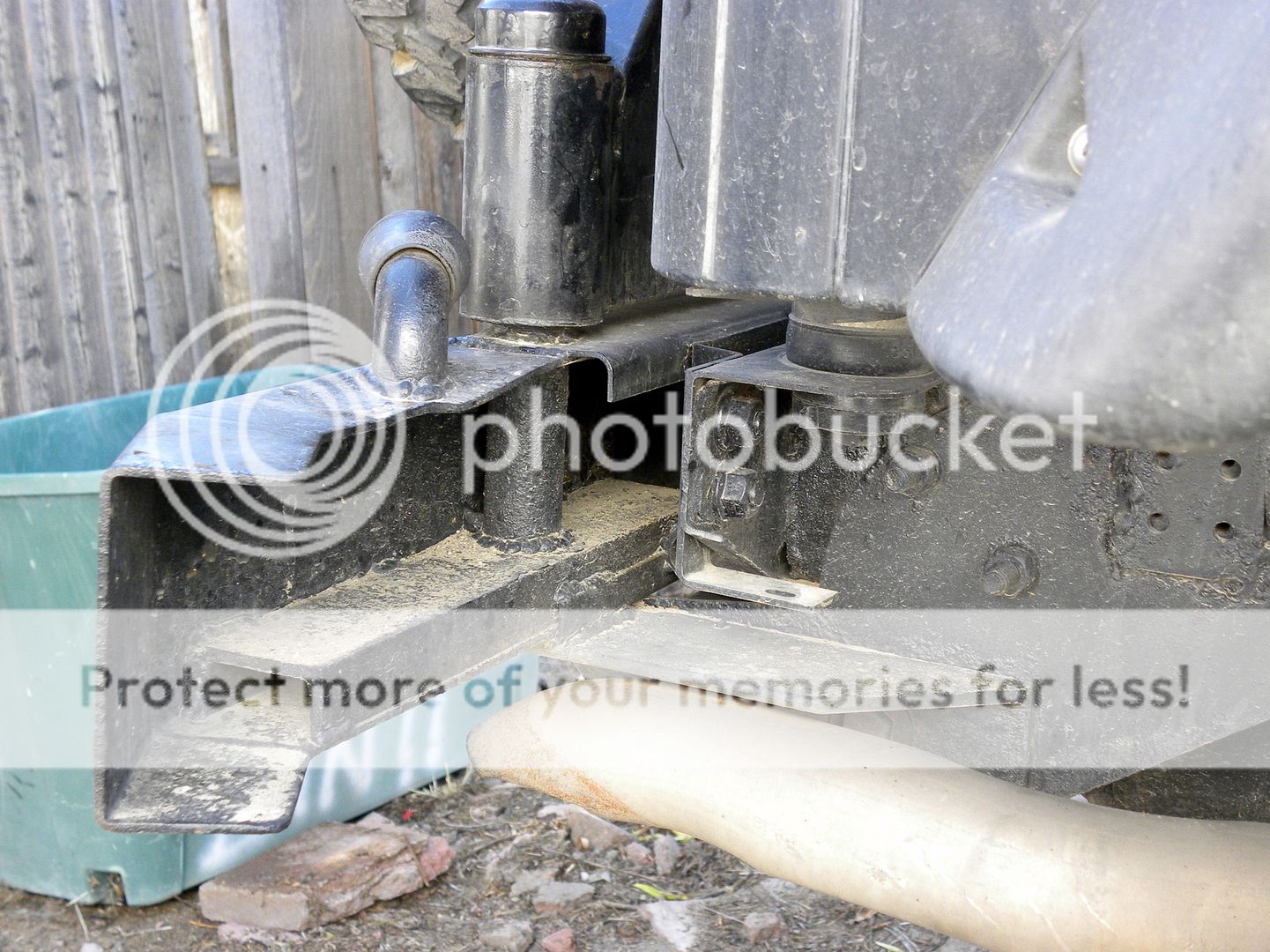

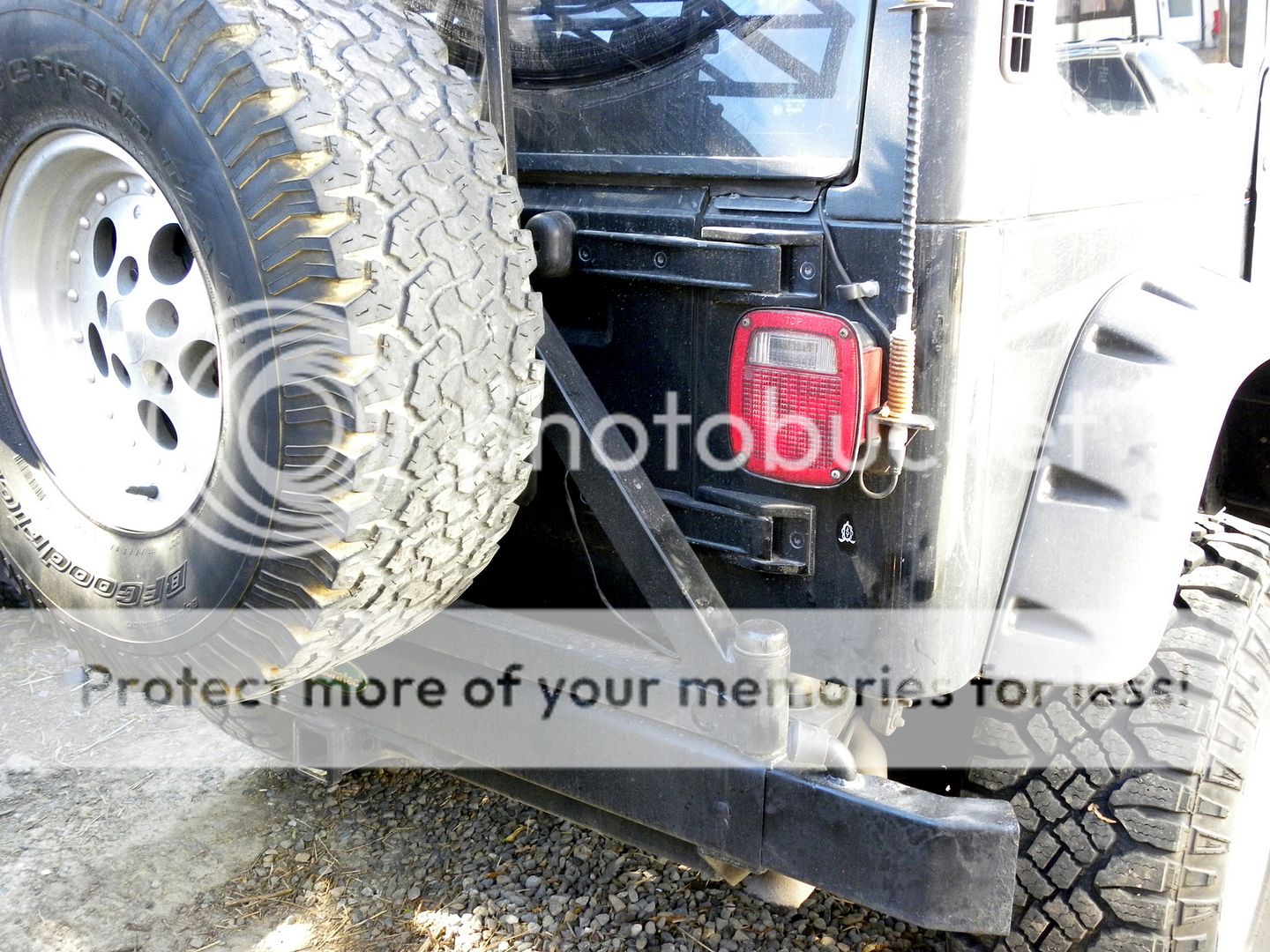

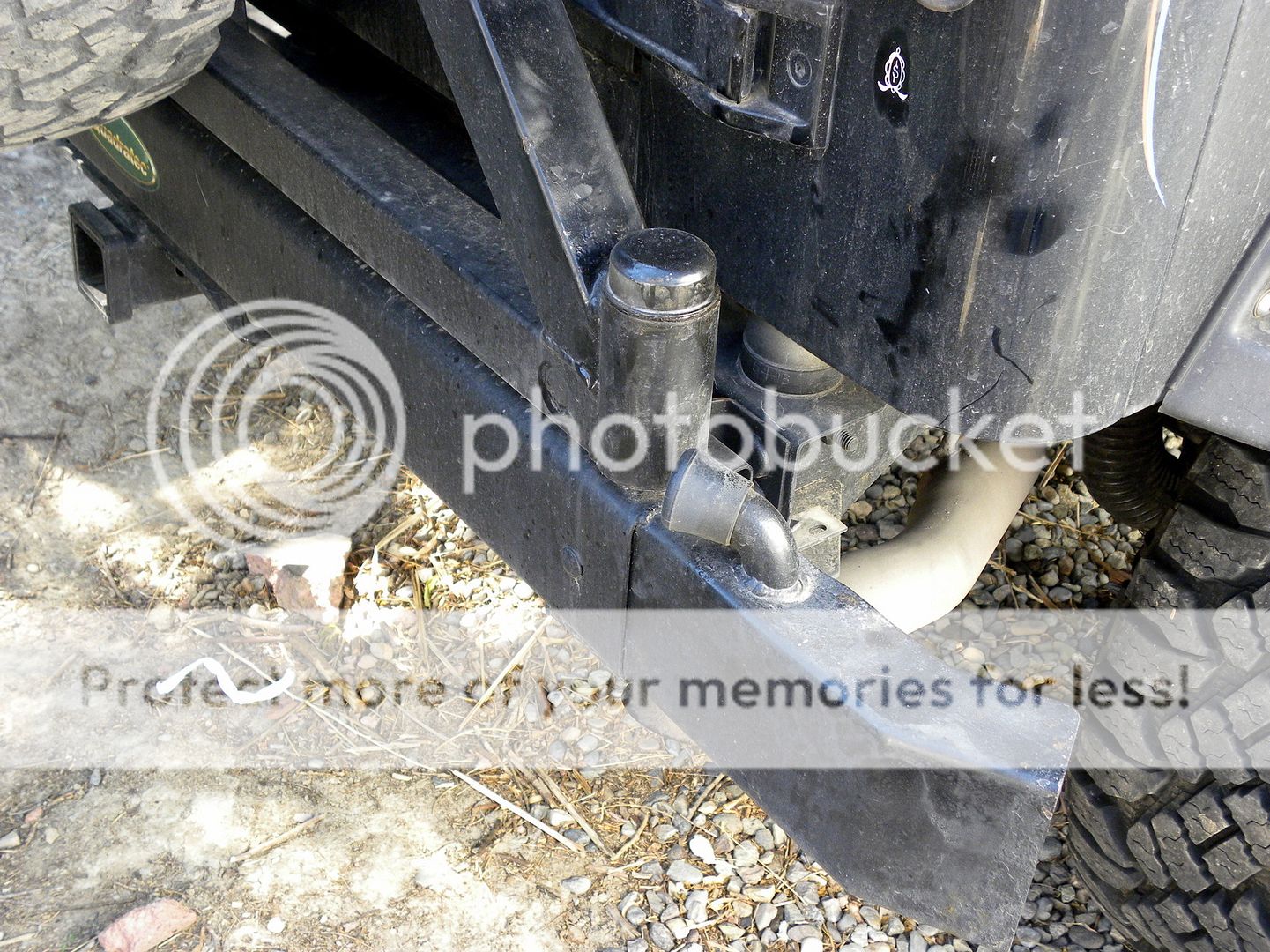

Its on my short list to be replaced but it certainly is structurally strong and does what it was intended to do.... not the greatest fabrication skills but very functional.









My very slight contribution was to add the HL Jack mount and shovel hanger:







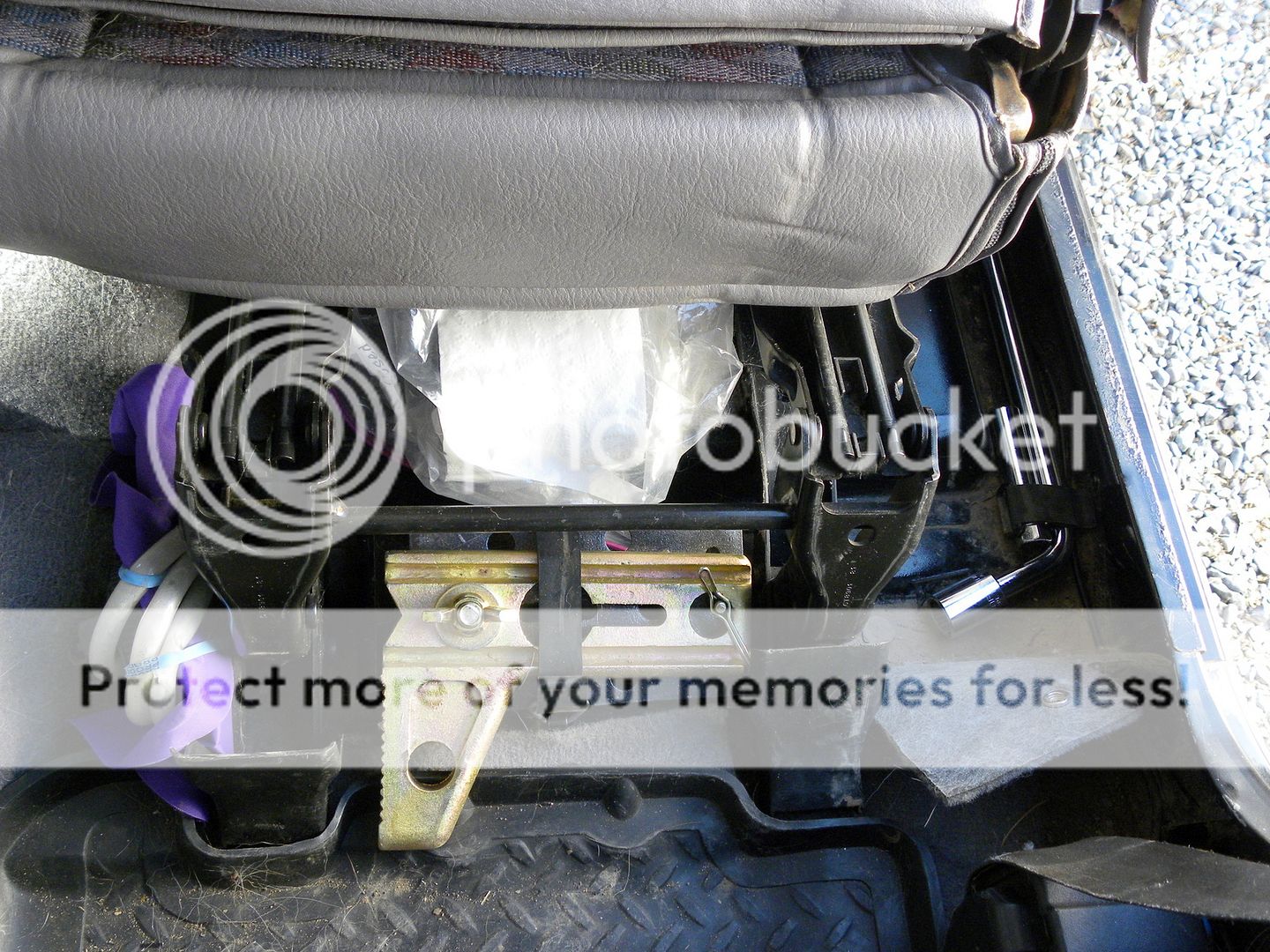

Whats under the passenger seat now....



Stock bumper plus +++
__________________
"This ain't my 1st rodeo..."
Casey Tibbs;
St. Joseph's Hospital Emergency Room
Deadwood, SD
