CJ7 High Steer Kit

Hello again all

I have almost finished up my custom high steer setup on my Cj7. I really like the way it is turning out and I am thinking of building a few more to sell. I just thought I would run my idea by you guys/gals to try to get an idea of how many people out there might be interested in a cheep, durable, and easy to install high steer setup for a SOA Dana 30 on a cj. My design will raise the drag link above the spring while leaving the tie rod in it's original position. No need for a drop pitman arm and very little fitting is required to install it you don't even have to take the knuckle off and it will beef up the stock knuckle too. Any input would be appreciated...

Thanks

Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-15-2010, 01:23 AM   #2
ImpactFabWorks
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: victorville,ca
Posts: 1,864
Pictures go a long way
__________________
1990 YJ = The Toy/ My Daily Driver
1996 XJ= Wifes Daily Driver


www.Impact-FabWorks.com

Impact-FabWorks Facebook


Please fill out your profile, It helps us help you!!!
ImpactFabWorks is offline   Reply With Quote Quick reply to this message
Unread 06-15-2010, 01:26 AM   #3
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
Sure when I get it all finised up and put back together pics will be posted. I am building a beefy drag link to go along with it right now so it may be a few days.
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-15-2010, 04:40 AM   #4
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,274
Make sure to upgrade to a Vendor Account before you post your pics and advertise your stuff for sale. Not fair to the paid Vendors if you don't.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 06-15-2010, 06:17 AM   #5
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
I will upgrade if I start selling them but Im not really a vendor im just trying to see if anybody would be interested and if you guys think its a good idea or not. Just looking for some feedback from the pro's..
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-15-2010, 02:43 PM   #6
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,274
Quote:
Originally Posted by Sportinwood View Post
I will upgrade if I start selling them but Im not really a vendor im just trying to see if anybody would be interested and if you guys think its a good idea or not. Just looking for some feedback from the pro's..
Roger that

Now.. we need pics.. closeups..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 06-17-2010, 10:06 AM   #7
shu2kill
Registered User
1992 YJ Wrangler

Join Date: Jan 2009
Location: chihuahua
Posts: 267
Quote:
Originally Posted by Sportinwood View Post
Hello again all

I have almost finished up my custom high steer setup on my Cj7. I really like the way it is turning out and I am thinking of building a few more to sell. I just thought I would run my idea by you guys/gals to try to get an idea of how many people out there might be interested in a cheep, durable, and easy to install high steer setup for a SOA Dana 30 on a cj. My design will raise the drag link above the spring while leaving the tie rod in it's original position. No need for a drop pitman arm and very little fitting is required to install it you don't even have to take the knuckle off and it will beef up the stock knuckle too. Any input would be appreciated...

Thanks
isnt that a crossover steering, rather than a true high steer??
shu2kill is offline   Reply With Quote Quick reply to this message
Unread 06-17-2010, 10:59 AM   #8
ImpactFabWorks
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: victorville,ca
Posts: 1,864
Yea that would be a cross over.
__________________
1990 YJ = The Toy/ My Daily Driver
1996 XJ= Wifes Daily Driver


www.Impact-FabWorks.com

Impact-FabWorks Facebook


Please fill out your profile, It helps us help you!!!
ImpactFabWorks is offline   Reply With Quote Quick reply to this message
Unread 06-17-2010, 11:31 PM   #9
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
Quote:
Originally Posted by shu2kill View Post
isnt that a crossover steering, rather than a true high steer??
I guess thats what it would be because im only moving the draglink...
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 07:14 AM   #10
shu2kill
Registered User
1992 YJ Wrangler

Join Date: Jan 2009
Location: chihuahua
Posts: 267
ok. so, where are the pics?? i would like to do that to my YJ, but it has Wagoneer D44s now.... do you think it would be possible??
shu2kill is offline   Reply With Quote Quick reply to this message
Unread 06-19-2010, 12:28 AM   #11
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
The pics are coming soon I just painted it up tonight and I will put it back together in the morning.. I dont think this bracket will work for the d44 with the flat top knuckles but the crossover kits for the d44 are alot cheeper then they are for the d30. I think all you need for the d44 is a couple of plates that bolt on to the top of the knuckles...
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-19-2010, 12:42 AM   #12
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
Quote:
Originally Posted by shu2kill View Post
ok. so, where are the pics?? i would like to do that to my YJ, but it has Wagoneer D44s now.... do you think it would be possible??
Here check this out I think this is all you need to but you may have to have your knuckle machined.. Double check before you buy it because I'm not sure. Make sure you read the add on E-Bay too.

"We offer through holes up to 3/4" for free, tapering for your TREs' available for $7.50 per taper, we offer Scout II, Ford, Dodge, F.S. Jeep and GM tapers. We do not offer the small Jeep CJ, YJ, TJ, XJ, ZJ, or WJ tapers."

If you have the small taper TRE's you would have to buy a reamer..

If you want a true high steer you need a differant kit that comes with plates for both knuckles but they are not much more I think around $100 or so on E-Bay..

CNC machined Dana 44 RH high clearance steering arm: eBay Motors (item 380243281921 end time Jul-15-10 21:56:21 PDT)

Last edited by Sportinwood; 06-19-2010 at 01:00 AM..
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-20-2010, 04:17 AM   #13
KMD
Registered User
1976 CJ7

Join Date: Apr 2009
Location: Modesto, California
Posts: 1,284
Waiting on pics.
__________________
Locked and Loaded 4x4 Club
KMD is offline   Reply With Quote Quick reply to this message
Unread 06-20-2010, 04:00 PM   #14
Sportinwood
Registered User
1985 CJ7

Join Date: May 2010
Location: Utah
Posts: 123
Ok here are some pics. of the crossover setup I built let me know what you guys think of it…

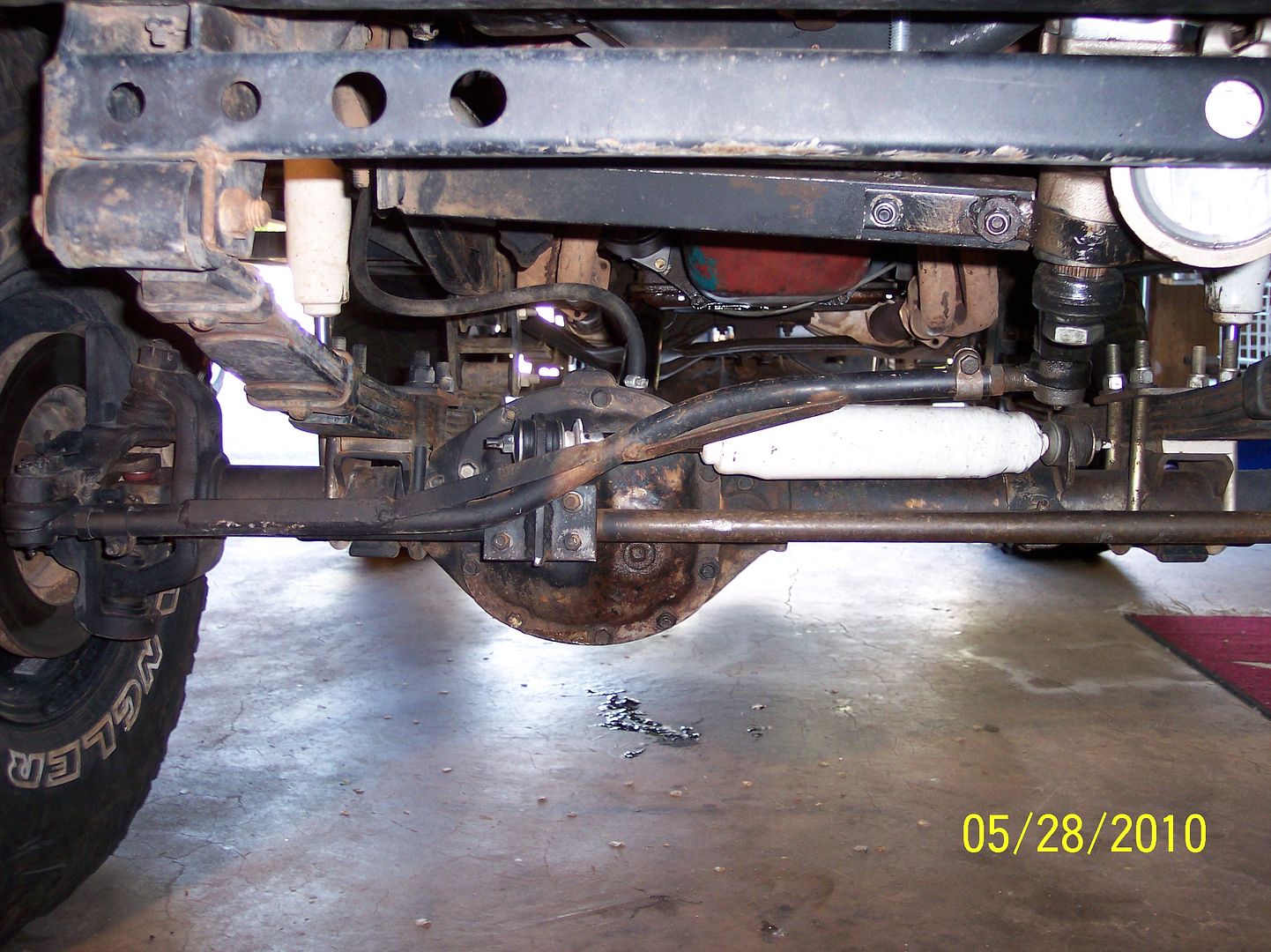

This is before
Before.jpg picture by sportinwood - Photobucket
This is the stock positioning of the drag link and tie rod end
StockTREDlink.jpg picture by sportinwood - Photobucket

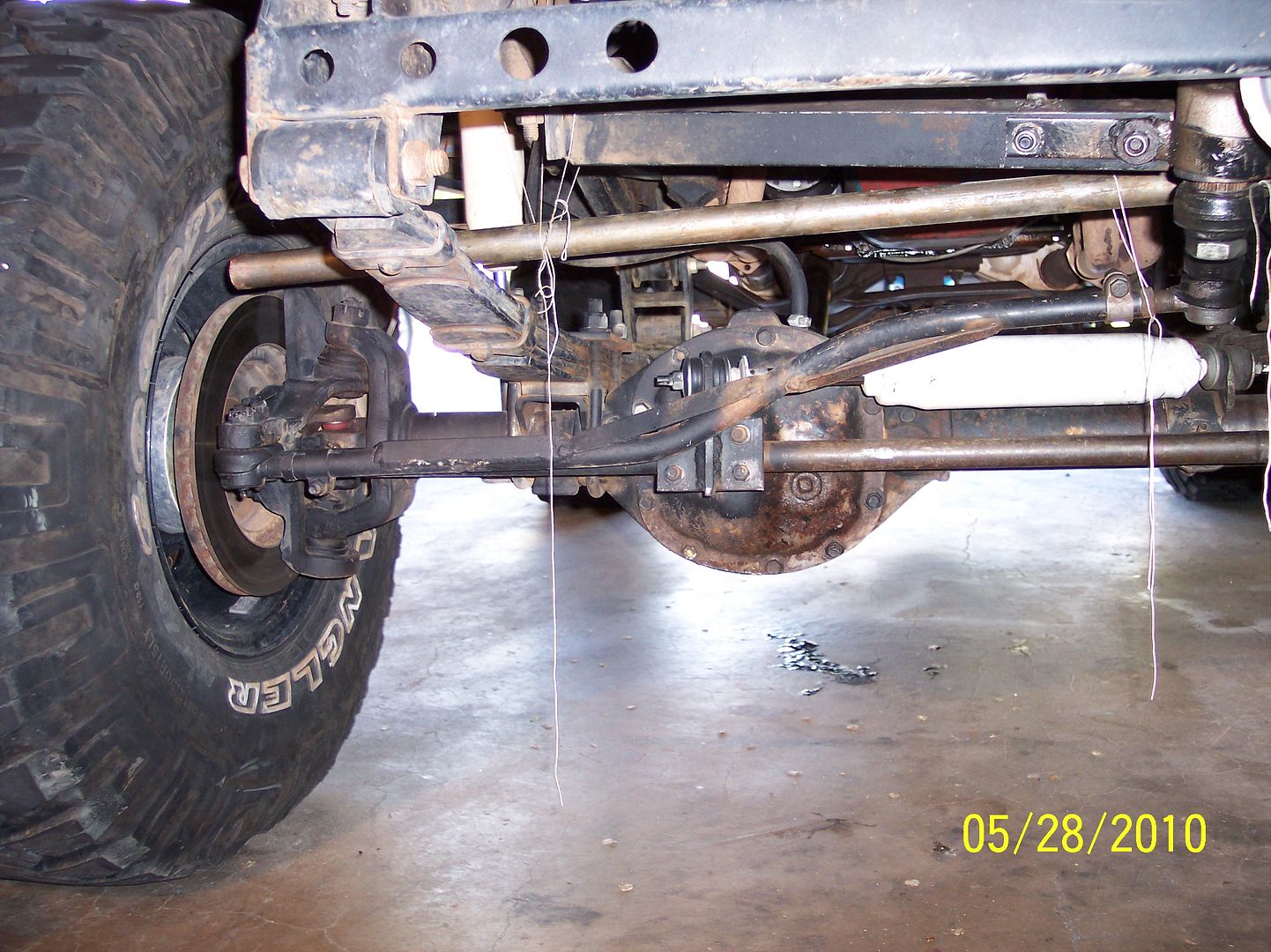

This is how I positioned the new drag link before I built the bracket
Newdlinkpositioning.jpg picture by sportinwood - Photobucket

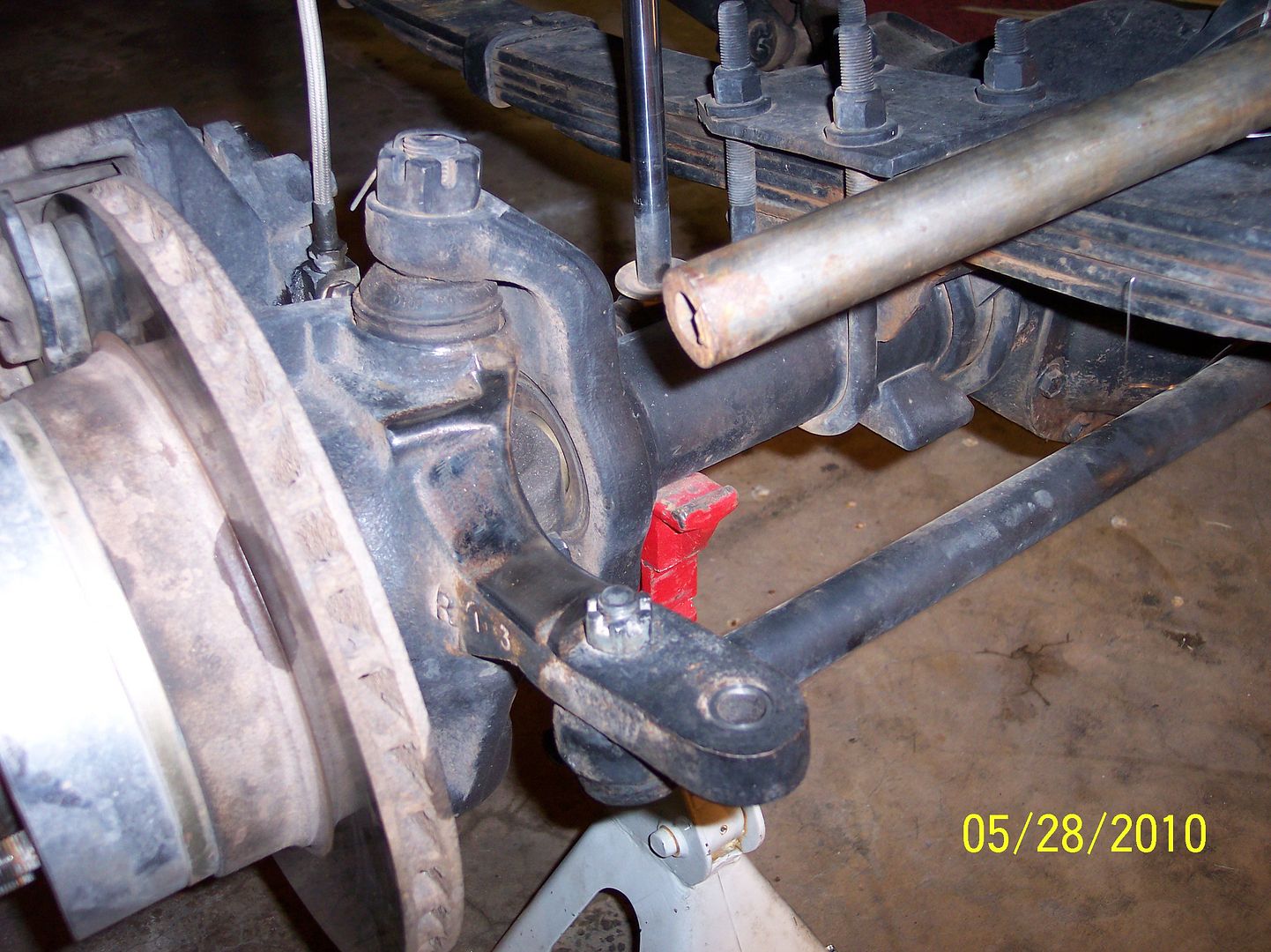

This is a pic of the knuckle after the drag link was removed
NewDlinkPositioning2.jpg picture by sportinwood - Photobucket

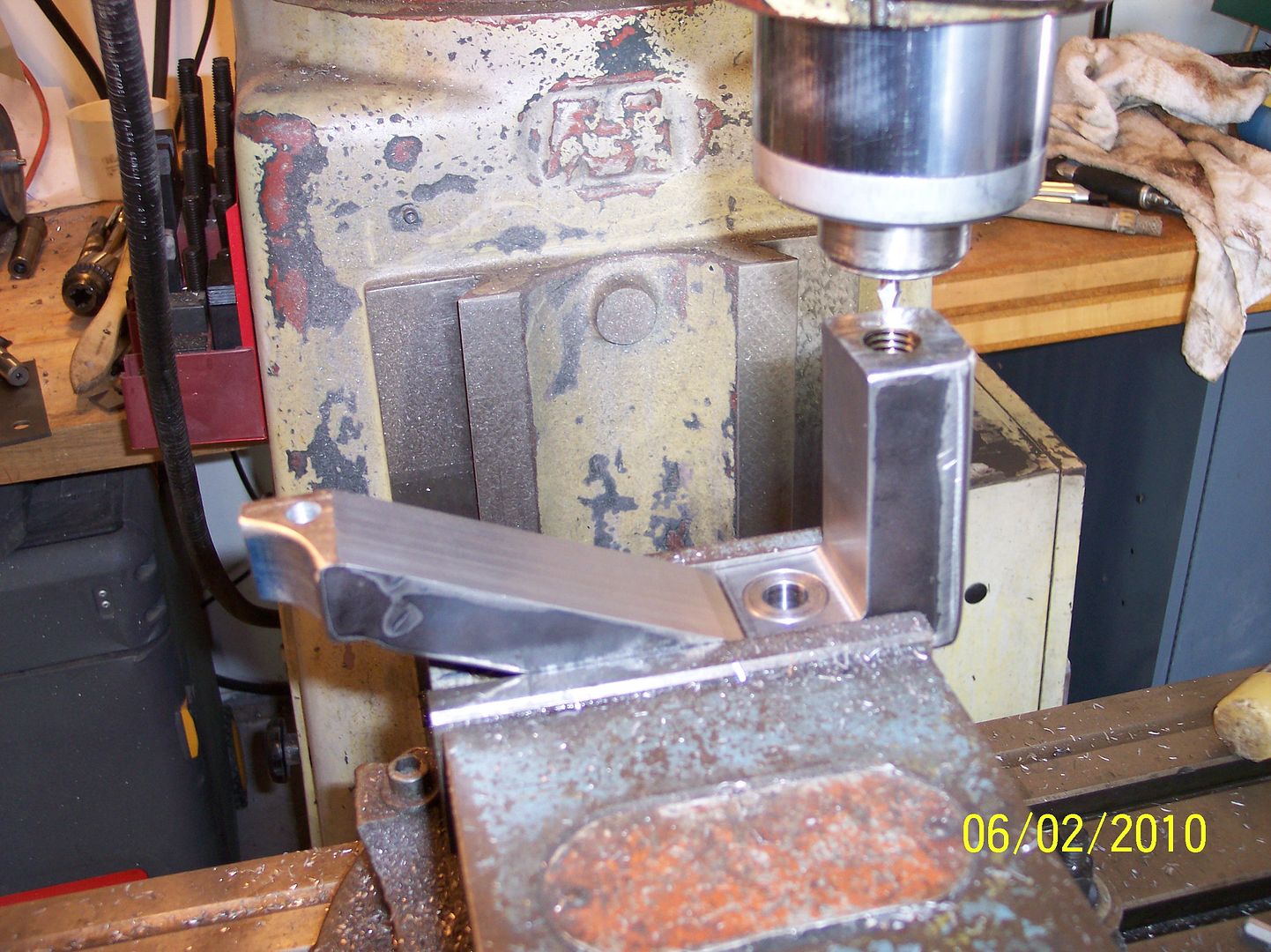

Machining the bracket
Machiningthebracket.jpg picture by sportinwood - Photobucket

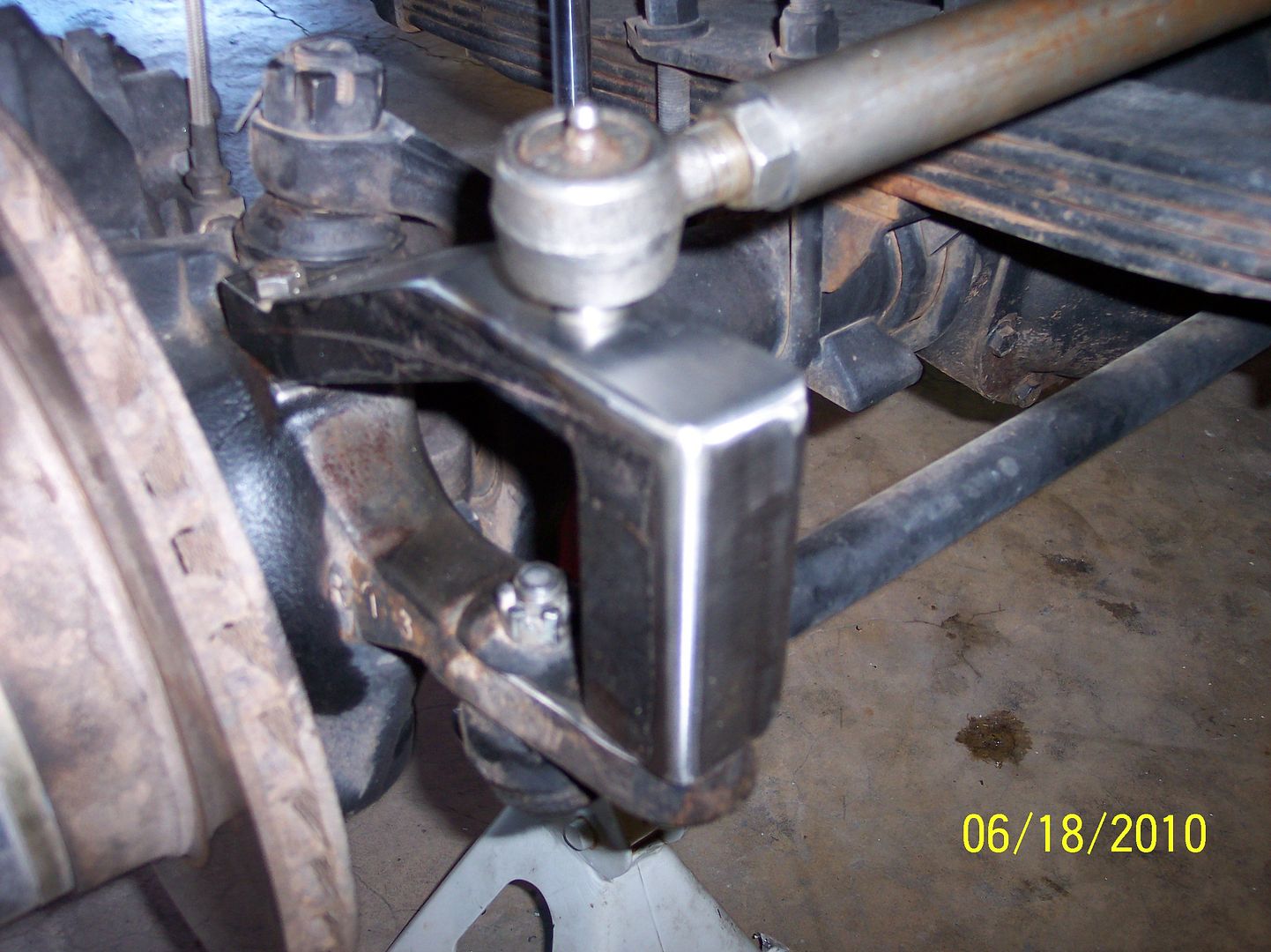

Dry fitting everything before I painted it
DryFitting.jpg picture by sportinwood - Photobucket

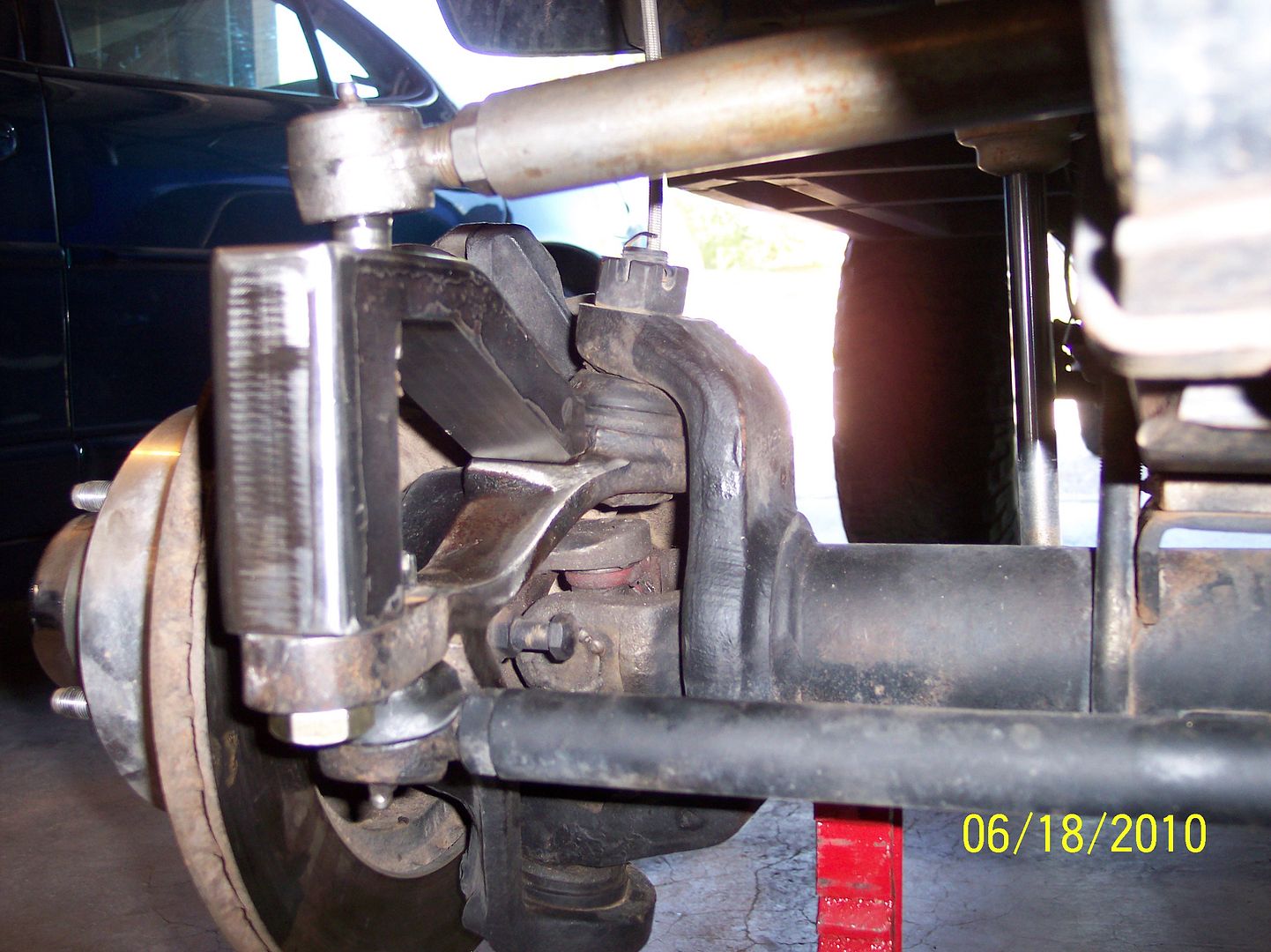

Another view dry fitted
Dryfitting2.jpg picture by sportinwood - Photobucket

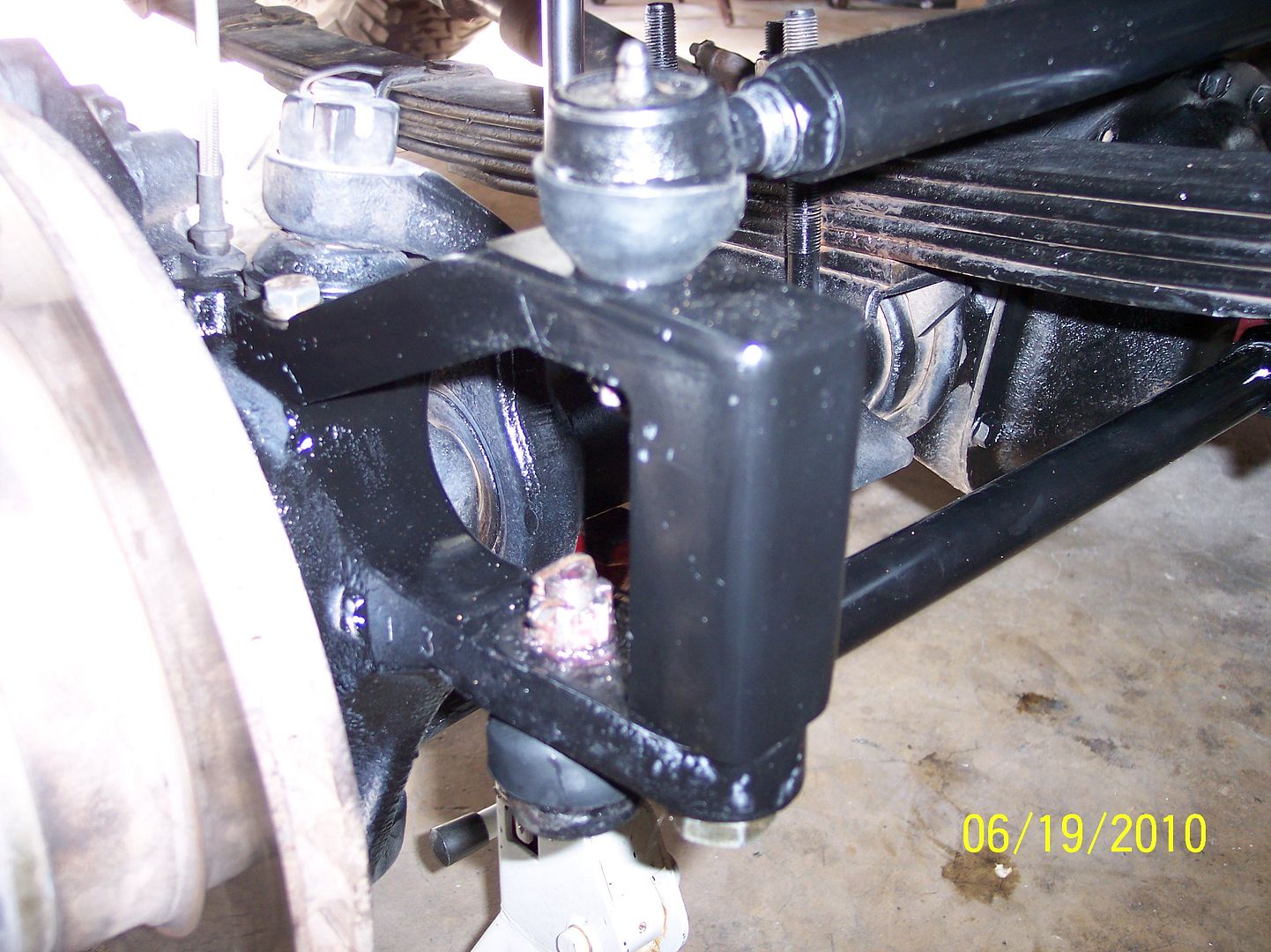

Close up finished
Closeupinstalled.jpg picture by sportinwood - Photobucket
Another close up
Closeupafter.jpg picture by sportinwood - Photobucket

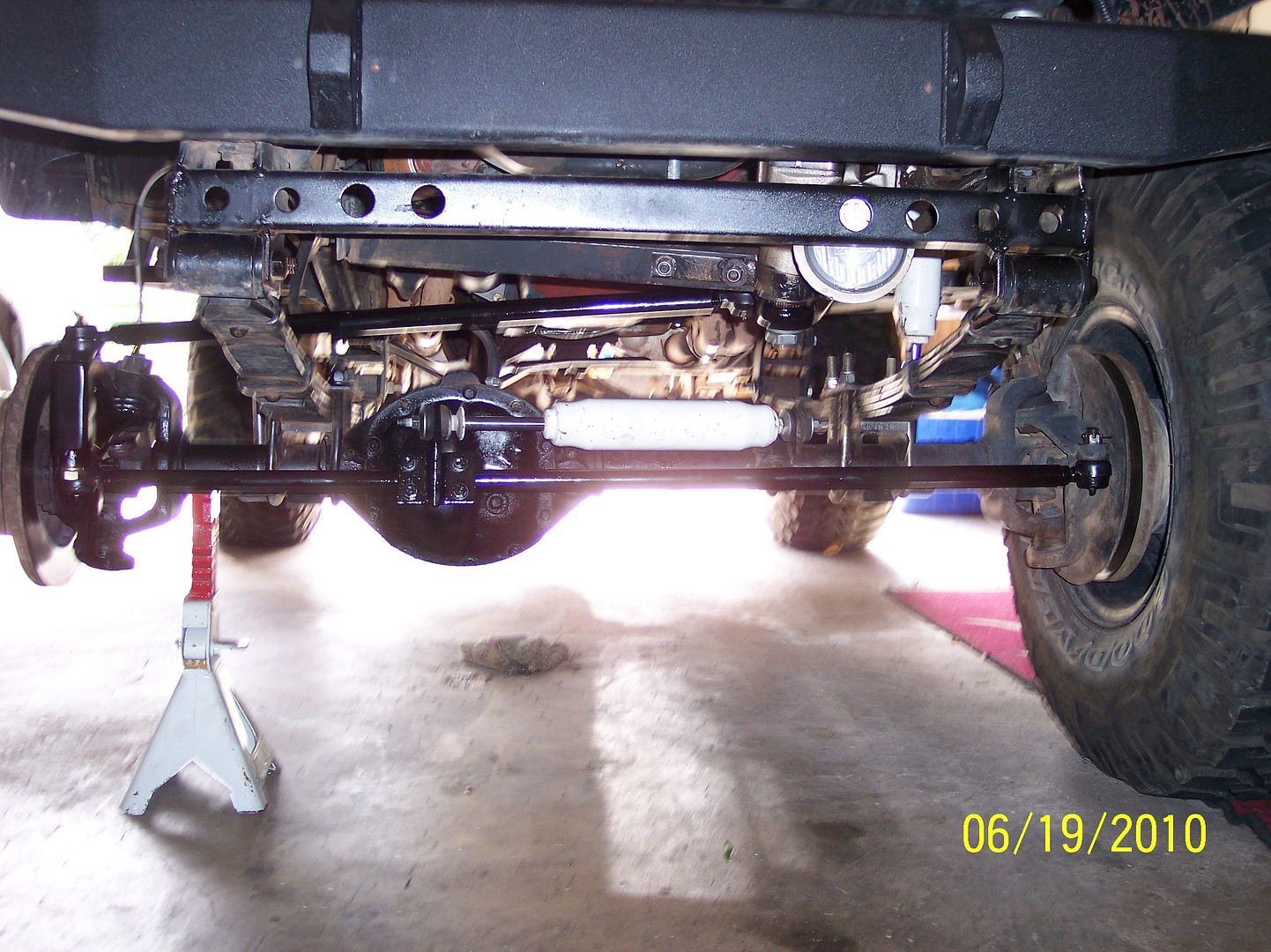

Finally all finished
After.jpg picture by sportinwood - Photobucket
Can someone please unclick these for me so everybody can see?
Thanks
Sportinwood is offline   Reply With Quote Quick reply to this message
Unread 06-20-2010, 07:10 PM   #15
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,720
Quote:
Originally Posted by Sportinwood View Post
Ok here are some pics. of the crossover setup I built let me know what you guys think of it…
This is before

This is the stock positioning of the drag link and tie rod end

This is how I positioned the new drag link before I built the bracket

This is a pic of the knuckle after the drag link was removed

Machining the bracket

Dry fitting everything before I painted it

Another view dry fitted

Close up finished

Another close up

Finally all finished

Can someone please unclick these for me so everybody can see?
Thanks
Click Free
FYI, in the future paste the "img" tags rather than the "url" tags.
__________________
Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
