Cage idea - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > General Technical Discussions > Fabrication Shop > Cage idea

Introducing MONSTALINER™ UV Permanent DIY Roll On Bed LineNEW ZJ Grand Cherokee Tube DoorsGibson WK HEMI 3" Catback - 5 Day Special!

Reply
Unread 12-02-2014, 09:20 PM   #1
Rockdrummer93
Web Wheeler
2001 XJ Cherokee

Join Date: May 2010
Location: Taylors, South Carolina
Posts: 1,602
Cage idea

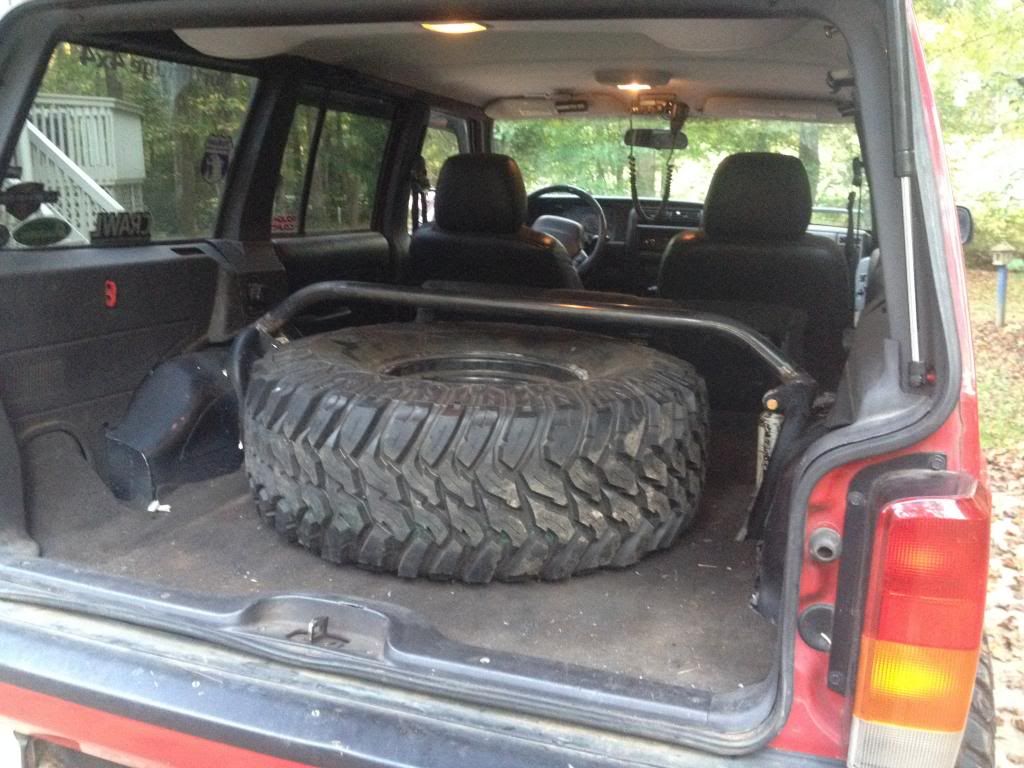

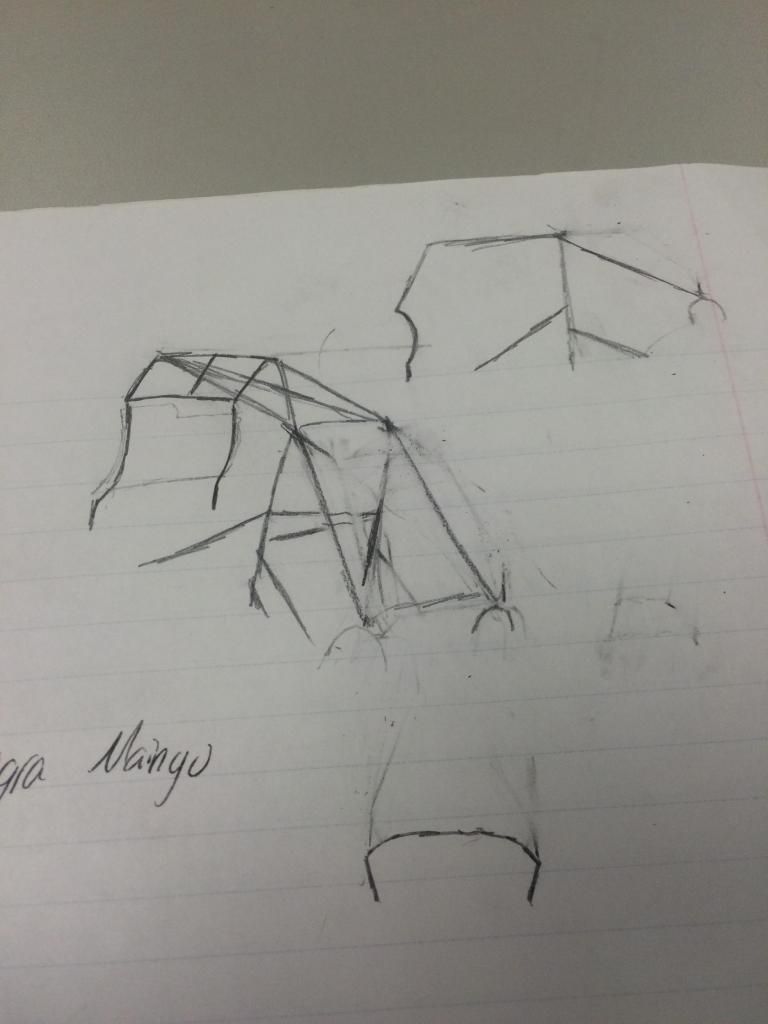

Posted this over on NAXJA. But figured I'd see what my fellow Jeepforumers think about it as well, so here it is. Ive been thinking about a cage, But don't want to spend a ton and really don't care for it to be a full cage. I know how weak delicate XJs are so I know even with a cage a good roll over is going to destroy the Jeep. With that in mind I really just want one to protect me and the passenger and so I can have a harness bar. I got bored in class the other day and drew something up. A TJ style cage in a XJ Ive been calling it. What do y'all guys think? would it work or would it be pissing in the wind? I have rear shock hoops and a brace bar for those and the fast back tube will tie into. I have no back seat so Im not really worried about it being in the way. A buddy of mine at the local 4x4 shop says it won't work cause it will pretty much rip the back of the Jeep apart since I won't have a brace over the rear where the shackles are. What do y'all say about that? truth? What other advice do y'all have?





Sent from my iPhone using JeepForum

__________________
'01 XJ, HP44, D60, 106" WB & 37" Blues
COTM July 2012, COTM November 2014
2014 Cherokee Of The YEAR
Build Thread
Rockdrummer93 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 05:54 AM   #2
wilson1010
Registered User
1999 XJ Cherokee

Join Date: Aug 2006
Location: Cincinnati Ohio
Posts: 2,087


__________________
03 Rubicon; 99 xj with too much stuff to list; Unimog 406 (gone)
wilson1010 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 07:35 AM   #3
Rockdrummer93
Web Wheeler
2001 XJ Cherokee

Join Date: May 2010
Location: Taylors, South Carolina
Posts: 1,602
Quote:
Originally Posted by wilson1010 View Post
You have any more pictures of how it goes wraps the dash?
__________________
'01 XJ, HP44, D60, 106" WB & 37" Blues
COTM July 2012, COTM November 2014
2014 Cherokee Of The YEAR
Build Thread
Rockdrummer93 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 09:19 AM   #4
wilson1010
Registered User
1999 XJ Cherokee

Join Date: Aug 2006
Location: Cincinnati Ohio
Posts: 2,087
Quote:
Originally Posted by Rockdrummer93 View Post
You have any more pictures of how it goes wraps the dash?

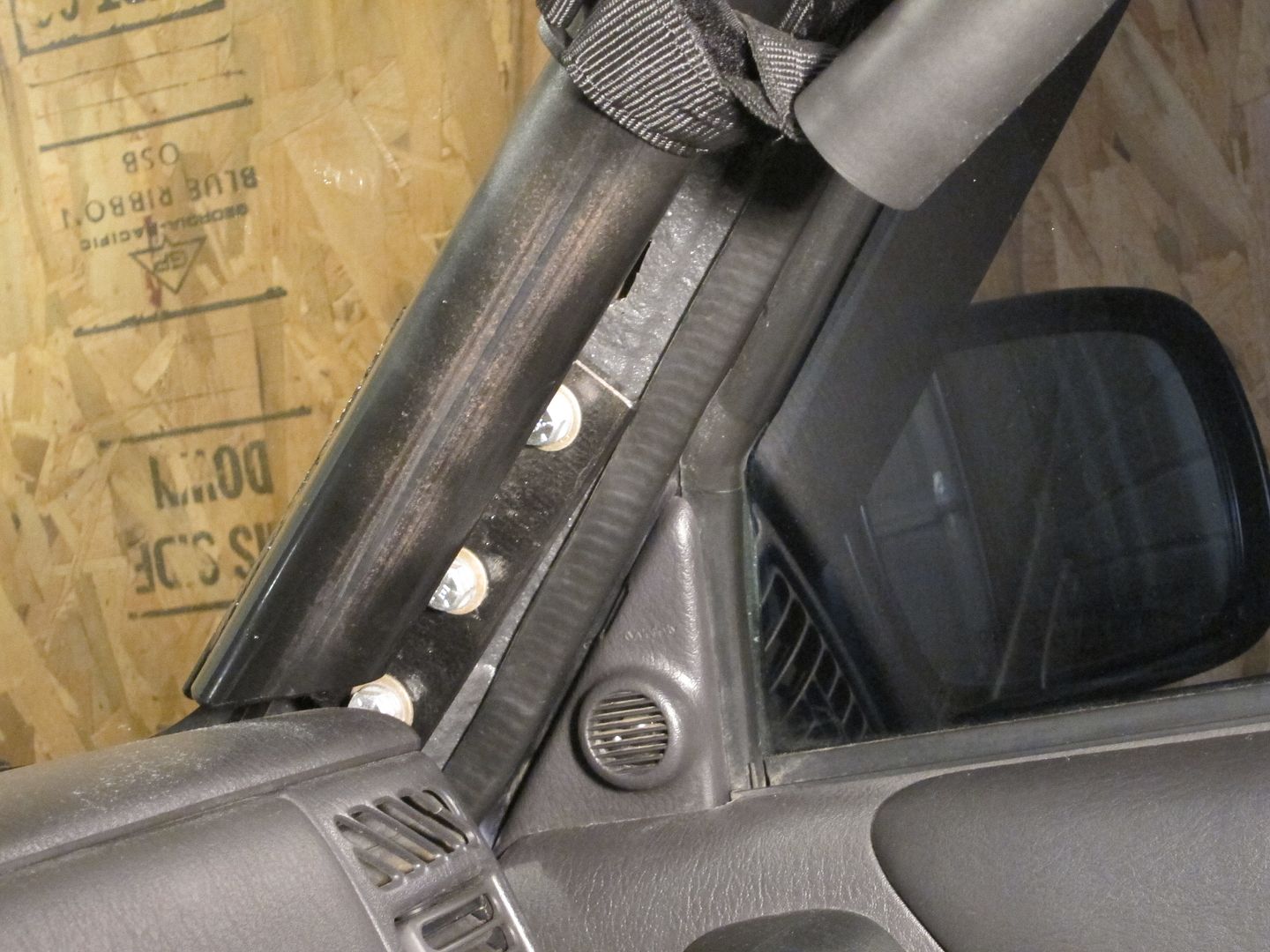

That is really the genius of my cage design. It doesn't wrap the dash. It terminates at the dash and is bolted to the A pillar. Of course, the A pillar provides no support. The A pillar bolts are mostly to keep the cage and the A pillar in line in the event of a rollover. That is the whole problem with the XJ. Weak A pillar. I have seen A pillar collapse on an XJ from a single rollover with a fall of less than 3 feet (bank gives way and you are upside down in the creek. Not a good thing).

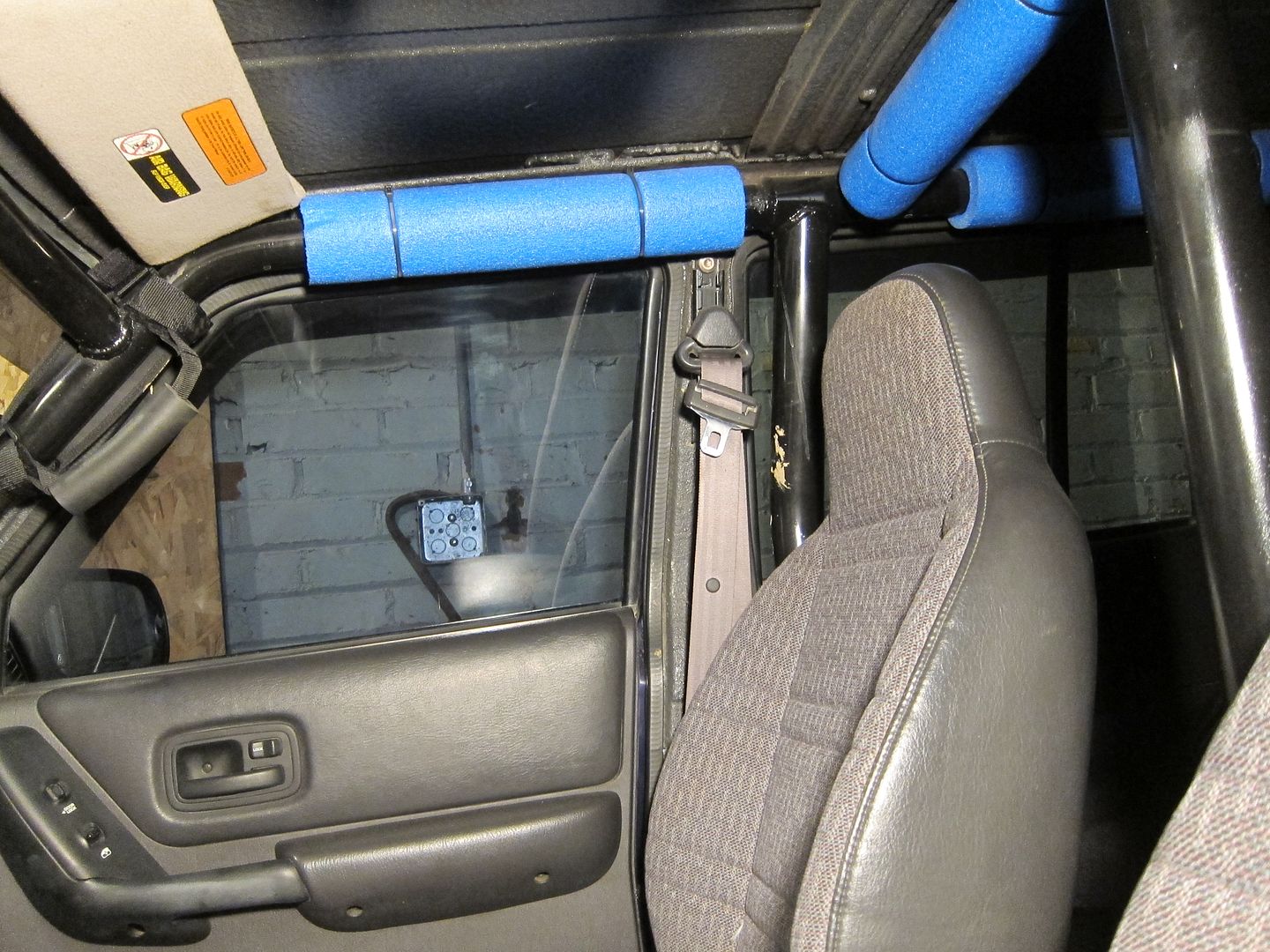

So, I made a cantilevered design where the windshield and A pillar wrap is self supporting to 34,000 pounds. It supports that weight without any connection to the A pillar or the dash. And, it is not designed to protect a front end crash. No idea what that number is, but it will maintain its shape with a 34000 weight on it from the roof. Engineered by actual engineers. More than enough for a slow speed rollover. Notice the massive support from behind the front seats. I should patent it.

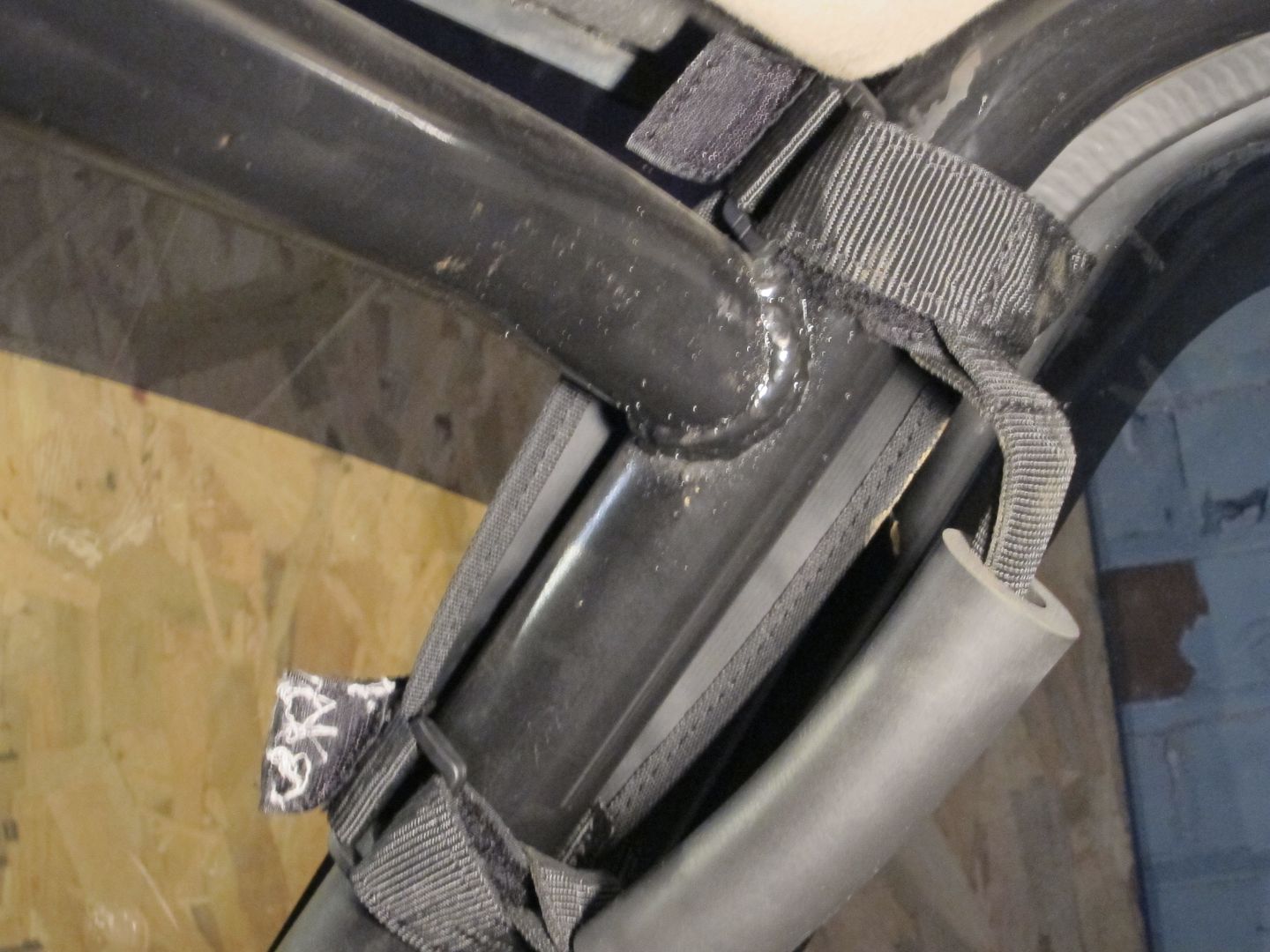

Here you go:





__________________
03 Rubicon; 99 xj with too much stuff to list; Unimog 406 (gone)
wilson1010 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 09:58 AM   #5
Rockdrummer93
Web Wheeler
2001 XJ Cherokee

Join Date: May 2010
Location: Taylors, South Carolina
Posts: 1,602
That's a weird design.. Looks a lot cleaner. But has it been used?
__________________
'01 XJ, HP44, D60, 106" WB & 37" Blues
COTM July 2012, COTM November 2014
2014 Cherokee Of The YEAR
Build Thread
Rockdrummer93 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 11:28 AM   #6
wilson1010
Registered User
1999 XJ Cherokee

Join Date: Aug 2006
Location: Cincinnati Ohio
Posts: 2,087
Quote:
Originally Posted by Rockdrummer93 View Post
That's a weird design.. Looks a lot cleaner. But has it been used?

<TTTab: 0x5ddbdd0; baseClass = UIControl; frame = (0 0; 0 0); layer = <CALayer: 0x5dd99d0>>
It's my design. Have I rolled the Jeep? No, not yet.

__________________
03 Rubicon; 99 xj with too much stuff to list; Unimog 406 (gone)
wilson1010 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 12:19 PM   #7
Rockdrummer93
Web Wheeler
2001 XJ Cherokee

Join Date: May 2010
Location: Taylors, South Carolina
Posts: 1,602
I just don't see it.. Wouldn't you have to stiffen the lower part of the a pillar?

Sent from my iPhone using JeepForum
__________________
'01 XJ, HP44, D60, 106" WB & 37" Blues
COTM July 2012, COTM November 2014
2014 Cherokee Of The YEAR
Build Thread
Rockdrummer93 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 02:29 PM   #8
wilson1010
Registered User
1999 XJ Cherokee

Join Date: Aug 2006
Location: Cincinnati Ohio
Posts: 2,087
__________________
03 Rubicon; 99 xj with too much stuff to list; Unimog 406 (gone)
wilson1010 is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 02:47 PM   #9
Rockdrummer93
Web Wheeler
2001 XJ Cherokee

Join Date: May 2010
Location: Taylors, South Carolina
Posts: 1,602
Just cause the building can support that weight don't mean it will hold it something impacted if with a downward force.. Not saying it's a bad design or that you should go roll it for me just saying that I would like to see it in action first

position_8852
__________________
'01 XJ, HP44, D60, 106" WB & 37" Blues
COTM July 2012, COTM November 2014
2014 Cherokee Of The YEAR
Build Thread
Rockdrummer93 is offline   Reply With Quote Quick reply to this message
Unread 12-09-2014, 10:20 AM   #10
daddyjeep87
Registered User
1987 YJ Wrangler

Join Date: Feb 2013
Location: Smethport, PA
Posts: 463
Going back to what the guy at the shop said...you could add an angled bar from the shock hoops down to the floor close to the shackle mounts for piece of mind. Very minimal extra work and it would sure up the chassis completely. That same thought would apply to the A pillar. By tying that into the floor you are supporting the chassis as well as protection from a roll. I don't own a Cherokee, but have heard plenty about the unibody chassis getting tired and sagging after hard use. Your cage can remedy that problem.
__________________
87YJ 5.2/46RH/NP231 D44/9in 4.56 4 link rear, radius arm front
My Build http://www.jeepforum.com/forum/f22/daddyjeep-121-day-87-yj-5-2-lcg-4-link-build-1479204/
Start planning for 2014, updated site http://www.bantamjeepfestival.com/
daddyjeep87 is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools






Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
