Butt Joint vs Mitered Joint ...Please help a newB

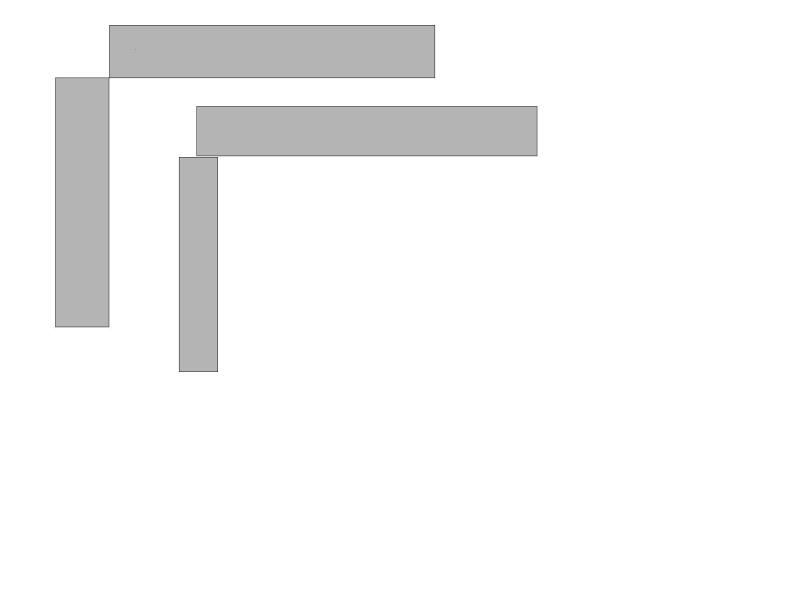

I am building a trailer and can fashion the chassis and other components in a variety of ways. A nagging question that I have is what is better between the two following joint types? By better I mean stronger, more attractive, easier to weld, etc. PLease explain your answer.



dwilliamsceg is offline
Sponsored Links
Advertisement

post #2 of 12 Old 11-23-2009, 08:19 AM
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 7,093
I think the mitered joint is best myself.

1. If tubing is being used there isn't a hole that needs to be plugged afterwards.
2. In using angle iron you have more contact area to weld thus making a stronger joint, unless you over lap the ends in which case you'll have an uneven surface to deal with later.
3. If you use channel iron it's by far the easiest where to coners meet, just butt the corners together without a miter and you'll see why.

Hope this helps and have fun with the build!
Jim1611 is offline
post #3 of 12 Old 11-23-2009, 08:20 AM
jgorm
Web Wheeler

jgorm's Avatar
2006 LJ Wrangler

Join Date: Aug 2007
Location: San Diego
Posts: 2,355
A mitered joint is usually better. If i was using angle iron i would miter (butt joints won't have much contact), but square tubing i would just butt, unless the open hole would look funny.
jgorm is offline
post #4 of 12 Old 11-23-2009, 08:26 AM Thread Starter
dwilliamsceg
Registered User
1997 TJ Wrangler

Join Date: Feb 2006
Posts: 503
Thanks for the comments guys.
dwilliamsceg is offline
post #5 of 12 Old 11-23-2009, 08:31 AM
puttputt56
Registered User
2006 TJ Wrangler

Join Date: Jan 2008
Location: Bakersfield, California
Posts: 172
weld

Butt welds are easier than mitered weld in that it is usually easier to cut 90 degree angles than 45 degree angles. Mitered welds are more than likely stronger (more surface welded) plus if it is box tubing mitered welds close both pieces and a butt weld leaves one end open. Plus the mitered weld looks better when cleaned up than a butt weld. If you are into wood work too the same applies to welding with regards to types of joints you would use. A mitered joint is stronger than a butt joint because there is more surface making contact in a miltered joint to put it is simpler terms. puttputt56
puttputt56 is offline
post #6 of 12 Old 11-23-2009, 08:59 AM
limegreentj
Registered User
1997 TJ Wrangler

Join Date: Nov 2007
Location: leechburg PA
Posts: 318
if its tubing being used, they are really both equally as strong, but...one a butt joint, you can add a fish plate and make it a little stronger, you cant do that with a mitered joint.
limegreentj is offline
post #7 of 12 Old 11-23-2009, 09:28 AM
Totallymetal
Registered User
2007 JK Wrangler

Join Date: Jun 2007
Location: Colorado
Posts: 458
The miter joint you decribed may work just fine. I have never used that type of joint. I would prefer the lap joint for thinner material. Half open or full open for thicker material (welded both sides). The goal is to get 100% penetration. That miter joint looks like a mess to create and to get a good weld on the outside.


Thought we were dealing with plate... I do like the lap or butt for tube.


2007 JK Rubicon
5.5 Rock Krawler X-factor lift w/37 x 12.5 x 17 BFG KM2s, 5.13 Superior gears
Warn Powerplant HD


Last edited by Totallymetal; 11-23-2009 at 09:58 AM.
Totallymetal is offline
post #8 of 12 Old 11-23-2009, 10:27 AM Thread Starter
dwilliamsceg
Registered User
1997 TJ Wrangler

Join Date: Feb 2006
Posts: 503
FYI. This question is mainly for 2 inch square tuning
dwilliamsceg is offline
post #9 of 12 Old 11-23-2009, 10:40 AM
jgorm
Web Wheeler

jgorm's Avatar
2006 LJ Wrangler

Join Date: Aug 2007
Location: San Diego
Posts: 2,355
Quote:
Originally Posted by dwilliamsceg View Post
FYI. This question is mainly for 2 inch square tuning
just butt it and cap the end. You could even make the cap a bit longer for super strength! A miter on a 2" piece would need to be perfect. Lots of messing with the saw, lengths, etc required for a miter joint.
jgorm is offline
post #10 of 12 Old 11-23-2009, 11:29 AM
timatoe
Registered User

timatoe's Avatar
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 15,036
Quote:
Originally Posted by jgorm View Post
just butt it and cap the end. You could even make the cap a bit longer for super strength!
This is probably the best / easiest way to do it for the framing of the trailer.

Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline
post #11 of 12 Old 11-23-2009, 02:06 PM
ChiliPalmer
This is Ames Mister...

ChiliPalmer's Avatar
2001 XJ Cherokee

Join Date: Dec 2006
Location: Coeur d'Alene
Posts: 3,349
Miter joint...


COTM - October 2012!

If you want to help the sport of offroading visit the EnviroBeat Forum!


Quote:
Originally Posted by Sparrows View Post
Oh man Chili. I feel like a recovering addict that just had a bag of blow, a bottle of Jameson, and a sack dropped in his lap. You screwed me man!
ChiliPalmer is offline
post #12 of 12 Old 11-24-2009, 06:00 AM Thread Starter
dwilliamsceg
Registered User
1997 TJ Wrangler

Join Date: Feb 2006
Posts: 503
Quote:
Originally Posted by jgorm View Post
just butt it and cap the end. You could even make the cap a bit longer for super strength! A miter on a 2" piece would need to be perfect. Lots of messing with the saw, lengths, etc required for a miter joint.
I like this approach. It will be easy to cut and square and the cap/lap application would make it super strong. Thanks for the idea!
