Bumper and Tire Carrier Build

After i saw the writeup that BESRK did, i really wanted to build my own bumper and tire carrier for my YJ. I finally decided to buy some steel and supplies a few days ago and picked up all my steel for $140 which includes:

6' of 2"x4" rectangular tube with 3/16" wall
6' of 2"x2" square tube with 1/8" wall or 11Ga
4' of 2"x3" rectangular tube with 1/8" wall or 11Ga
2' of 3/8"x3" flat steel bar


Along with that I purchased the tire carrier spindle and 3/4" d ring shackle mounts off of AtoZfabrication for about $86 including shipping. And got some smittybilt 3/4" shackles off of 4wd for $12 a piece.

Bumper Clevis mounts (AtoZfabrication.com)


Tire Carrier Swingout Heavy Duty Hinge Kit (AtoZfabrication.com)



Two nights ago i made the mounts that attach the bumper to the frame. Those were made by cutting the 2' of 3/8"x3" flat steel bar into 2 10" lengths and drilled 4 holes center to center 7.875" by 1.125"
I then cut 2, 1.75" lengths of the 4"x2" rectangular tube and centered it on the mounts

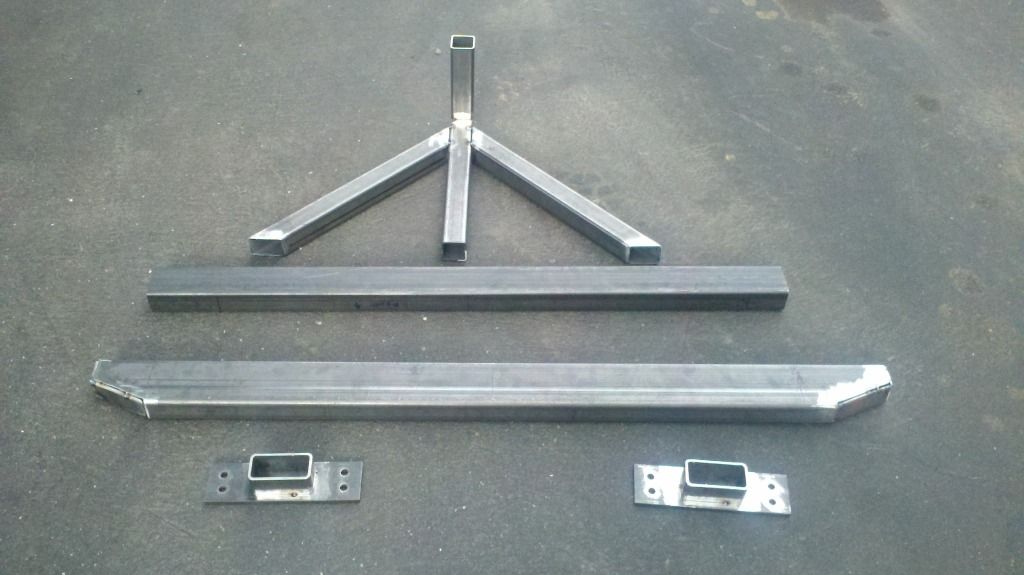

The mounts after being cleaned and tacked:

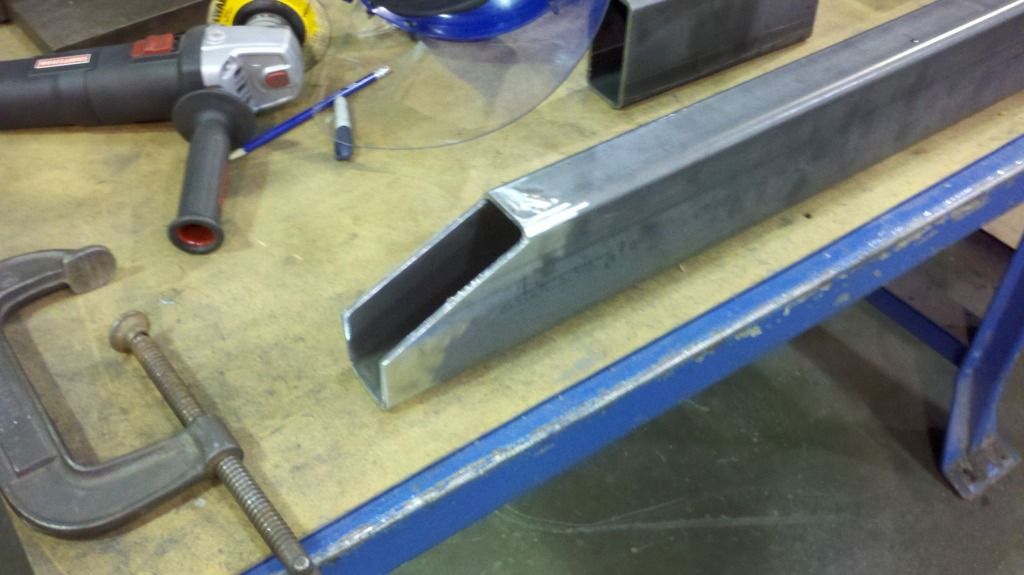

I cut the 2"x4"x3/16" rectangular tube to 55" in length with the horizontal band saw and cut the corners with my 4.5" cutoff wheel to give it some style. I used the remaining 2"x4" rectangular tube to cut 2" strips so that i can cap off the ends of the bumper.

This is what it looked like when i finished cutting one of the ends :



More pics to come soon!

__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-02-2012, 03:43 PM   #2
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,129
Looks good

Mine are also Besrk knock offs.
wushaw is offline   Reply With Quote
Unread 06-04-2012, 03:15 PM   #3
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613

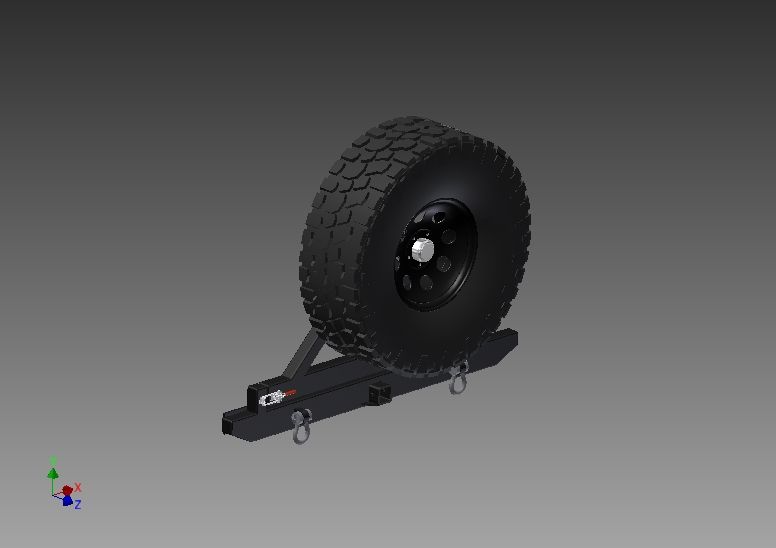

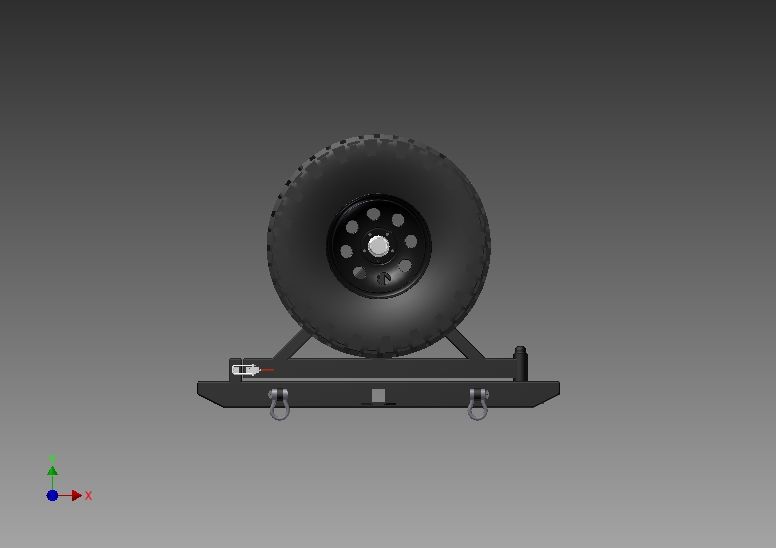

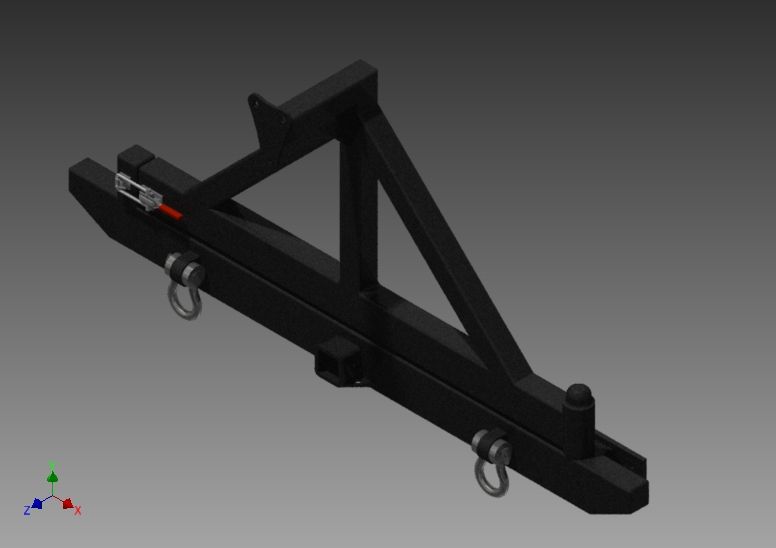

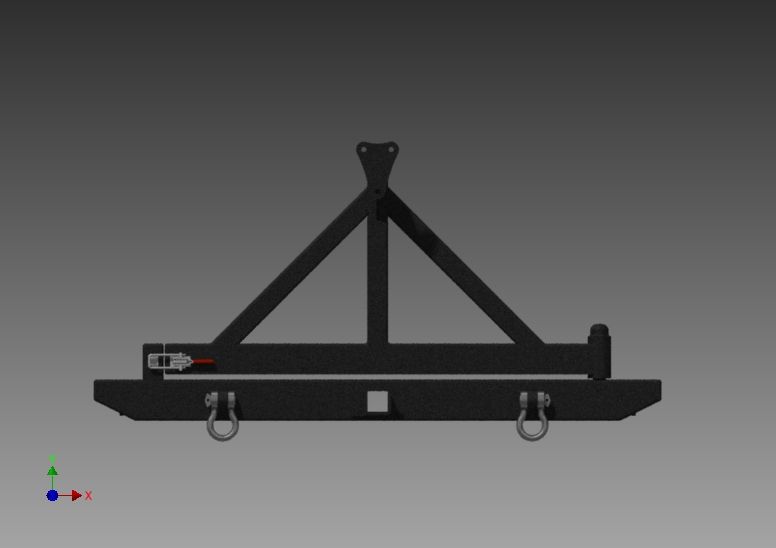

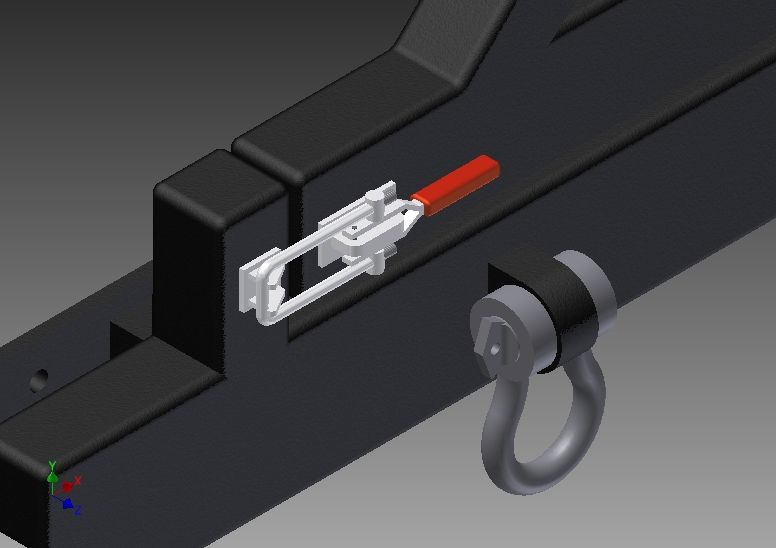

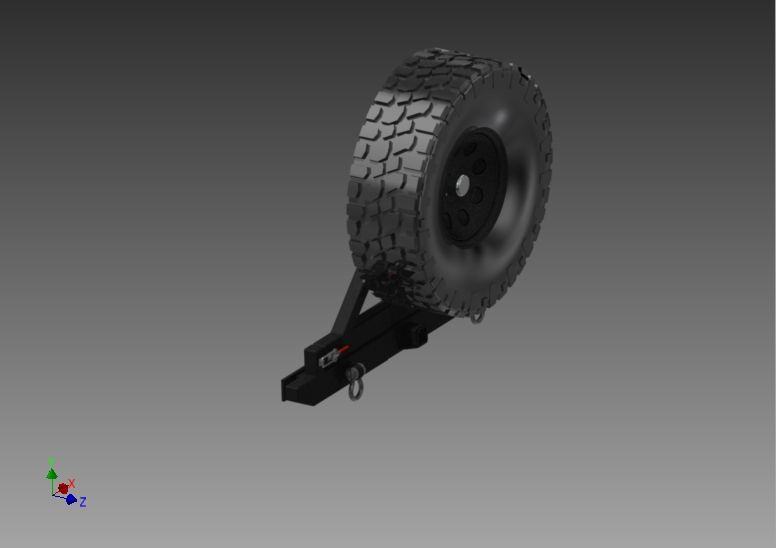

Drew up come CAD/Autodesk Inventor Drawings:






__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-05-2012, 10:52 PM   #4
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613

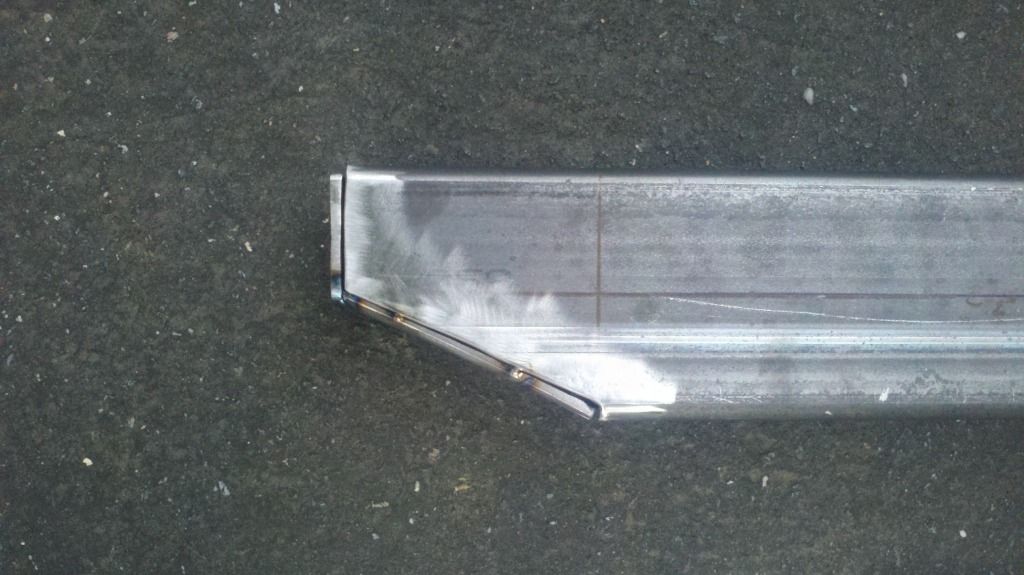

Got some work done yesterday but never got a chance to get some pics. Yesterday i got part of the swingout cut and tacked along with capping the ends on the bumper.




If you dont have access to some 3/16 steel plate, the ends can be capped by cutting some of the 2x4x3/16 tube into 1 7/8" wide strips with the angle grinder and sanding them until their to size. I however had some 3/16 plate laying around at work so used that.

Tomorrow i will use the mill at work to cut the hole for the 1.25" spindle with a 1/25" endmill. I will also use a 1/4" drill to cut the corners in the slots where the D ring mounts will be and cut them with a 1/4" endmill. I also picked up a 2" receiver from harbor freight and plan on adding it in the center of the bumper; i will cut the square hole the same way i will cut the holes for the d ring mounts. If i dont run out of time ill make a gusset for the tire carrier part and also make a mounting plate for the tire out of some 1/4" plate and tack some 1/2-20 bolts through instead of using studs
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-06-2012, 04:25 AM   #5
monkers
Registered User
2010 JK Wrangler

Join Date: May 2007
Location: Upstate NY, NY
Posts: 637
looking good!!! keep the pictures coming......
__________________
2010 Rescue Green 2 Door 6 Spd, 2.5" RK Max Travel, Fox 2.0 IFP Shocks, 37" Nitto Trail Grappler M/T, EVO Sleeves, Gussets, Mini Skids, Rock Stars, Poly Perf Long Travel Upper Shock Mounts, Poison Spyder Evap Skid, Diff Covers, Grab Handles, Cobra 75WXSt, Stern Cibie/Osram Light Upgrade, Mopar Heated Seats, Trimmed Flares & Bumpers
monkers is offline   Reply With Quote
Unread 06-07-2012, 11:26 AM   #6
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613
Thanks! Change of plans... I didnt use the mill at work to cut the square holes for the hitch receiver tube and d ring shackle mount; instead, i measured the radius on the outside of the receiver tube (3/8" radius) and drilled a 3/4" thru hole in the corners using the drill press. i then drew tangent lines connecting the outside edges of each circle so that i had the same shape as the reciever tube, and cut the lines with a 2" cutoff wheel. I did the same thing to the shackle mounts too but i drilled the holes with a 1/4" bit. the only difference is that i had to put a 1/8" radius on the shackle mount so that the corners would fit in no problem. Ill get some pics up asap so you know what i mean.
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-08-2012, 04:14 AM   #7
monkers
Registered User
2010 JK Wrangler

Join Date: May 2007
Location: Upstate NY, NY
Posts: 637
More than one way to skin a cat!! Lots of guys build stuff without mills....I will drill holes like you did and use a torch, or jig saw, grinder, whatever method works. I do not have a plasma cutter, so its torch and grind.
__________________
2010 Rescue Green 2 Door 6 Spd, 2.5" RK Max Travel, Fox 2.0 IFP Shocks, 37" Nitto Trail Grappler M/T, EVO Sleeves, Gussets, Mini Skids, Rock Stars, Poly Perf Long Travel Upper Shock Mounts, Poison Spyder Evap Skid, Diff Covers, Grab Handles, Cobra 75WXSt, Stern Cibie/Osram Light Upgrade, Mopar Heated Seats, Trimmed Flares & Bumpers
monkers is offline   Reply With Quote
Unread 06-08-2012, 05:20 AM   #8
SkippyPB13
Registered User
2000 TJ Wrangler

Join Date: Sep 2011
Location: Vernon, N.J.
Posts: 672
Awesome
__________________
Ask about my Custom Paracord Jeep Stuff!!
Door straps, rollbar grab handles, bracelets.

[url]www.SkippyKustoms.com[/url]
SkippyPB13 is offline   Reply With Quote
Unread 06-08-2012, 10:55 AM   #9
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613
Ive also decided that i want to tie in the bumper into the frame. ill do that by using some of the leftover 2x4x3/16" 2.5 or so inch length steel tube and cutting it diagonally to make it L shaped to fit on the front side of the crossmember and drill into the frame. I also decided to change the way I mount my latch, it will look more like how the LOD latch is positioned.

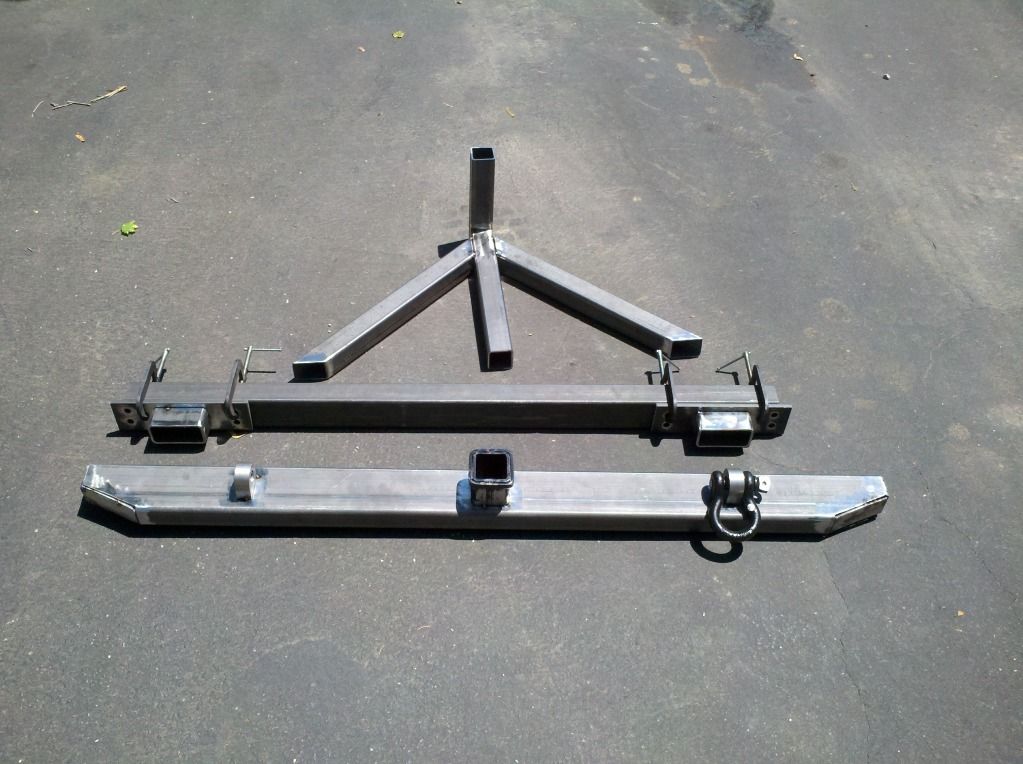

In this pic i have the mounting feet clamped to the 2x3 peice of steel just to hold it into the correct position so it will fit the bolt pattern in the frame. I also have the d ring shackle mounts and 2" reciever tube from harbor freight tacked in to position:

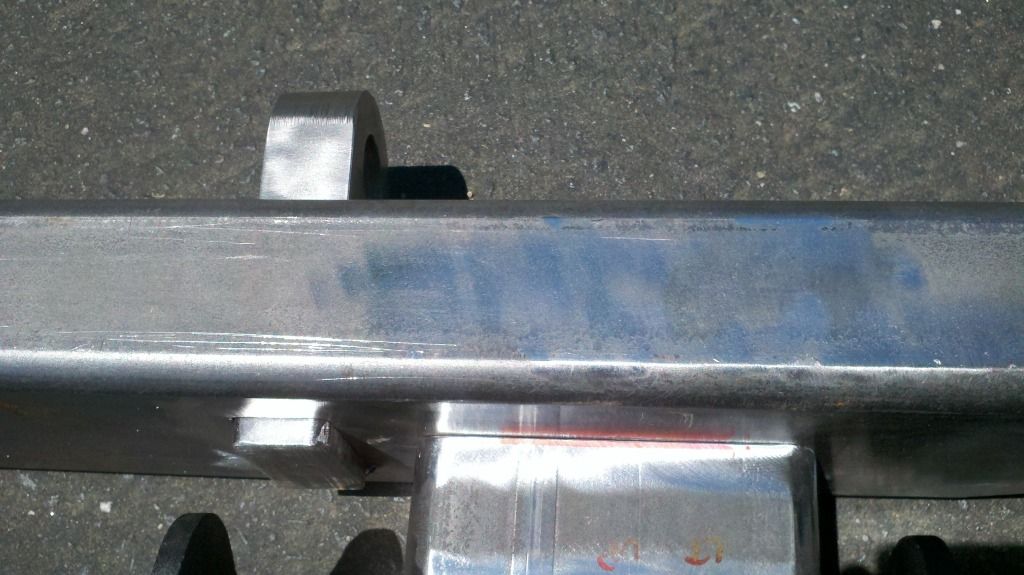

In this pic i also tacked the back of the shackle mount to the bumper and left enough space to weld the mounting feet into place:
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-11-2012, 10:49 PM   #10
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613

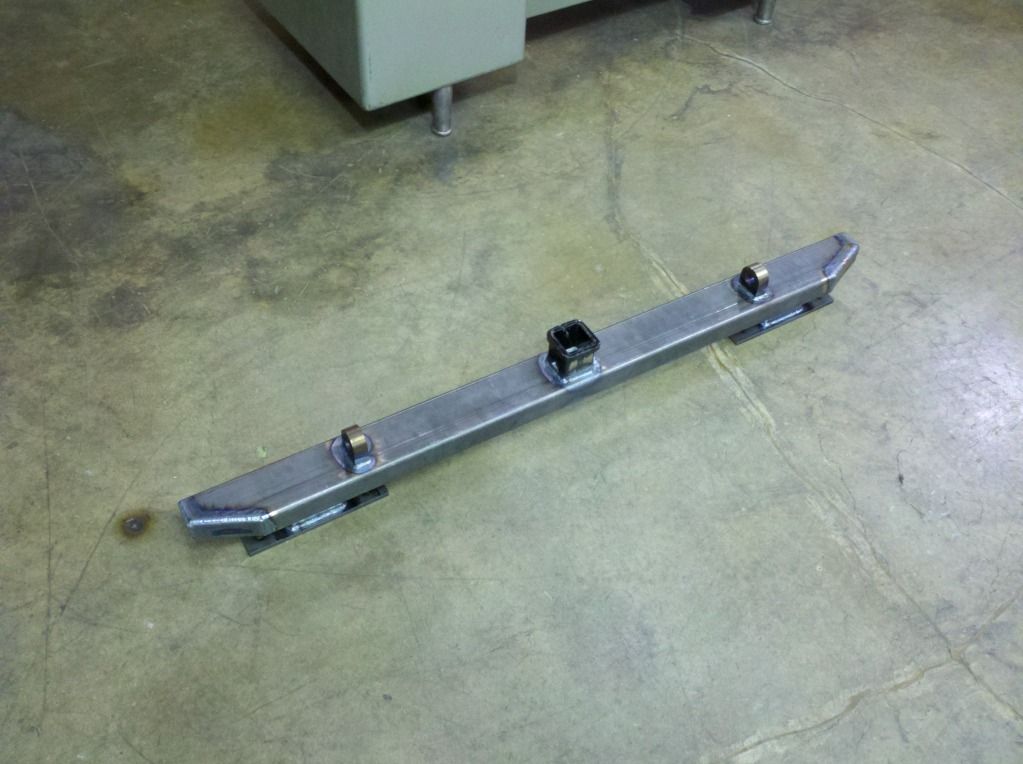

Got alot of the welding done today. i welded both d ring mounts front and back, the receiver tube for the hitch front and back, the end caps were welded too, and i welded the mounting feet on the side closest to the frame and tacked the side near the bumper to make sure it will fit on my jeep. I TIG welded everything with a Miller Dynasty 200 with 3/32 tungsten, size 8 cup, at appx. 180 amps, using 1/8" filler rod

__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
04WJny is offline   Reply With Quote
Unread 06-12-2012, 10:34 AM   #11
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,129
Looking good
wushaw is offline   Reply With Quote
Unread 06-12-2012, 10:21 PM   #12
04WJny
Senior Member

04WJny's Avatar
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 613

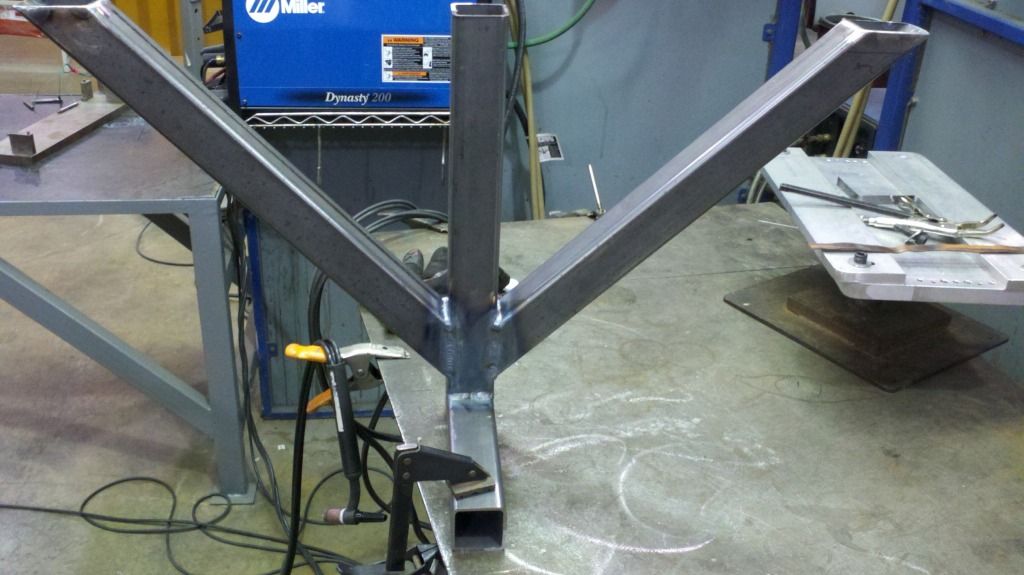

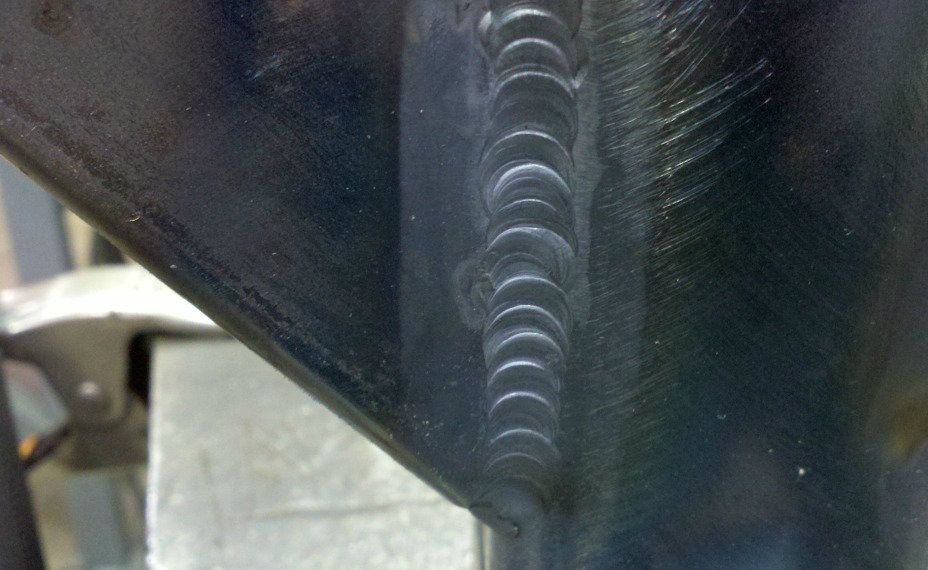

Welded the tire carrier part today except for the 2x3 tube that mounts to the spindle because i have to cut the 2.25" radius. This time i used 110-120 Amps with 3/32 tungsten and 1/16" filler to weld the .120 wall 1018 steel.
