bumper build help

Im hoping to get something made over christmas by a guy I know who is an awsome fab worker. I was just wondering if anyone has any plans for a short front bumper with stinger and winch mount on it. Mainly need it for dimentions and mounting specs.


Thinking of something like this but pretty open to ideas


__________________
2002 Dodge Dakota quad cab V8
2011 Dodge Grand Caravan
frumpy is offline   Reply With Quote
Unread 11-13-2006, 08:21 AM   #2
frumpy
Registered User

Join Date: Dec 2005
Location: Pembroke ON, Ontario
Posts: 2,013
buuuuuuump
__________________
2002 Dodge Dakota quad cab V8
2011 Dodge Grand Caravan
frumpy is offline   Reply With Quote
Unread 11-13-2006, 09:03 AM   #3
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,260
Best thing to do is take the vehicle to him with a "naked" frontend. Then you guys can just sort of work your way out from the frame ends..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 11-13-2006, 09:50 AM   #4
Birdlaw
Registered User

Join Date: Sep 2003
Location: North Carolina
Posts: 120
When I built mine, I pulled off the factory bumper and did exactly as Beserk said.....I started mocking up different configurations. If I had it to do over, I would probably either mock it up in wood (IE a 2x4) and clamp it on so I could evaluate the looks. As far as function, If you use strong materials and good welds, almost any design should work.

I used magazine ads and photos to get ideas and then duplicated a synthesised version.

I started out longer and then trimmed until I got the length and look I wanted.

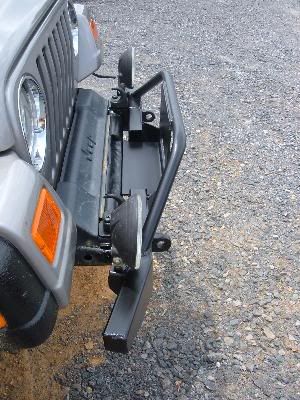

Here is my front bumper:


The tabs for the recovery points are welded on both sides and I had a machine shop cut and drill them for me.

email me if you have any questions....

BTW I taught myself to weld and this bumper was my first project. The welds are ugly because I went over them twice to make sure I had it secured. The bumper is 2x4 3/16 tube and the mounting plate (where my winch would go if I could afford one ) is 1/4 plate.

HTH
